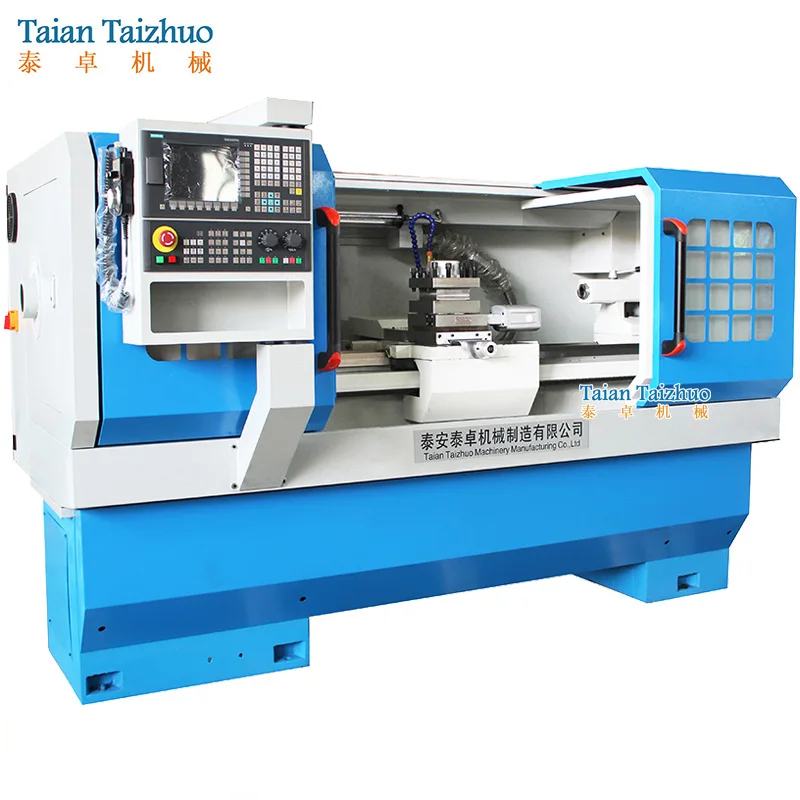

CNC Lathe Machine CK6140 CK 6140
- Category: >>>
- Supplier: Taian Taizhuo Machinery Manufacturing Co. Ltd.
Share on (62059212117):
Product Overview
Description
Product Description

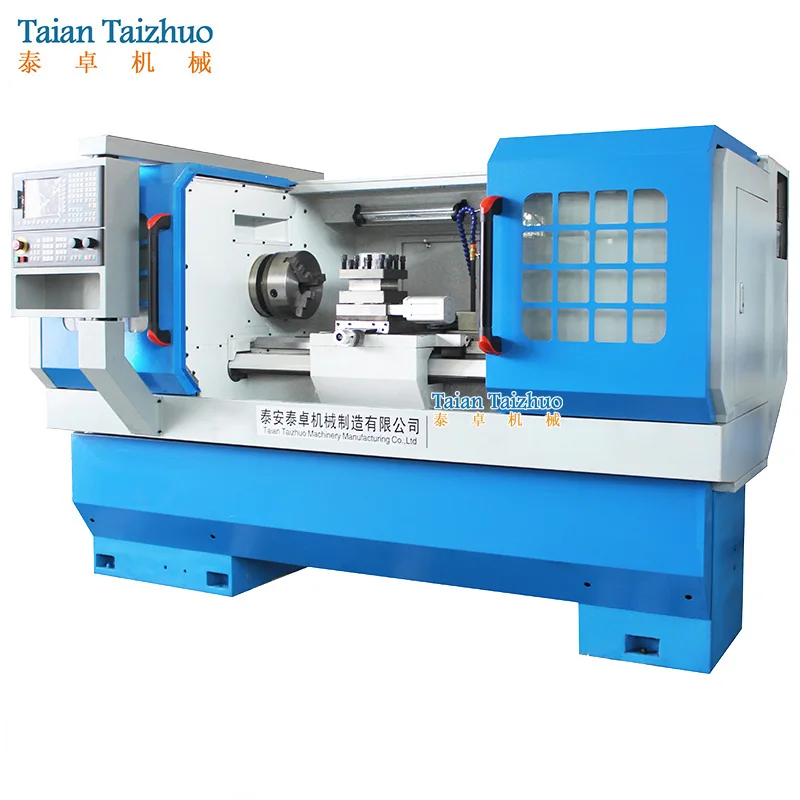

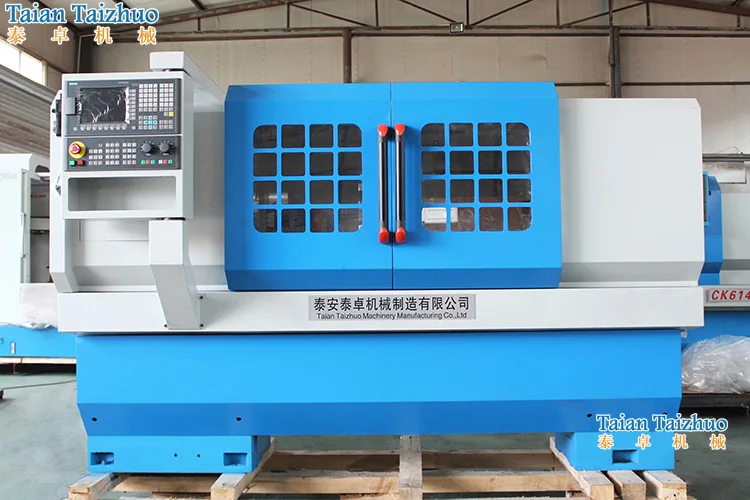

CNC Lathe Machine CK6140
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also. can process the single and multiple threads in metric, inch and other standards.
Model | CK6136A | CK6140A | CK6140B | ||
Max. rotation diameter over bed | mm | Φ360 | Φ400 | Φ400 | |
Max. rotation diameter over pallet | mm | Φ190 | Φ245 | Φ245 | |
Max. workpiece length | mm | 750/1000 | 750/1000 | 750/1000 | |
Main transmission form | Independent spindle | Independent spindle | Two gears | ||
Spindle speed mode | Frequency stepless speed | Frequency stepless speed | Frequency stepless speed in gear | ||
Spindle speed range | r/min | 200-2500 | 200-2500 | 60-1800 | |
Spindle head form | 6-A2 | 6-A2 | 6-A2 | ||
Spindle bore | mm | Φ60 | Φ60 | Φ52 | |
Spindle hole outside taper | MT6 | MT6 | MT6 | ||
Chuck diameter | mm | Φ200 | Φ250 | Φ250 | |
Main motor power | kw | 5.5 | 5.5 | 5.5 | |
Turret maximum stroke | mm | X: 260 Z: 760/1020 | X: 260 Z: 760/1020 | X: 260 Z: 760/1020 | |
Fast-moving feed | mm/min | X: 6000 Z: 8000 | X: 6000 Z: 8000 | X: 6000 Z: 8000 | |
Positioning accuracy | mm | X: 0.01 Z: 0.015 | X: 0.01 Z: 0.015 | X: 0.01 Z: 0.015 | |
Dia. of tailstock quill | mm | Φ60 | Φ60 | Φ60 | |
Tailstock quill stroke | mm | 120 | 120 | 120 | |
Taper of tailstock quill | MT4 | MT4 | MT4 | ||
Repeat positioning accuracy | mm | 0.008 | 0.008 | 0.008 | |
Section of turning tool | mm | 20x20 | 25x25 | 25x25 | |
Size (LxWxH) | mm | 2120x1400x1700 2370x1400x1700 | 2320x1400x1700 2570x1400x1700 | 2320x1400x1700 2570x1400x1700 | |
Net weight | kg | 1800 | 2000 | 2100 | |
Standard configuration:
1) System:GSK928TD-L, servo motor and drive.

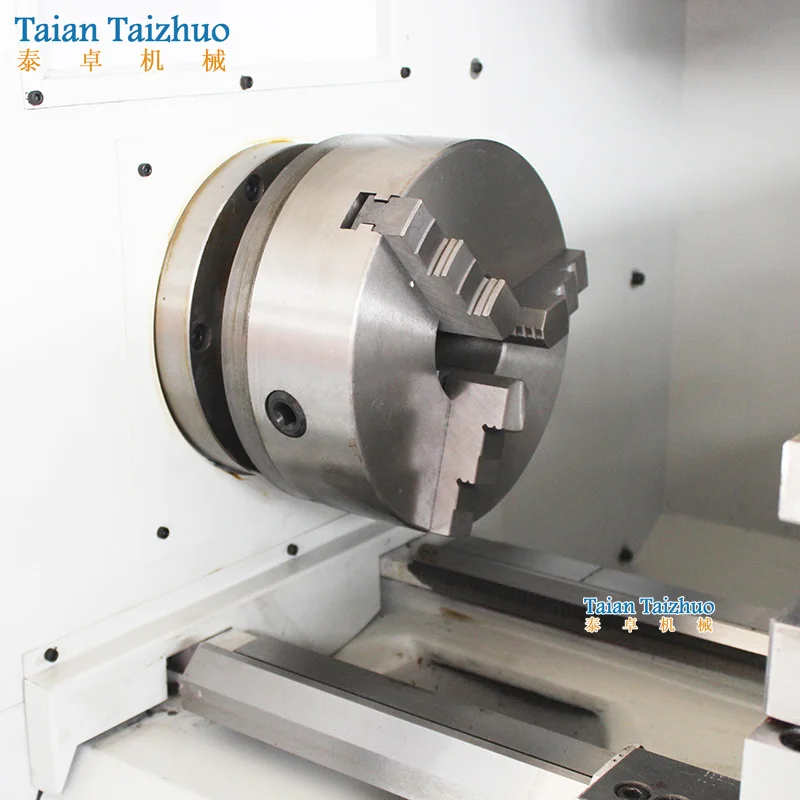

2) 3-jaw manual chuck.

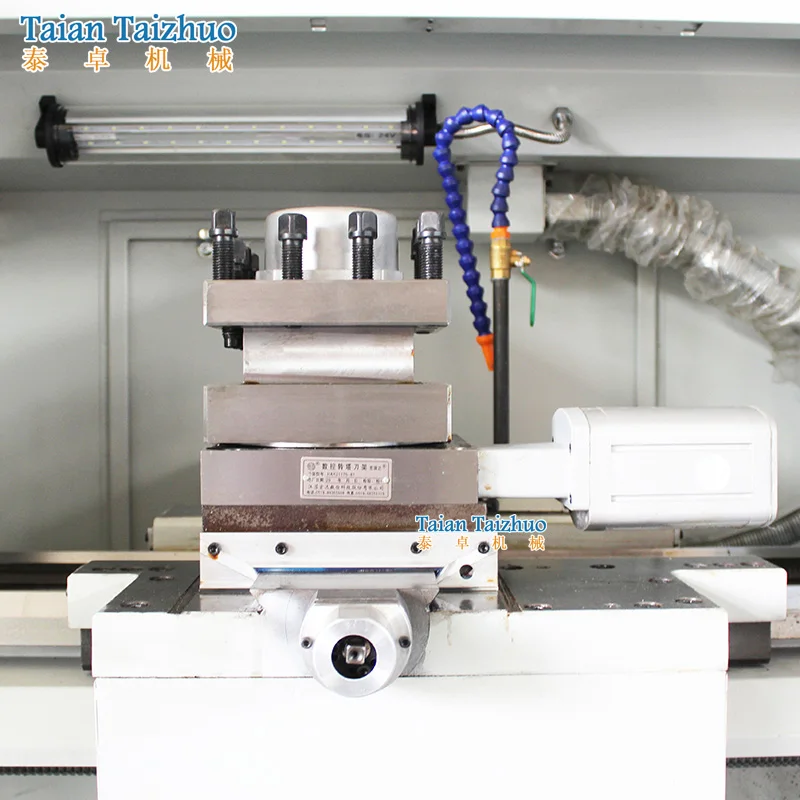

3) Four station electric tool post.

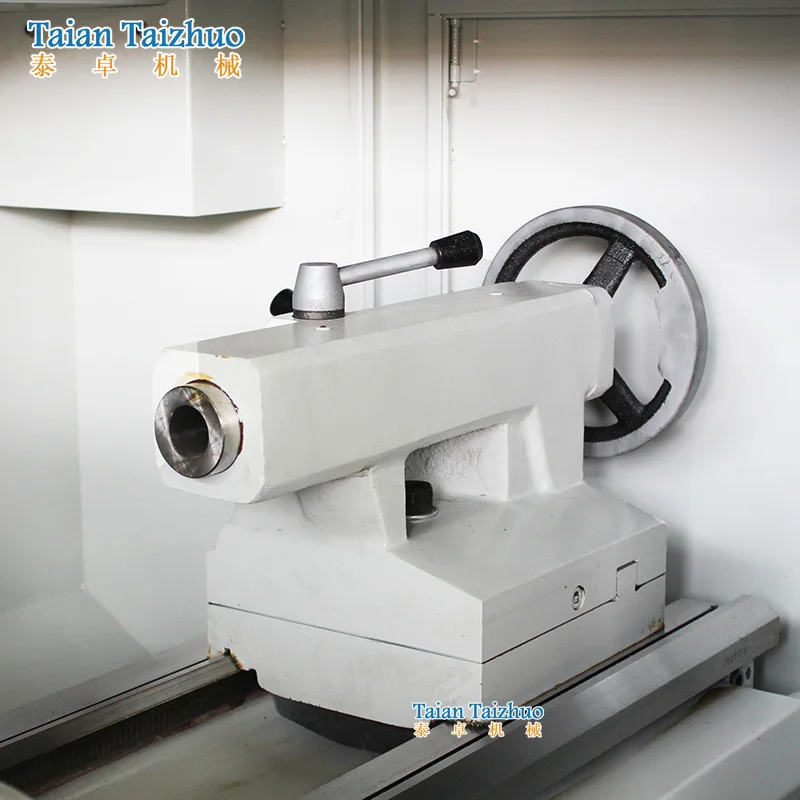

4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.
2) 3-jaw manual chuck.
3) Four station electric tool post.
4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.
Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2). Hydraulic chuck, Pneumatic chuck .
3). Hydraulic tailstock, Pneumatic tailstock.
4). 6/8-station electric turret, Hydraulic turret.
5). Automatic bar feeder, Chip conveyor.
6). Optional processing length: 1000/1500mm.
Important note:
1. Please confirm your local voltage with our sales staff before ordering.
2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose
the best model for you.
2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose
the best model for you.
Detailed Images

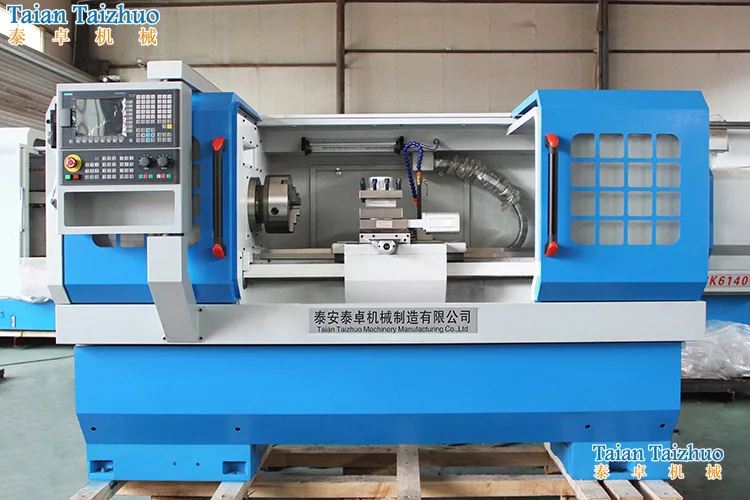

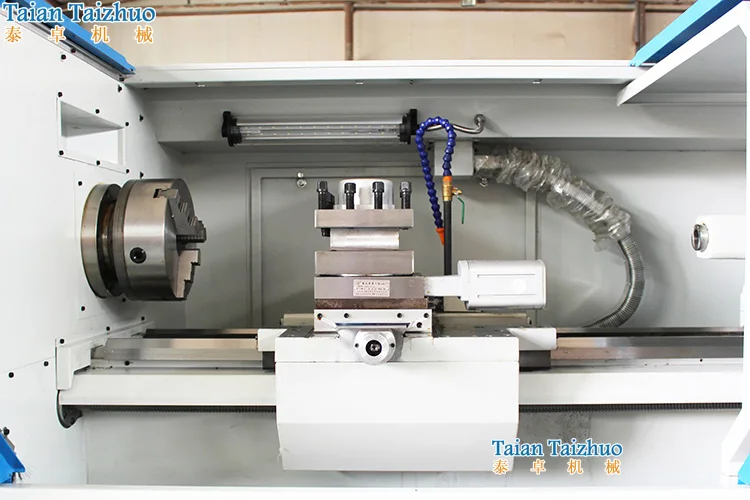

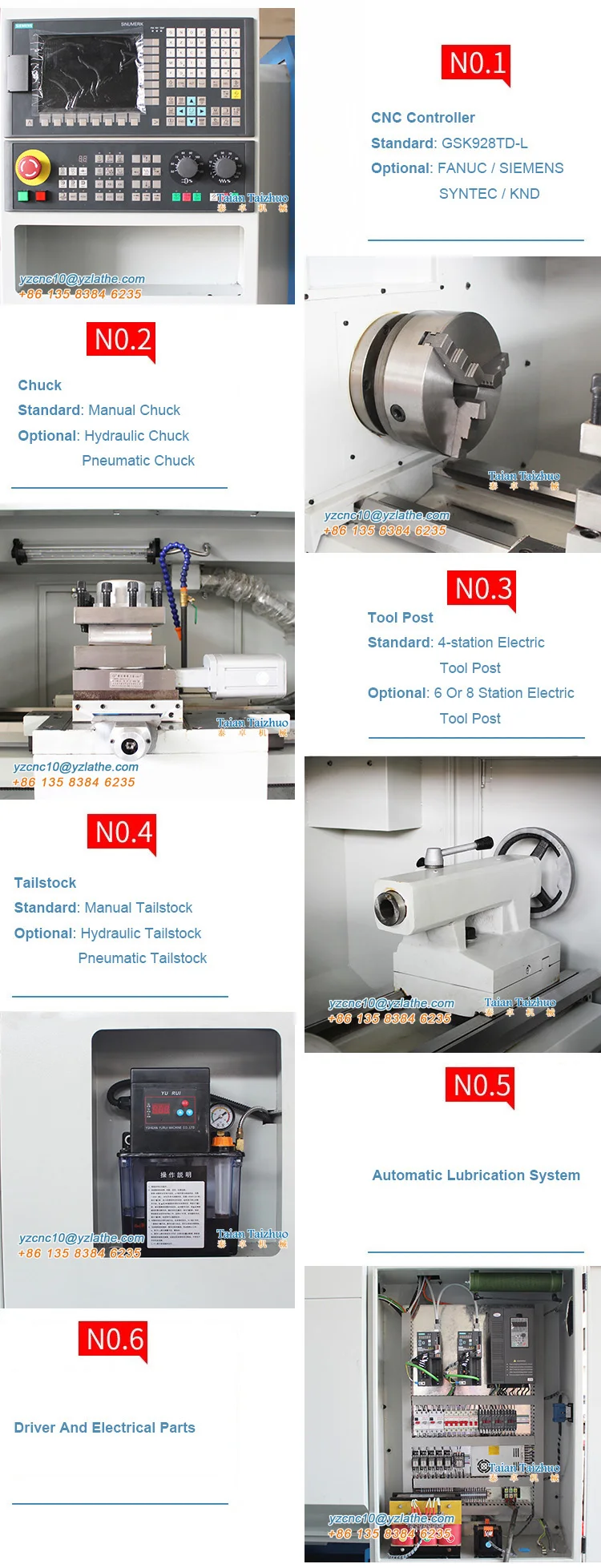

Machine Detail Show
Optional configuration:

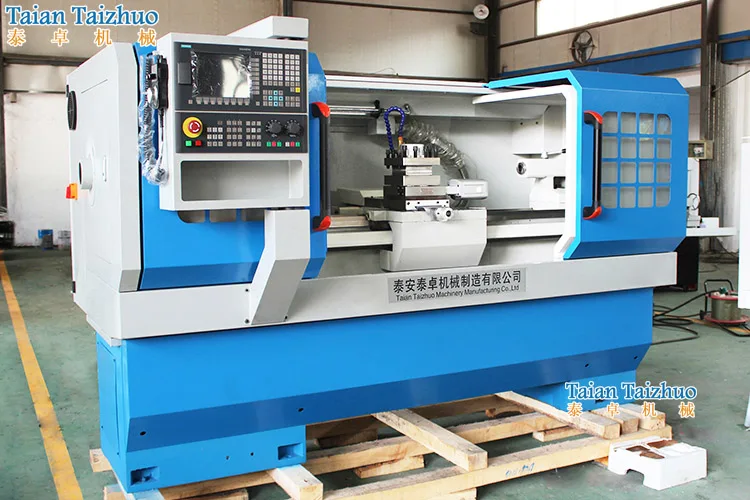

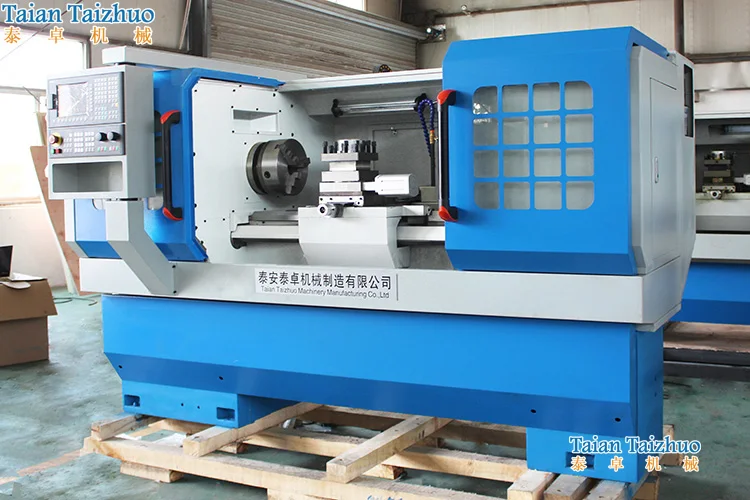

Our Packing
Exporting standard package, water proof, anti-rust and fumigation-free.
Using iron base has good bearing capacity.
