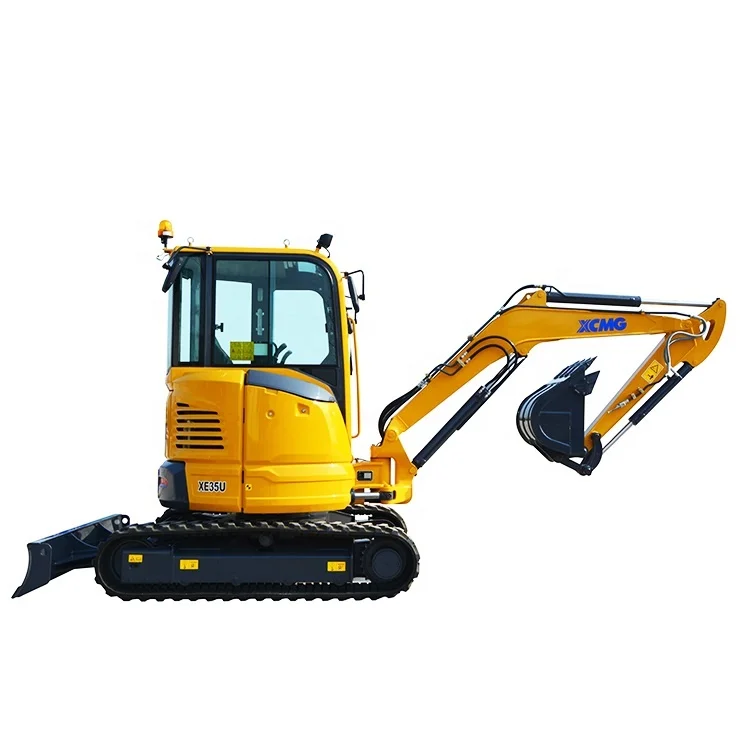

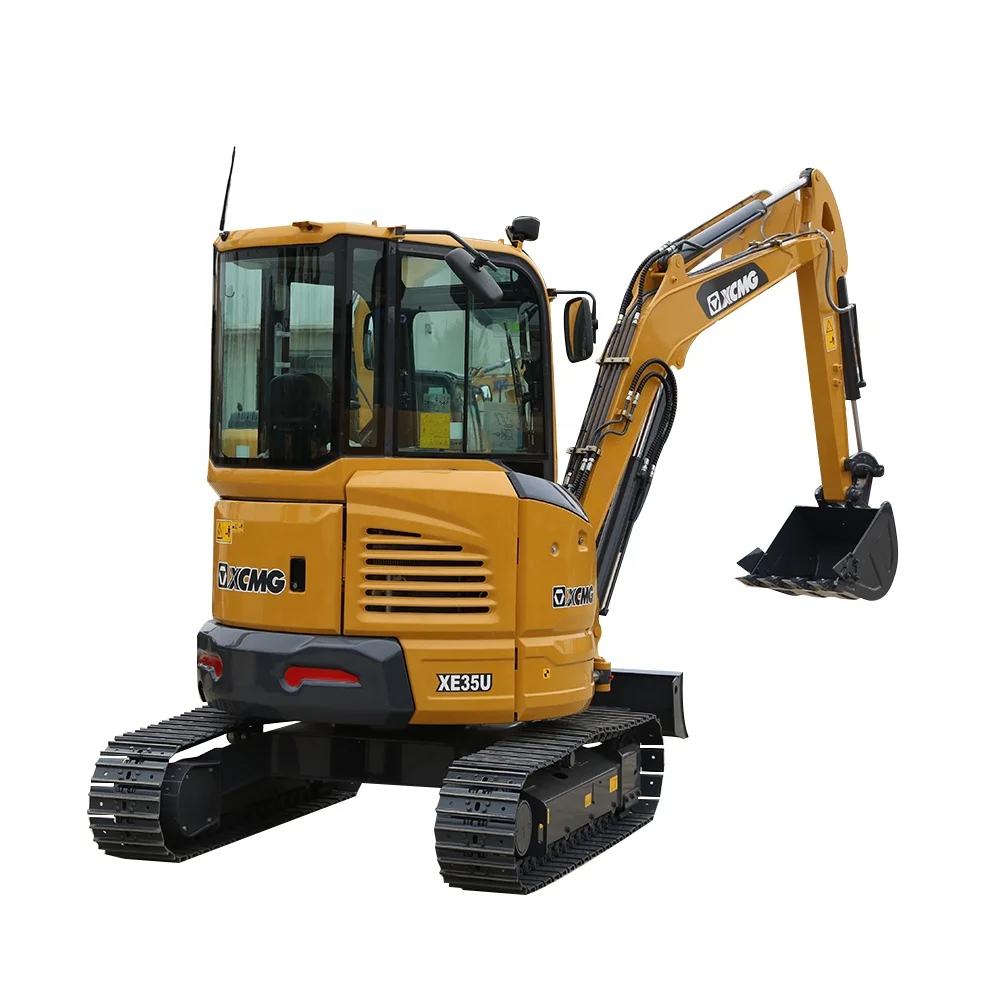

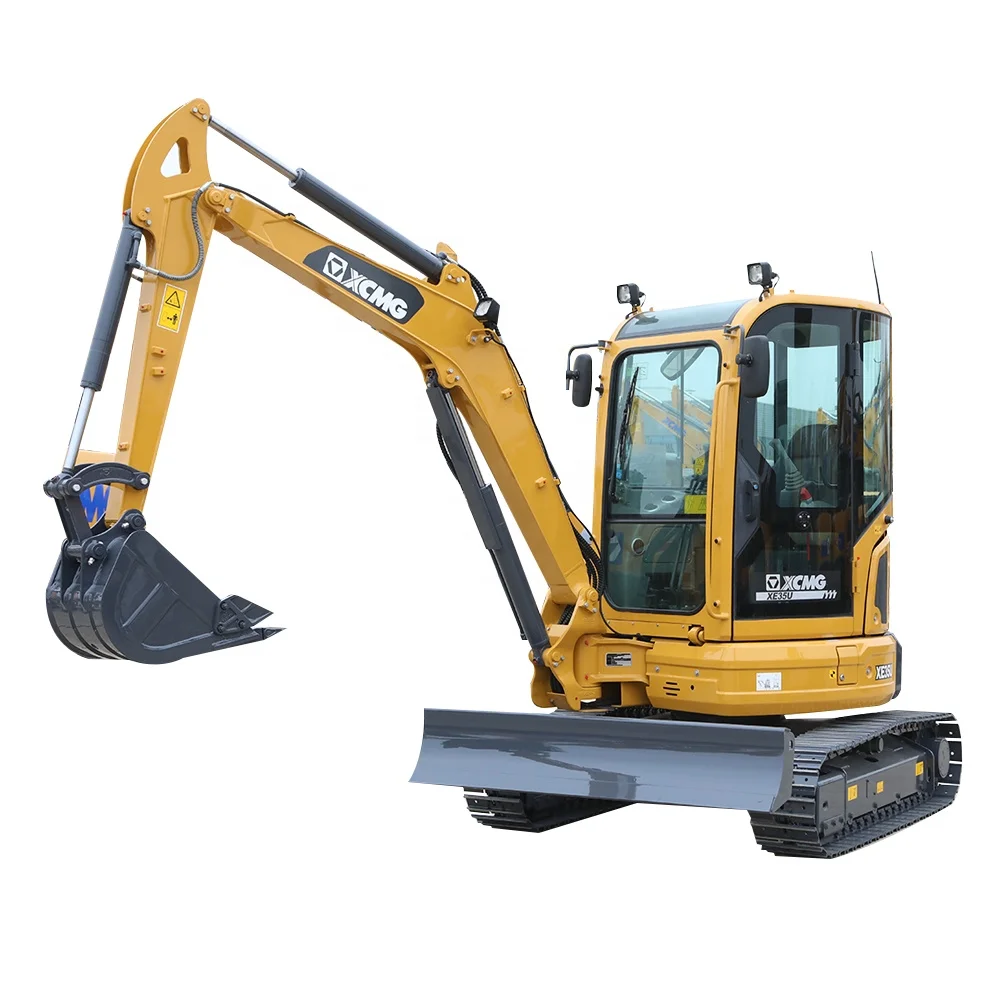

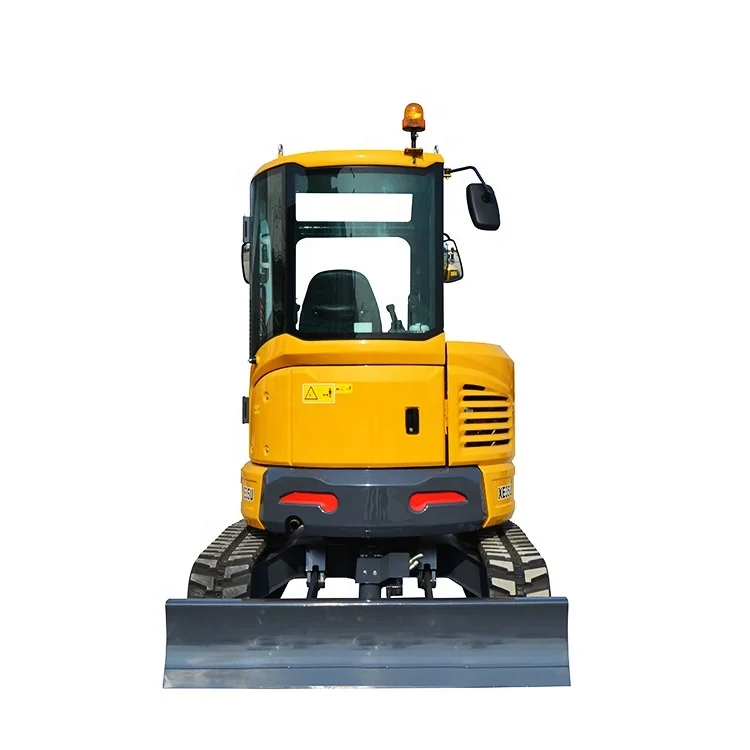

Rubber Track Mini Excavator Tailless 4ton Small Digger 0.11cbm Bucket Hydraulic with Dozer
Rubber Track Mini Excavator Tailless 4ton Small Digger 0.11cbm Bucket Hydraulic with Dozer
Rubber Track Mini Excavator Tailless 4ton Small Digger 0.11cbm Bucket Hydraulic with Dozer
Rubber Track Mini Excavator Tailless 4ton Small Digger 0.11cbm Bucket Hydraulic with Dozer
Rubber Track Mini Excavator Tailless 4ton Small Digger 0.11cbm Bucket Hydraulic with Dozer
Rubber Track Mini Excavator Tailless 4ton Small Digger 0.11cbm Bucket Hydraulic with Dozer

Rubber Track Mini Excavator Tailless 4ton Small Digger 0.11cbm Bucket Hydraulic with Dozer

Share on (62059275161):


Price:RUB 2,350,358.00

Quantity:


Product Overview

Description

Product Description

Rubber Track Mini Excavator 4ton Small Digger 0.11cbm Bucket Hydraulic with Shovel Yanma/r Engine

1) Energy saving.
2) Reliable and durable.
3) Comfortable and safe.
4) Convenient maintenance.

SPECIFICATIONS FOR 4 TON RUBBER TRACK SMALL CRAWLER EXCAVATOR
Engine
Engine model
-
3TNV88-B
Rated power
kw/rpm
22/2400
Max. torque
N.m/rpm
106.4/1000
No. of cylinders
-
3
Displacement
L
1.642

Main performance
Walking speed
km/h
3.6/2.2
Rotary speed
r/min
8.5
Climbing ability
°
30
Ground pressure
kPa
36.6
Bucket digging force
kN
27.6
Arm digging force
kN
20.4
Max. traction
kN
31.6

Hydraulic system
Main pump rated flow
L/min
102
Main safety valve pressure
MPa
22
Travel system pressure
MPa
21
Rotary system pressure
MPa
16.7
Pilot system pressure
MPa
3.5
Oil capacity
Fuel tank capacity
L
40
Hydraulic tank volume
L
45
Working dimensions
Max. digging height
mm
5215
Max. digging depth
mm
3060
Max. digging radius
mm
5415
Min. turning radius
mm
2170
Boom length
mm
2560
Arm length
mm
1350
Detailed Images

Machine Parts

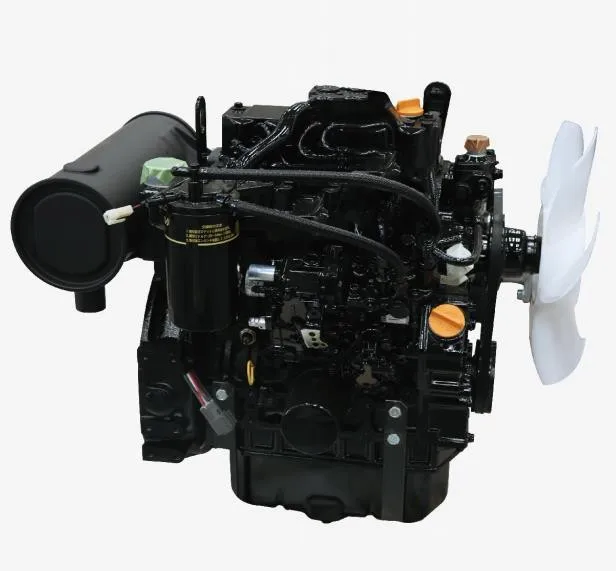

Name: Engine

Brand: YANMAR

Model: 3TNV88-B

The mechanical fuel injection pump has reliable performance; small size, convenient maintenance; low speed torque reserve, strong power; high reliability and low maintenance cost.

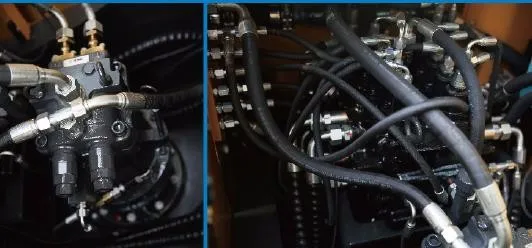

Name: Hydraulic system

The key hydraulic components adopt the latest technological achievements, low energy consumption, fast response, precise control, small impact, and can maintain strong excavation ability and excellent work efficiency. The engine and hydraulic system power is perfectly matched to ensure that the engine works in the optimal fuel consumption area, improve fuel efficiency and save operating costs. The new hydraulic system provides sufficient flow for each work unit and high efficiency.

Easy maintenance

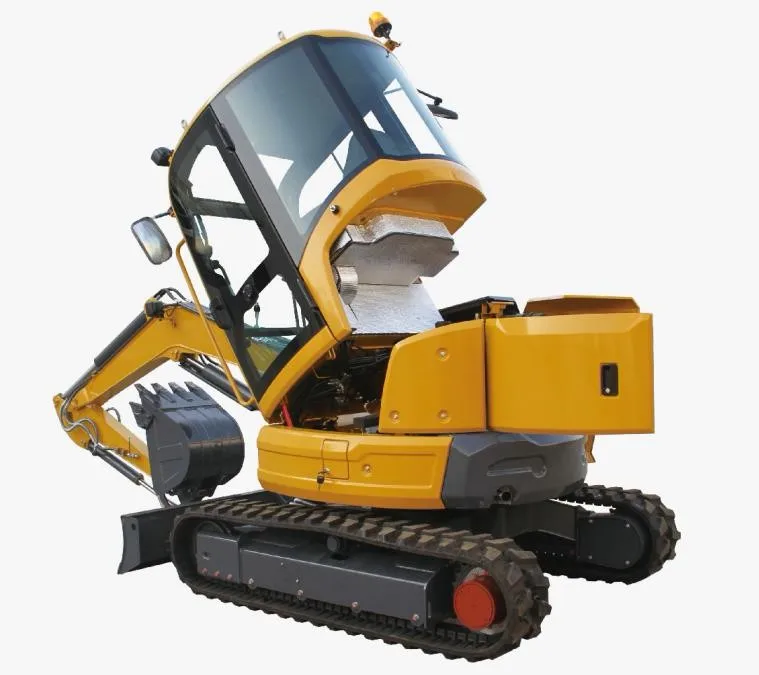

The cab can be turned 35° forward, and the engine and its accessories, main valve, swing motor and center swing body are easy to overhaul. After the cab is turned over, with the fully open rear hood, the generator, starter motor, muffler, electrical and hydraulic system can be quickly repaired, and the machine maintenance has almost no dead ends.
