Product Overview

Description

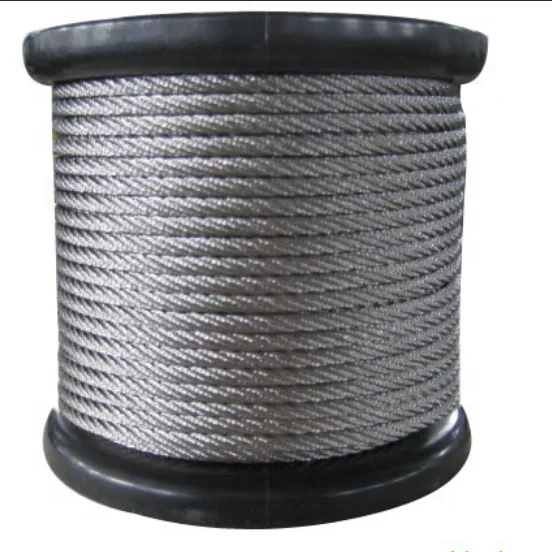

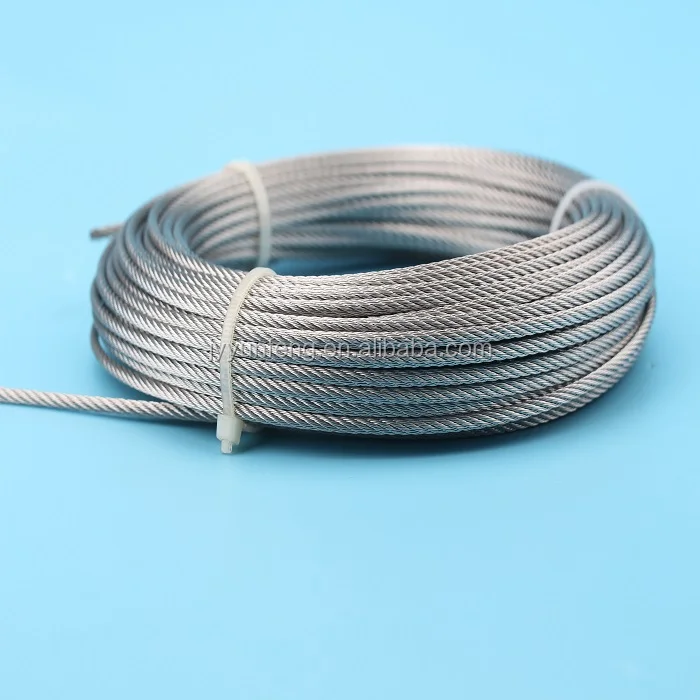

Jiangyin Yunfeng 316 Stainless Steel Wire Rope 7*7

We are a company specialized in the production of zinc-aluminum alloy steel wire rope, plastic steel wire rope, aviation steel wire rope, control line and transmission strip rope.





 6*19+fc

Diameter  (mm)	Approx.Weight		Nominal Tensile Strength
	kg/100m		1570N/mm2		1770N/mm2		1960N/mm2
			Minimum Breaking Load(KN)
MM	FC	WSC/IWRC	FC	WSC/IWRC	FC	WSC/IWRC	FC	WSC/IWRC
2 2.5 3 4 5 6	1.38 2.16 3.11 5.54 8.65 12.46	1.54 2.40 3.46 6.14 9.60 13.82	1.93 3.01 4.34 7.71 12.05 17.35	2.08 3.26 4.69 8.34 13.03 18.76	2.17 3.40 4.89 8.69 13.58 19.56	2.35 3.67 5.29 9.40 14.69 21.16	2.41 3.76 5.42 9.63 15.04 21.66	2.60 4.07 5.86 10.41 16.27 23.43
7 8 9 10 11 12	16.95 22.14 28.03 34.60 41.87 49.82	18.82 24.58 31.10 38.40 46.46 55.30	23.62 30.85 39.04 48.20 58.32 69.41	25.54 33.36 42.22 52.12 63.07 75.06	26.63 34.78 44.01 54.34 65.75 78.25	28.79 37.61 47.60 58.76 71.10 84.62	29.48 38.51 48.74 60.17 72.81 86.65	31.89 41.65 52.71 65.07 78.74 93.70
13 14 16 18 20 22	58.47 67.82 88.58 112.10 138.40 167.46	64.90 75.26 98.30 124.42 153.60 185.86	81.46 94.47 123.39 156.16 192.80 233.28	88.09 102.16 133.44 168.88 208.50 252.28	91.83 106.50 139.11 176.06 217.36 263.00	99.31 115.18 150.44 190.40 235.06 284.42	--	--
24 26 28 30 32 36	199.30 233.90 271.26 311.40 354.30 448.42	221.18 259.58 301.06 345.60 393.22 497.66	277.63 325.83 377.88 433.79 493.56 624.66	300.23 352.36 408.65 469.12 533.75 675.53	312.99 367.33 426.02 489.05 556.43 704.23	338.48 397.24 460.71 528.88 601.74 761.58	--	--

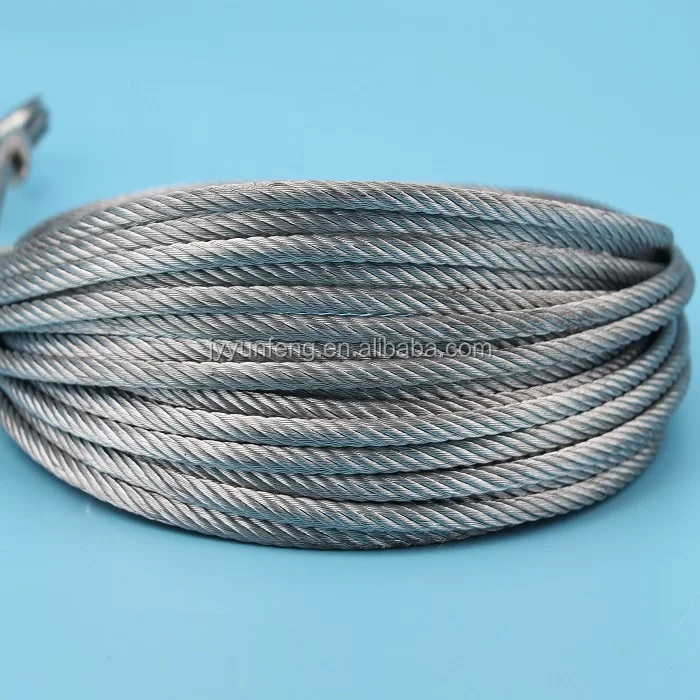

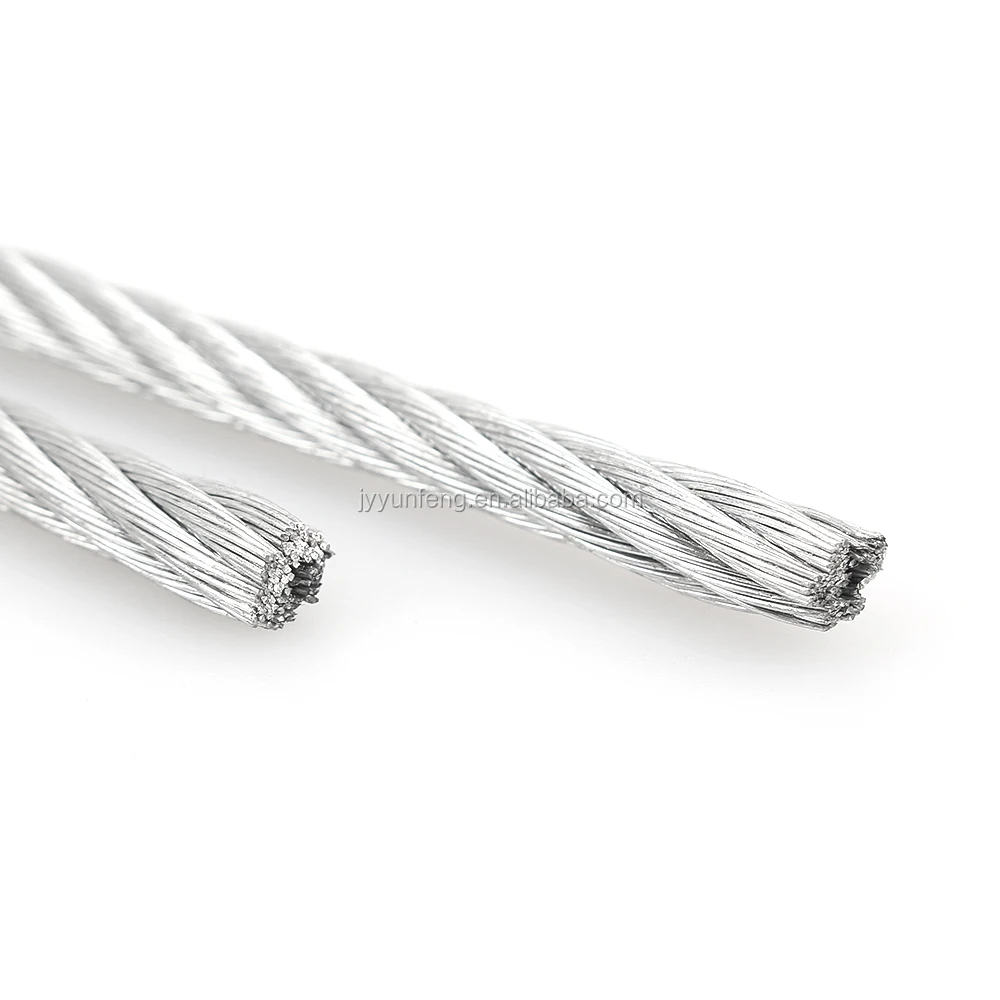

Stainless steel wire rope: with many or many strands of fine wire twisted into a flexible rope, wire rope is made of multi-layer steel wire twisted into a strand, and then the core as the center, by a certain number of strands twisted into a spiral rope.



In the material handling machinery, for lifting, traction, tension and bearing.



Wire rope high strength, light weight, smooth work, not easy to suddenly break the whole root, reliable work.







It hasfeatures of good corrosion,heat and cold resistance in application of various fields such as chemistry,fisher boat,automobile,aircraft,hardware used in family or stores.





 We have the capability to provide the rope in various types of material and structure with shiny surface to meet sustomers' needs.











FAQ:

Q: Manufacturer or Trader?
A: We are manufacturer in wire industry for more than 20 years.

Q: Producing Capacity?
A: The producing capacity totally is 9, 000 tons per month. The producing capacity of this product is 1,500 tons per month.

Q: Main Market?
A: Our main market is foreign customers. 80% of the products are for exporting. The main countries are Japan, South Korea, South Asian area, Europe, America, Canada, and South America etc.

Q: What information should I provide when inquiring?
A: The diameter before pvc coating; after pvc coating, the requirement of the core wire like zinc coating, tensile strength, packing, colour

Q: What is the MOQ?

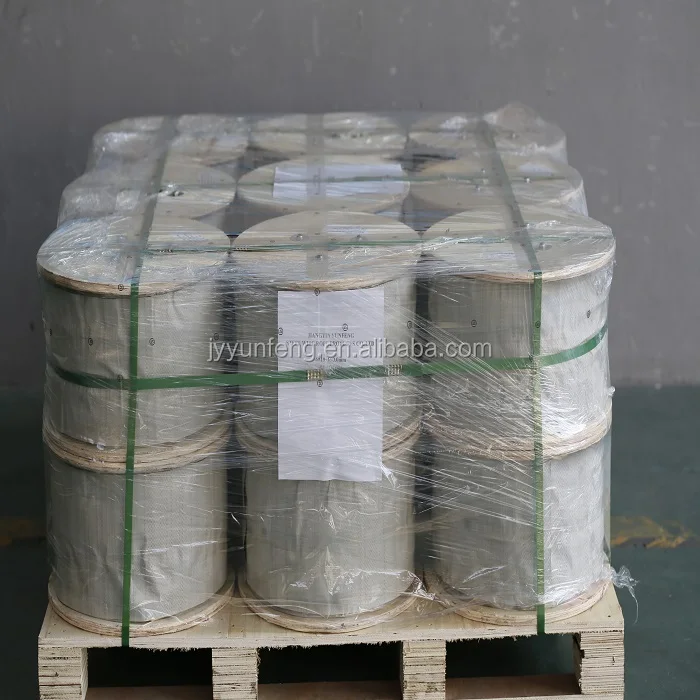

A: For quality checking, we accept small quantity order like one coil. For normal cooperation, we prefer FCL container quantity to ensure the safety of goods in transportation.

Q: What is the payment term?
A: T/T; L/C; D/P etc

Q: Free sample available?
A: Yes. Free sample within 2kg is available

Q: Third Party Inspection available?
A: Yes, available. The charges are on the buyer.
