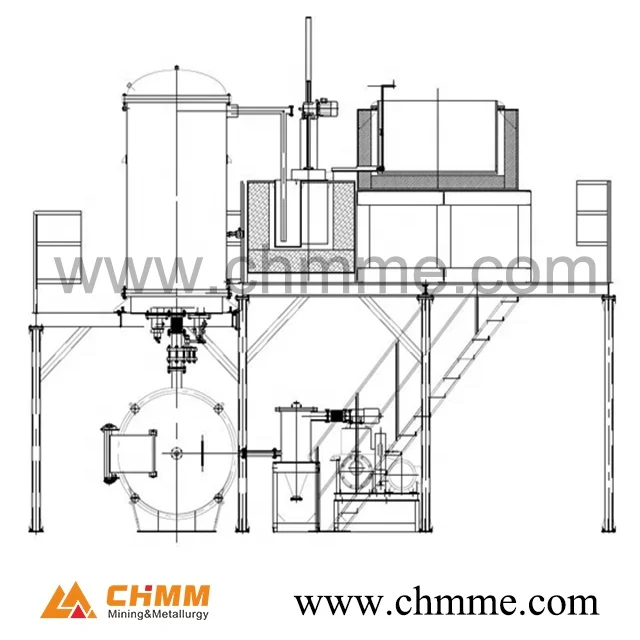

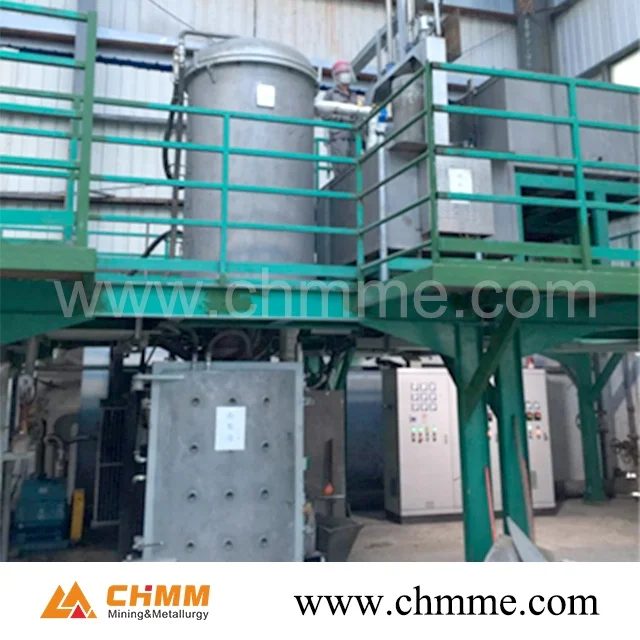

High efficiency noble Lead vacuum distillation furnace
- Category: >>>
- Supplier: Hunan Chmm Metallurgy Engineering Co. Ltd.
Share on (62059421138):
Product Overview
Description
Product Description
Vacuum distillation process is a clean metallurgy process which is widely used to separate the metal with different properties in gasification and condensation.
CHMM Noble Lead vacuum distillation furnace is to separate Lead and Bismuth from noble Lead by using the different saturated vapor pressure between metals, then to further refine the alloy to get concentrated Lead ingot and other valuable metals.
Raw material:
The As removal vacuum distillation furnace can treat the raw material like
l Lead - Sliver alloy
l Lead -Silver -Bismuth alloy
Main technical parameters of the equipment
No. | Item | Data |
1 | Capacity | 10-15 t/d |
2 | Power | 250kW |
3 | Energy consumption | 1000~2000 kWh |
4 | Melting furnace temperature (Ag content≤10%) | 550 °C |
5 | Holding furnace | 600 °C |
6 | Working temperature | 1200 ℃ |
7 | Vacuum degree | 50Pa |
8 | Recovery rate of precious metal | >98% |

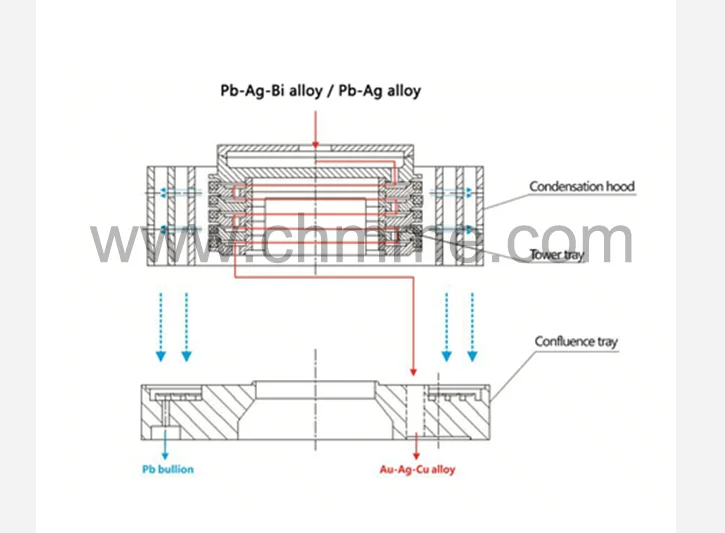

Process flow
The vacuum distillation furnace is designed by multi-layer for better releasing the gas. Lead bullion are melt by the melting furnace, all the gas will form into vapour and gather into the condenser, while the liquid will flow down around the tray gradually during the meantime. The unevaporate gas will be collected at the bottom of tray and the liquid alloy could be cast into ingot. The evaporate gas will be gathered after condensation to get Lead bullion.

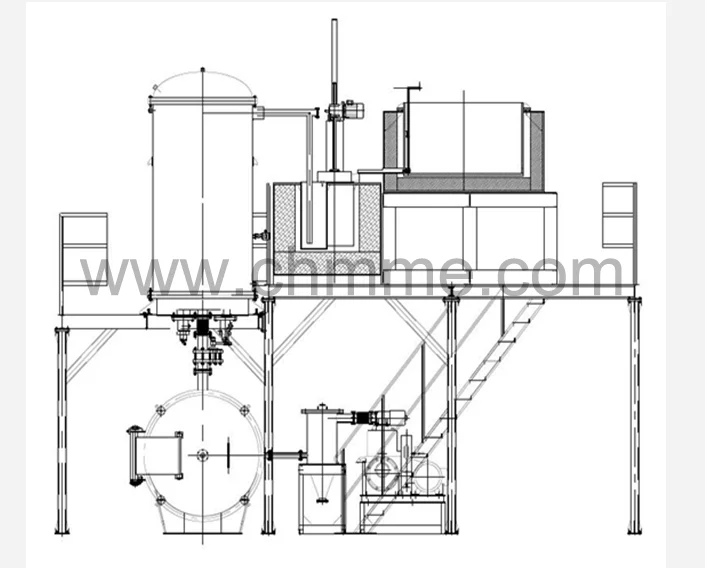

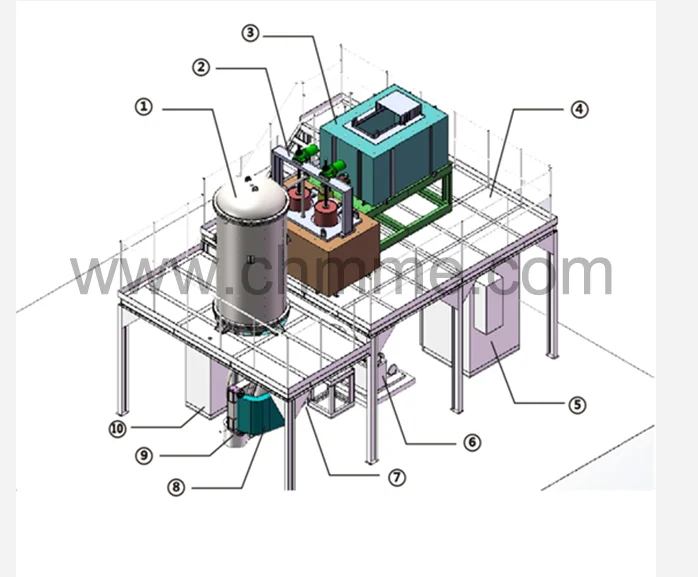

Main equipment components
1.Furnace body 2.Constant feeder 3.Melting furnace 4.Operating platform
5. Electric control cabinet 6.Gas circuit system 7.Water circuit system 8.Vacuum casting chamber 9. Pb holding furnace 10. Power source
Company Information
China has ranked as the world’s largest producer of nonferrous metals with its fast economy growth over the last two decades. After continuously making efforts on tackling key technological problems and accumulating a wealth of experiences in practice, now CHMM are delight and ready to share the CHINESSE EXPERIENCE, COST-EFFECTIVE PRODUCTS AND SERIVCES with all friends in nonferrous beneficiation and metallurgy industry all over the world.
CHMM is providing the most advanced technology and services for sustainable use of nonferrous resources of earth, mainly to provide energy saving, environmental protection, high quality and efficient producing technology, equipment and services for the Copper, Lead, Zinc, and Tin and other nonferrous smelting industry.
CHMM provides extensive and flexible business cooperation models for domestic and overseas customers, including research, design, equipment supply, installation, commissioning, training, test run and operation.
Packaging & Shipping
Packaging Details: vacuum distillation furnace packing:Plastic wrapping film and wooden pallets
- Port: Shenzhen,Guangzhou or Shanghai
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Factory visit support
* Sample testing support
After-Sales Service
* Training how to install the furnace, training how to use the furnace.
* Engineers available to service machinery overseas.
contact details
Please kindly contact us at below information if you have any demand.
