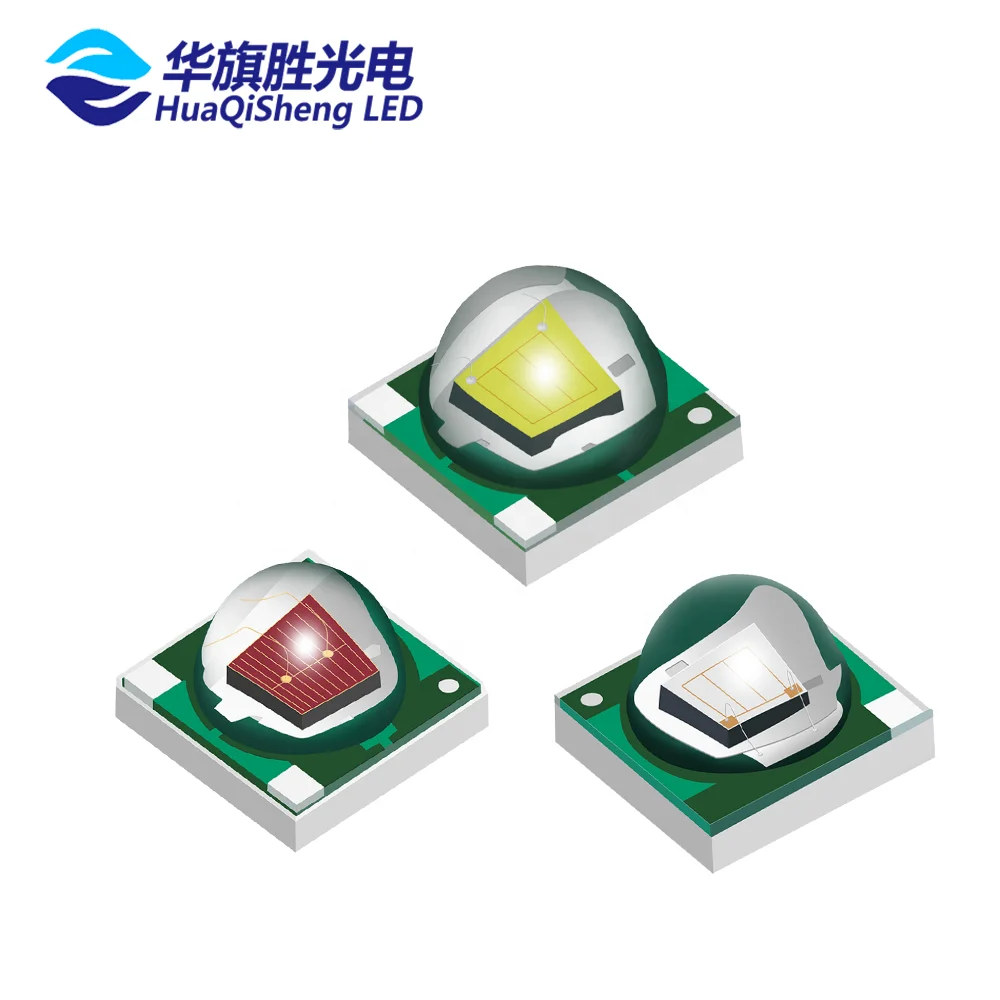

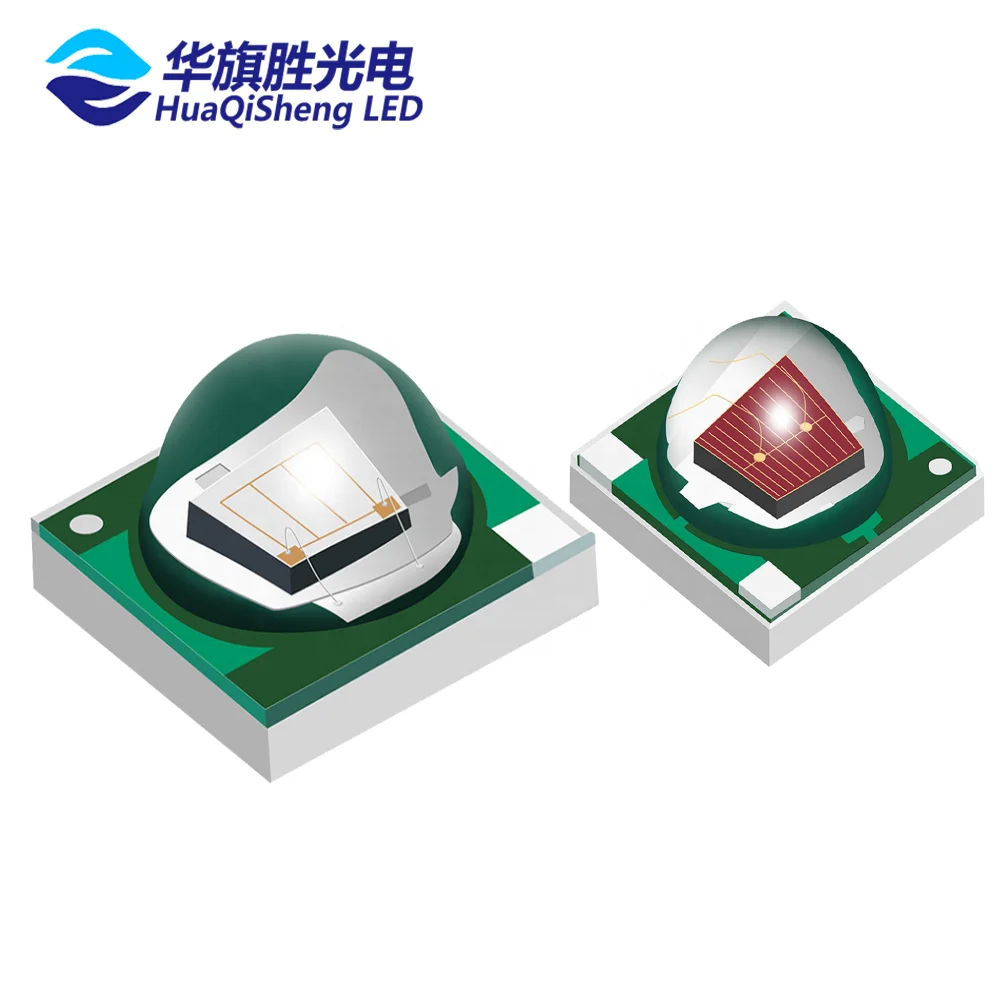

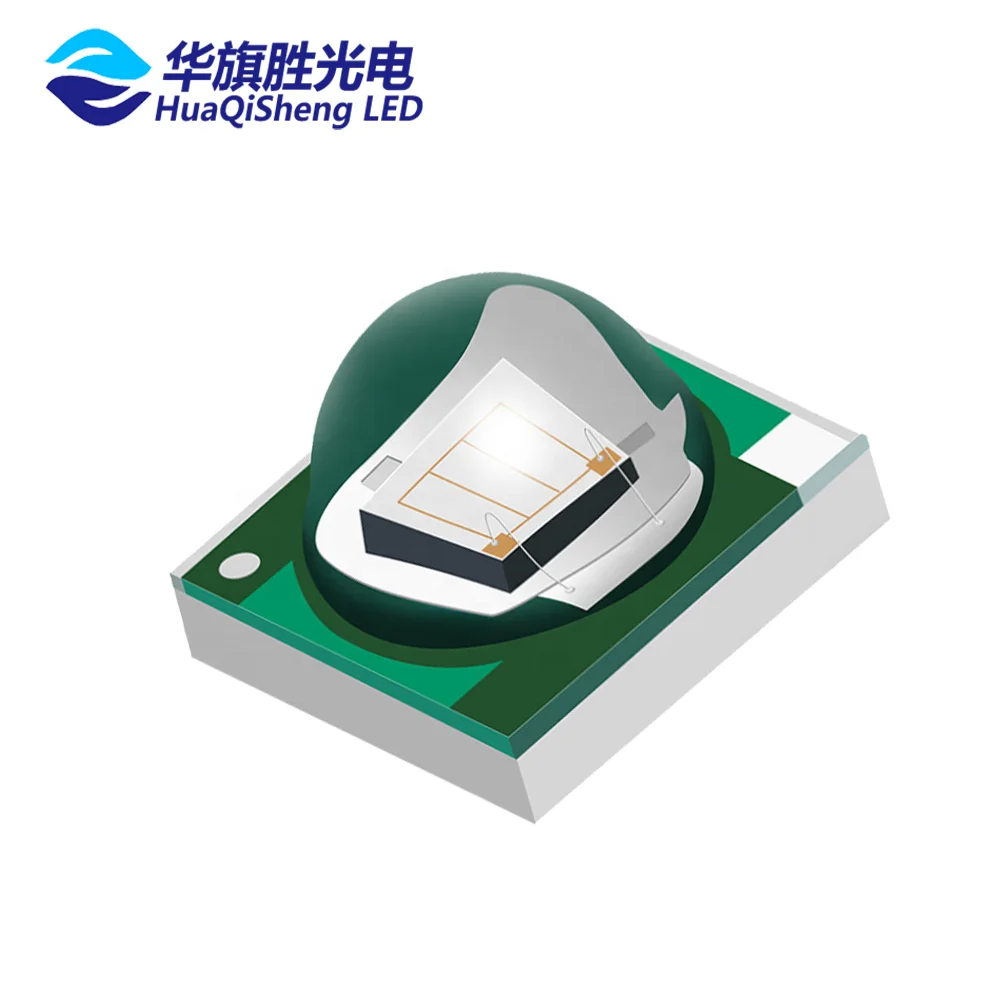

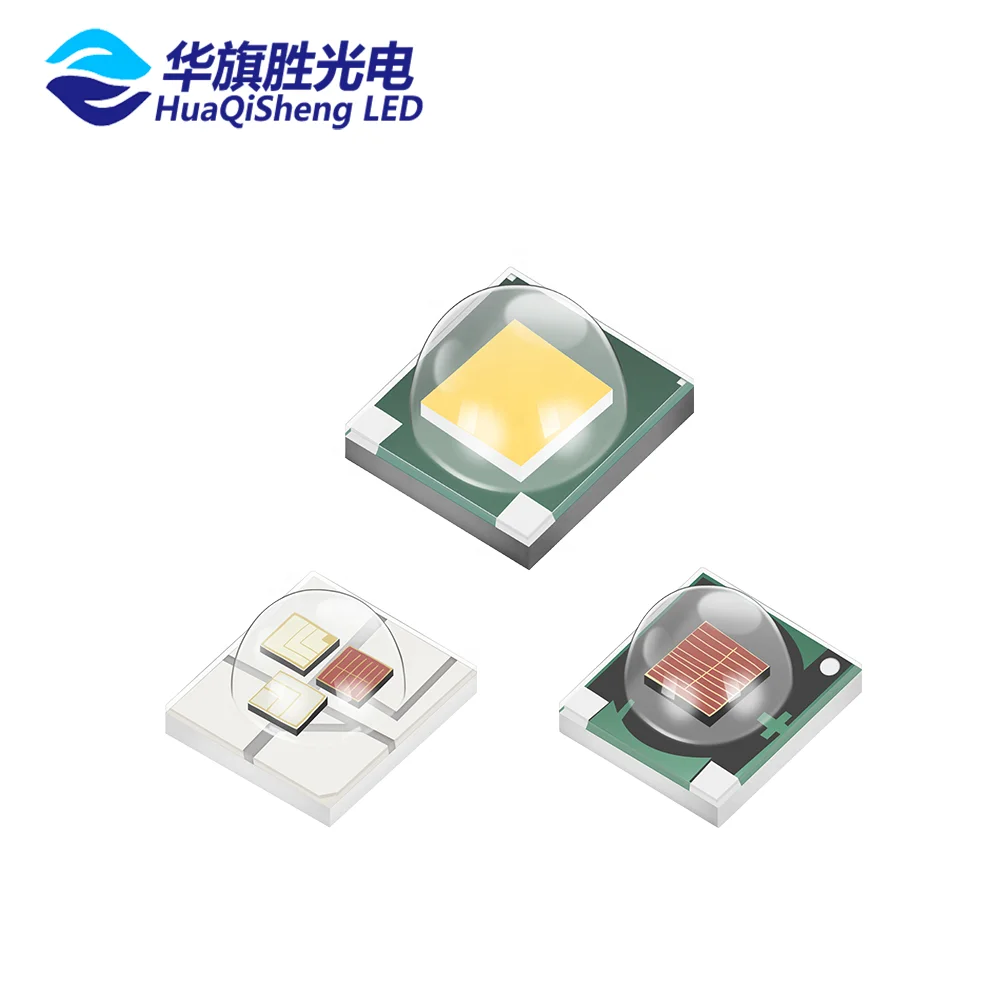

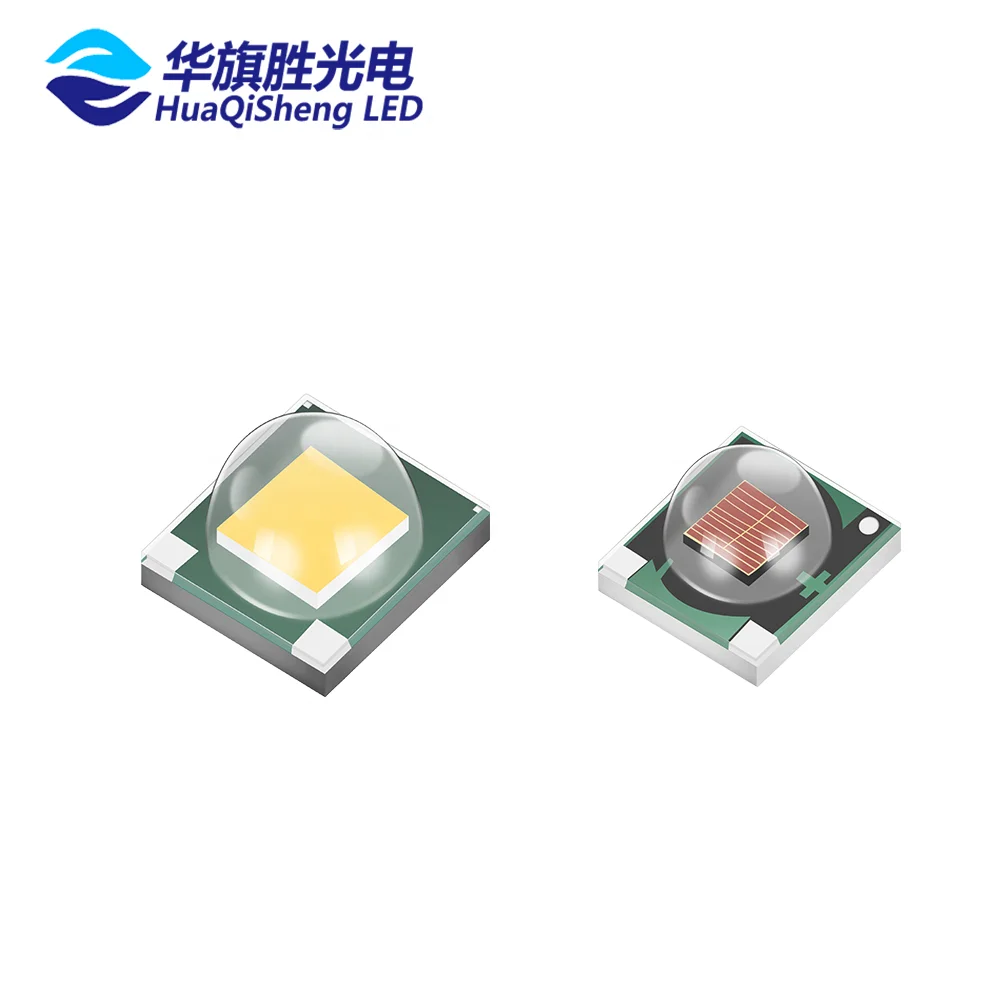

High Power SMD 3535 LED UV 365nm Diode UV LED for Epson Printer

Product Overview

Description

Product Name	LED UV 365nm Diode	Product Model	HQS-3535V1
Power Dissipation	3W	Light Color	UV Lights
Forward Voltage	3.0-3.4V	Viewing Angle	60° /120°
Forward Current	350-500mA	Operating Temperature	-40~+60 ℃
Radiant Flux	600-800mW	Storage Temperature	-40~+85 ℃
Wavelength	360-370nm	Soldering Temperature	260℃





3535 UV SMD LED SERIES SPECIFICATION
Product Name	Wavelength	Voltage	Current	Radiant Flux	Viewing Angle
3535 UV LED	365-370nm	3.0-3.6V	350-500mA	600-800mW	120°
3535 UV LED	365-370nm	3.2-3.8V	350-700mA	1600-2000mW	60°/120°
3535 UV LED	375-385nm	3.2-3.8V	350-500mA	900-1100mW	120°
3535 UV LED	375-385nm	3.2-3.8V	350-700mA	1600-2000mW	60°/120°
3535 UV LED	390-420nm	3.2-3.8V	350-500mA	1000-1100mW	120°
3535 UV LED	390-410nm	3.2-3.8V	350-700mA	1100-1300mW	60°/120°
5050 UV LED	365-370nm	6.0-8.0V	700-1500mA	7000-9000mW	60°/120°
5050 UV LED	380-385nm	6.0-8.0V	700-1500mA	4500-6000mW	60°
5050 UV LED	390-405nm	6.0-8.0V	700-1500mA	2500-3500mW	120°
5050 UV LED	390-405nm	6.0-8.0V	700-1500mA	5000-6000mW	60°/120°
5050 UV LED	410-415nm	6.0-8.0V	700-1500mA	3500-4500mW	60°
