Long Range Rf Iot Durable Uhf Repeater Data Link Radio Transmitter And Receiver
Products Description

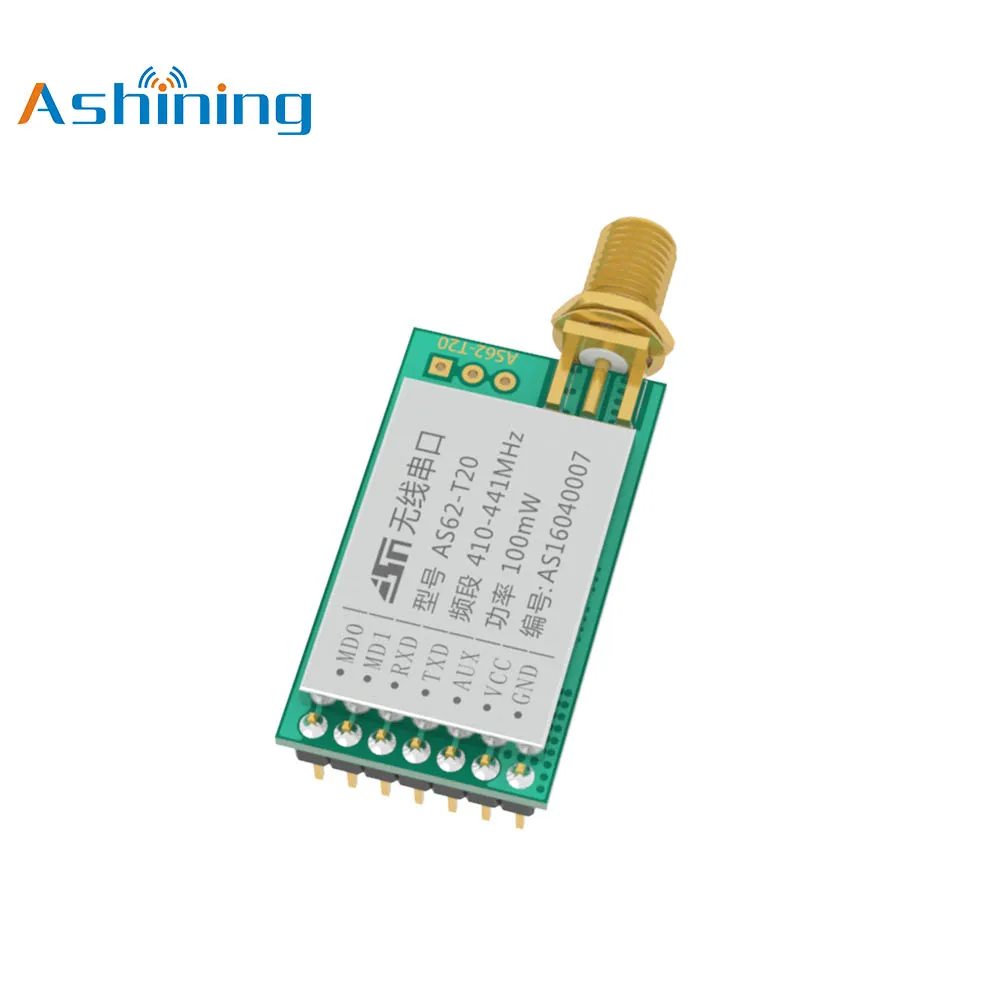

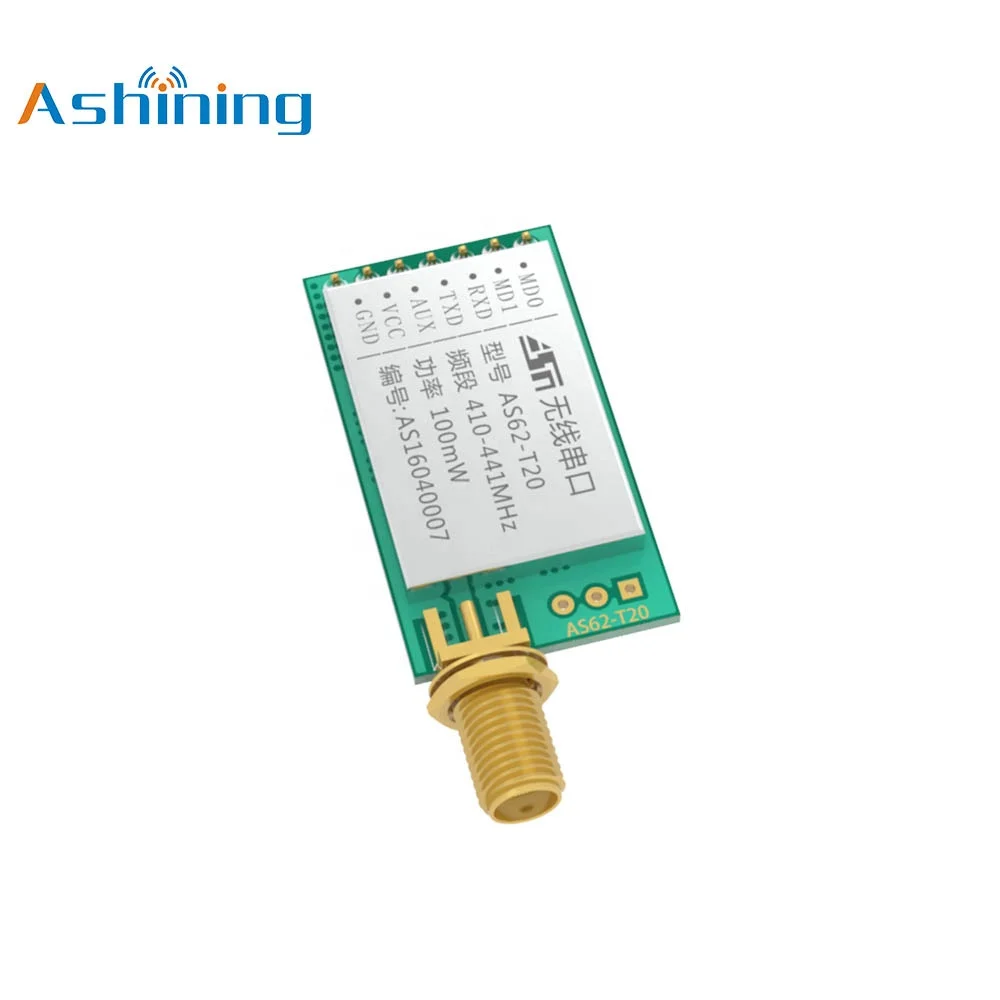

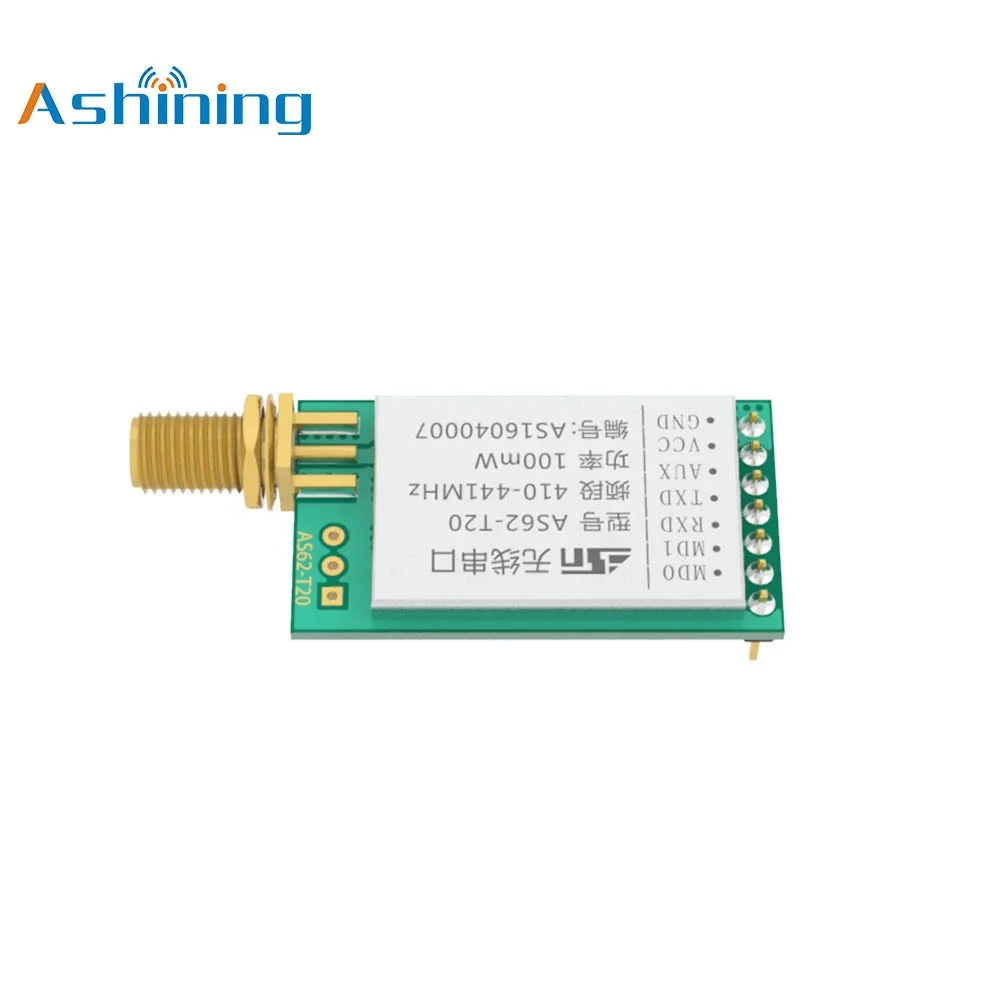

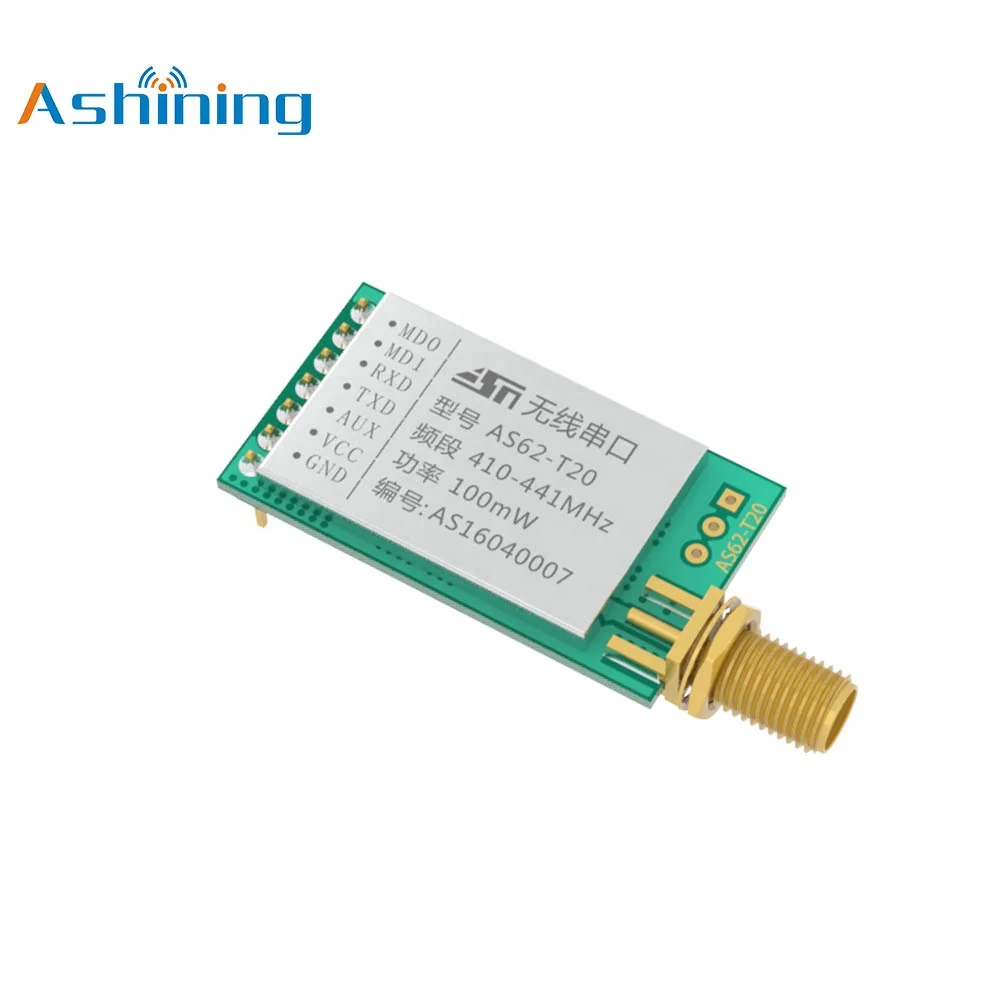

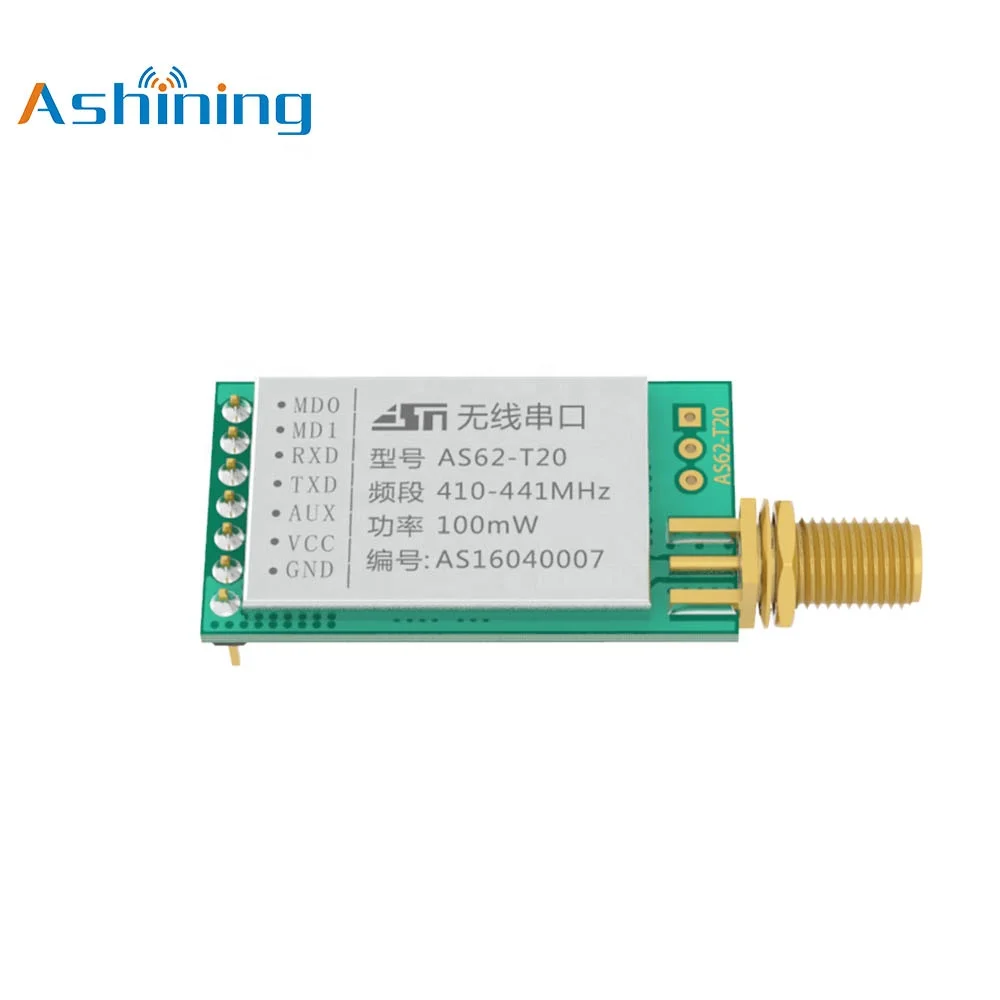

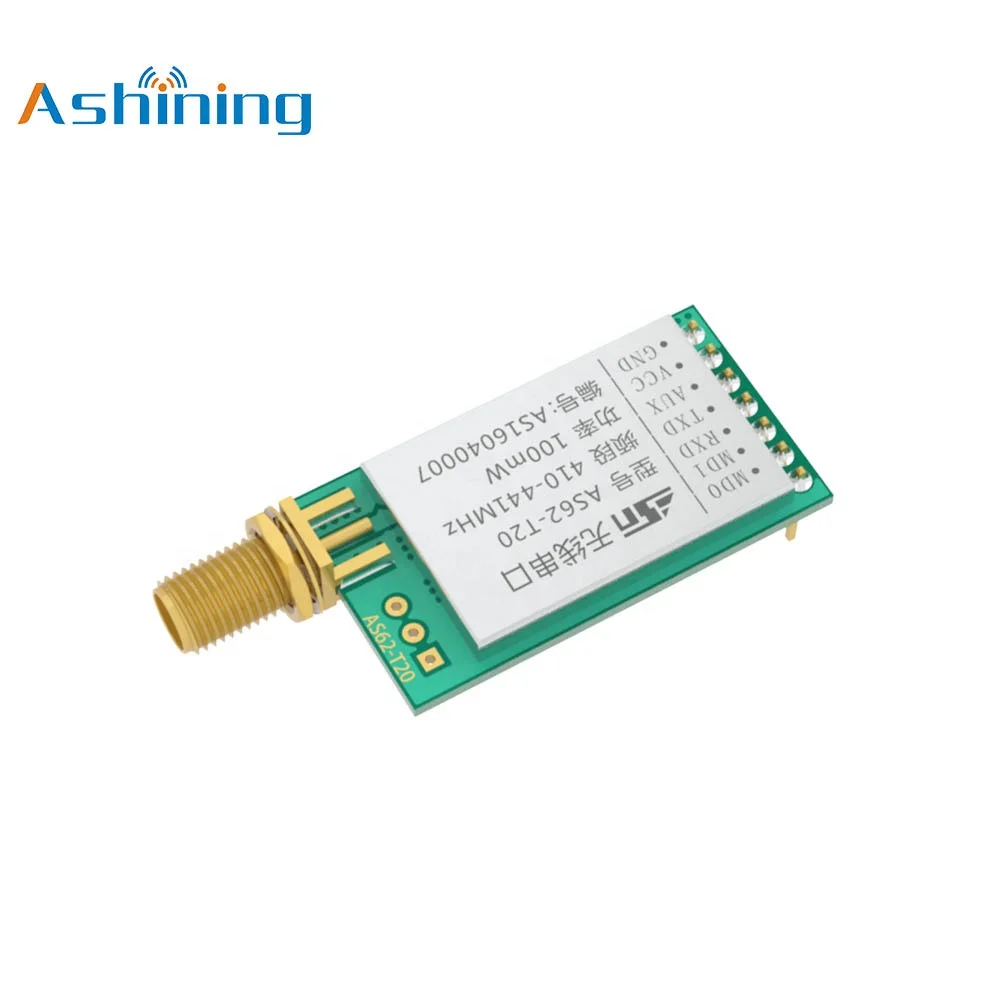

AS62-T20 is a 100mW industrial-grade patch wireless data transmission module with high stability working on 433MHz frequency. The module uses SX1278 main chip, LORA spread spectrum transmission, TTL level output, compatible with 3.3V and 5V IO port voltage. The module adopts the efficient cyclic interleaving error correction coding algorithm, which has high coding efficiency and good error correction ability
Specifications
| NO. | Parameter name | Parameter values detail |
|---|---|---|
| 1 | Module size | 20 * 36mm (not including antennas or SMA junction) |
| 2 | Source of the devices | All imported components, place of origin: Japan, the United States, and Germany |
| 3 | Production craft | lead-free and electrostatic bag packaging |
| 4 | Interface mode | 1 * 7 * 2.54mm, plug in packaging, you can use the universal board and DuPont line |
| 5 | Operating frequency | 410 - 441MHz,1000KMHz step by step, factory default 433.0MHz |
| 6 | Supply voltage | 2.0V - 5.5VDC, meet a variety of system requirements. (if the voltage is lower than 3.6V, the transmission power will decline ,but it has little impact on the receiving performance) |
| 7 | Communication level | Maximum 5.2V, The difference between the recommended and supply voltage is less than 0.3V to reduce power consumption |
| 8 | Measured distance (3.0VDC) | About 3000m test conditions: sunny, open, the maximum power, Antenna gains 5dBi, height greater than 2m, 2.4K air rate |
| 9 | Transmission power | Maximum 20dBm, about 100mW, 4 levels adjustable (0-3), increase or deduct about 3dBm each level. |
| 10 | Air rate | 6 levels adjustable (0.3, 1.2, 2.4, 4.8, 9.6, 19.2Kbps) |
| 11 | Sleep current | 1.5uA (MD1 =1, MD0 = 1) |
| 12 | Transmitting current | 110mA ( transmitting power 100mW, voltage5V) |
| 13 | Receiving current | 18mA (mode 0, mode 1) |
| 14 | Communication Interface | UART serial port, 8N1, 8E1, 8O1, from 1200 to 115200 a total of 8 baud rates |
| 15 | Driving means | UART serial port can be set to push-pull / pull-up, open-drain |
| 16 | Transmitting length | Internal ring fifo cache 256 bytes, the internal automatic subcontract sending. Some airspeed and baud rate combinations can send infinite length packets. |
| 17 | Receiving length | Internal ring fifo cache 256 bytes, the internal automatic subcontract sending. Some airspeed and baud rate combinations can send infinite length packets. |
| 18 | Module address | 65536 configurable addresses (easy to network, support for broadcast and fixed transmission) |
| 19 | RSSI support | Built-in intelligent processing |
| 20 | Receiving sensitivity | -130dbm at 2.4Kbps (receiving sensitivity has nothing to do with serial port baud rate and delay time) |
| 21 | Antenna type | SMA antenna / spring antenna |
| 22 | Operation temperature | -40 ~ +85℃ |
| 23 | Operation humidity | 10%-90% relative humidity, no condensation |
| 24 | Storage temperature | -40 ~ +125℃ |

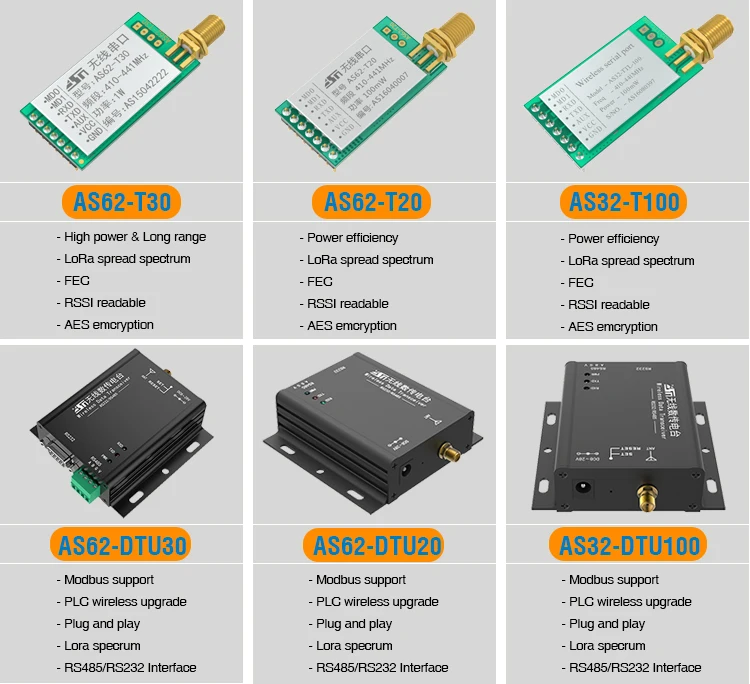

Related products
