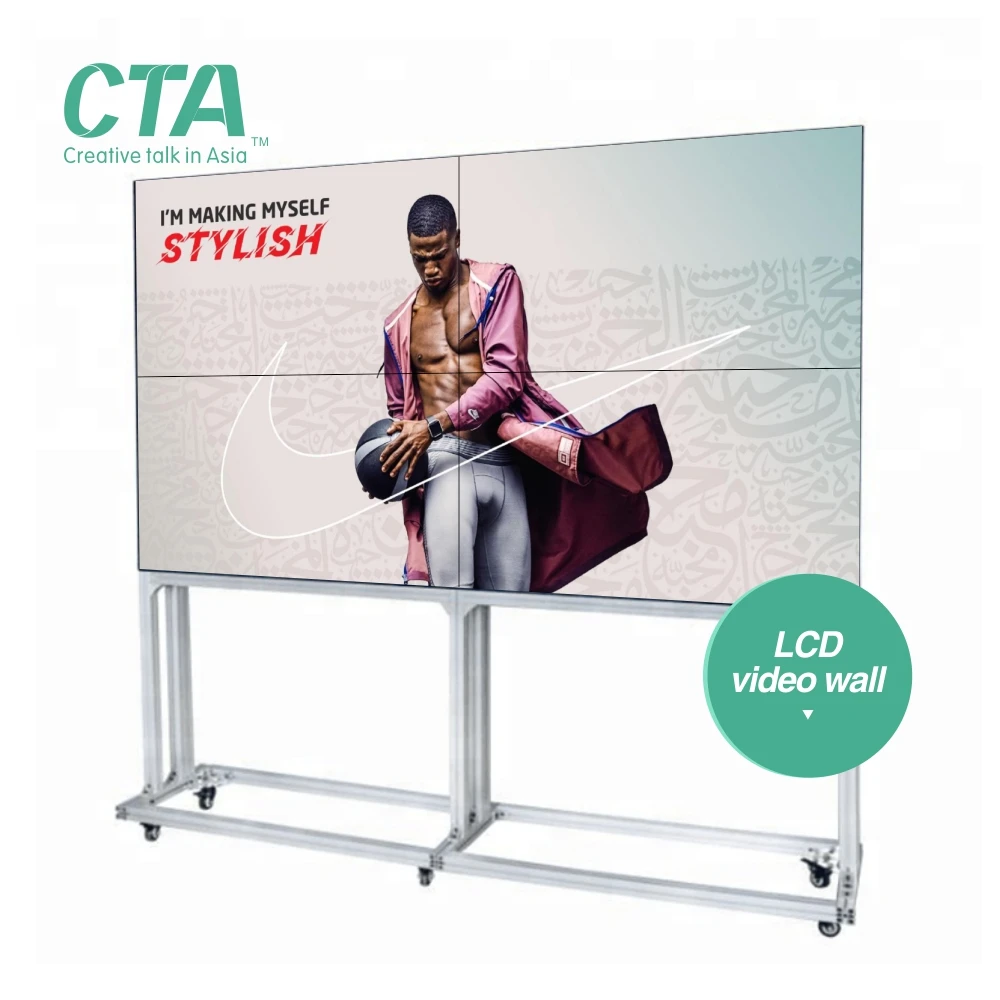

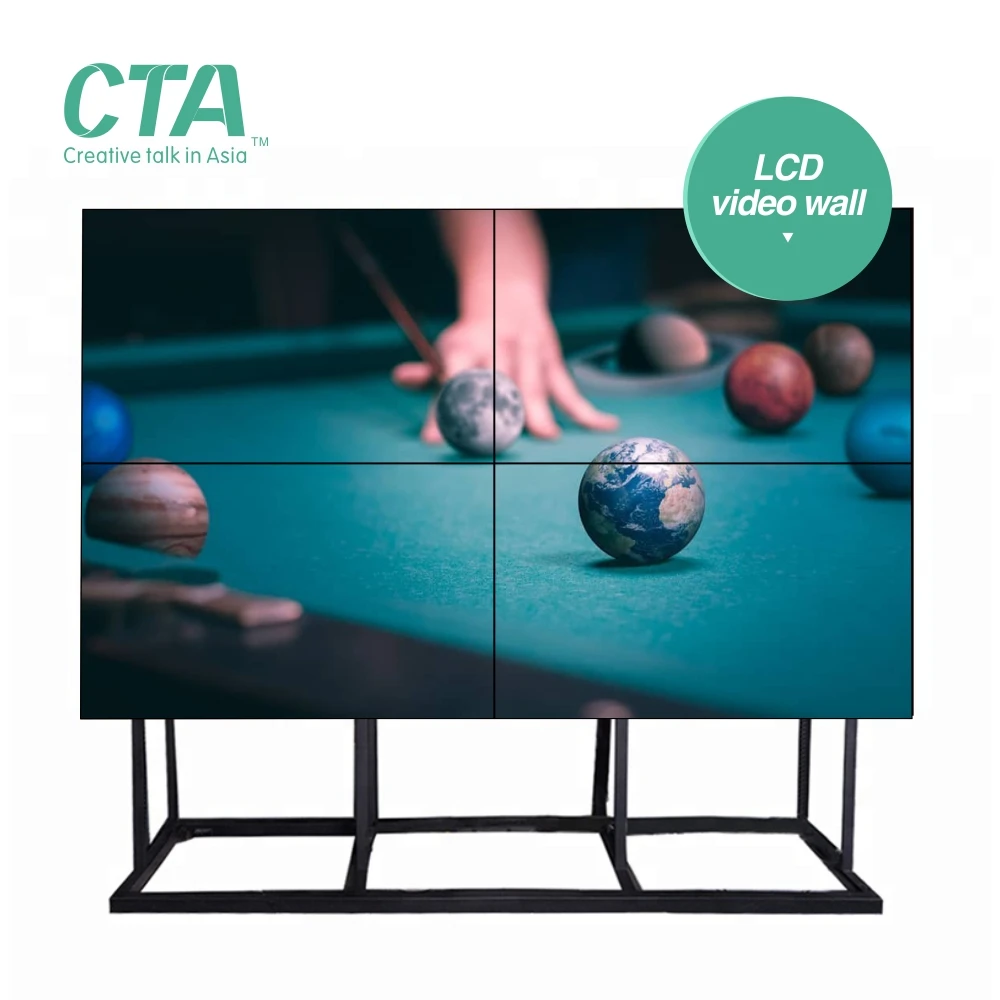

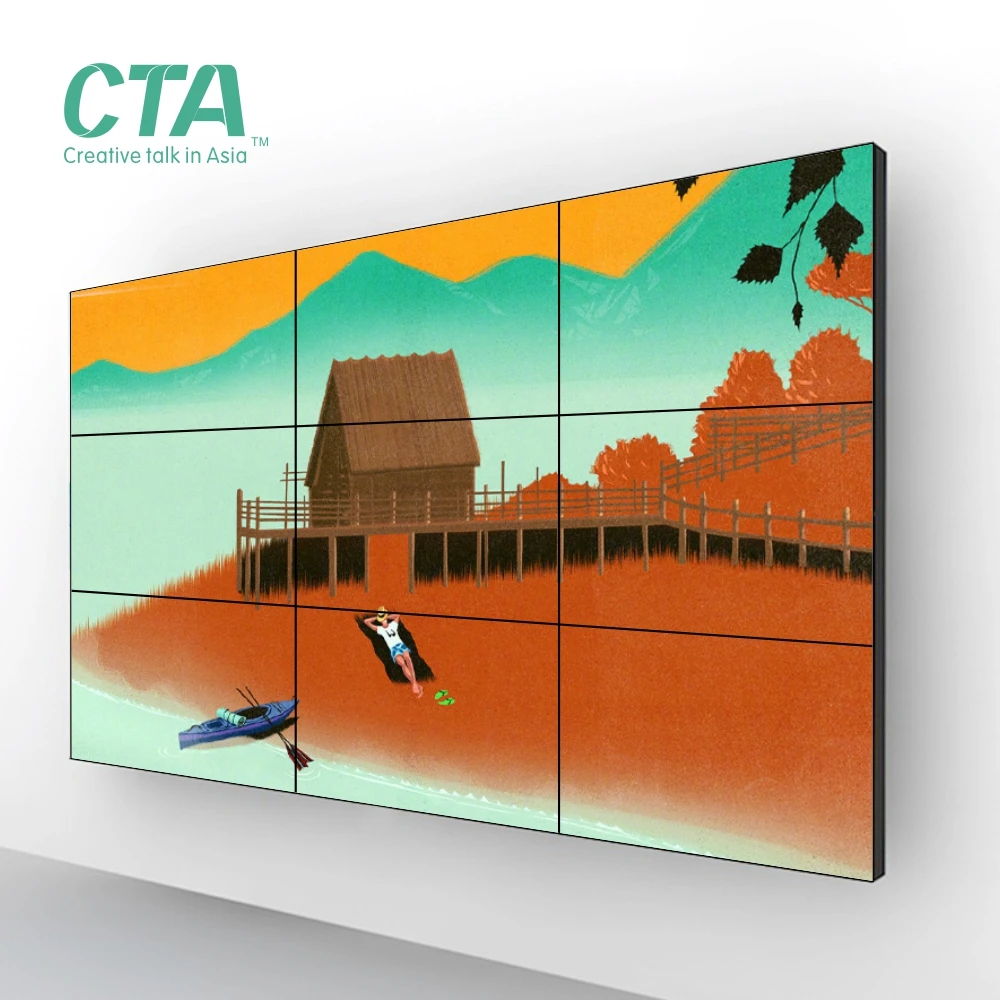

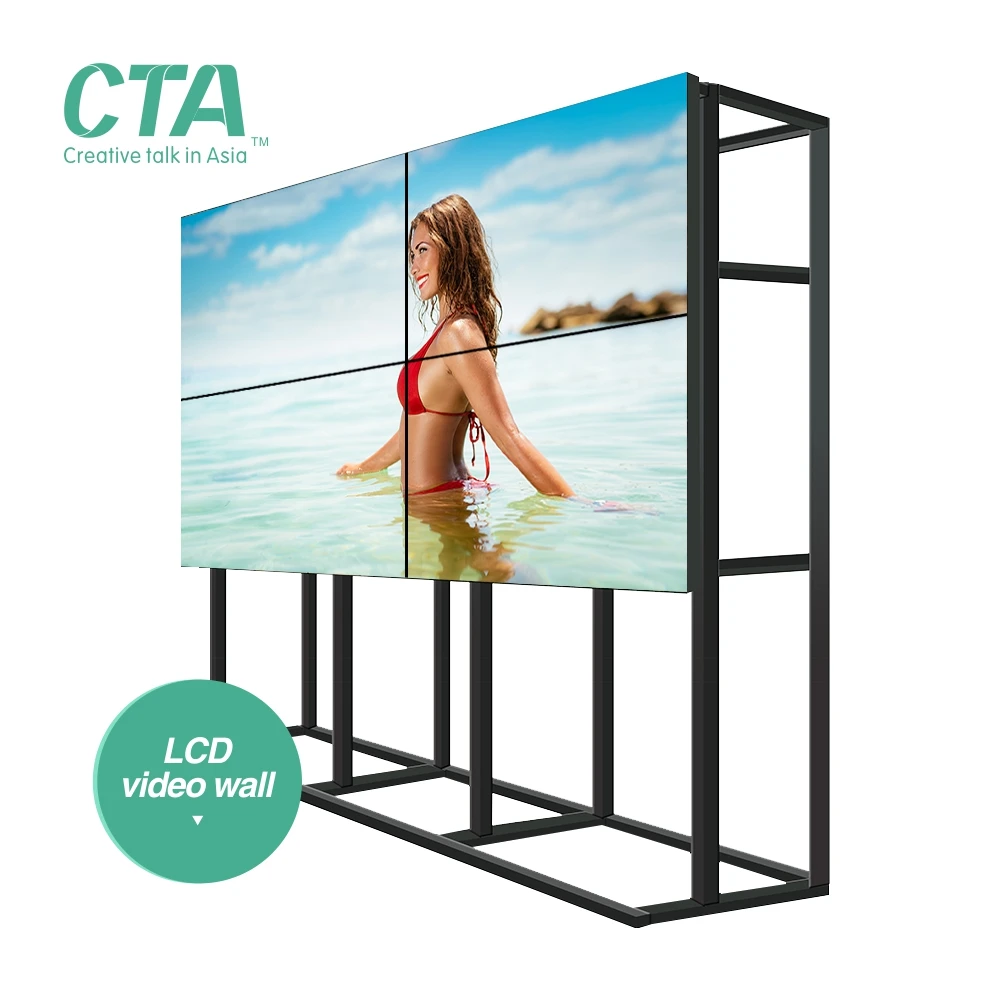

Simple solution 2x2 1x3 3x3 lcd video wall with controller
- Category: >>>
- Supplier: Shenzhen Cta Display Technology Co. Limited
Share on (62059555479):
Product Overview
Description
Hot sale video wall
Simple solution 2x2 1x3 3x3 lcd video wall with controller
Product Description
Product Description for Simple solution 2x2 1x3 3x3 lcd video wall with controller
| Specifications | |
| Model No. | CTA-PJ4908 |
| Panel size | 43"-65"TFT-LCD,with LED Backlight |
| Resolution Support | 1920*1080/3840*2160 |
| Display color | 16.7M/1.07G |
| Pixel Pitch(mm) | 0.63(H)×0.63 (V) |
| Brightness (nits) | 500cd/m2 |
| Contrast | 4000:1 |
| Visual angle | 178°/178° |
| Response time | 5ms |
| Life(hrs) | >60,000(hrs) |
| Image | |
| Aspect ratio | 16:9 |
| Quality compensation technology | LTI,CTI |
| Motion compensation technology | AUTO MOVE |
| Filter | 3D comb filtering, digital noise reduction |
| Video starnard | PAL,NTSC |
| Video Wall Controller(Built-in each Screen) | |
| Digital signal input | HDMI×1; 1920x1080@60Hz backward compatible |
| Computer signal input | VGA(DB-15) ×1;1920x1080@60Hz backward compatible |
| Digital signal input | DVI(DVI-I)×1;1080P(1920×1080) backward compatible |
| Composite Video Input/(AV) | CVBS(BNC)x1 |
| Composite Video Output | CVBS(BNC)x1 |
| RJ45 | 4 |
| USB | 1(optional) |
| Computer centralized control Interface | RS232 |
| Power | |
| Power Supply | AC100V~240V |
| Maximum Power Consumption | 280W |
| Standby Power Consumption | <=3W |
| Structure | |
| Border dimension | Top: 6mm; bottom 10mm; Left: 6mm; Right: 6mm |
| External dimension | 1115.04×638.41×120.0mm |
| Net weight | 30kg |
| Shell material | Metal shell, anti-static,anti-magnetic,anti-strong electric field interference |
| Installation way | Wall mount, floor standing mount,hanging mount |
| Temperature | |
| Working temperature | 0℃~50℃ |
| Storage temperature | -20℃~65℃ |
| Working humidity | 20%-80% |
| Package weight and dimension | |
| Gross weight(2 sets in one honeycomb carton) | 82kg |
| honeycomb carton(2 in 1) | 1400x470x890mm |
CTA video walls have their own
integrated control system giving perfect HD quality pictures,
multi-screen capabilities, signal switching,
centralized network control and so on…
Users can experience the true video wall experience!
More Products Maybe More Attractive To You
Click Below Pictures Learn More Detail
 |  |  |
 |  |  |
 |  |  |
All of our products can be customized. Any sizes, material, designs, logos meet your requirement,before quote you the price ,we will be appreciated if you can provide the information below:
ü hdmi video wall controller logo
ü hdmi video wall controller design
ü hdmi video wall controller color
ü hdmi video wall controller size
ü hdmi video wall controller material
ü hdmi video wall controller function
ü If possible ,please supply us the picture or design of the hdmi video wall controller.
If you are not clearly , we will recommend for you.
Company Information
Packaging & Shipping
1. Packing in carton and wooden frame ,wooden case and flight case.
2. As customer demand.
3. Shipping port: Shenzhen, Guangzhou etc.
4. Shipping: by sea, by air and by express delivery.
2. As customer demand.
3. Shipping port: Shenzhen, Guangzhou etc.
4. Shipping: by sea, by air and by express delivery.
