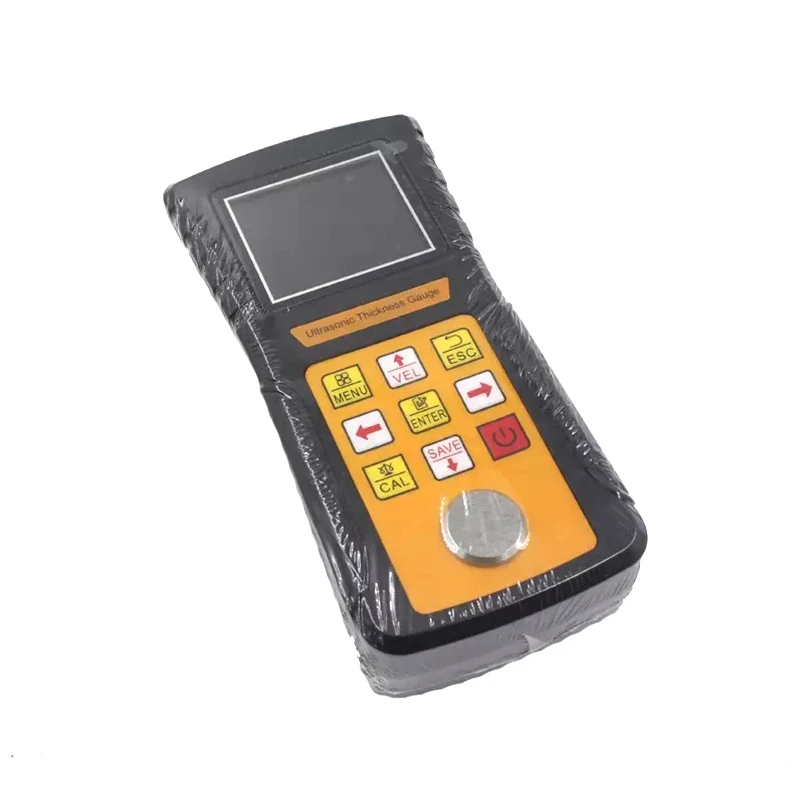

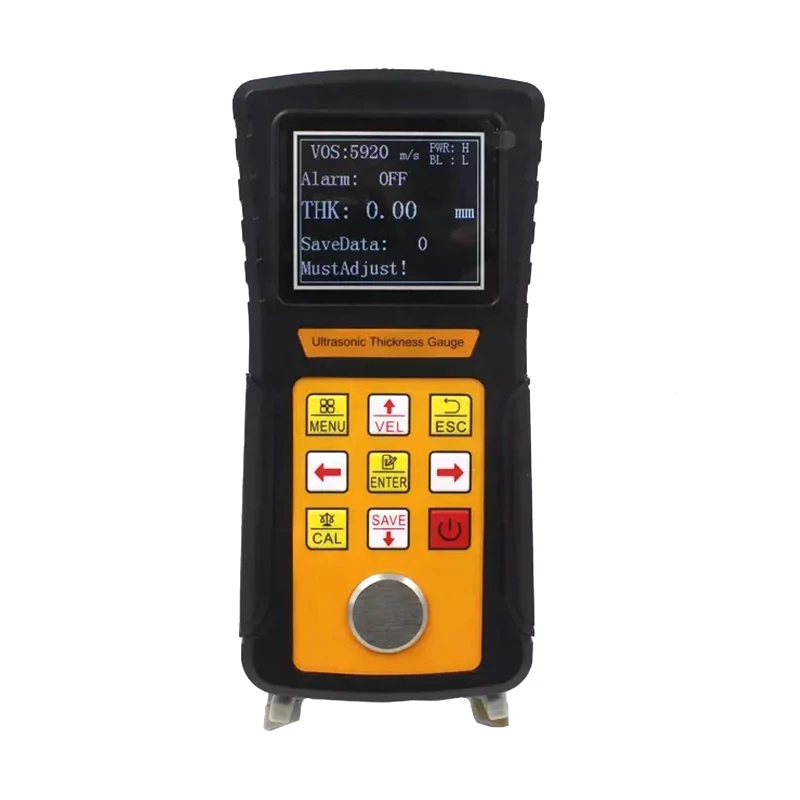

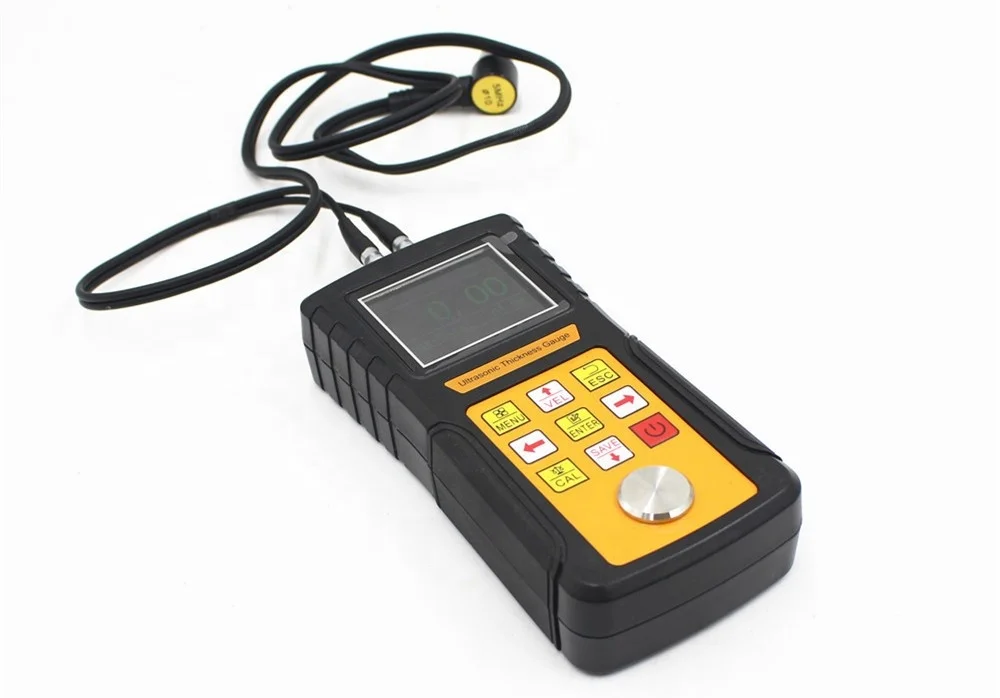

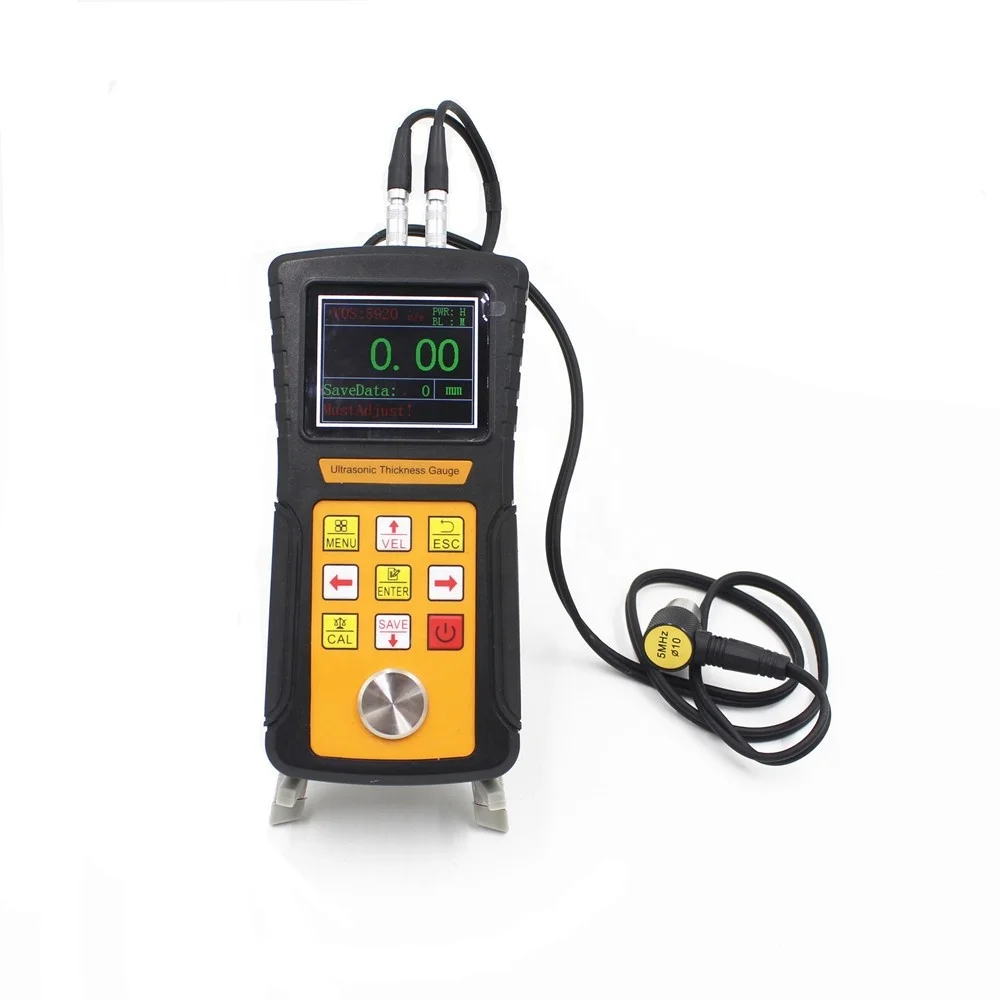

Digital Portable Painting Ultrasonic Thickness Gauge Meter Manufacturer Car Paint Tester Coating Thickness Gauge
- Category: >>>
- Supplier: Beijing Jitai Tech Detection Device Co. Ltd.
Share on (62059558203):
Product Overview
Description
Products Description
Introduction:
Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.
The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
Main Functions:
Capable of performing measurements on a wide range of material, including metals,plastic,ceramics,composites,epoxies,glass and other ultrasonic wave well-conductive materials.
Can collocate variety different frequencies,wafer sizes of probes;
Sound Velocity Calibration function as a known thickness;
Coupling status indicator showing the coupling status;
EL backlight, and convenience to use under dark environment;
Have the battery indicator function, can real-time display the remaining power
Auto sleep and auto power off function to conserve battery life;
Smart, portable,high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference.
Technical Specification:
Display:128*64 LCD with LED backlight;
Measuring Range:(0.75~600)mm(Steel)/(0.03inch-23.6inch)
Velocity Range:(1000~9999) m/s;
Resolution:0.01mm
Measuring accuracy:±(0.5%H+0.04mm);H is thickness value;
Measurement cycle:Single point measurement 6 times/per;
Storage:40 values of saved data
Power Source:2pcs 1.5V AA size
Working Time:more than 50 hours (LED backlight off).
Outline Dimensions:145mm*74mm*32 mm
Weight:245g
Instrument Configuration:
Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.
The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
Main Functions:
Capable of performing measurements on a wide range of material, including metals,plastic,ceramics,composites,epoxies,glass and other ultrasonic wave well-conductive materials.
Can collocate variety different frequencies,wafer sizes of probes;
Sound Velocity Calibration function as a known thickness;
Coupling status indicator showing the coupling status;
EL backlight, and convenience to use under dark environment;
Have the battery indicator function, can real-time display the remaining power
Auto sleep and auto power off function to conserve battery life;
Smart, portable,high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference.
Technical Specification:
Display:128*64 LCD with LED backlight;
Measuring Range:(0.75~600)mm(Steel)/(0.03inch-23.6inch)
Velocity Range:(1000~9999) m/s;
Resolution:0.01mm
Measuring accuracy:±(0.5%H+0.04mm);H is thickness value;
Measurement cycle:Single point measurement 6 times/per;
Storage:40 values of saved data
Power Source:2pcs 1.5V AA size
Working Time:more than 50 hours (LED backlight off).
Outline Dimensions:145mm*74mm*32 mm
Weight:245g

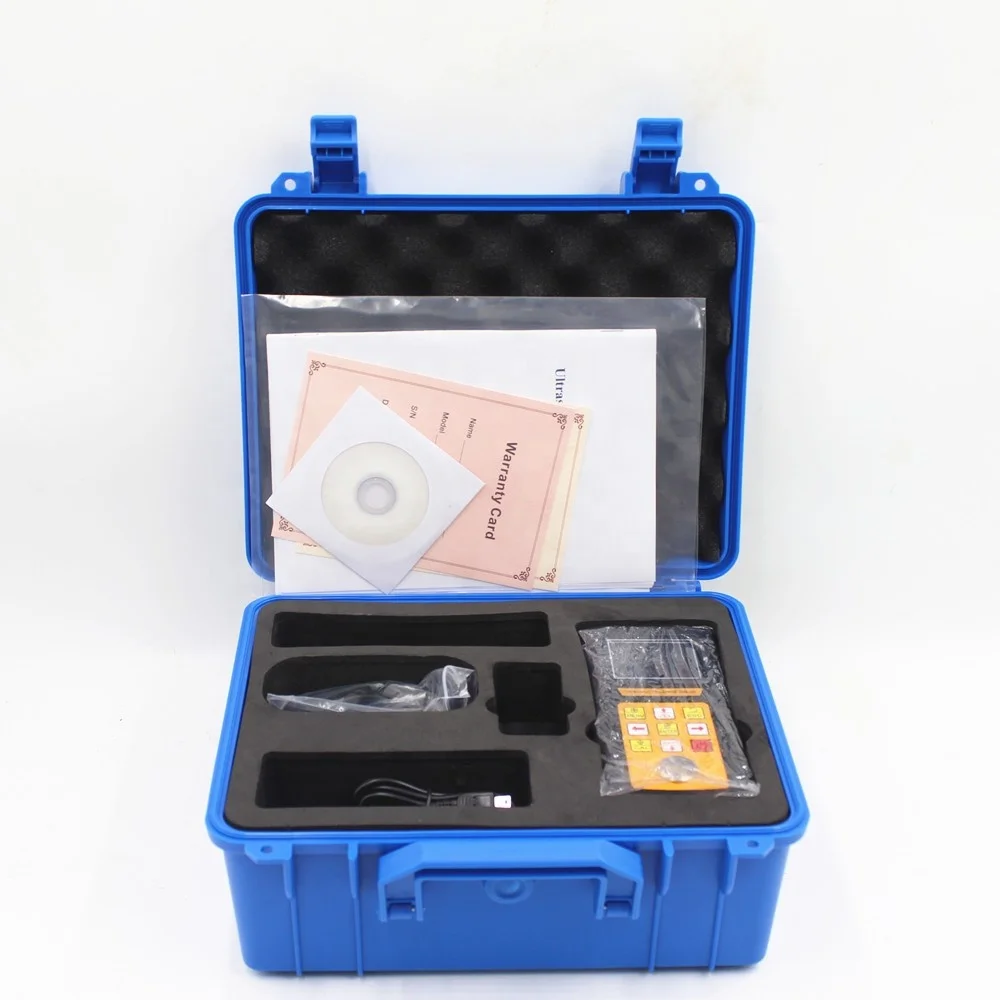

Instrument Configuration:
No. | Name | QTY | Notes | |
Standard Configuration | 1 | Main Body | 1 set | |
2 | Standard Probe(5MHz,D10mm) | 1 pc | ||
3 | Couplant | 1 pc | ||
4 | ABS Case | 1 pc | ||
5 | Product Certificate | 1 pc | ||
6 | Warranty Card | 1 pc | ||
7 | Manual | 1 pc | ||
8 | 1.5V AA size battery | 2 pcs | ||
Optional Accessories | 9 | Large diameter probe(2.5MHz) | ||
10 | Large range probe(2MHz) | |||
11 | Micro-diameter probe(7MHz) | |||
12 | High temperature probe(5MHz) | |||
13 | High temperature couplant |
