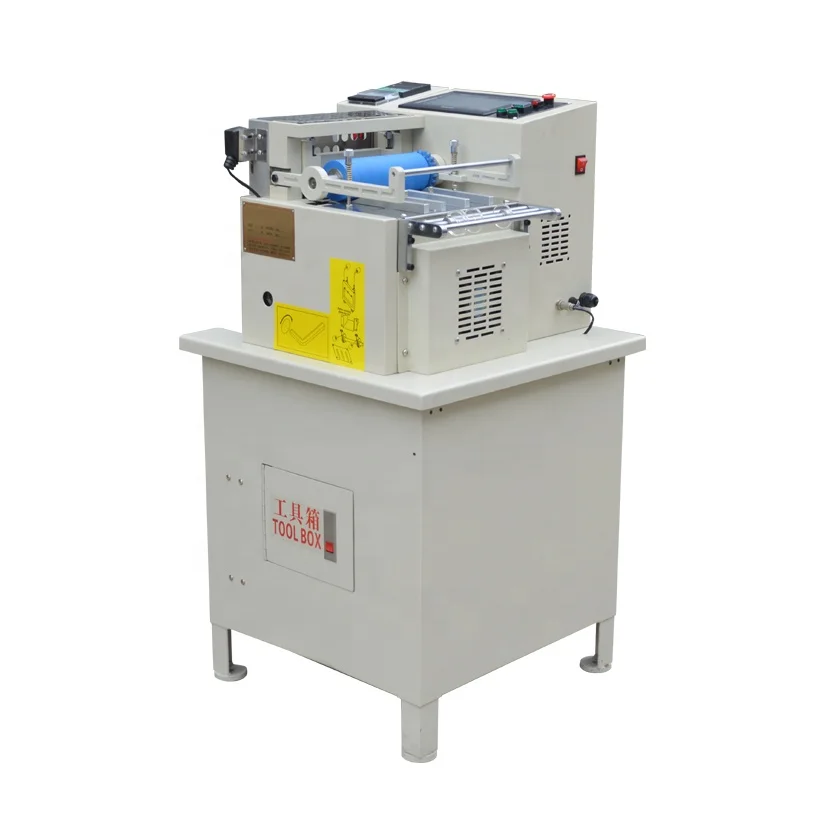

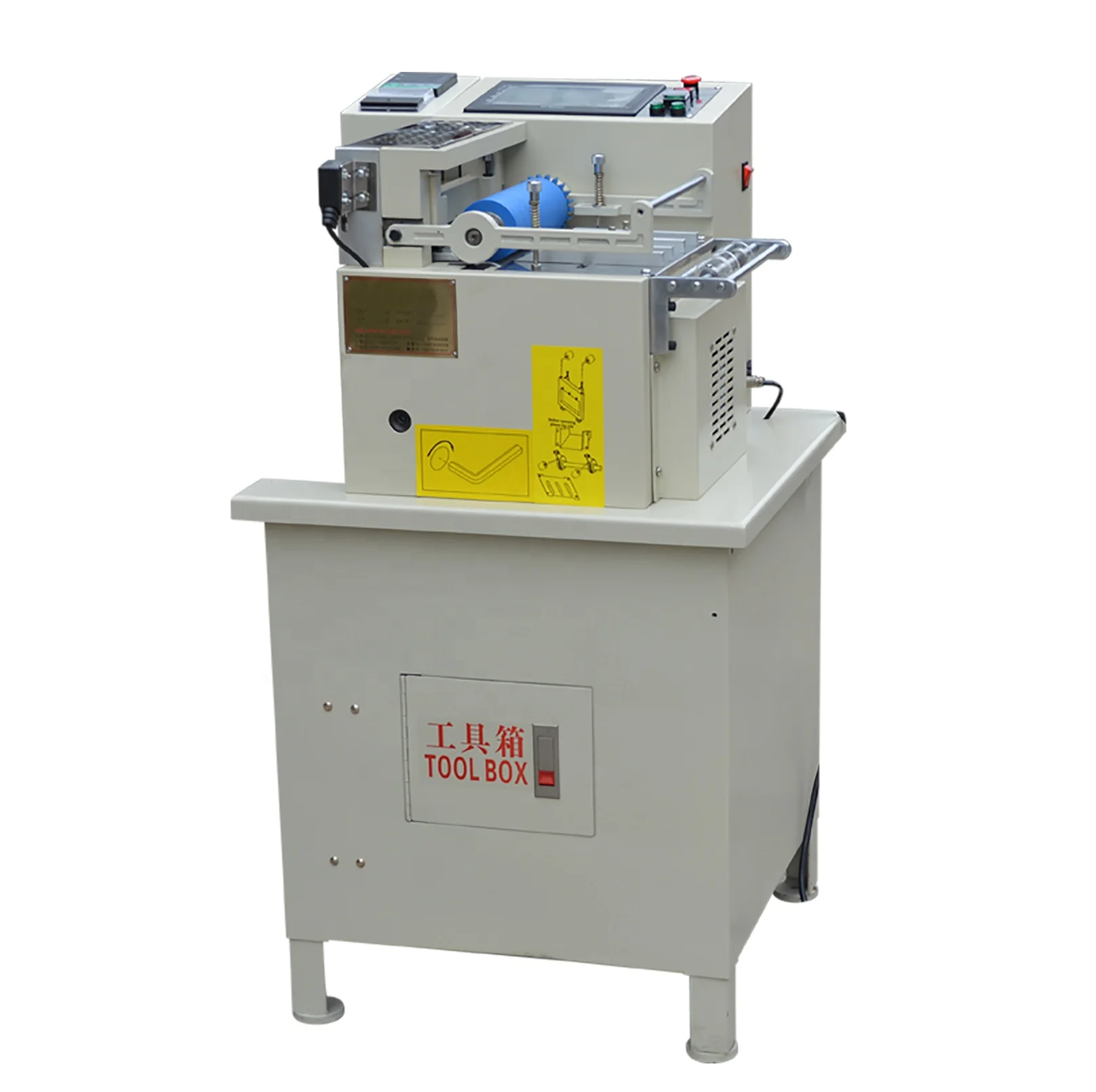

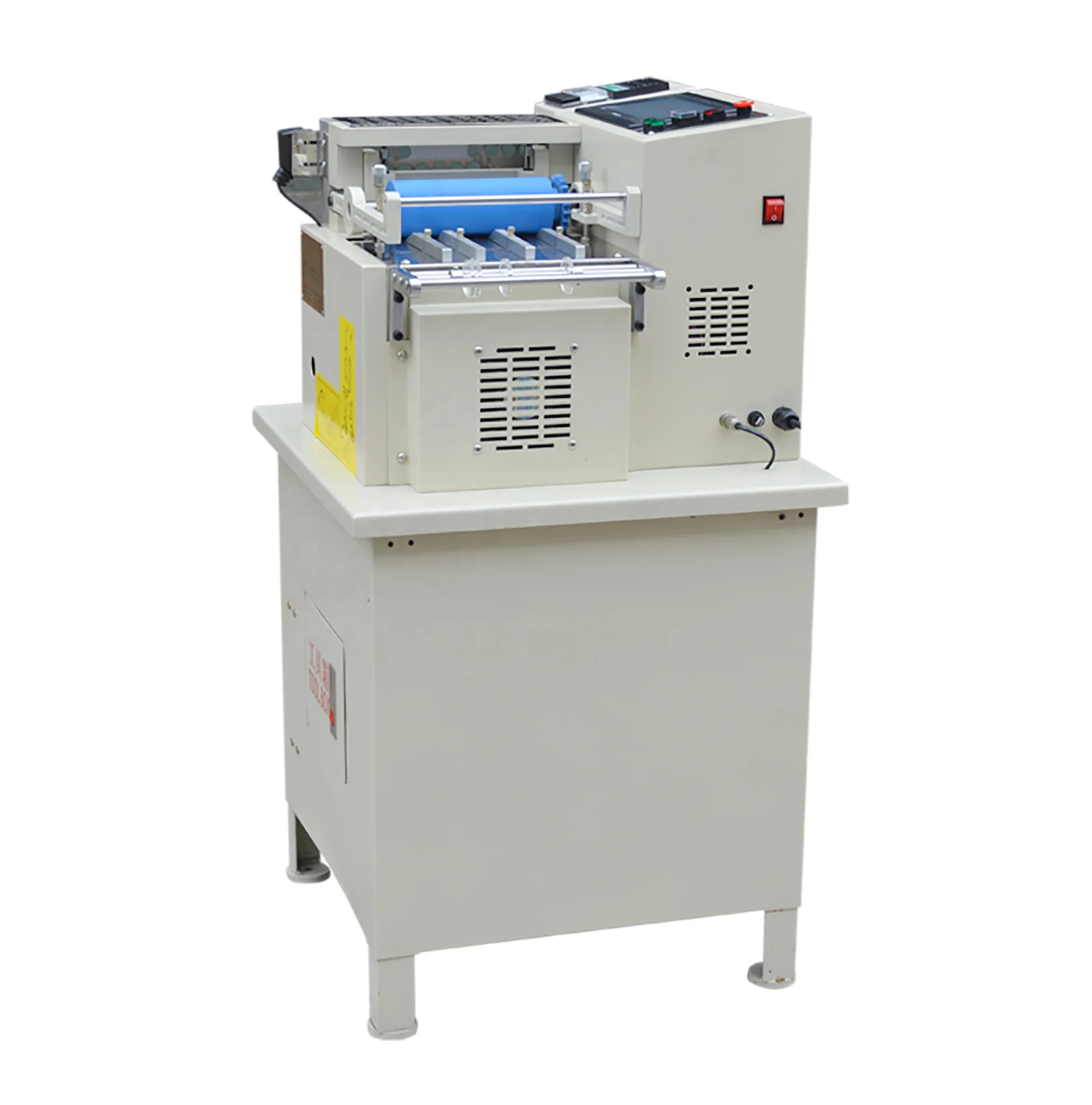

Automatic polyester rope hot cutting machine
- Category: >>>
- Supplier: Kunshan Yidao Precise Machinery Co. Ltd.
Share on (62059596151):
Product Overview
Description
Please Attention
"with us your MONEY in safe ; your BUSINESS in safe"
YIDAO FACTORY OFFER YOU :
1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: NO MOQ ,1PC OK.
4.ONLINE PAYMENT.
5.SUPPORT 7 DAYS REFUND.
WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS". WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTREPRISE".
WELCOME TO CONTACT US.
Product Description
Technical parameters:
Item Number | YD-160A |
Web Width | 0-160mm |
Cutting length | 0-9999.99mm |
Cutting speed(600mm) | 0-30 cut/min |
Heating temperature | 0-680 degree |
Voltage | 220V |
Size | 600x600x1150mm |
Weight | 133kg |
Total Power | 1.5kw |
*the voltage can customize according to your country standards.
Application:
Sizing cutting for heat shrinking tube, flat cable, PVC sleeve, insulation paper, two-sided tape, webbing,rope,Velcro, cotton yarn belt, zipper, etc...
Features:
This cutting machine employs microcomputer controller to set belt cutting length. This machine is ergonomically designed. Operation is easy.
Main functions of belt cutting machine:
Feed material and return material by pressing the button on touch screen
Preset total cutting quantity
Preset cutting length
Preset cutting speed
Preset cut quantity each time ( applied for hot cutting)
Flash cutting quantity finished
Return to ZERO
Machine Display
Machine Details

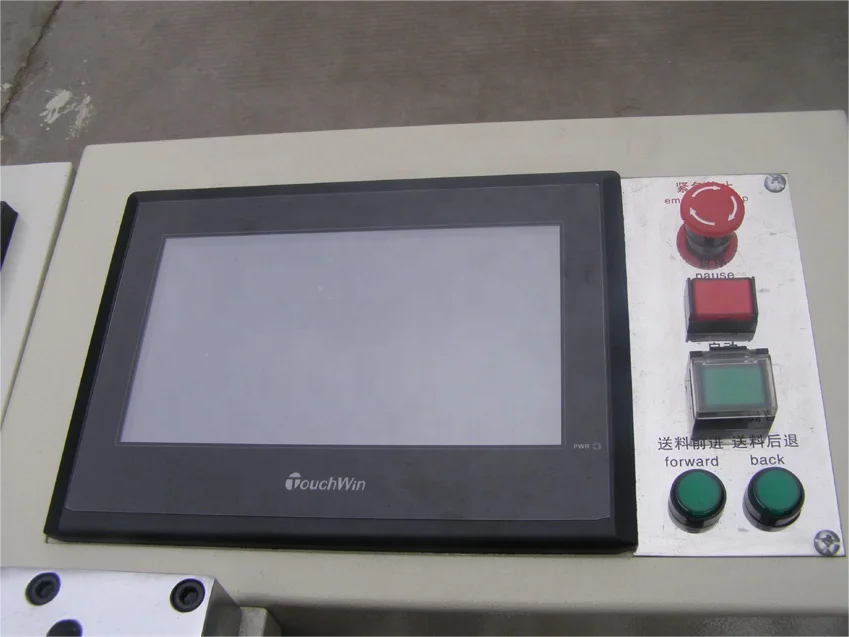

Touch Screen
You can set all parameter in touch screen,such as the length,batch quantity,total quantity,cutting speed,etc.
It's convenient for workers to operate the machine.
Cutting Blade and heating copper
Material:SKH-51
Original:Japan
Lifetime:About 20 million times cuts.
Scissor-type cutting blade,durable with highest hardness 65HRC.Easy to adjust,sharp,maintain and change.
Rubber Feeding Roller
The rubber roll is connected with servo motor,which could feed material with high precision,reach ± 0.1mm.
Simple Material Unwinder
Material unwinder for automatic paper roll to sheet cutting machine.
it supports a simple material roll with light weight.better less than 10KG.
if your material is heavy,other kind of unwinder is optional.
Optional Devices
Photo Sensor
If added photo sensor for cutting machine,it can cut thr printed material.the photo sensor will sense the printed marking and make sure the cutting blade cut the material at a specified place.

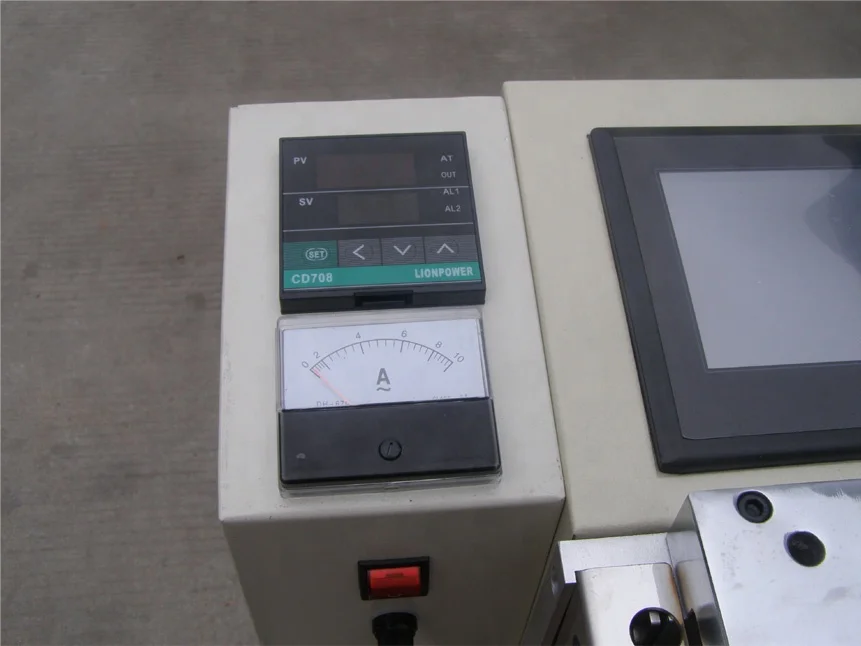

Copper Heater(Hot Cutting)
Adding the hot cutting unit with the blade,copper heater,temperature controller,it can cut and seal the material without burr.
Specially suitable for webbing and non-woven material.
The max temperature can reach 680 degree.
This unwinding device is controlled by motor,you can adjust the speed.
It has sensor to send the material automatically.It could supports about 30KG weight.inflatable air shaft with 3 inch OD.
After-service
1. Training Service
We can train your staffs how to run the machine efficiently and safely.
1.1 Free training in our factory available before delivering machines.
1.2 We also can arrange engineer to customer's plants for installation and training.
2. After Sales Service
We offer not only the products, but also the solutions.We have plenty of cooperated professional supplier which make it possible
for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
For all of our machines, we provide:
1. Operation Manual, Operation and repair Video.
2. 1 year guarantee, whole life technical support .we also offer some spare parts packing together with the machine.
3.24hours Email technical support, we will do our best to help the clients solve problems.
4.Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
Packing & Delivery
PACKAGE: we use plywood case for packing the machine to make sure wooden case safe and strong, up to International trade standard. It does not need Fumigation .It's easy for forklift to upload and download .Safety transportation .we will use PE film for packing first before plywood case or pack it according to customers special .
SHIPPING : Usually we suggest customers choose ocean shipping to ship machinery , or air transport for small machine and urgent order . We also supply shipping sevice with our cooperation shipping forwarder to help customers to deliver the machinery in first time .
