China Hight Quality Conventional Lathe Machine Price
US $3850-$4520

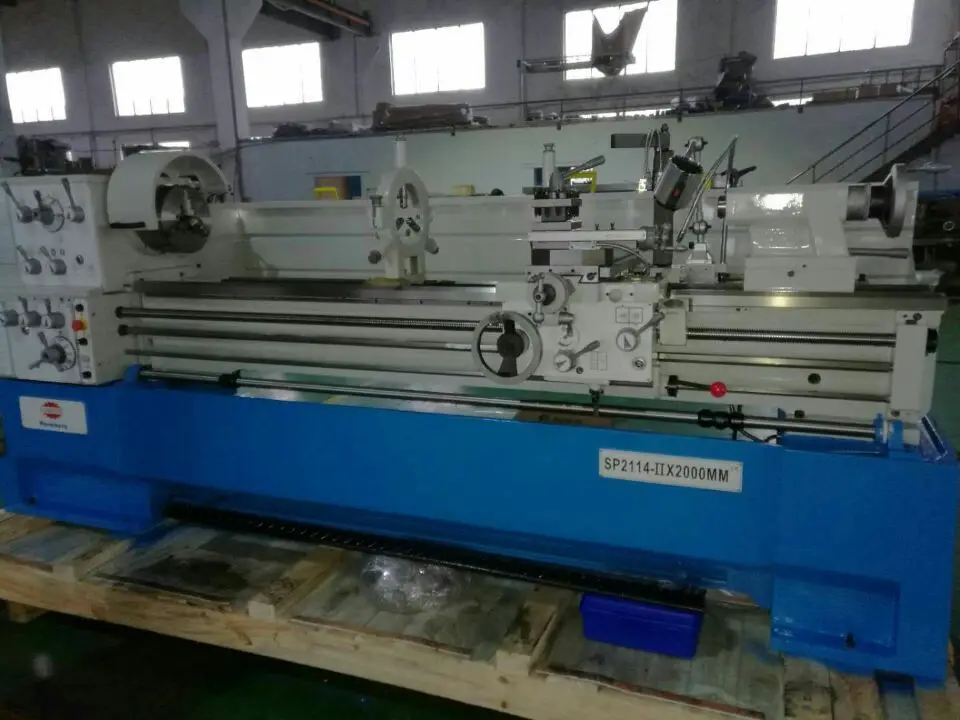

Ручной токарный станок SP2114
- Category: Manual Lathe >>>
- Supplier: Shanghai Sumore Industrial Co. Ltd.
Share on (62059649279):
Product Overview
Description
Product Description

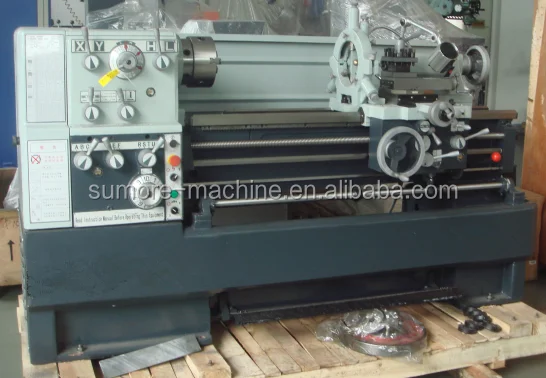

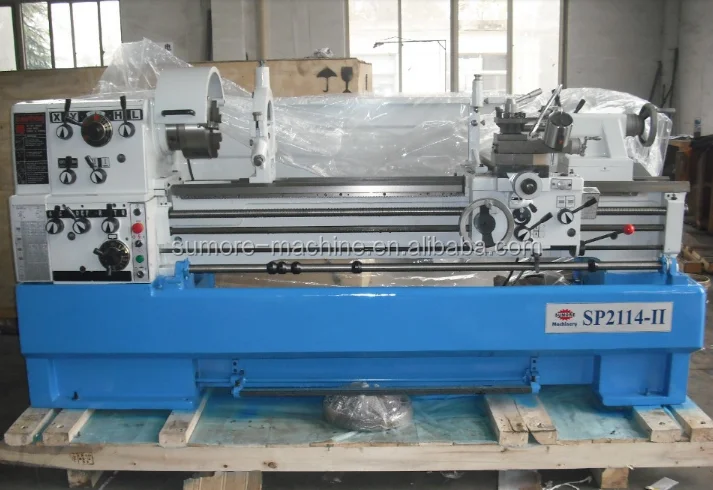

Manual center lathe machine SP2114 lathe machine is with tool post size 25x25mm, the spindle speed could be 12 steps or variable speed. It belongs to one of the most economic horizontal lathe machine for work piece length 2000mm. The main features / advantages are as below:
1.Vertical and horizontal feed adopts interlocking mechanism and considerable safety design.
2. The spindle bore is supported with precision roller bearings
3.Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting.
4.Carriage rapid feed with clutch is available.
5.Larger spindle bore 82mm is available.
6.Easy operating speed change levers.
Technical Data
Model | SP2114-I | SP2114-II |
Swing over Bed | 410 mm | 460 mm |
Swing over Cross Slide | 224 mm | 274 mm |
Swing over Gap | 640 mm | 690 mm |
Distance Between Centers | 1,000 / 1,500 mm | 1,000 / 1,500 mm |
Width of Bed | 300 mm | 300 mm |
Spindle Bore | 58 mm | 58 mm |
Spindle Taper | MT6 | MT6 |
Spindle Nose | D1-6 | D1-6 |
Range of Spindle Speeds | 25 - 2,000 rpm | 25 - 2,000 rpm |
Range of Longitudinal Feeds | 0.031 - 1.700 mm/rev | 0.031 - 1.700 mm/rev |
Range of Traverse Feeds | 0.014 - 0.784 mm/rev | 0.014 - 0.784 mm/rev |
Compound Slide Travel | 128 mm | 128 mm |
Cross Slide Travel | 290 mm | 290 mm |
Tailstock Quill Travel | 120 mm | 120 mm |
Tailstock Quill Taper | MT4 | MT4 |
Number of Inch Threads | 60 | 60 |
Range of Inch Threads | 2 - 112 TPI | 2 - 112 TPI |
Number of Metric Threads | 41 | 41 |
Range of Metric Threads | 0.1 - 14.0 mm | 0.1 - 14.0 mm |
Main Motor Power | 4,000 / 5,500 w (5.4 / 7.5 HP) | 4,000 / 5,000 w (5.4 / 7.5 HP) |
Coolant Power | 100 w (1/8 HP) | 100 w (1/8 HP) |
Overall Dimensions (LxWxH) | 2,170/ 2,720 x 1,040 x 1,340 mm | 2,170 / 2,720 x 1,040 x 1,370 mm |
Packing Size (LxWxH) | 2,250 / 2,800 x 1,120 x 1,730 mm | 2,250 / 2,800 x 1,120 x 1,730 mm |
Gross Weight | 1,980 / 2,320 kg | 2,045 / 2,385 kg |
Accessories
Standard Accessories | Optional Accessories |
3-jaw chuck | 4-jaw Chuck |
Dead Center | Face Plate |
Cutting Tools | Face Plate Clamping Kit |
Change Gear Set | TiN Coated Cutting Tools & Replaceable Tips |
Splash Guard | Steady Rest |
Chuck Safety Guard | Follow Rest |
Stand | Drill Chuck and Drill Arbor |
Oil Tray | Live Center |
Oil Gun | Quick Change Tool Post |
Manual & Parts List | Clutch for Feed Rod |
Lead Screw Guard | |
| Digital Readout Cutting Depth | |
| Coolant System | |
| Work Light |
Packaging & Shipping
Woodworking lathe headstock spindle with 640mm or 690mm swing over gap SP2114
| Package | 1 set/polywood case (aluminum strips strengthen) |
| Full Container Loading Quantity (FCL) | 4 sets/20’GP (unitary; customerized packing available) |
| Delivery Time | 30 calendar days after receiving of advance / full payment |
