The Double Stage Vacuum Transformer Oil Dehydration Refining Plant is used for the dehydration and degasification of electrical insulating liquids including transformer oils.polybutene and silicone fluids to increase and maintain their dielectric strength.
The processing includes the removal of free and soluble water, dissolved air and gases and particulate matter.
The most important applications of Transformer Oil Degasification Systems are in the field of extra high voltage transmission and in the manufacture of electrical apparatus.
In addition, the high vacuum process is used in the degasification of cable oils including polybutene. Outside of the electrical industry, this process is used for electronic and radar equipment, vacuum pump sealing oils, brake fluids and refrigeration oils – includingphosphate esters and silicones.
Mobile and stationary units are available in sizes 10L/Min to 300L/Min.
Technical parameters
Model
ZYD-150
Flow Rate
150L/min
Vacuum Degree
≤133Mpa
Working Pressure
≤0.5Mpa
Continuous Working Hour
≥200H
Trouble-free Working Hour
≥5000H
Working Temperature
40~70℃
Residual Water
≤3PPM
Impurity Size
≤1-3 micron
Residual Gas
≤0.05%
Breakdown Voltage
≥75KV
Oil Appearance
Transparent
Working Noise
≤65dB(A)
Heating Power
66kw
Total Power
75kw
Weight
950Kg
Size
1.61*1.17*1.78m
Key Structures and Functions

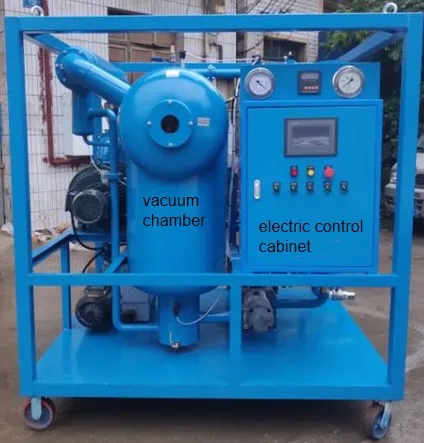

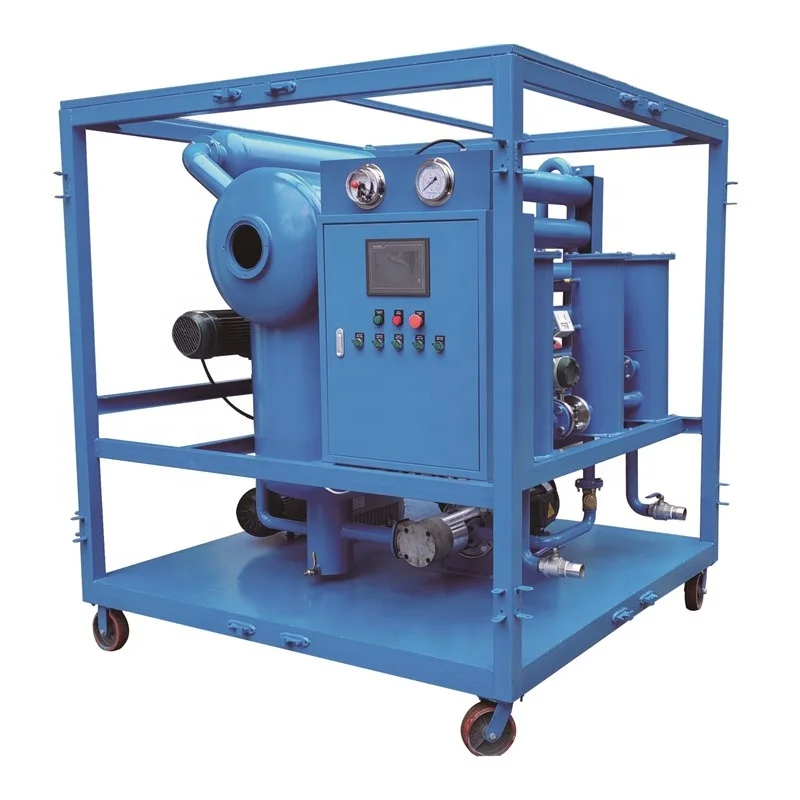

Seen from the front
control cabinet: used for the machine control
vacuum chamber: vacuum separate water and gas

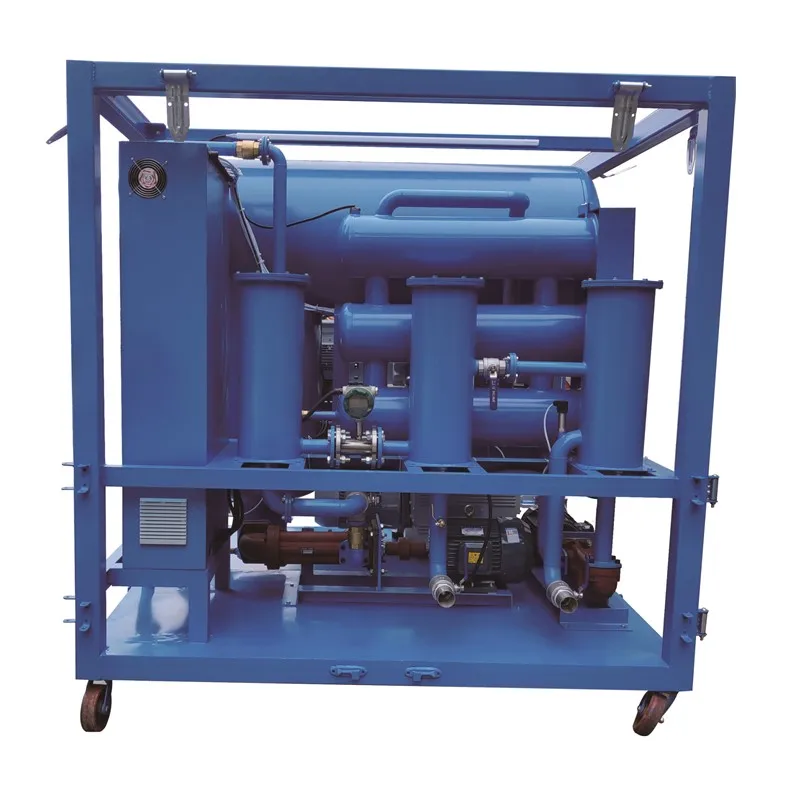

Seen from the back

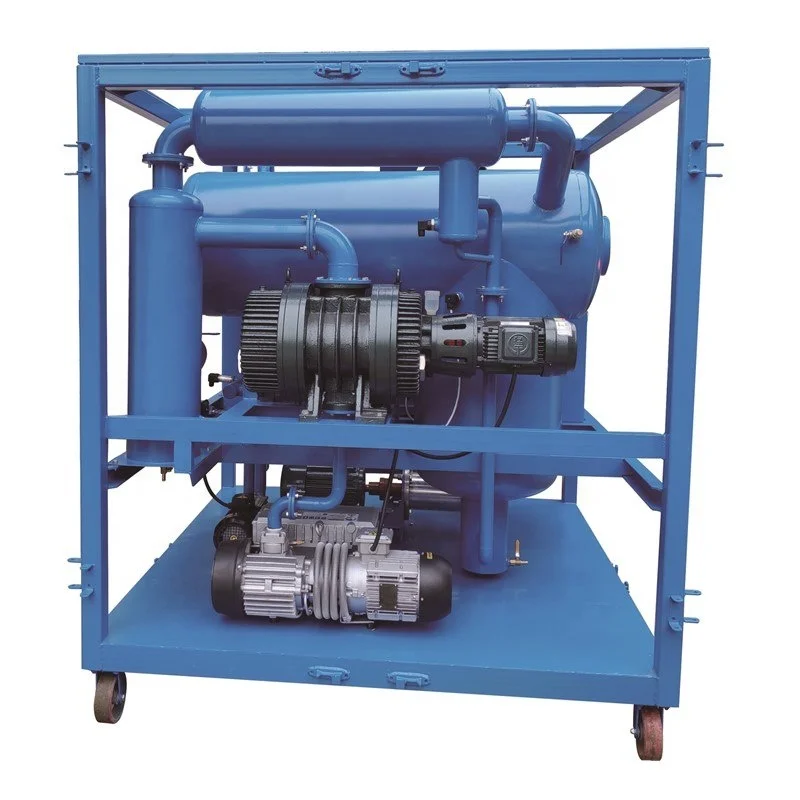

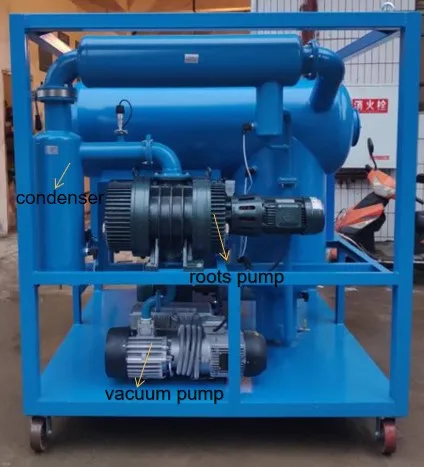

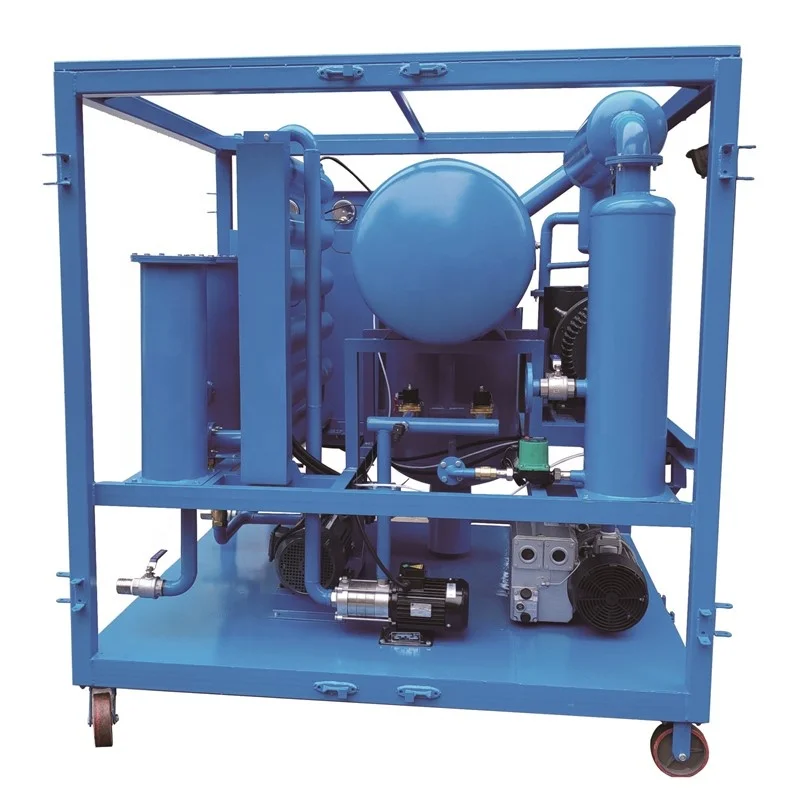

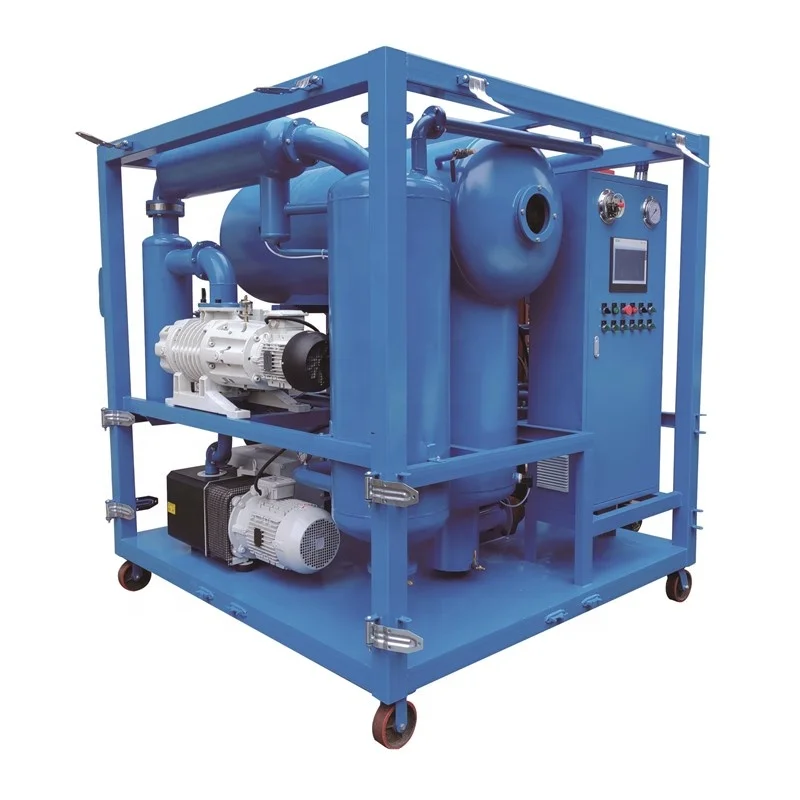

vacuum pump, roots pump: make good condition for the vacuum chamber for better remove water and gas
vacuum chamber: the machine adopts larger vacuum dehydration and degassing area to increase vacuum dehydration and degassing time so that can remove water and gas more thoroughy.
condenser: to cool the oil vapor from the vacuum chamber

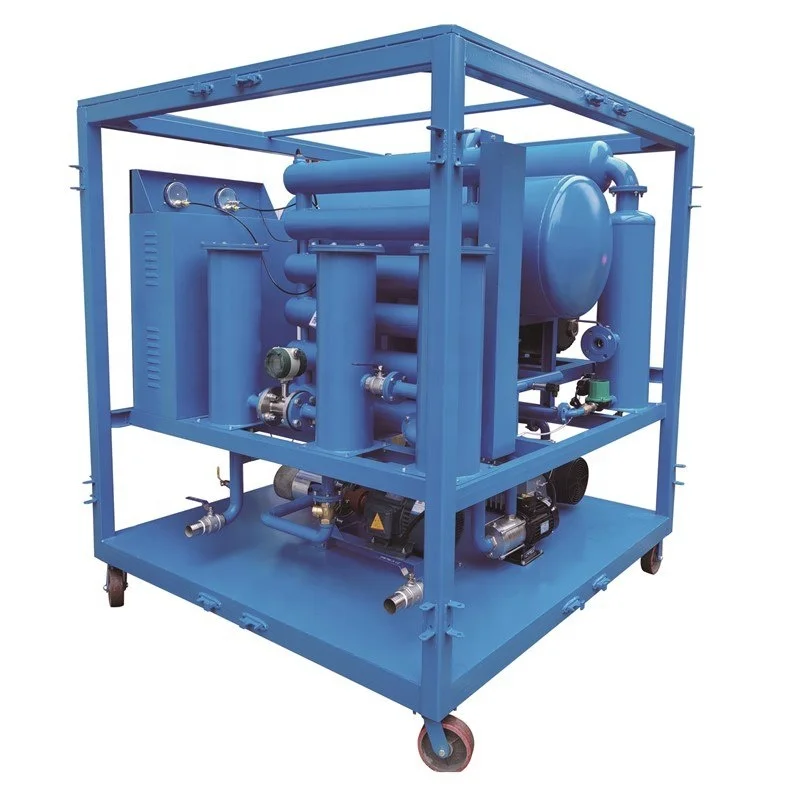

Seen from the side

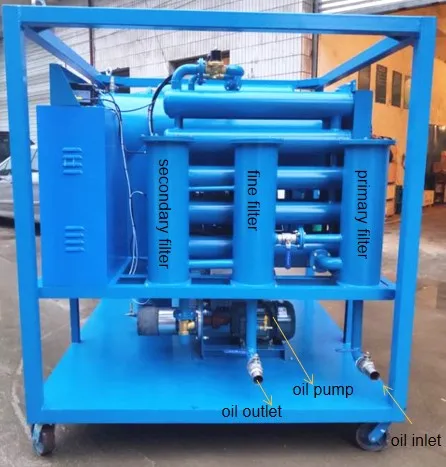

Three-stage oil filters, i.e. primary filter, secondary filter and fine filter: to filter out the solid and suspended particles in the oil.
