Auto 2V 12V Battery Active Equalization Battery Voltage Transfer Bank Balancer
- Category: >>>
- Supplier: Shenzhen Huaxiao Technology Co. Ltd.
Share on (62059845953):
Product Overview
Description
Product Introduction

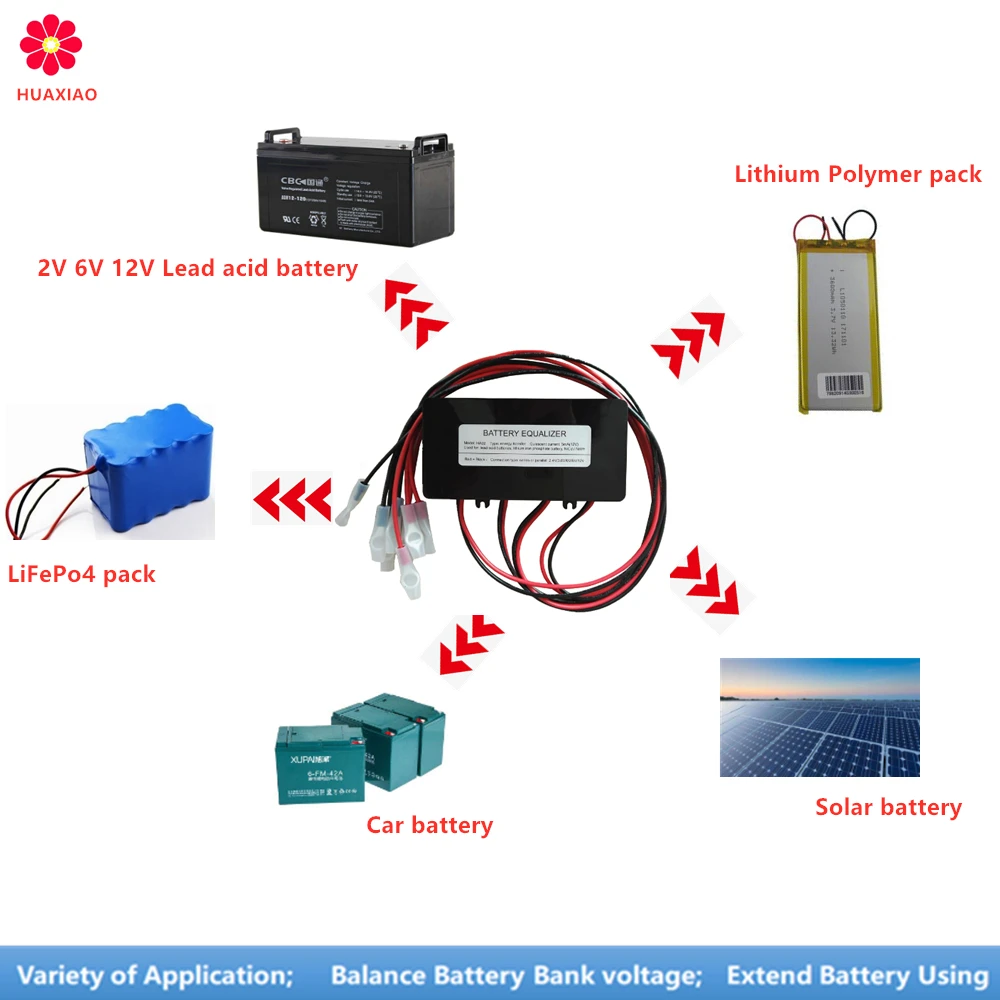

HA02 battery equalizer is used for the batteries which are connected in series to keep the voltage of batteries are equal when the batteries are charging or discharging.

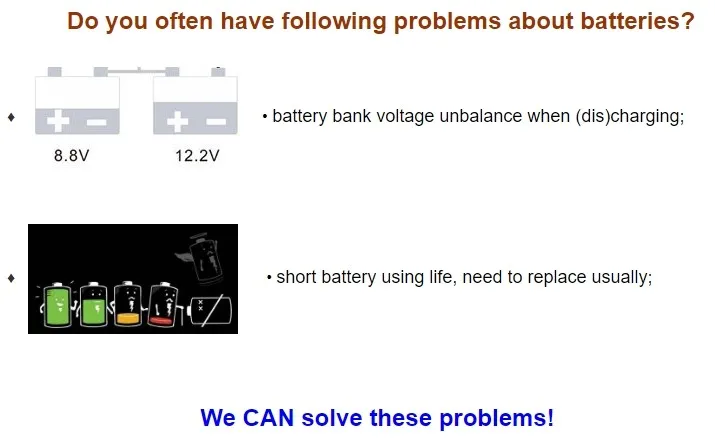

When the batteries work in series connection, the batteries voltage maybe will be not same due to the difference of each cell chemical composition and temperature. And each battery's self-discharge rate also different. So even the batteries not work, their voltage of series batteries will be also different. These differences will cause battery lost balance, this means maybe one battery is overloaded and the other is insufficiently charged. The voltage difference will be increased with the battery repeated charge-discharge process. This will result in premature failure of the batteries. The battery equalizer is used to solve these problems.
When the batteries work in series connection, the batteries voltage maybe will be not same due to the difference of each cell chemical composition and temperature. And each battery's self-discharge rate also different. So even the batteries not work, their voltage of series batteries will be also different. These differences will cause battery lost balance, this means maybe one battery is overloaded and the other is insufficiently charged. The voltage difference will be increased with the battery repeated charge-discharge process. This will result in premature failure of the batteries. The battery equalizer is used to solve these problems.

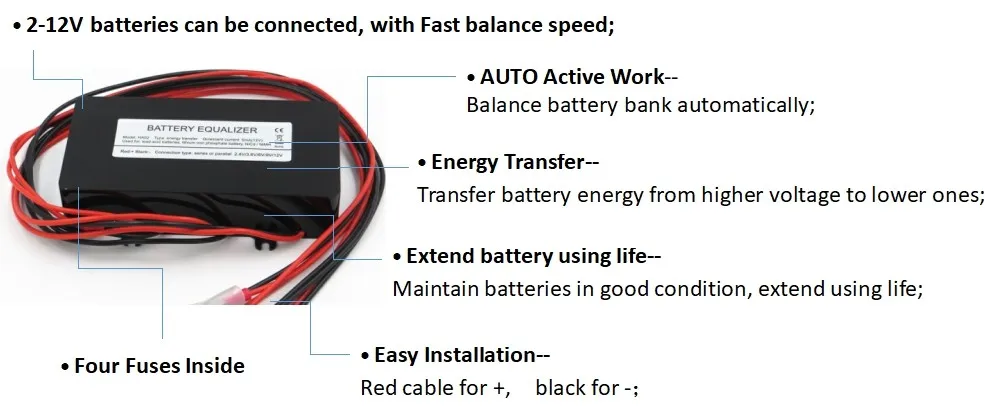

Product Features
Product Parameters
• Technical Data:
MODEL | HA02 |
Battery nominal voltage | 4* (2.4V/3.6V/6V/9V/12V) |
Optimizing current | 0-10A |
Quiescent current | <3mA |
Dimensions | 62*124*27 mm |
Protection | Reverse polarity protection |
Under voltage lock out | 10V |
•Installation
Connect it as the following order:
1.Red cable connect positive/+ pole. Black cable connect negative/- pole

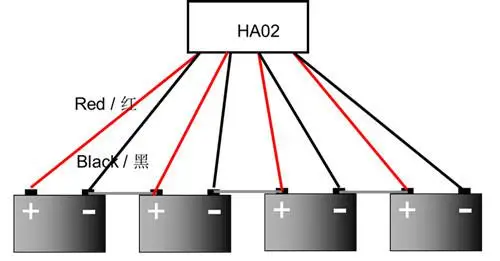

2.Connect the batteries as the pictures ,You can connect all + pole firstly,and then - pole to avoid short circuits.
Note:
1.If there are extra cables, please leave the tubes of the terminals on it to avoid short circuits.
2.Please avoid any of the 8 terminals touching each other.

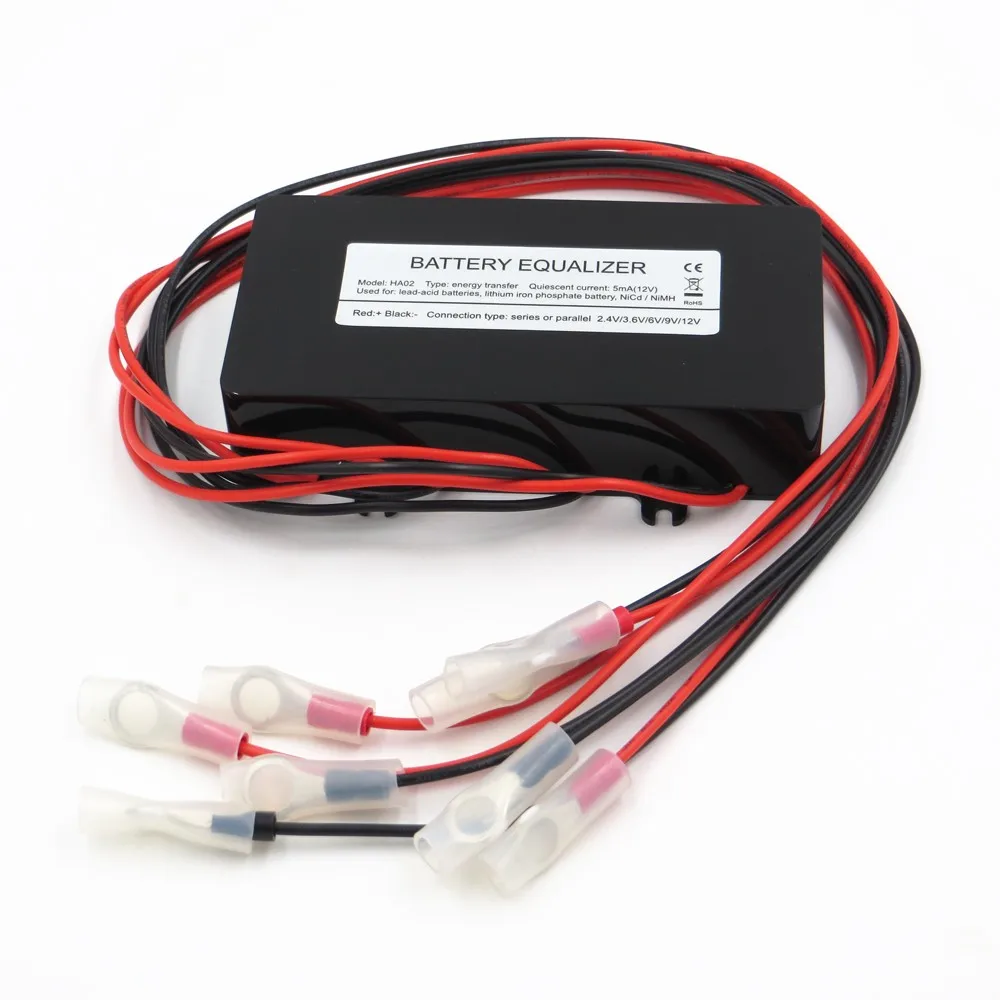

Product Packing

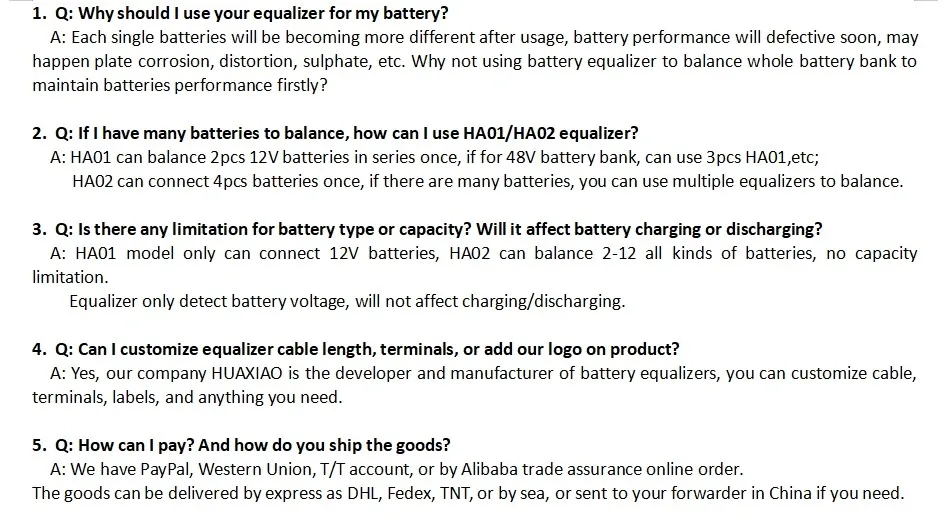

FAQ
