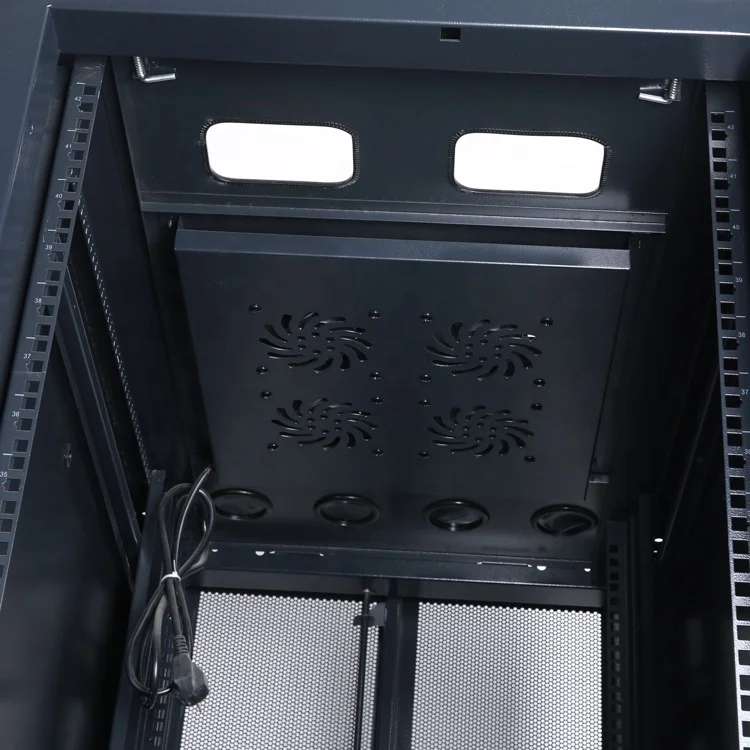

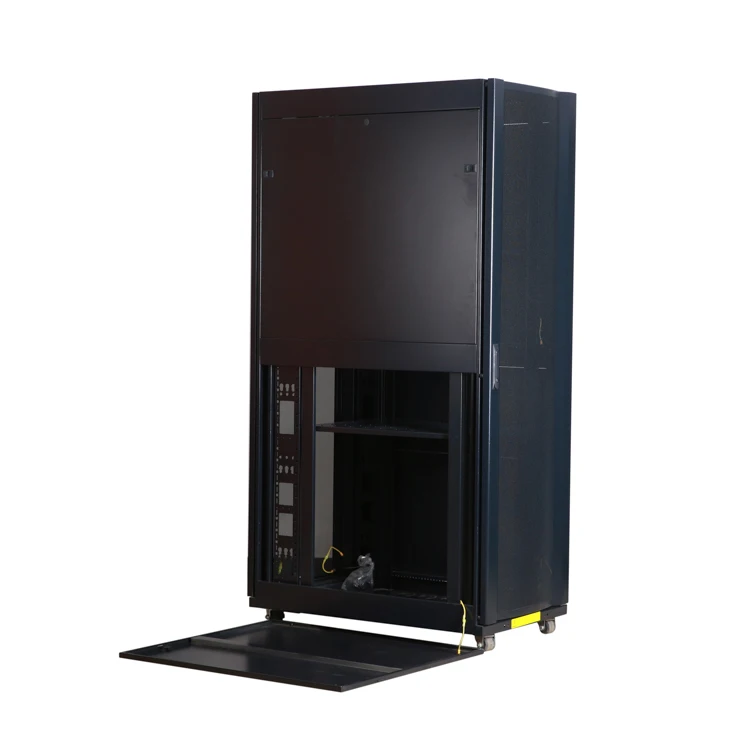

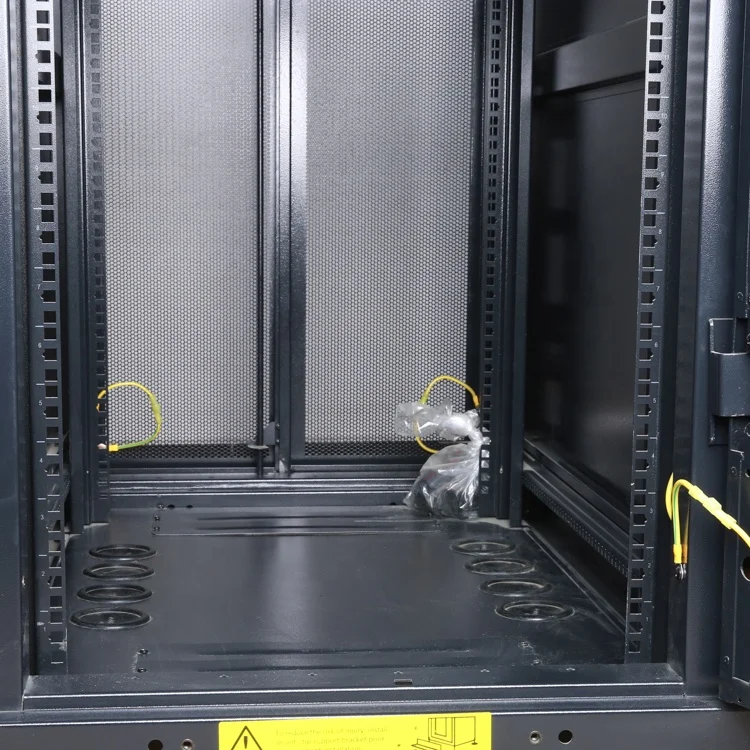

42U 47U server cabinet network enclosure with mesh front and rear door

Product Overview

Description

42U 47U server cabinet network enclosure with mesh front and rear door





Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PART1, DIN41494;PART7,GB/T3047.2-92 and ETSI standard



Features:



*Exquisite design with precise dimension and craftsmanship;

*High-density ARC vented front single &rear dual doors, Lockable door and side panels for system security;

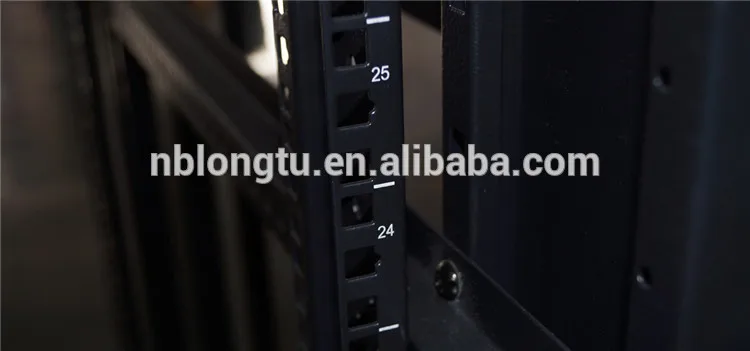

*Fully adjustable vertical mounting rails ;

*Swiveling wheels and legs can be jointly installed to withstand up to 800kg maximum static load ;

*Lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable;

Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI
Standard

Material:
High grade cold rolled steel.

Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm

Loading Capacity:
Static Loading: 1000kgs

Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.

Degree of Protection:
IP20

Body Color:
RAL7035, RAL9004 etc.

Optional Accessory:

Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
Earth kit
And so on...





















Packing:





Certificates

















Applications of Our Cabinets





Rack cabinets for Information Technology and telecommunication appliances use:



• Small, Medium and Large Servers

• DVR, Security Equipment and Routers

• Patch Panels and Switches

• Telephone Systems and PABX

• Network and Communications Equipment

• UPS Equipment

• Other Rack Mount Equipment







FAQ





1)    What is your Payment term?



---TT, LC, Western Union could be accepted.



2)    What is your Trade term?



---EXW, FOB, CNF, CIF is also ok.



3)    What is the Loading Port?



--- Ningbo,Shanghai.





4)    What is your MOQ?



MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.





5)    What is your Product Warranty?



---As Europe market, we have CE RoHS and other international safety standard for our products.



---As other market,  international safety standard certificate is also be provided.
