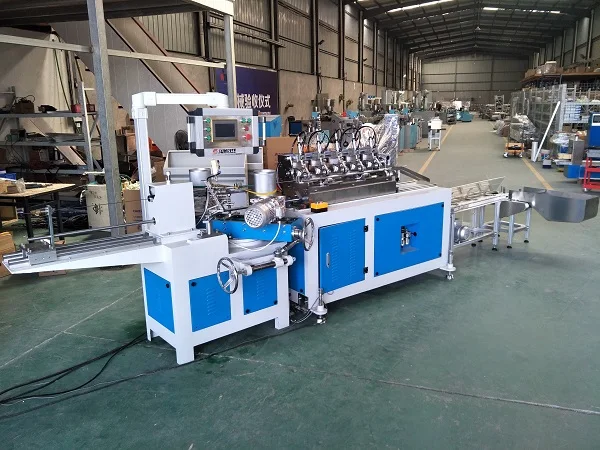

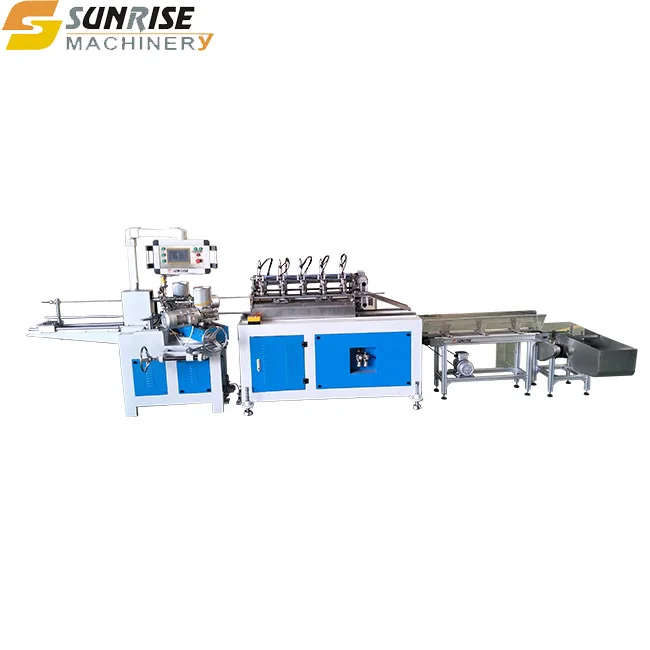

CE Certificate Paper Drinking Straw Making Machine
Product Description
The machine suitable for making the paper straw. It compose by the Paper reel stand, oil and glue pasting machine, paper winding and cutting machine, paper straw L shape gathering machine,
Characteristic
1.We use the famous brand electric parts to keep the high quality
2.Stable work and good performance
3.Round knife cutting with timing belt to keep the cutting smooth.
4.The touch parts use the SS304 (moulds and core bar ,cutting blade use the special treatment material), the machine table covered by SS304.
5.PLC control system and Servo motor to keep the cutting precision.
Technical Data
Paper layer: 3 layers
Inner diameter: 4.5-12mm
Thickness:0.3-1mm
Stable Speed: 35-45m/min.
Main motor:1.5kw x 2pcs
Power Supply : 220V/380V . 50HZ/60HZ ,.3PHASE
Control System :
Total Power Required :7 kw
Measure & weight :
Measurement : 3500*1500*1200mm
Working Space : 8000*5000mm
Weight : 1200kgs
Configuration :
Paper Reel Stand : 3 Layers
Gluing Unit : 3 Layers
Belt : 5 Pieces
Mandrel Shaft : 2 Pieces
Extra blades : 5 Pieces
Useful Tool : 1 set
Product Images
Paper winding and cutting machine

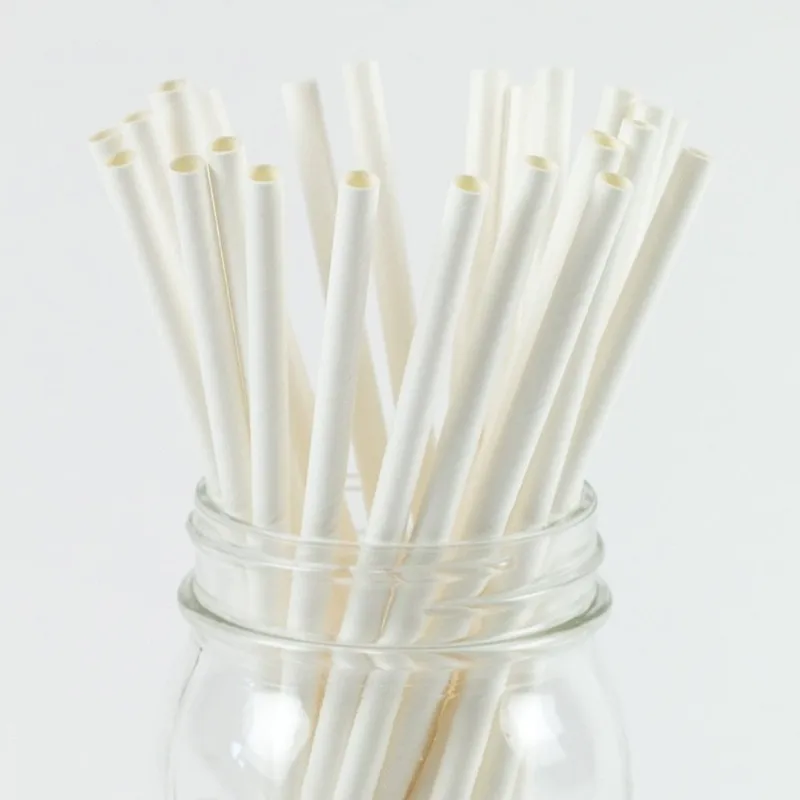

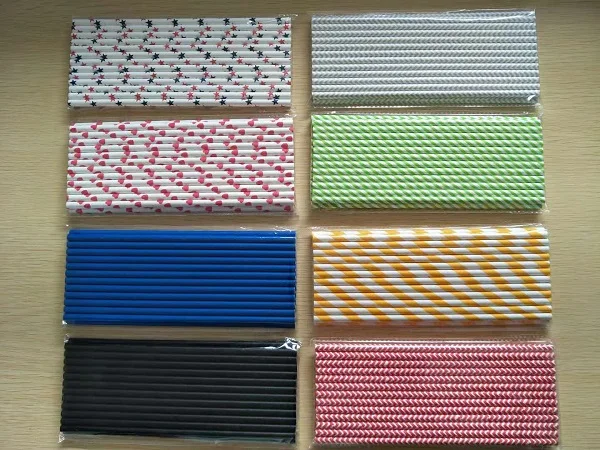

Paper straw
More products
Our Services
1. All of our machines design and produce according to the CE standard. 2. When the machines are ready,our workshop director will run and check first,if it is ok,then 3. Our QC department will testing it again to ensure the machine is runing and working well. 4. Then we will send the testing report to client for confirmation. 5. Our principle: only after testing, machine can leave the factory. and only qualified, it can be delivered.
Packaging & Shipping
After the machine finished ,we will note the cutstomers the testing day ,send the video and pictures to confirm ,if all ok ,we will arrange the shippment .but if you have any change , please tell us in advance!!
Confirmed all .We will pack the each quip as the loading quantity by the shrinking film .the parts all packed by wooden case or boxes . you can see the shipping loading pictures in container .in each step we all done very well to avoid any demage when arrived the destination port .
