gum arabic powder miller grinding machine for powder making machine
Product Application
This is our lastes advanced hammer mill set:
It features:
1) no need screen or sieve in mill chamber!!!!change powder particle size by changing speed;
2) Because it has no screen in mill chamber,when milling, there is no heat rising in mill chamber;
No need to worry power get stuck in the screens or product quality get affected by the heat from the mill. That's why it is very suitable for grinding heat-sensitive material or material contains fiber or oil.

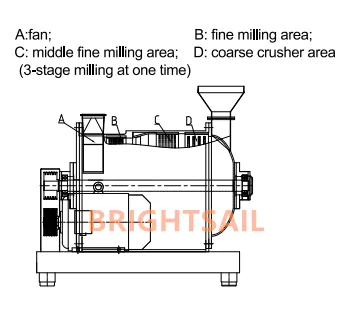

3) The mill part combinescoarse crusher, middle fine mill and fine mill together, which means it can makes fine powder directly from big raw material, very effective.
4) It can savemore power, its capacity is much bigger than other same motor traditional mill.
this machine has a very good effect for milling different kinds of food,like spice,herbs,milk powder and chemicals,feed...etc.
Technical data:
Model
BSDF-350
BSDF-450
BSDF-550
BSDF-650
BSDF-750
Rotor speed(rpm)
3500-4500
3300-4200
2900-3600
2400-3100
2100-2700
Grind motor(Kw))
15/22
30/37
37/45
45/55
55/75
Feed motor(Kw))
0.25
0.25
0.25
0.25
0.25
Discharge motor(Kw)
0.75
0.75
1.1
1.1
1.5
Blower(Kw)
7.5
15
18.5
18.5
22
Grind fineness(mesh)
20~150
20~150
20~150
20~150
20~150
Capacity(Kg/hr)
100~200
300~500
400~800
600~900
800~1300
Detailed Images
remark:

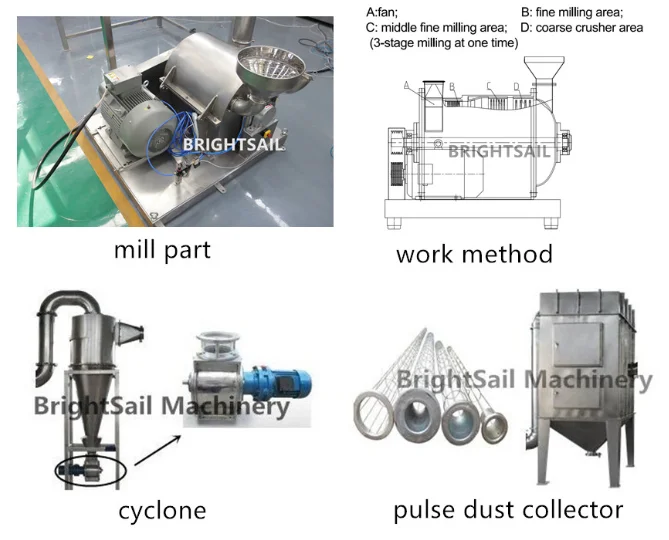

1) Dust is collected inside the dust collecting box.
Inside box, there are many dust collecting bags and the bag frames can be disassembled easily. With pulse-jet cleaning, dust can be collected very conviniently.
2) Cyclone can seperate dust from powder(granules),Rotary valve make powder discharge speed even.
3) Spare parts of the mill is hammer knife and liners, hammer knife's life is ~1 year and liner's like is ~2 years.
Certifications
Company Information
Brightsail Industries Group Co.,Ltd. is the trade dept of Jiangyin Brightsail Machinery Co.,Ltd and Jiangyin Heng Sheng Steel Structure Co.Ltd which is established in 2002. It's professional and engaged in research, development, production,sale and service of grinder machine,mixer,sifting machine,overall powder solution,welding service,welding machine, and metal processing,and chemical powder. In addition,we have abtained CE,ISO certificates. In 2018, our company obtained prize from Alibaba group as top100 seller in east China region. Our products have been exported to such contrires and regions as USA,Canada, Germany, Australia,Europe,Africa,South Asia,middle Asia. We also welome OEM and ODM models.
Our customers
Packaging & Shipping
Our Services
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
FAQ
Pls tell us:
About gum arabic powder miller grinding machine for powder making machine
1) What is your raw material? is it dry?
2) What powder particle size you need? for example, 40 mesh, 60 mesh, 80 mesh,120 mesh...etc
3) What capacity you need? (kg/hr) like 100 kg/hr, 300 kg/hr, 500 kg/hr, 1000kg/hr....etc
