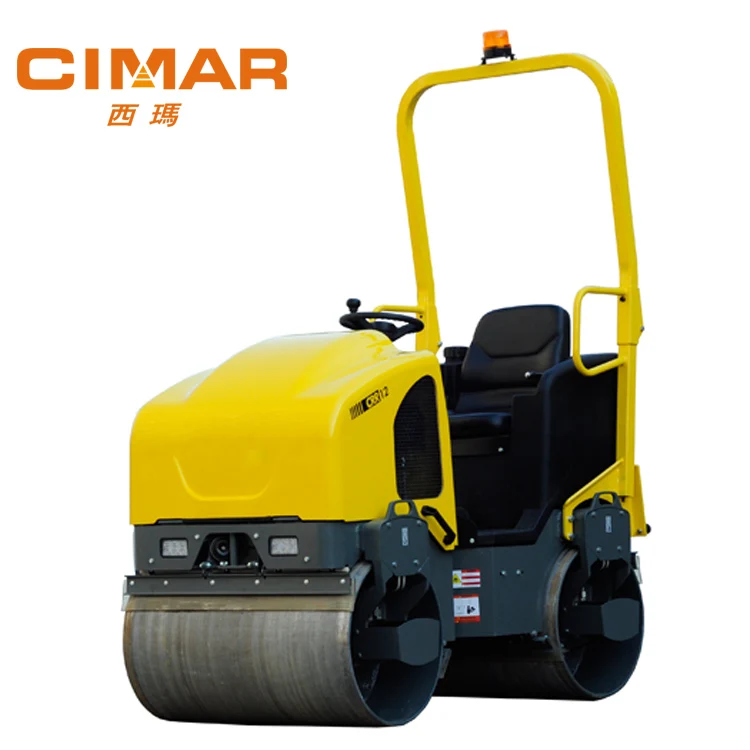

Road Roller Parts 1.2 Ton Vibrating Mini Road Roller Compactor

Engine type

gasoline

air-cooled, 2-cylinder

Engine manufacturer

Honda

GX630

Displacement

cm³

688

Operating speed

rpm

3,100

Operating performance Max Rated at 3600rpm

kW

15.1

Fuel comsumption

l/h

6

Fuel tank capacity

l

23

Water tank capacity

l

100

Operating weight w/80kg operator

kg

1,130

Dimensions (LxWxH)

mm

1824x1050x2290

Drum width

mm

900

Drum diameter

mm

560

Left side clearance

mm

90

Right side clearance

mm

100

Left curb clearance

mm

208

Right curb clearance

mm

240

Centrifugal force Dynamic (Front Drum)

kN

15

Frequency

Hz

60

Linear force Static (Front/Rear)

N/mm

4.9/7.2

Linear force Dynamic (Front)

N/mm

16.8

Travel speed Forward

km/h

7.5

Travel speed Reverse

km/h

7.5

Surface capacity Area

m²/h

675

Gradeability Maximum

%

30

Gradeability Limit (Engine)

%

32

Turning radius Outside

mm

2,500
