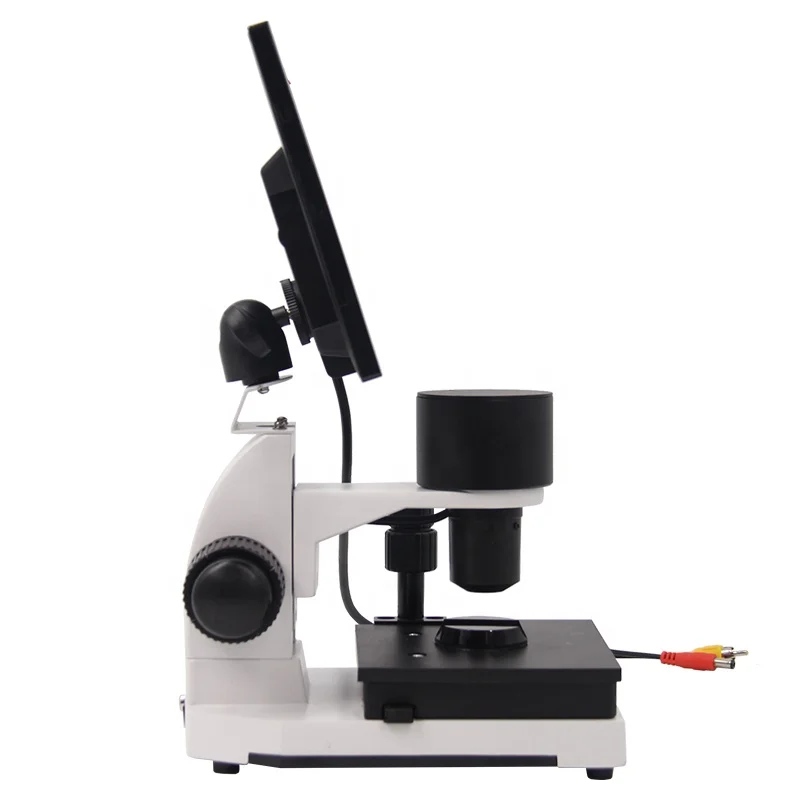

OPTO EDU A33.0220 8' LCD Noninvasive Nail Microcirculation Checking Microscope

Product Overview

Description

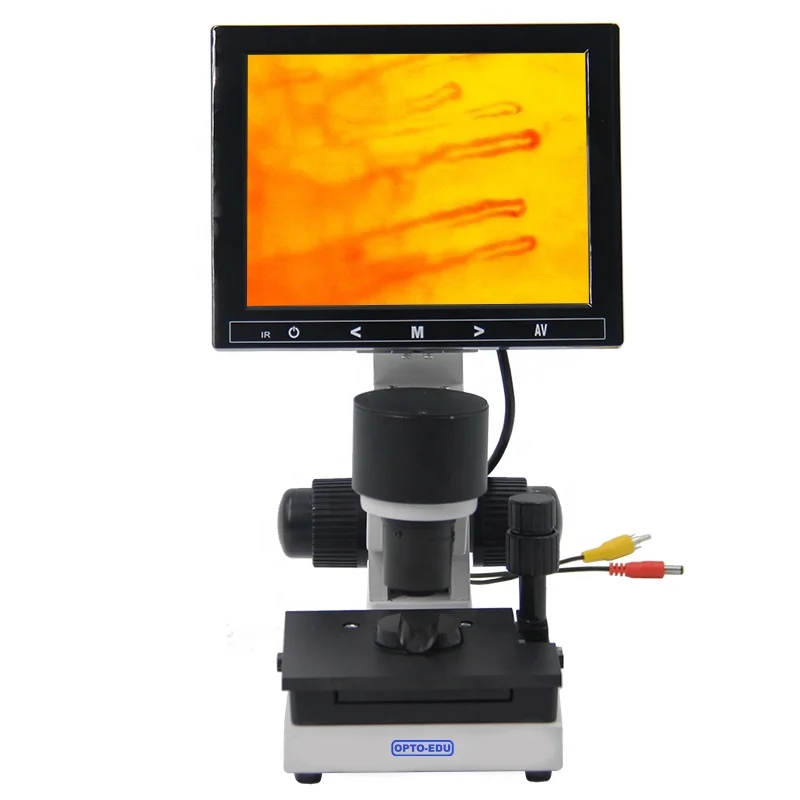

OPTO-EDU A33.0220 8'' LCD Noninvasive Nail Microcirculation Checking Microscope

Practical Application:

01. Nail Wall Distal Microcirculation Observation

02. Cutaneous Distal Microcirculation Observation

03. Tongue Microcirculation Observation

04. The Auricle Distal Microcirculation Observation

05. Lips Microcirculation Observation

06. The Other Parts Of The Microcirculation Observed

07. Sweat Glands Observed

08. Hair Follicles Observed

09. Bamboo Charcoal Commodity Microcirculation Efficiency Testing

10. Far- infrared Commodity Microcirculation Efficiency Testing

11. The Germanium Titanium Micro-circulation Of Goods Performance Detection

12. Ore Commodity Micro-cycle Efficiency Detection

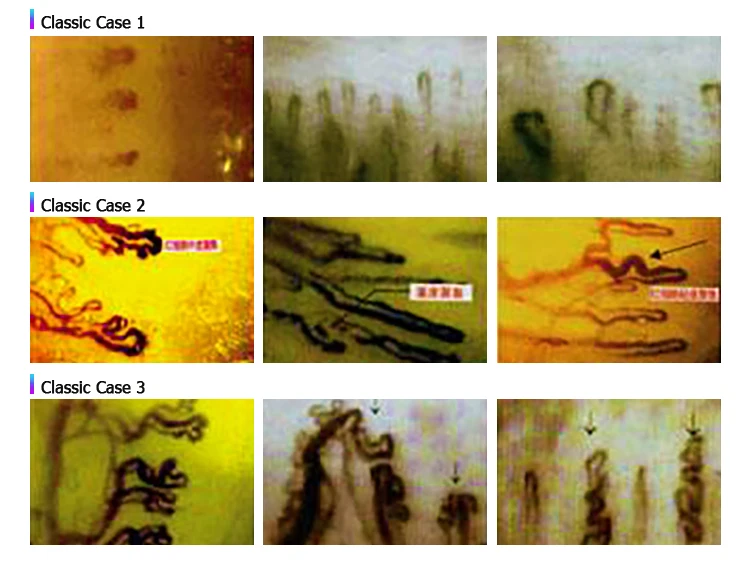

Microcirculation Microscope Viewer Is A Kind Of Advanced Medical Photoelectric Instrument, Equipped With Special Light Source, Mainly Used For Microscopic Nailfold Microcirculation To The Human Body Capillary Dynamic Fluoroscopy, Through A Dedicated Display System, Real-time Dynamic Clear, Flow Pattern, The Display Of The Microcirculation Of The Blood Vessels Form Loops Weeks Images, Widely Used In Clinical For Many Diseases Such As Cardiovascular, High Blood Pressure, Stroke, Diabetes, Rheumatoid Arthritis, Etc.) In Early Diagnosis Of Microcirculation Change In Forecast, The Judge Curative Effect And Prognosis Estimation, Etc.



At The Same Time, It Has Played An Important Role In Many Fields, Such As Medical Care, Human Health Consultation, General Survey, Beauty Care And So On.



The Instrument Uses High Definition, High Resolution Ccd Digital Camera, Can Directly From The Monitor Real-time, Dynamic, Clear Display Of Microcirculation State, For Real-time Observation, Analysis, Teaching.

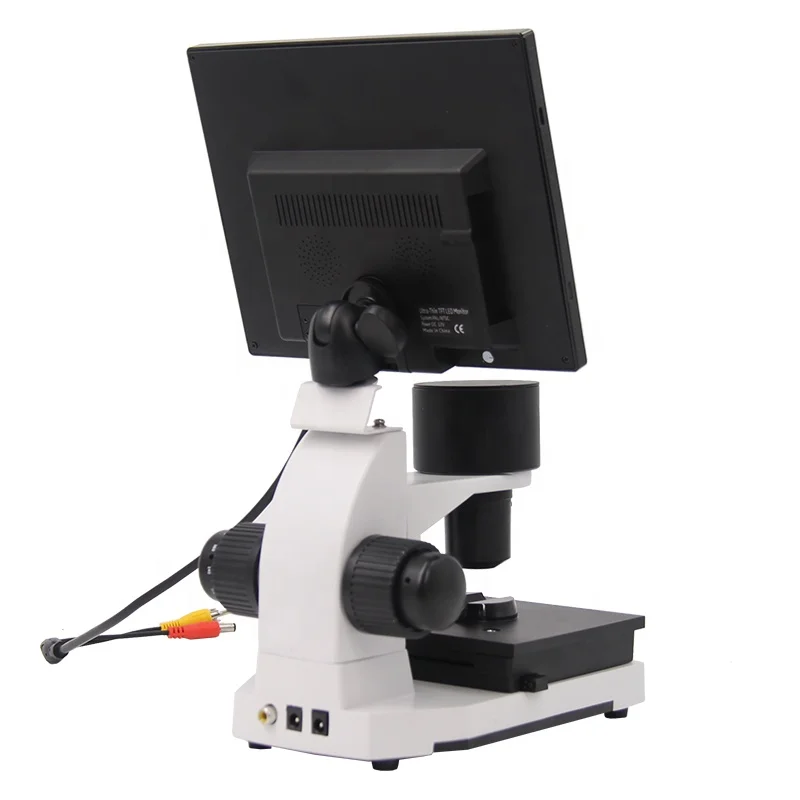

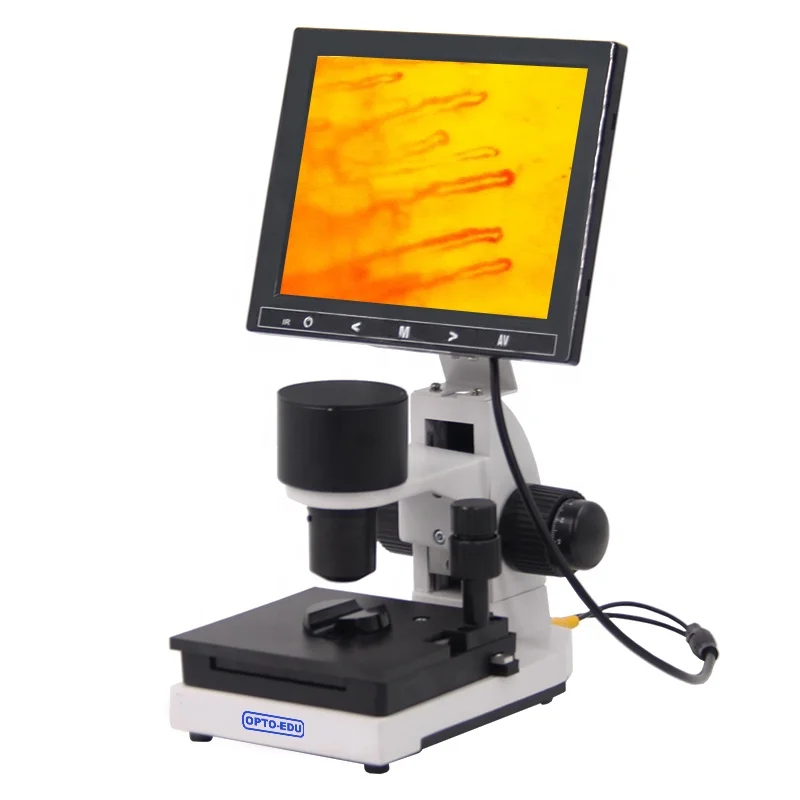

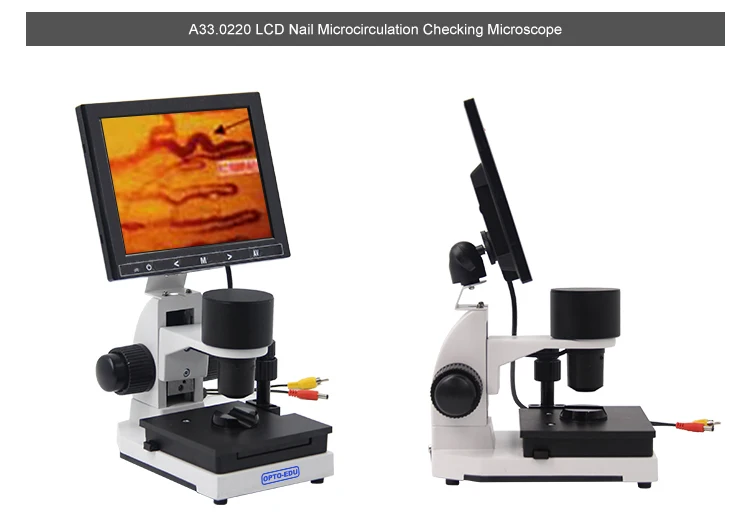

A33.0220 8" LCD Nail Microcirculation Checking Microscope

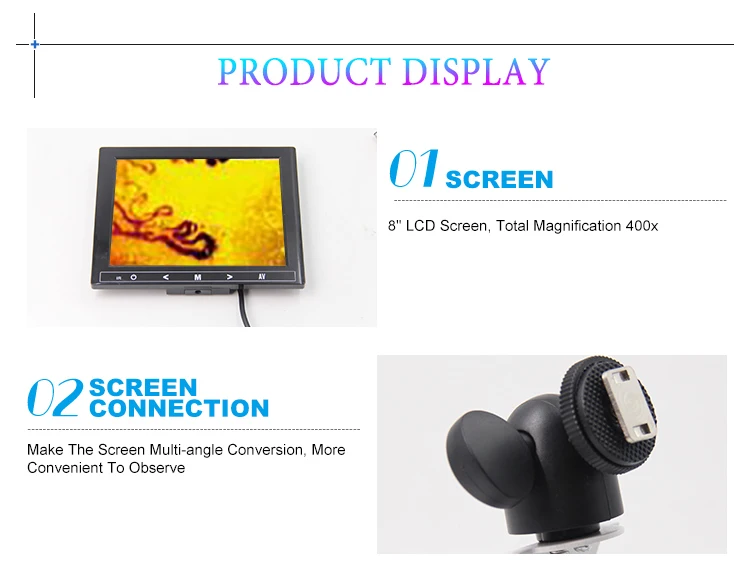

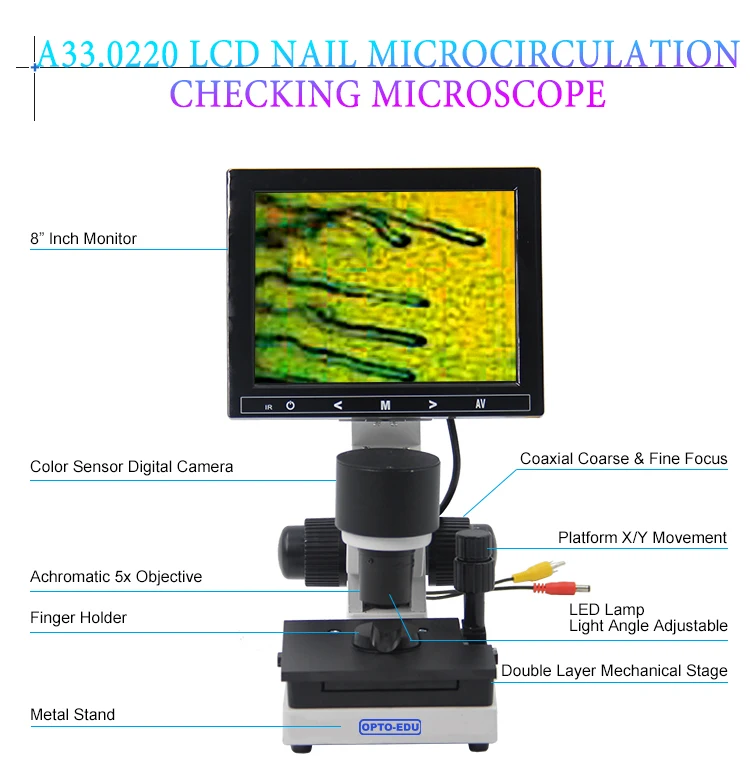

Screen Size	8" LCD Screen, Total Magnification 400x
Digital Camera	Color Sensor 1/3" CMOS, 2.0M, 420 TV Lines Resolution, Automatic White Balance, Minimum Illumination 3 Lux, AV Output

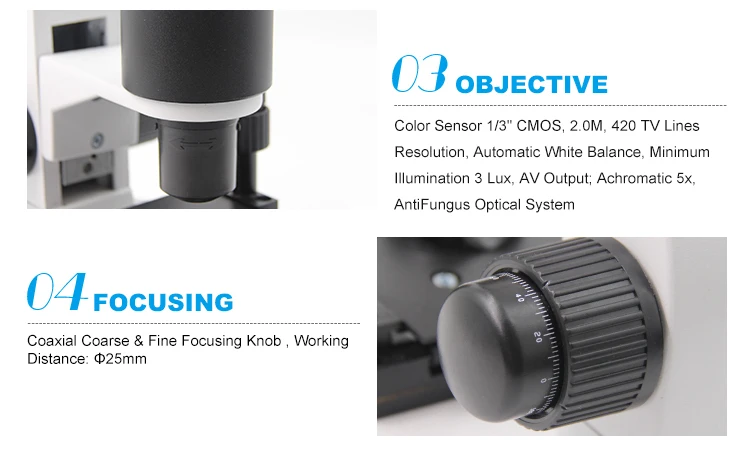

Objective	Achromatic 5x, AntiFungus Optical System

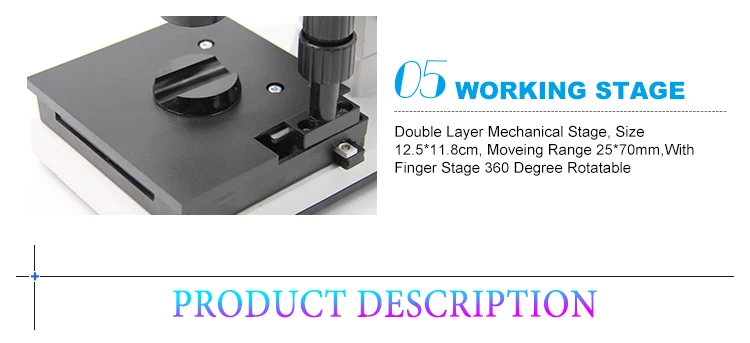

Working Stage	Double Layer Mechanical Stage, Size 12.5*11.8cm, Moveing Range 25*70mm,With Finger Stage 360 Degree Rotatable
LED Illumination	High Quality LED, Light Angle Adjustable, Low Temperature, Long Working Time Over 10000 Hours
Focusing	Coaxial Coarse & Fine Focusing Knob
Power	AC Input 100~240V, AD/DC Adapter

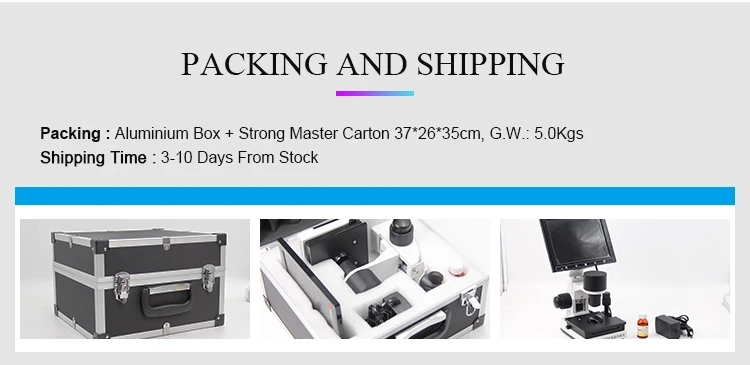

Packing	Portable Alumium Case Included, Size 31.5*30*21.5cm, 1 pc/ctn, Carton Size 37*26*35cm, G.W. 5.0 Kgs
