1)Patent design bottle infeed system: collocation can be for a variety of products, changing bottles and collocation easy to adjust, no need additional change over parts, low-impact bottle separating system, suitable for beer bottle, soft PET bottle etc.
2) Advanced configuration, safe and reliable:main drive using import servo controller, servo motor, SMC pneumatic system, SICK sensor and SIEMENS system, PLC module integrated control etc., ensure machine running low failure and high efficiency.
3) 3High production efficiency:The double film rolls can be used alternately, it takes only one minute to change the film. No film machine stops, continuing linear motion when operating, speed adjustable, variable speed, high production efficiency.
4) Fine material and durable:machine frame, driving parts using import aluminum and stainless steel material, life span few times than material made in China, the table top chain and wheel made of macromolecule, self-lubrication and low wearing material, equipped with self-lubrication device, durable, very few spare parts changing for future running, saving production cost.
5) Convenient adjustment:when designing this machine at the beginning we take change over into account, all adjusting point installed regulator, scaleplate and formats meter. It’s easy for the operator to change different bottle size, saving time, convenient and fast.
6)High quality electrostatic spraying:when designing this machine at the beginning we consider that most of equipments in China are carbon steel painting, the disadvantage is low adsorption forces, easy falling off, easy aging, fading when high temperature, needs re-painting during overhaul after 2-3 years, which costs a lot, but we compare with foreign equipments, treat the machine by electrostatic spraying, cost is about 4-5 times of painting. Machine bright and shinning, high absorption forces, reaching the level of import machine. Machine frame grey color, both shrink tunnel and door are white.
7)Compact cabinet design:In order to save more space for the the customer, safety using the machine, we install the electric cabinet on the top of the machine, which make the complete machine more compact.
8)Reasonable structure, easy to operate and maintain:The machine composed of reasonable mechanical structure, reliable pneumatic device and advanced automation control technology, high configuration, close working, according with industrial safety rules, firm structure, easy to operate and maintain.
Machine Datasheet
Capacity
15 packs/min
Packing
wrap around
Bottle dividing
cylinder type
Bottle shape
(1)Glass bottle, PET bottle and can etc. Diameter: Ø55~110mm (2) Bottle height: H80~320mm(Notice:each bottle diameter and height difference±2mm, otherwise thought as another bottle size)
Pack size
(1) L200~530mm (2) W130~300mm (3) H80~330mm
Machine dimensions
a. Main machine: 3100mm*2400mm*2000mm(L*W*H) b. Infeed conveyor L2850mm*W610mm*1150 (L*W*H)
Total power
15 KW
Control power
24V DC
Compressed air
(a)Pressure:0.4~0.8MPa (b)Air consumption:50L/MIN
Weight
4T
Noise
≤ 85 dB

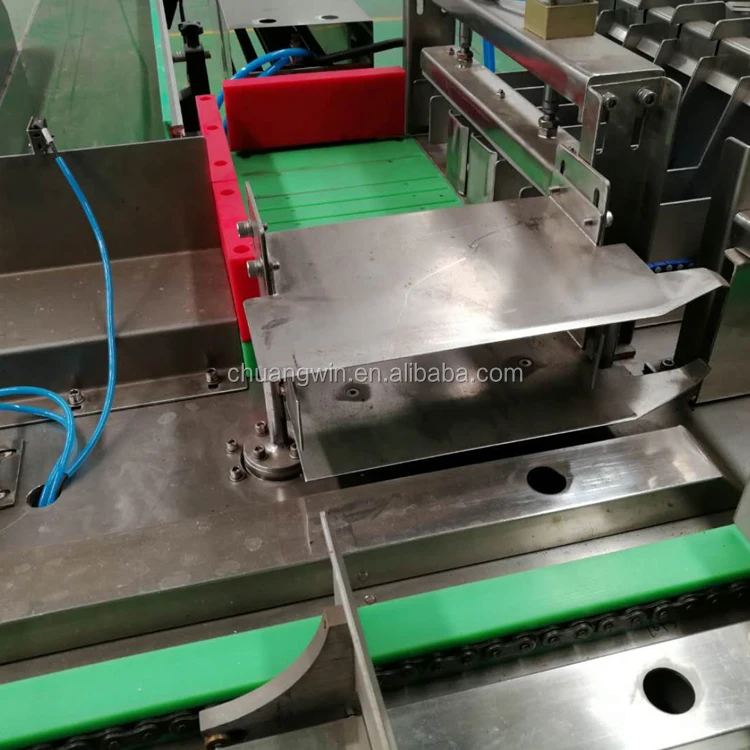

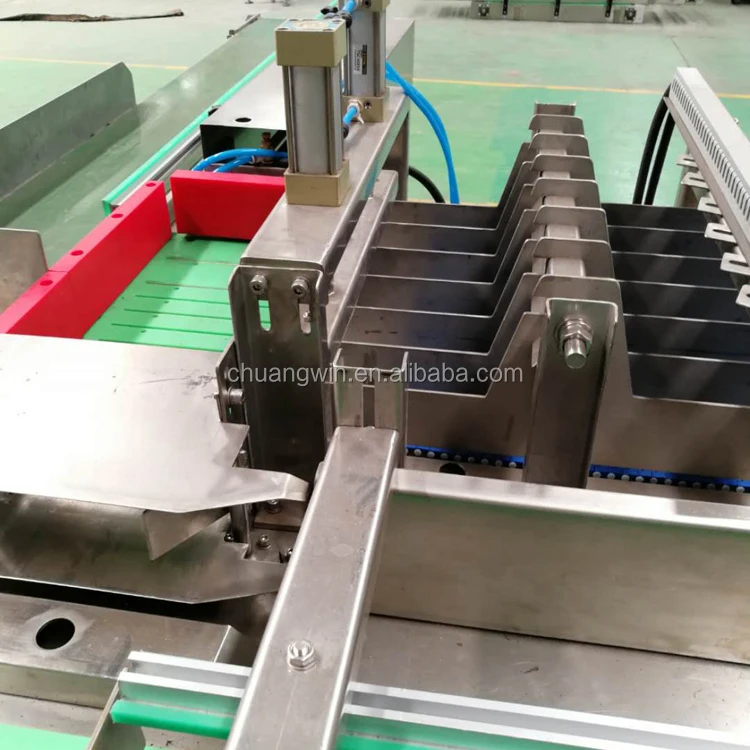

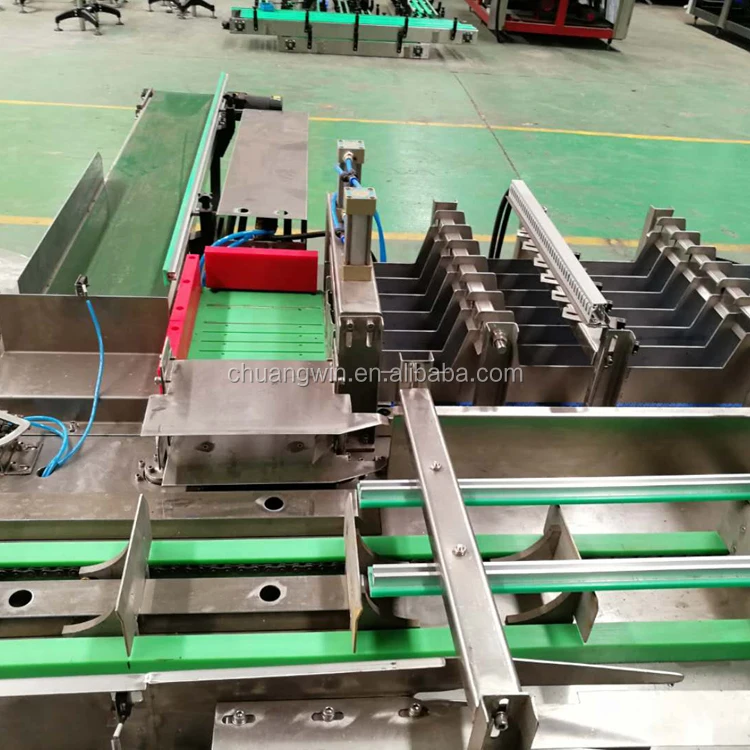

Detailed Images
Company Information
Packaging & Shipping
Our Services
1.Find our products through websit .
2.One year warranty for the whole system.
3.Free equipment installation and debugging.
4.After one Year,we can help you to maintain the machine and the accessories are provided olny one the cost price.
5.Every 3 years,we can help to overhaul the machine freely(Labor).
6.We can provide internship servise and help you train the operator and mechanic.
7.Free production technology and process configuration.
8.We can help you to design the production line,workshop and provide turn-key project.
FAQ
Q: How to get an appropriate offer from your company?
A: Please inform us:
1, production capacity per hour/per day/per month ... ...
3, bottle type: plastic bottle, glass bottle, can or ... ...
4, cap type: screw cap, crown cap, can lid or ... ...
5, for water treatment, it's better offer us the raw water quality report ... ...
Q: This is the first time I cooperate with your factory. How can I trust you about the machien quality?
A: Before ordering the machine, we will make the offer very clear. For example, the material thickness, the brand etc. We can have the video call and I will show what we have in the factory
Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years
Q:When can I get my machine after I paid?
A:We will deliver the machines on time as the date we agreed both side.
Q: Can I run the machines in your factory if I buy the complete line in your factory?
A: Sure, why not. We will have the line connected and tested in our factory before shipping even you didn't mention; We will make it working before arriving at your factory;
Q:How about the spare parts?
A:After we deal down all the things , we will offer you a spare parts list for your reference.
Q: How can I install the machine and commissioning? Do you have the technician to my factory?
A: We have the technician available to your factory for machine installation and commissioning; BUT client should be responsible for the round-way flight tickets, technicians' daily salary, local transportation, local hotel and eating.
