Digital radius meter

Product Overview

Description

Digital radius meter

Characteristics

1. There are 5 Measuring claws (sensor). Use different measuring claw to measure different circular arc surface and measuring precision.

2. High-precision digital display percentage function table (remove measuring claw).

3. Measure the radius of the outer arc surface.

4. Measure the radius of the inner arc surface.

5. The depth measuring.

6. The steps measuring.



Range of application

Automobile, aviation, medical, electronics, machinery, plastics, optics and other industries



Spare part

Optional: USB cable, RS232 cable, Ear back cover, measuring claw, External display.

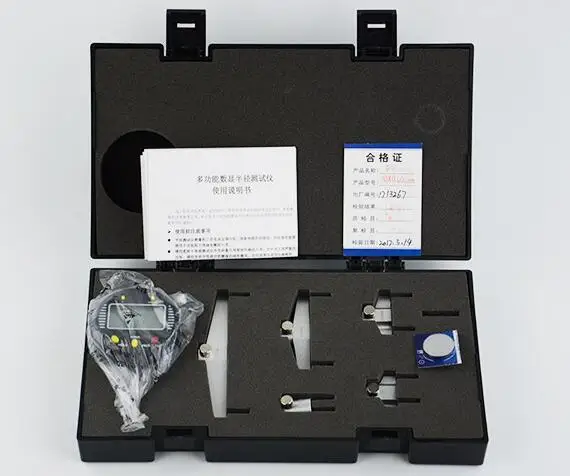

Standard:  5 measuring claws, battery, use manual, packing box.



Specification

Test Range                    error range

 Length: 0-13mm            ΔS≤0.02mm

 Radius: 5-9999.9mm       ΔR≤0.01*R/S

Battery:  3V ( CR2032 )

Use Tempearture: 0-40 degree.

Use Humidity: ≤80%

Temperature storage and communication: -20 – 60 degree

Inch/mm two units switchover.

Measuring claws: 10/20/30/60/100
