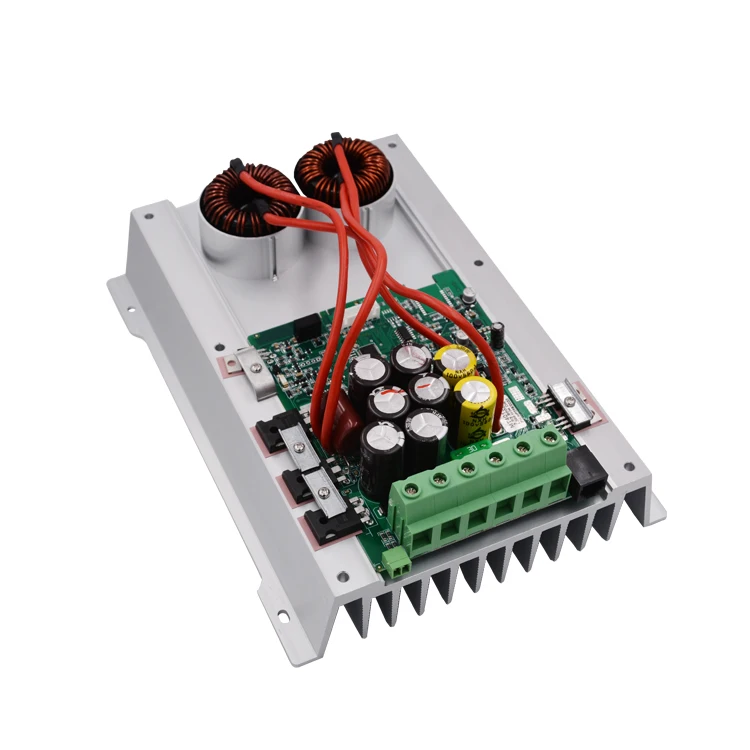

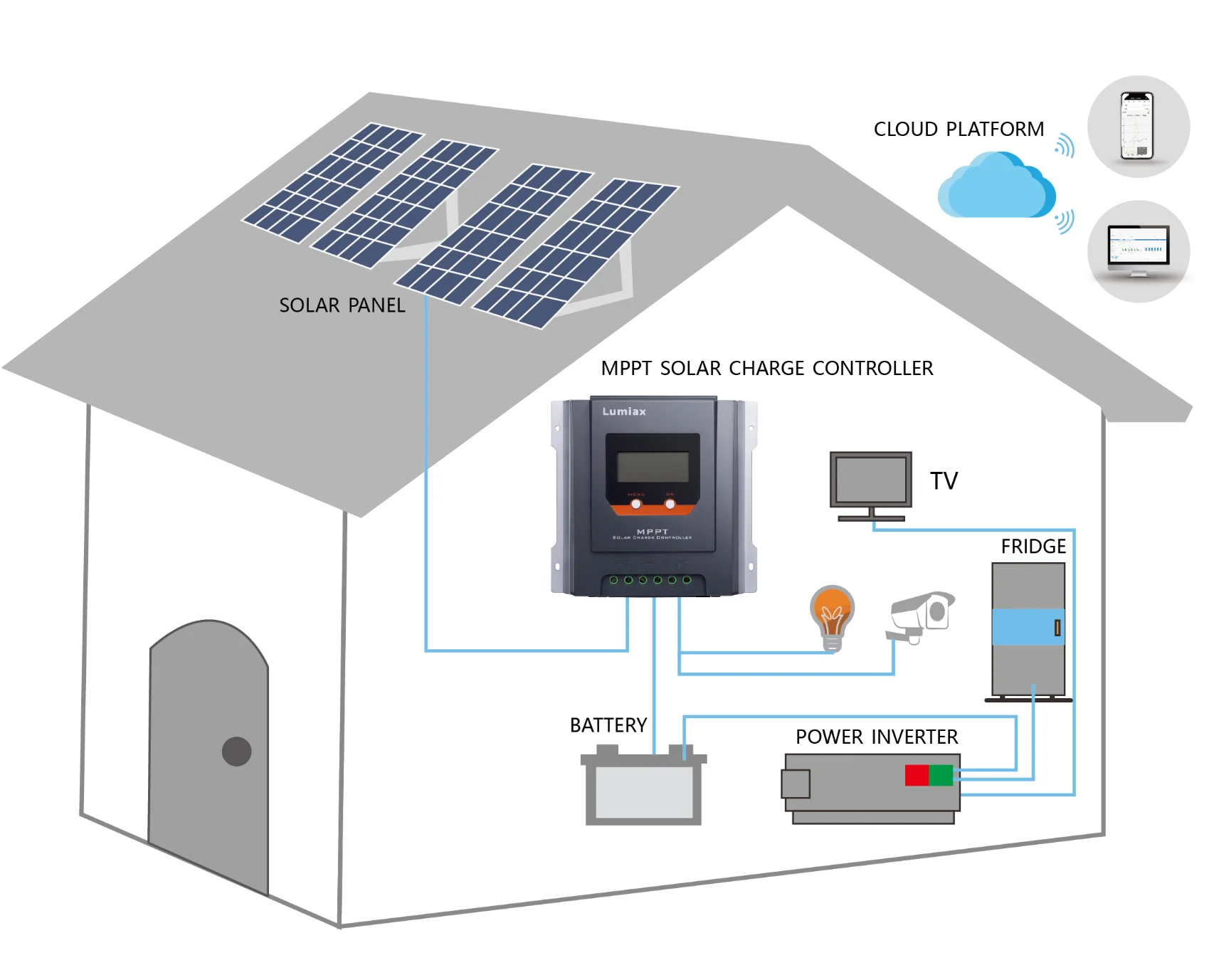

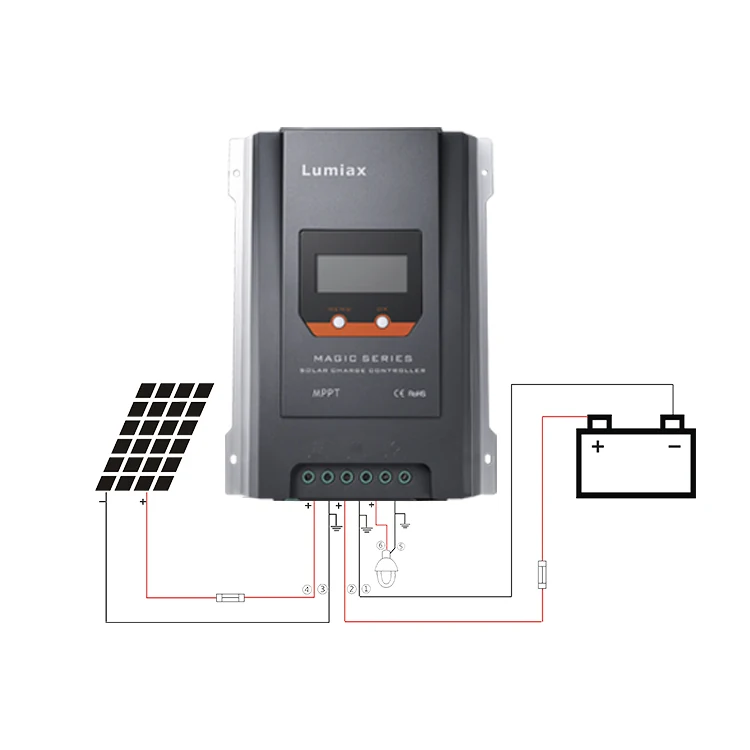

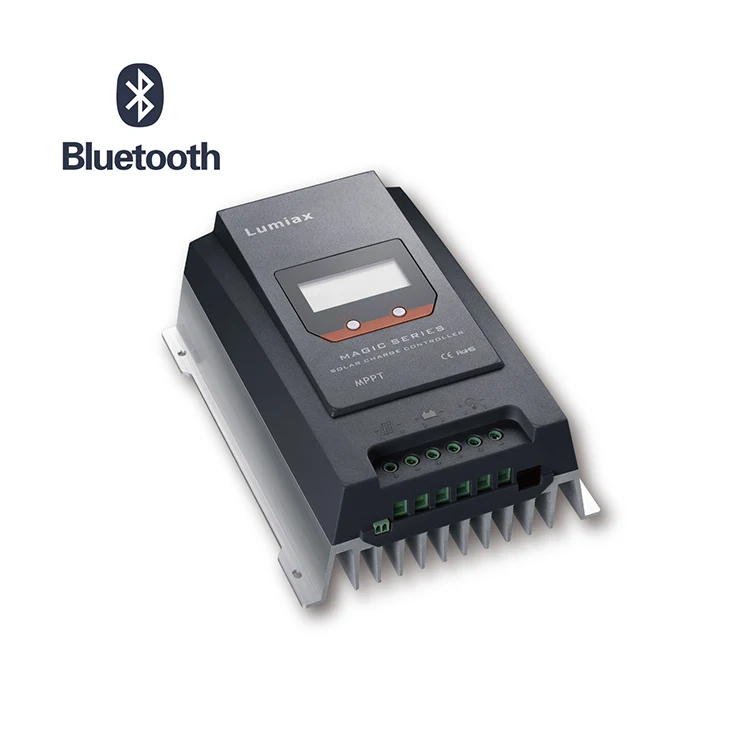

Lumiax 40A 24v 48V off grid power system bluetooth regulator MPPT solar charge controller
- Category: >>>
- Supplier: Qingdao Skywise Technology Co. Ltd.
Share on (62060666832):
Product Overview
Description
Products Description

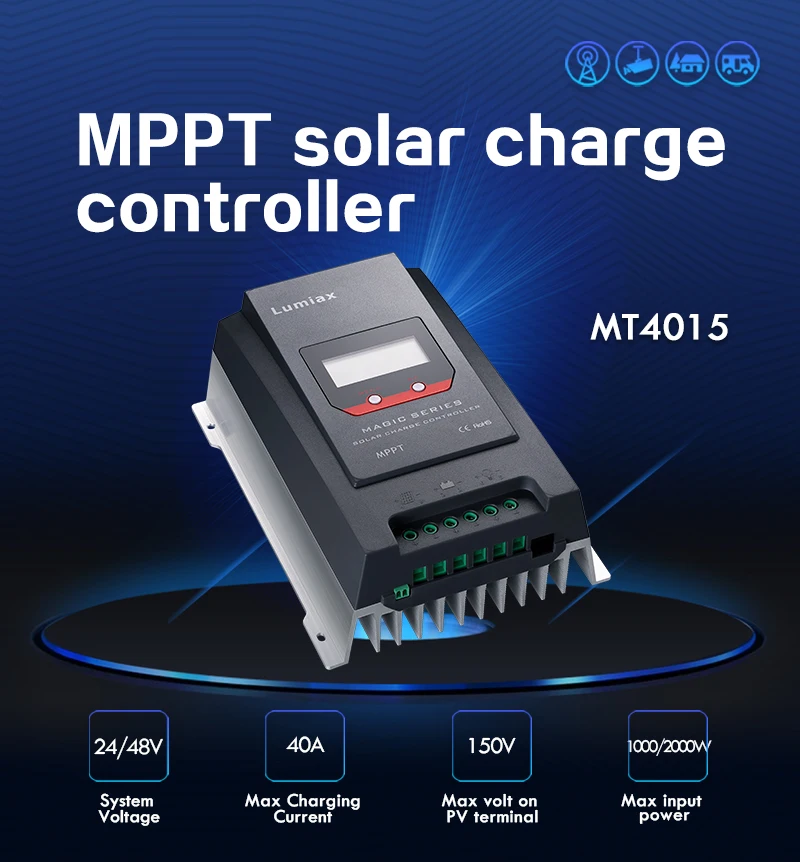

ltem | MT4015 |
Max Charging Current | 40A |
System Voltage | 24V/48V automatical recognization |
MPPT Charging Voltage | before boost or equalization charging stage |
Boost Voltage | 28.0~29.6V/56.0--59.2V@25℃ (default29.0/58.0V) |
Equalization Voltage | 28.0~30.0V/56.0~60.0V@25℃ (default29.6/59.2V) |
Float Voltage | 26.0~29.0V/52.0~58.0V@25℃ (default27.4/54.8V) |
Low voltage disconnect | 21.6~23.6V/43.2~47.2V,SOC1~5(default:22.4/44.8V) |
Low voltage reconnect | 22.8~25.6V/45.6~51.2V(default: 24.0/48.0V) |
Overcharge Protect | 31.3/62.3V |
Charging target voltage | 20.0~64.0V(Lithium,default: 29.4V) |
Charging recovery voltage | 18.2~63.8V(Lithium,default: 28.7V) |
Low voltage disconnect | 18.0~60.0V(Lithium,default: 21.0V) |
Low voltage reconnect | 18.6~62.0V(Lithium,default: 22.4V) |

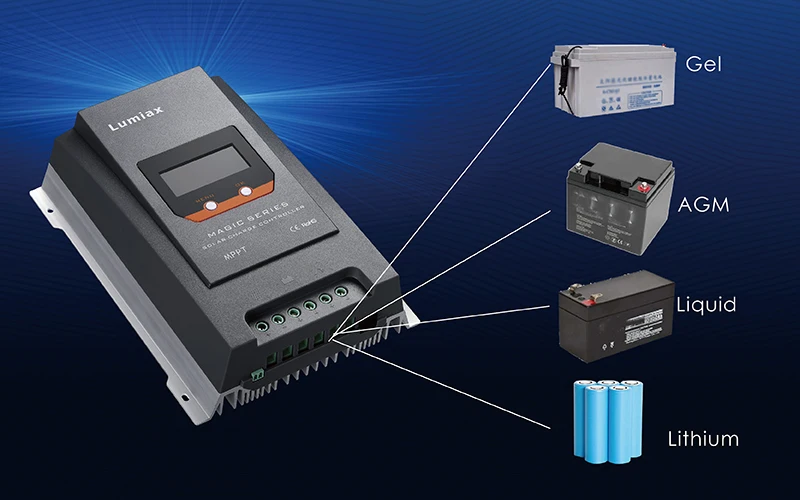

Battery lype | Gel,AGM,Liquid,Lithium (default: Gel) |
Max volt on Bat. Terminal | 65V |
Max input power | 1000/2000W |
Day/Night delay time | 0~30min(default: 0min) |

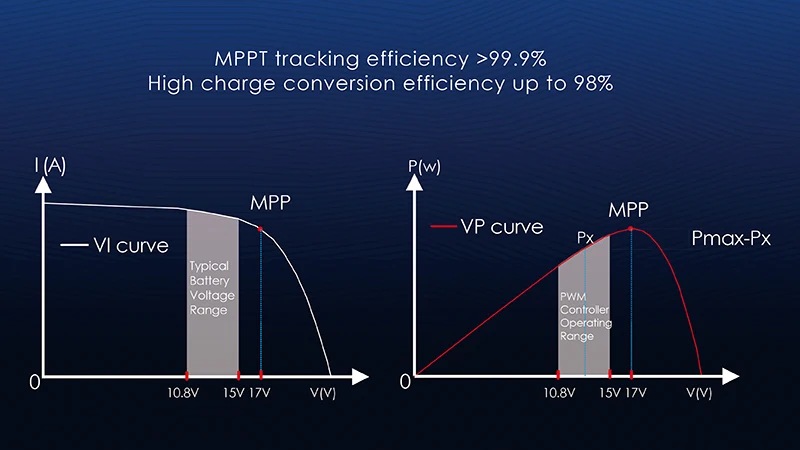

MPPT tracking range | (Battery voltage + 1.ov) ~Voc*o.9 |
Output Current | 30A |
Load mode | Always on,Street lamp.User-defind Mode |
Max tracking efficiency | >99.9% |
Max charge conversion | 98.70% |

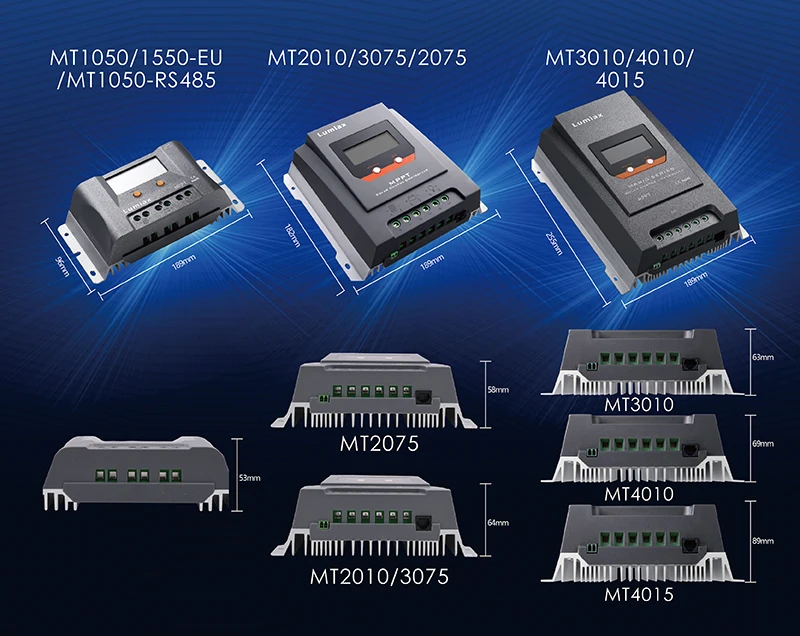

Dimensions(mm) | 189* 255*89mm |
Weight | 2.5Kg |

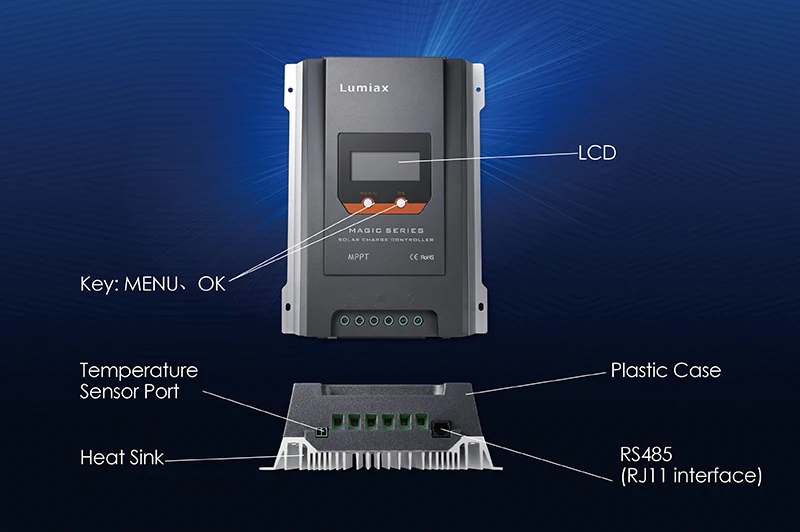

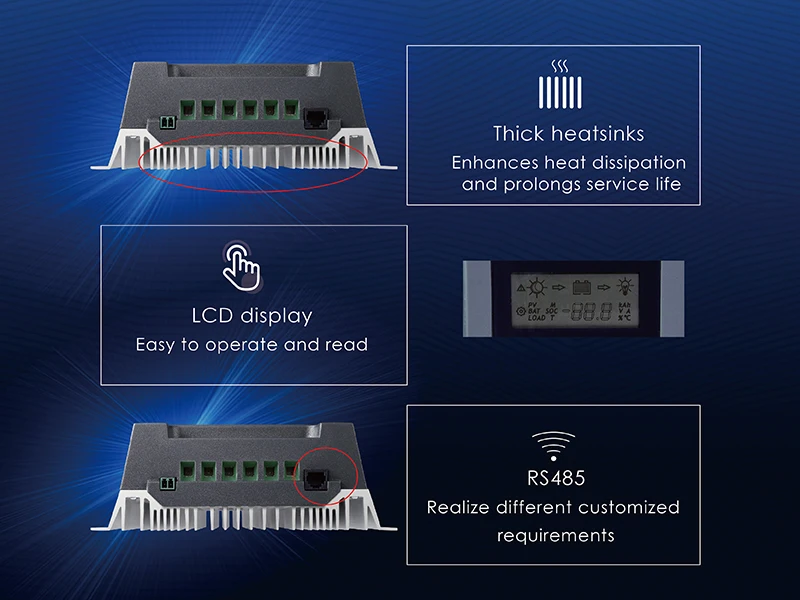

Communication | RS485(RJ11 interface) |

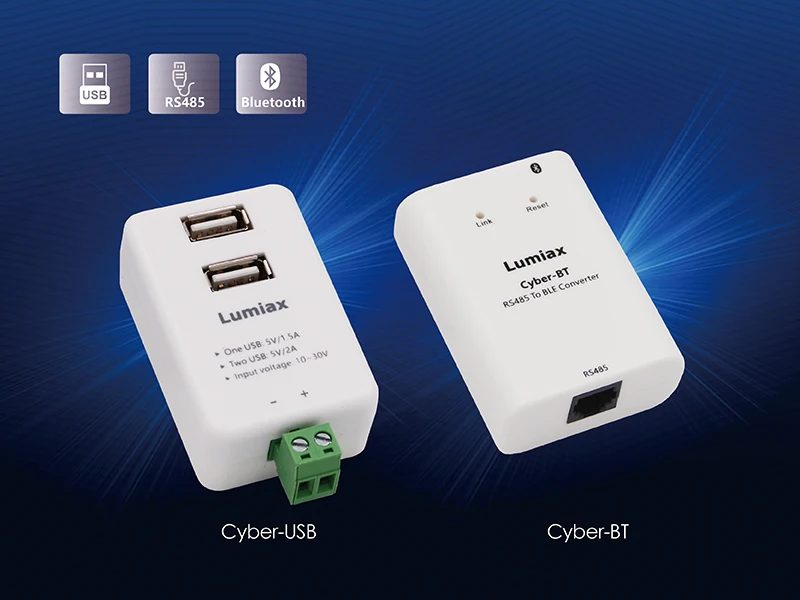

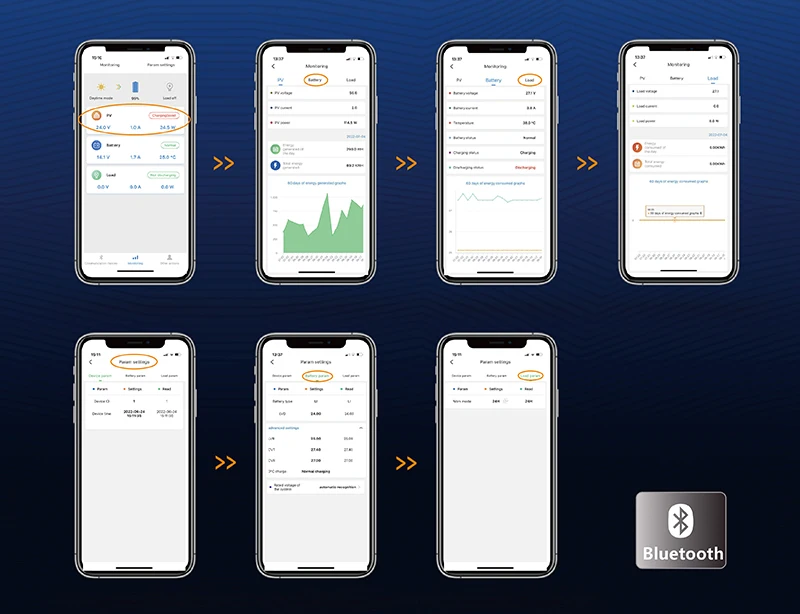

Optional | Cyber-BT(lnternal/External) |
Grounding | Common Negative |
Power terminals | 6AWG(16mm) |
Ambient temperature | -20~ +55℃ |
Storage temperature | -25 ~ +80℃ |
Ambient humidity | 0 ~ 100%RH |
Protection degree | IP32 |
Max Atitude | 4000m |
