Switzerland MDC Ink Doctor Blade
- Category: >>>
- Supplier: Shantou Wingtai Packing Equipment Co. Ltd.Shantou Ltd.
Share on (62060688118):
Product Overview
Description
Detailed Images
gravure printing doctor blades
Brand: MDC
Place of origin: Switzerland
Manufacturer: Daetwyler
Model number: Doctor Blades in coils
Material: Carbon Steel
Common width: 20,25, 30 mm
Common thickness: 0.2mm
Common lamella: 0.125*1.7mm
Main Features

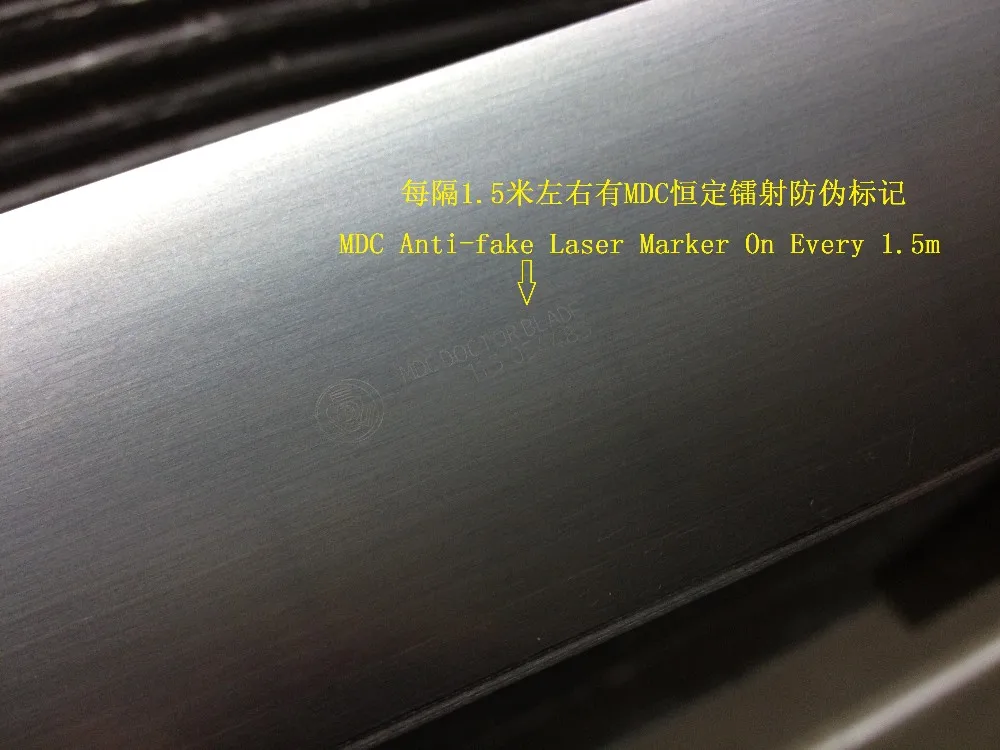

The laser mark on the blade is the MDC constant quality promise.
MDC blades are widely used
MDC doctor blade is widely used in gravure packing printing, publication gravure printing, flexography,flexible UV printing, coating printing, offset coating, pressure-sensitive printing, screen printing and decorative materials printing.
Features
Smooth Blade, good flexibility, good scratching effect, durable, reducing downtime, excellent mechanical properties. No grinding during using can ensure a good surface contact of ink to achieve the best effect.
Product Description
Product Application

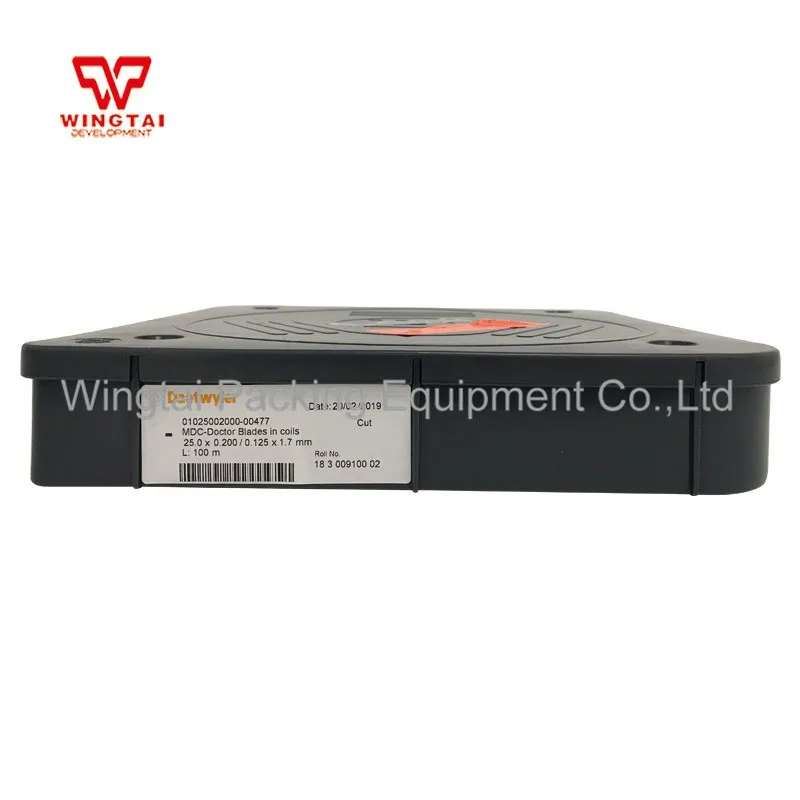

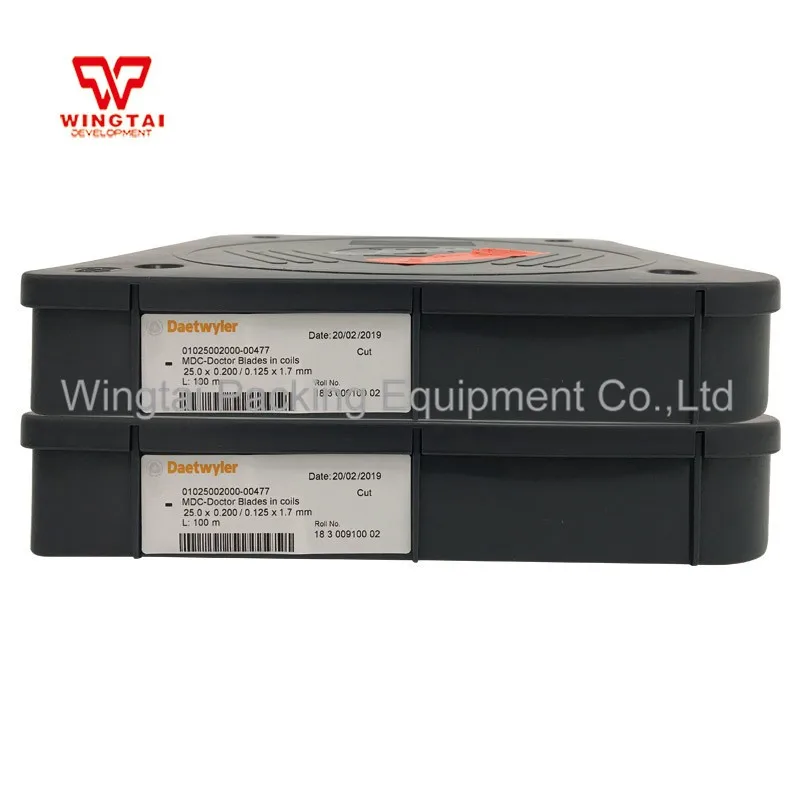

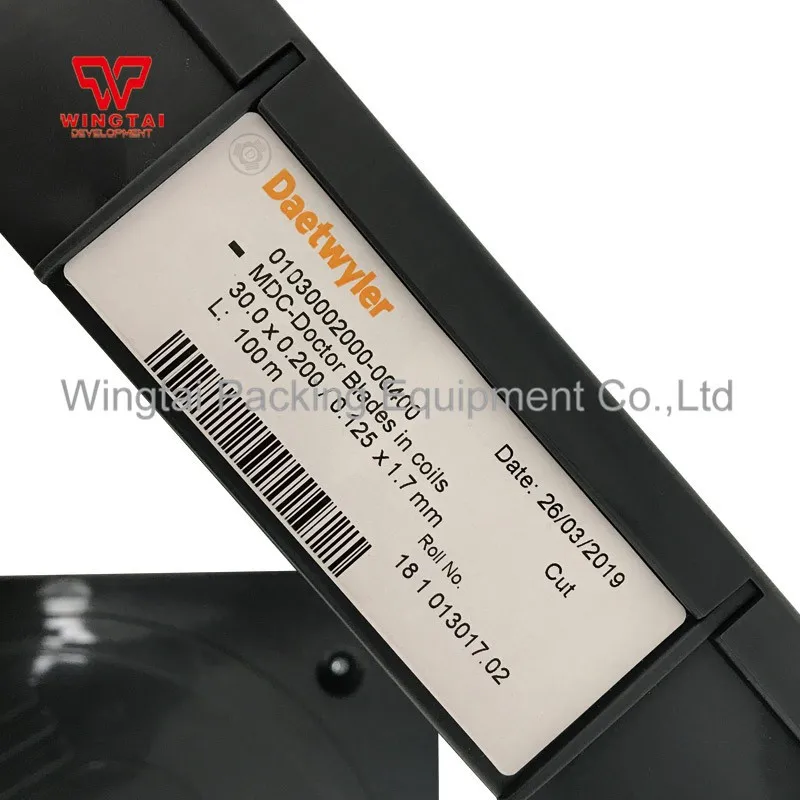

100m/Box, anti-corrosion plastic security packaging, quality is more stable and durable. It's suitable for the speed of more than 180m high-speed machine. No need to open boxes, to pull out to use.
Common Width: 8 ~ 80mm
Common thickness: 0.15/0.2mm
Linear: Each 3000cm length, the linearity tolerance is less than 0.6mm

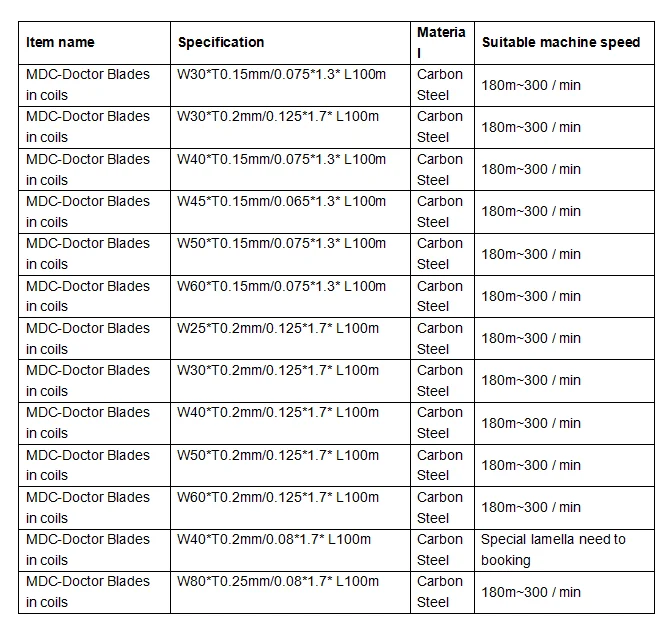

MDC standard doctor blade specification:
