AISI52100 G1000 5mm chrome metal balls 5mm steel sphere
US $1.40-$1.45
3.5mm 3.8mm 5.95mm 6.35mm 6.5mm micro ball bearing chrome/low carbon/stainless steel ball din5401
- Category: Bearing Balls >>>
- Supplier: Taian Shengdian Industry& Trade Co. Ltd.
Share on (62060769707):
Product Overview
Description

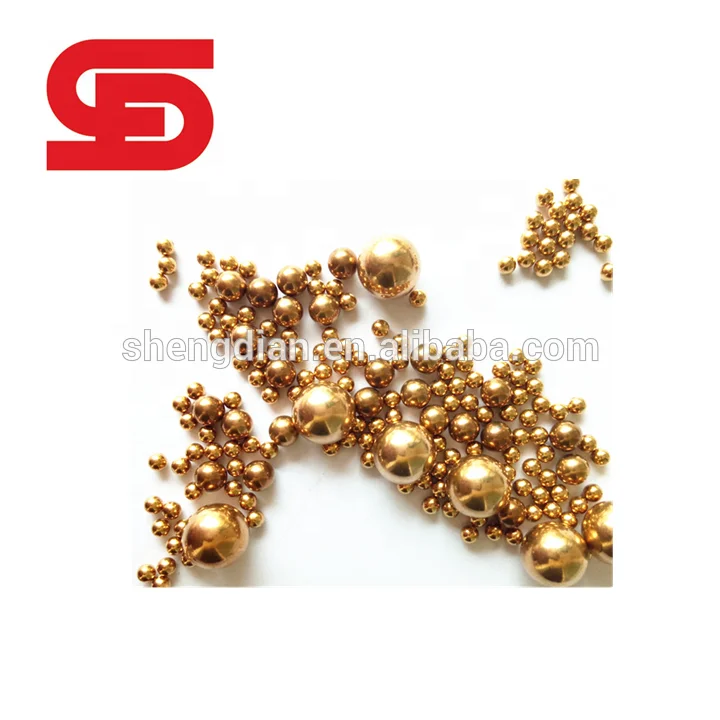

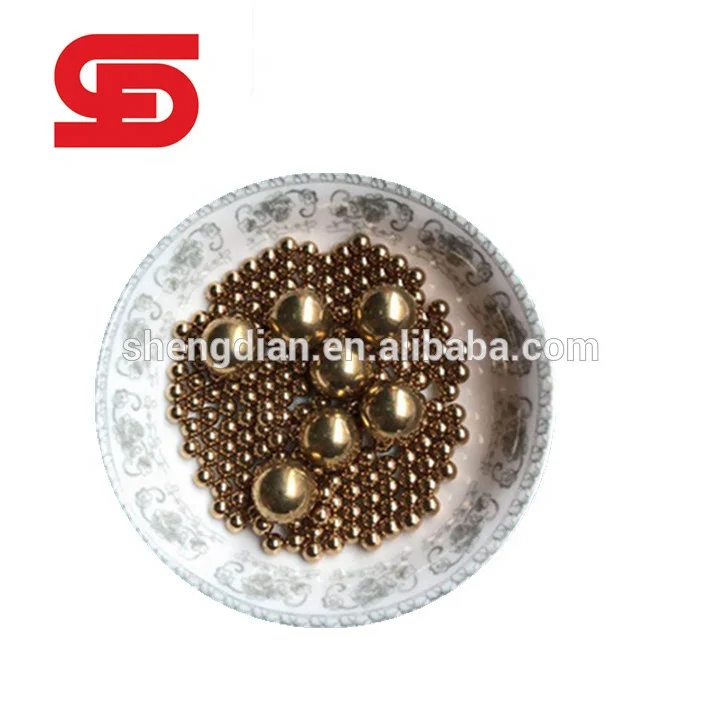

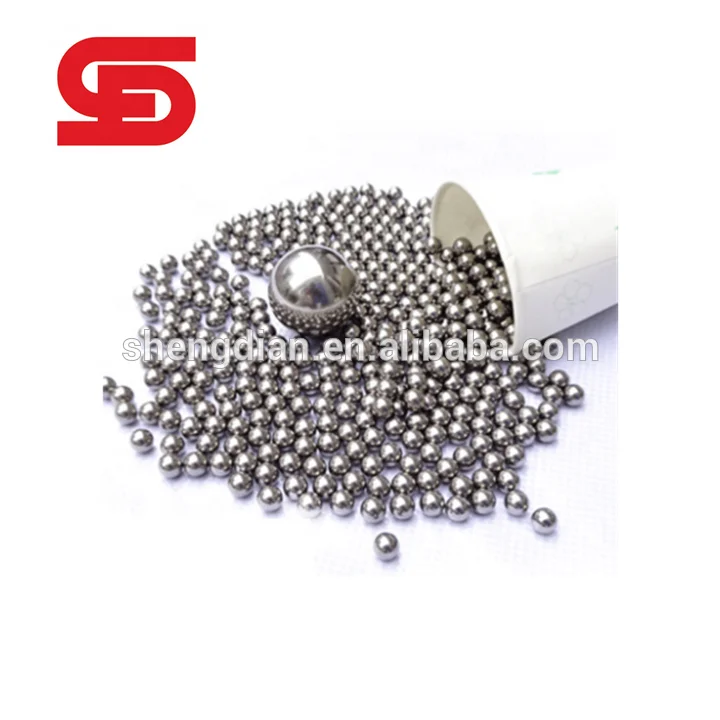

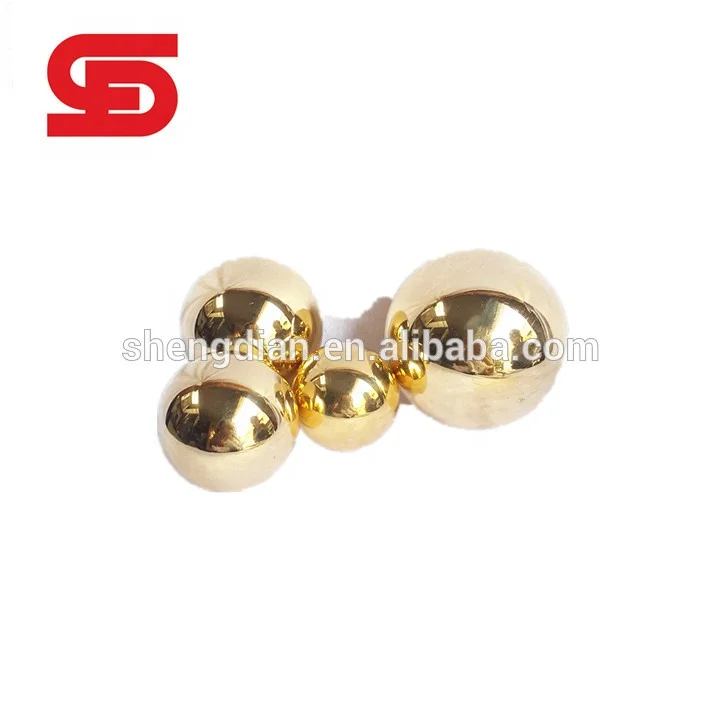

3.5mm 3.8mm 5.95mm 6.35mm 6.5mm micro ball bearing chrome/low carbon/stainless steel ball din5401
1. Carbon Steel Bearing Ball
The main feature of this ball is the carburised case with a soft core.This design ends resistance to shock loads and surface wear while providing good load carrying ability.
Feature: | High hardness with a soft core giving resistance to shock load & excellent resistance to surface wear. | ||||
Hardness | Hardness is HRC 60min.Reference the accompanying chart for minimum case depth. | ||||
Size Available | 1mm-50.8mm | ||||
Grade Available | G100;G200;G500;G1000 | ||||
Application | automotive applications,semiprecision bearings, and commercial applications such as castors,locks,drawer slides, bicycles,and conveyors. | ||||
Material Conversion | ASTM/AISI | DIN | W-Nr. | NF | JIS |
1010/1015 | CK10/CK15 | 1.1121/1.2241 | XC10/XC15 | S10C/S15C | |

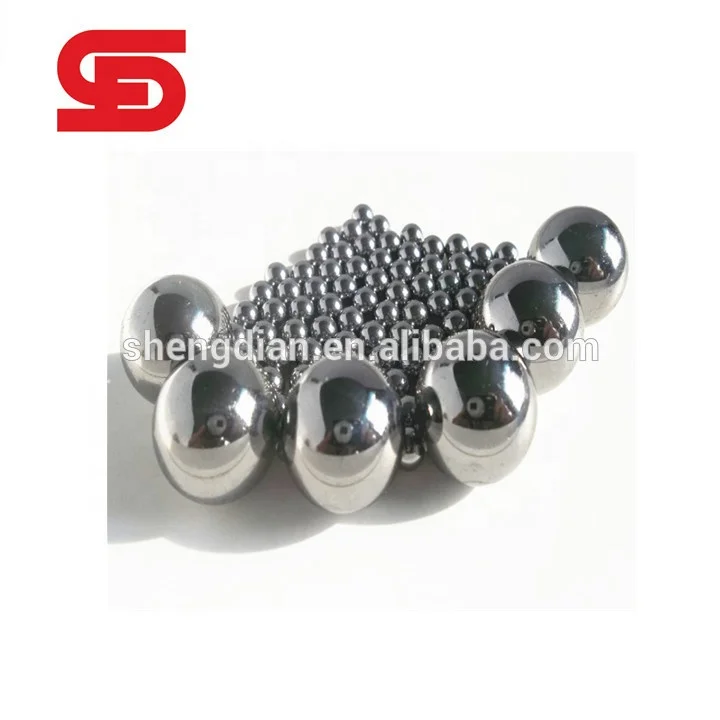

2.Chrome Steel Bearing Ball
Chrome steel AISI52100 is a universal material for many applications. Troughout the manufacturing
process, statisical process control assures tolerance accuracy, fine surface finish and a consistent
high quality.
Feaure | Universal material for ball and roller bearing industry.Chrome steel balls contain chromium and to through hardening has an excellent surface quality and load bearing | ||||
Hardness | Excellent hardness control with a through hardness of HRC 60 to 67 | ||||
Size Avaliable | chrome steel ball 1mm-100mm | ||||
Grade | G10-G1000 | ||||
Application | Universal for many applications. For example: balls & roller bearings. | ||||
Material Conversion | ASTM/AISI | DIN | W - Nr | NF | JIS |
52100 | 100Cr6 | 1.3505 | 100C6 | SUJ2 | |
Carbon | Chromium | Manganese | Silicon | Sulfur | Phosphorous |
0.98 to 1.10% | 1.30 to 1.60% | 0.25 to 0.45% | 0.15 to 0.35% | 0.025% | 0.025% |
3. Stainless Steel Ball Specification:
Material | Feature | General Applications |
AISI 420 | Magnetic, Harden-able, fair corrosion resistance. | used for special bearings and valves where Balls requiring a combine action of hardness and corrosion resistance |
AISI 440C | Magnetic, highest hardness, good corrosion resistance | used in bearing nozzles and valves where lubrication is poor or absent |
AISI 304 | austentitic, corrosion resistance, slightly magnetic, however annealing can makes it non - magnetic | Used in valves and relevant application, food products, aerosols, home sprays, perfumes and medical equipment. |
AISI 316 | non - magnetic, good corrosion resistance even when exposed to marine atmosphere and sulfuric acid. | used in presence of sulphuric, phosphoric and acetic acids.Mainly used in chemical, paper and textile industries. |
AISI 316L | Characteristics same as 316 but with excellent corrosion resistance, Lower carbon content than regular 316. | expecially used in Jewelry, and Human Implant Applications |
With more than 20 years’experience, Shengdian Steel Ball Factory is a professional steel ball manufacturer in China. Now it has two plants, which cover 8000 square meters and with 200 sets of modern and efficient production equipments, has an annual production capability of over 5000 tons steel balls.They are all sold to overseas market for their most competitive price and high quality.
Carbon Steel balls, Stainless Steel Balls, Chrome Steel Balls and Grinding Balls are the main products, which range varies from 1mm to 75mm and includes metric and inch sizes, standard ones, oversizes and undersizes. Applicable for industrial usage such as hardware, bearing, wheels, bicycles, toys and chemistry, military ect. We are now the leading manufacturers of semi-precision balls from Grade 100 to Grade 2000 in China. And a regular supplier to some prominent companies all over the globe.
As an ISO9002:2000 certified company, we strict quality control throughout production at each stage of manufactruing. We insist on the guideline:profession,Quality,efficiency,which will prove that we are your best choice!
