Invisible Electronic Wardrobe Rfid Card Keyless Cabinet Hidden Locker Lock

Share on (62060914106):


Price:$8.00 - $12.00

Quantity:


Product Overview

Description


Invisible Electronic Wardrobe Rfid Card Keyless Cabinet Hidden Locker Lock


Product Description

1.Product Specifications


Features

1. Invisible design: no panel, no key hole. No body except god and you will know your secret.
2. Read (swipe) RFID card to Unlock. No mechanical key needed.
3. Up to 50mm inductive reading distance,fast unlocking.Can be installed on thicker cabinet/locker/box/compartment.
4. Small in size, easy to hide. Your secret can be well protected.
5. Easy installation. No need to drill holes, will not destroy the appearance of your cabinet.
6. Vertically and horizontally universal locking design, flexible installation, fit kinds of cabinet.
7. Moisture-Proof ABS lock body shell, stainless steel latch and side catch, makes the lock stronger and more duable.

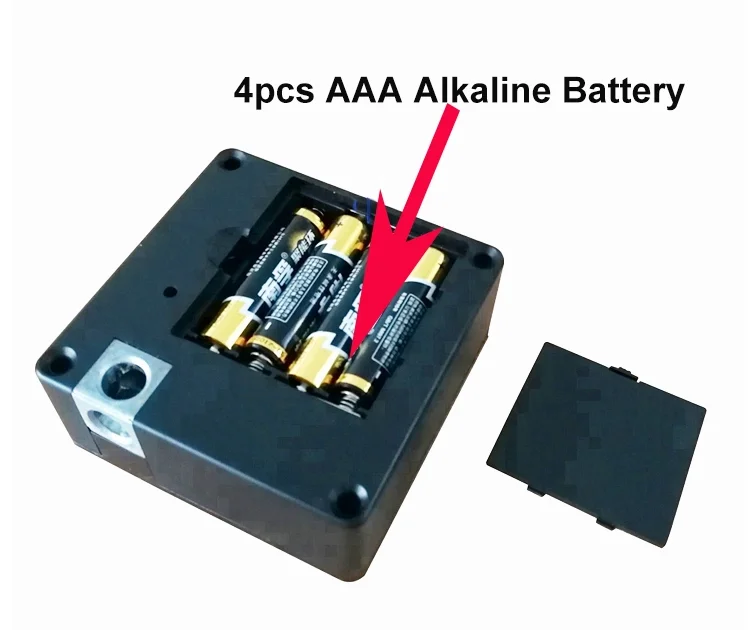

8. Low power consumption, 4 AA batteries last for 1 year.
9. Low battery alarm and automatic opening, plus external power port, you don't need to worry about being unable to unlock it if battery exhausted.



Specification

Name

 RFID Hidden Cabinet Lock

 Model #

DH-122

 Application

Wood Cabinet / Locker/

 Unlock Way

 RFID Card

 Card Chip

 M1 Card (13.56MHz)

 Working Mode

 1-Key Mode and 2-Key Mode

 Key Type

 Card (by default), Token, Fob

 Working Voltage

 DC6V (4pcs AA batteries)

 Material

 ABS

 Battery Life

 1 Year

 Color

 Black

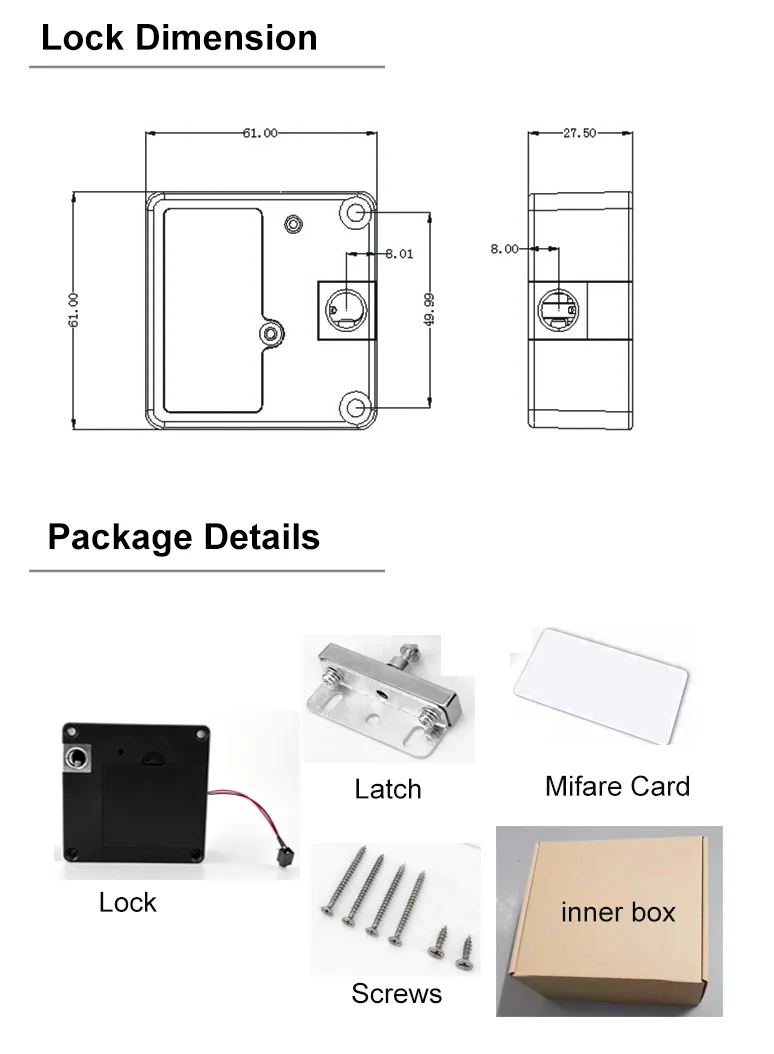

 Lock Size

 76*76*30 mm

 Weight

 0.25kg/pc

 Installation

 ≤50 mm Thickness Cabinet

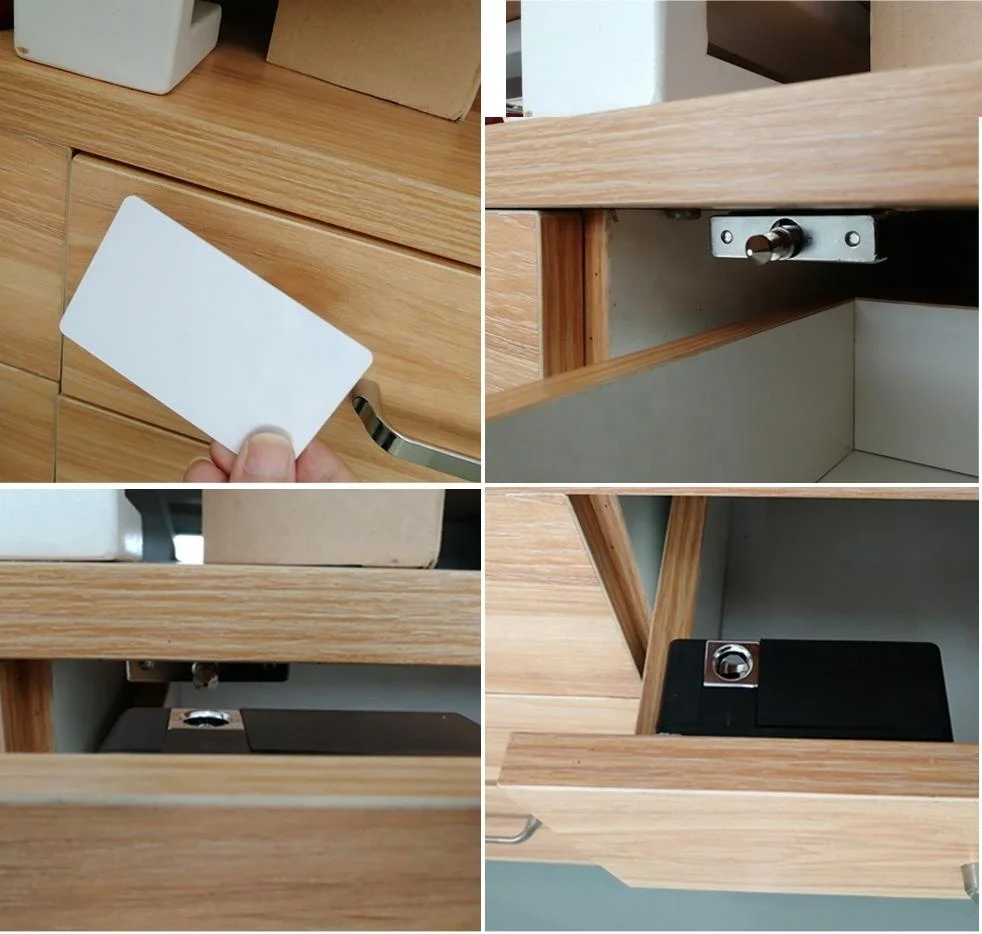

2.Picture Show

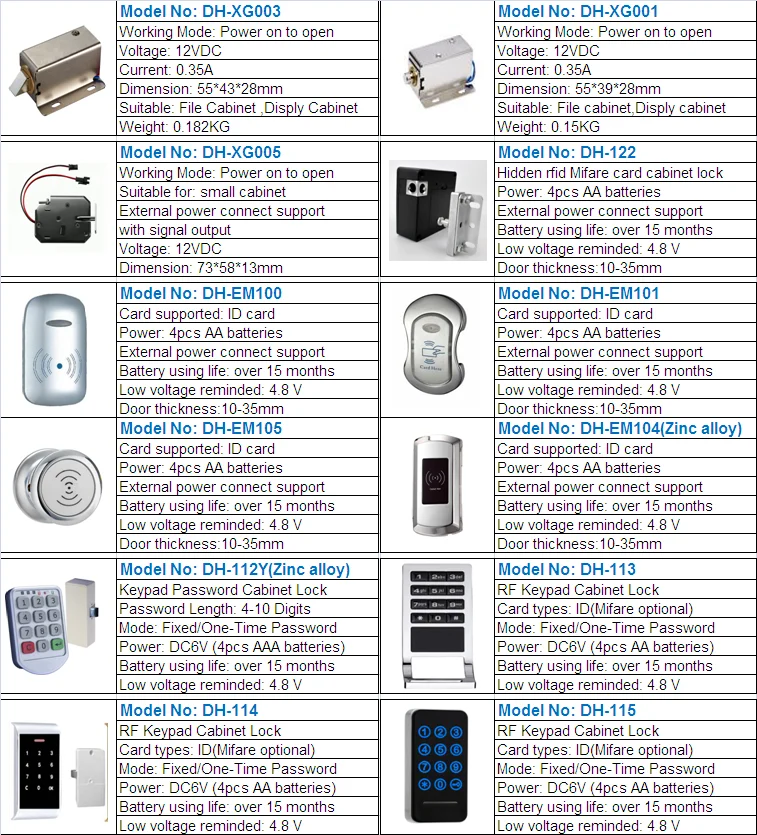

3.UDOHOW other items

Udohow Cabinet Lock.png

Related Products

Company Information



FAQ

1. Specific the standard of RFID for each device?
Reply: The cabinet we with RF card type, PIN code only type and RF + PIN code type.

2. Battery life time of each device?
Reply: Life time of battery: Normally over 15 months, can exceed 20,000 times.
Low voltage reminded: Below DV4.5V with lack of voltage indications and can still use about 200 times.

3. Does it can alarm when battery get low?
Reply: Yes, support low pressure alarm and with indication when battery get low.

4. In case of when the device out of battery, how to solve it for each device?
Reply: Support connect external power prepared reference attached pic(for each formal order, will ship together parts)
