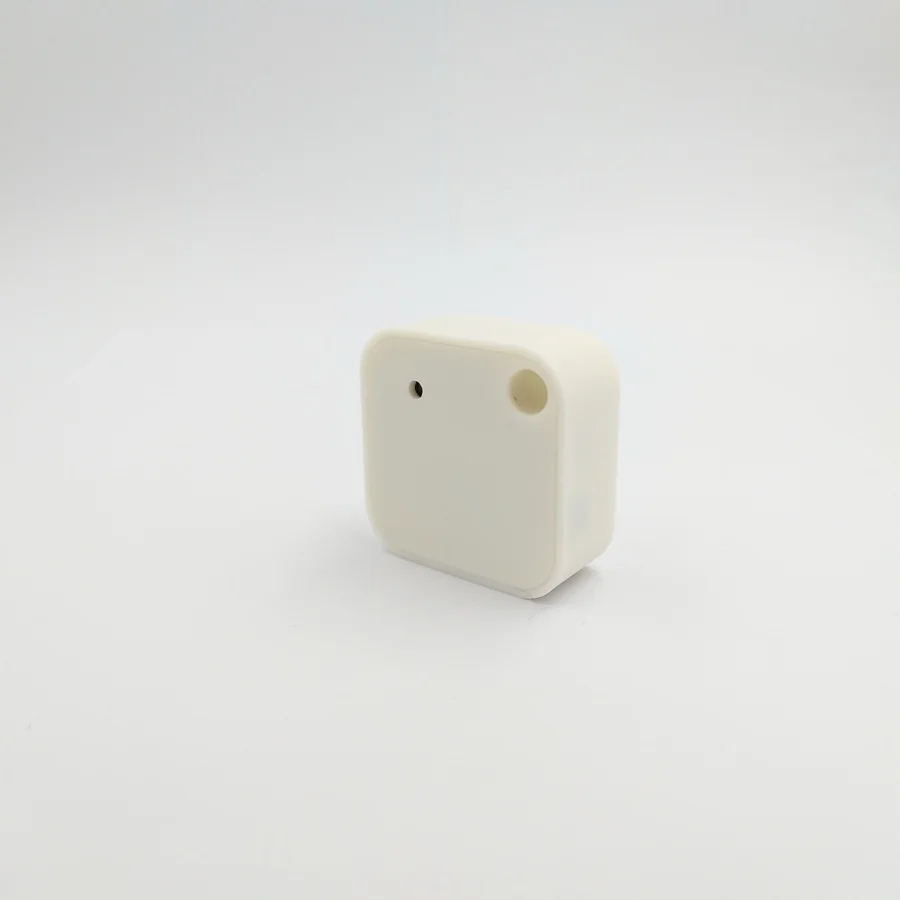

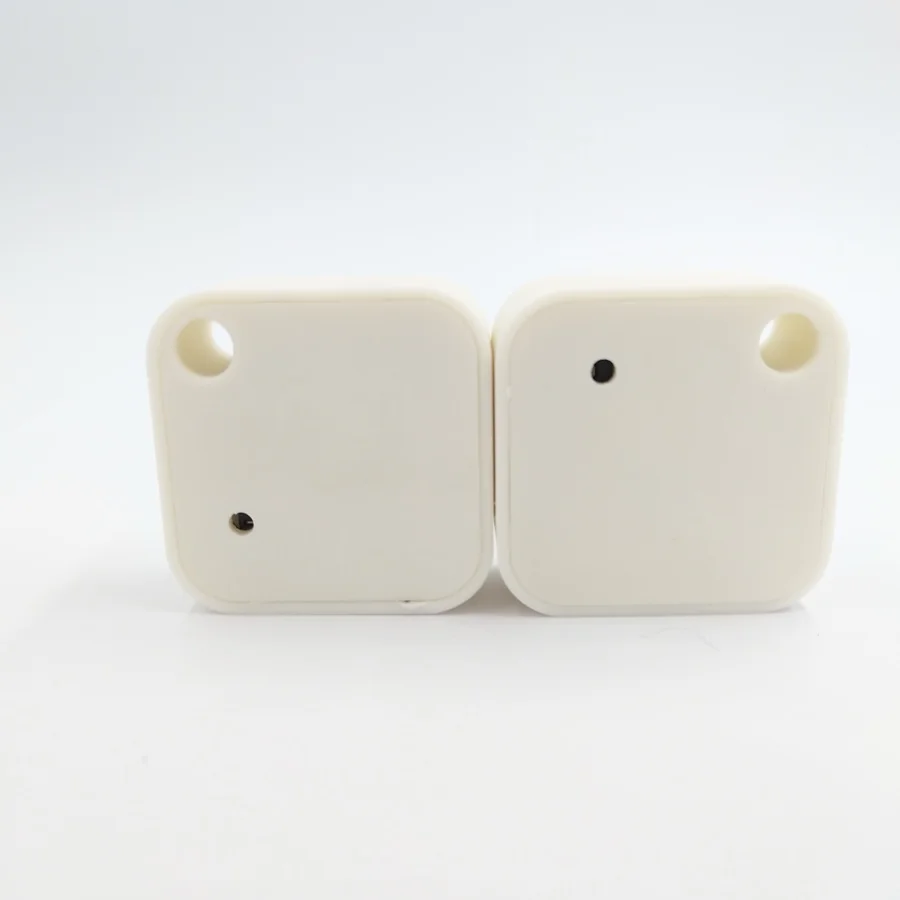

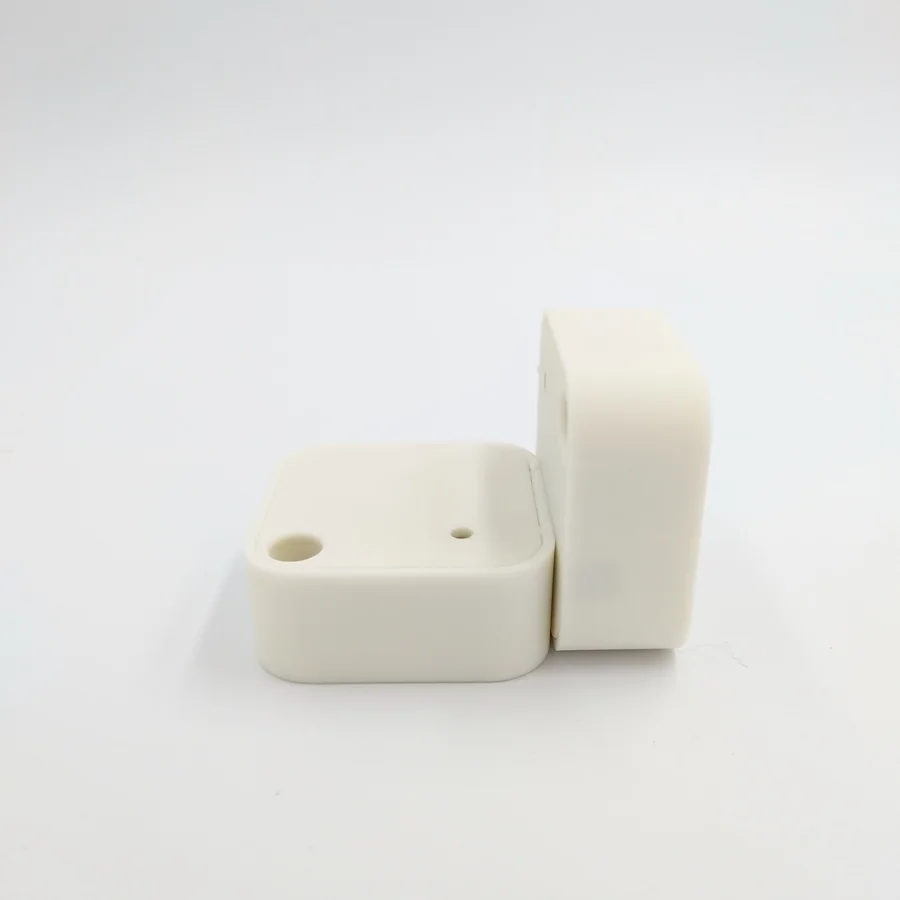

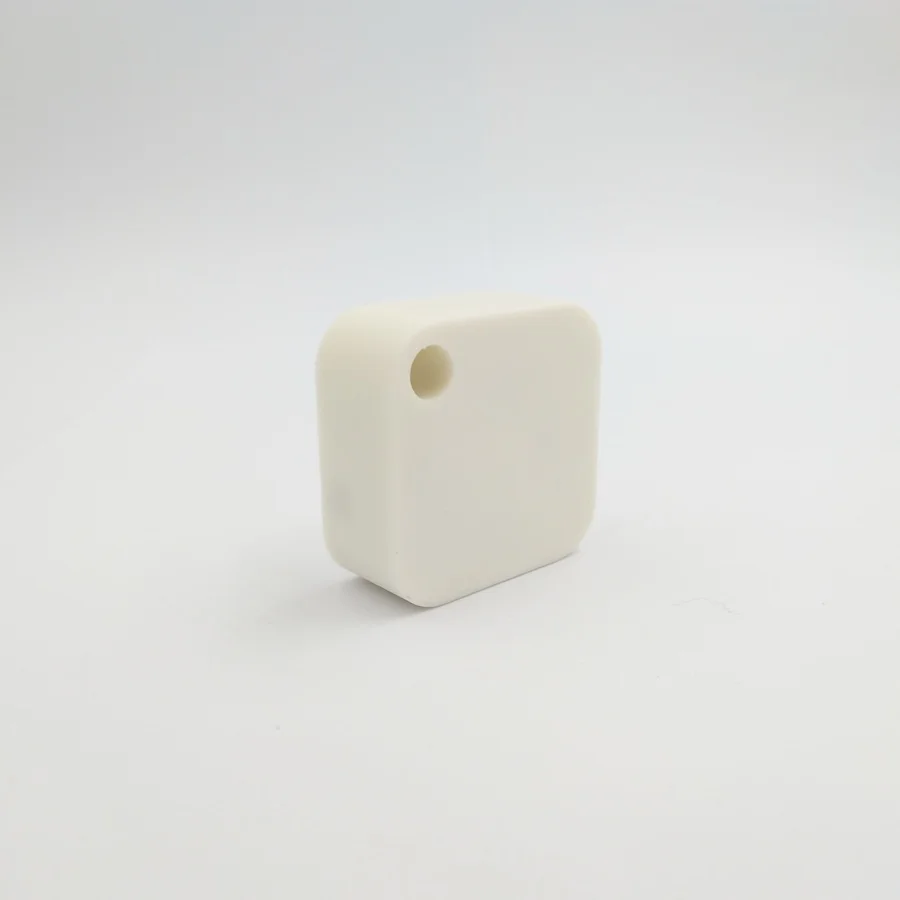

temperature Sensor Beacon Long range Nrf51822 Ble 4.0 wireless iBeacon With Antenna
- Category: >>>
- Supplier: Shenzhen AnkhMaway Electronic Technology Co. Ltd.
Share on (62060952596):
Product Overview
Description
Hot Products
iBeacon Feature
Long range Nrf51822 Ble 4.0 wireless iBeacon
Support iBeacon and Eddystone.
-Built-in Beacon firmware, compatible with BLE.
-Built-in a coin battery.
-All the parameters can be configured (UUID, Major, Minor, Measured Power, TX Power, etc.)
-We will provide you with a tool APP and API document to configure beacon data, and IOS/Android SDK and Android Source Code to develop your APP.
-Support the background management of battery.
Feature: Support iBeacon and Eddystone.
Chipset: nRF 51
Battery type: Panasonic CR2477 battery
Ble range: 100 meters in open air
Battery life: 58 months based on broadcasting rate 1 second
Sensor: Humidity & Temperature Sensor
-It can store 200 lines humidity and temperature information
Specification
Item | Test Data | Remarks |
Chip | NRF51822 | Nordic |
Battery model | CR2477 | Null |
Temperature Range | -20 to 60℃ | Null |
Power Supply | 3V | DC |
Operation Frequency | 2400-2483.5MHz | Programmable |
Wireless Frequency | 2.4GHz | BLE |
Modulation | Q-QPSK | Null |
Standby current | 2uA | Null |
Output Power | 4 dBm - -40dBm | Programmable |
Receiving Sensitivity | -93dBm | High gain mode |
Transmission distance | 100m | BER<0.1%, Open space |
Detecting distance | About 2m | Null |
Antenna | 50ohm | Onboard |
Remote transmission option | Remote transmission to server with iB006N | Null |
State | Operation Current (uA) |
Sleeping Mode | 3.6 |
Connectable Mode | 142 |
Non-Connectable Mode | 22.5 |
FAQ
FAQ
Q1. Do you provide the technical support to the developers?
Re: Sure. After you place an order and get the beacons, we will provide tool APP with API document, and iOS/Android SDK and Android Source Code for your programming.
Q2. Can we brand your product with our company LOGO?
Re: Yes, we will provide customization including logo printing, tooling design for housing, firmware customization, PCB re-design, etc.
Q3. How can we get the samples to test?
Re: You can submit an order in Alibaba or contact us directly. All of the samples can be supplied from stock. Samples will be sent within 1-5 days after paid.
Q4. How will you deliver my goods to me?
A: We always ship samples order and MOQ order by Express ( Door To Door), such as DHL,UPS,Fedex... to enable our customers to get their goods rapidly. We can ship mass order by Air, or Sea, or Express, according to customers' choice.
Q5. What's the warranty of the product?
Re: We supply 6 months warranty from the shipping date if it is quality issue.
Q6. What is the lead time of your products?
A: 1-5 business days for samples order, 7-15 days for MOQ order, 10-30 days for mass production orders (based on different quantities)..
Q7. What is your product quality?
A: We have a QA team to guarantee our products quality. All beacons are 100% manually checking.
About Us
Our Service
Case customization
For the bulk quantity, we provide the case customization and even the eletronic design for your customized housing only.
Logo printing customization
We can print your own logo on the case in any color .
Firmware customization
We provide the firmware customization according to your requirements.
For the bulk quantity, we provide the case customization and even the eletronic design for your customized housing only.
Logo printing customization
We can print your own logo on the case in any color .
Firmware customization
We provide the firmware customization according to your requirements.
