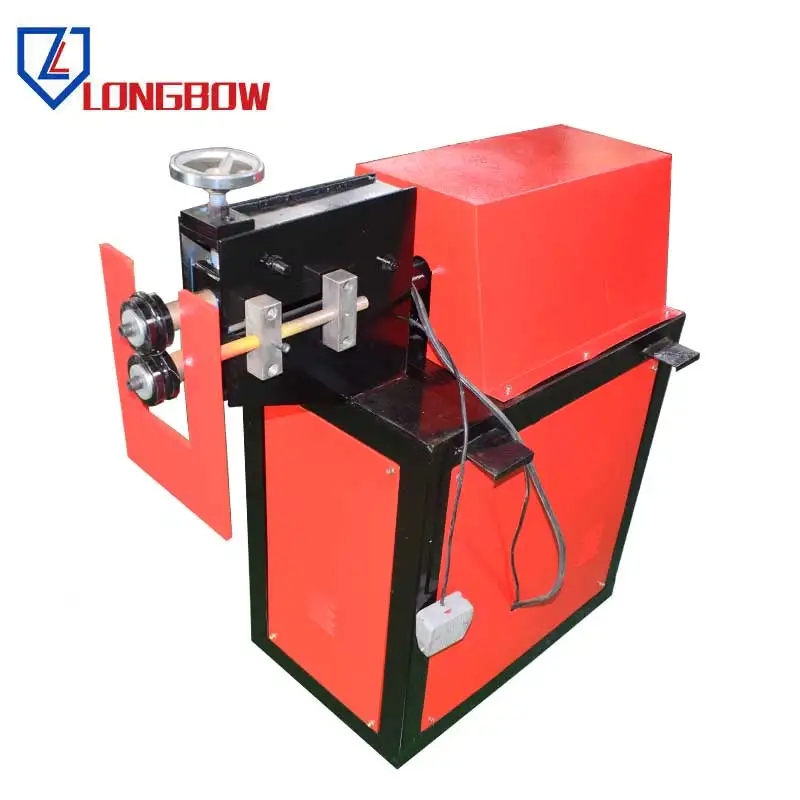

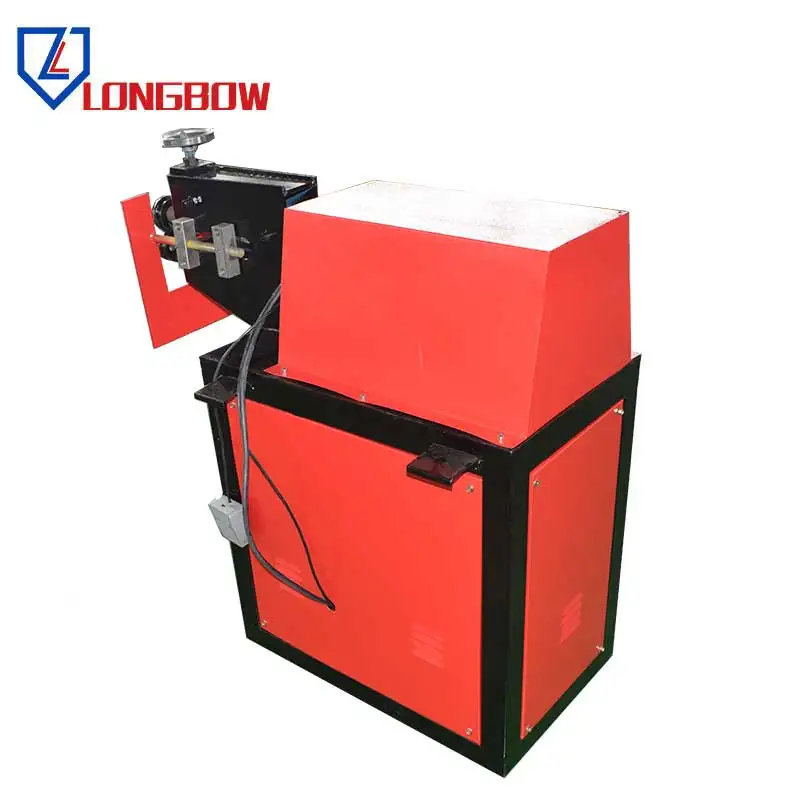

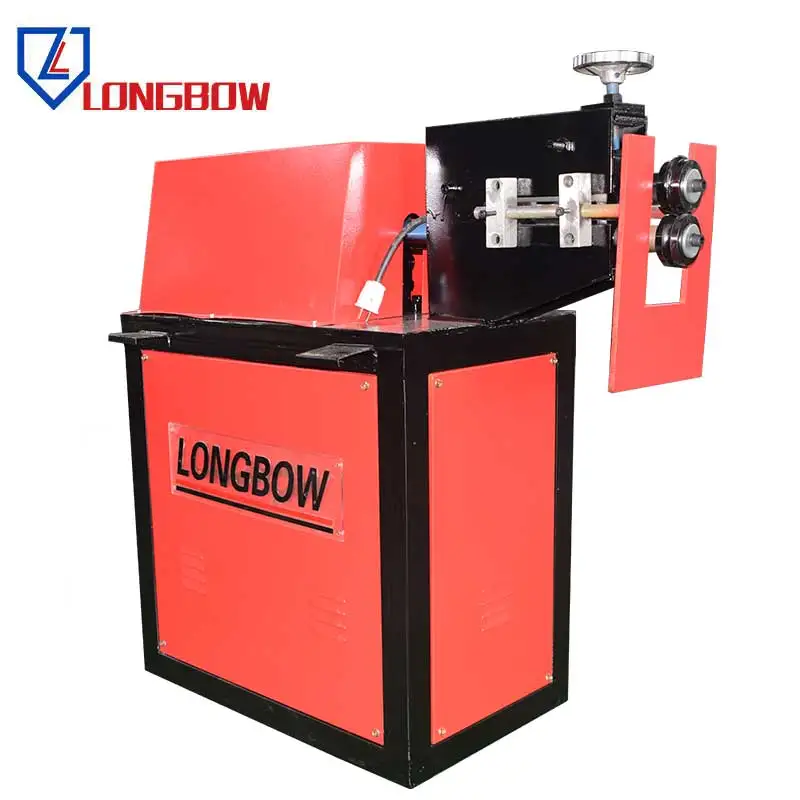

galvanized metal sheet duct bead roller, bead roller rotary
- Category: >>>
- Supplier: Maanshan Longbow Machinery Manufacturing Co. Ltd.
Share on (62060959291):
Product Overview
Description
Products Description
Performance Features

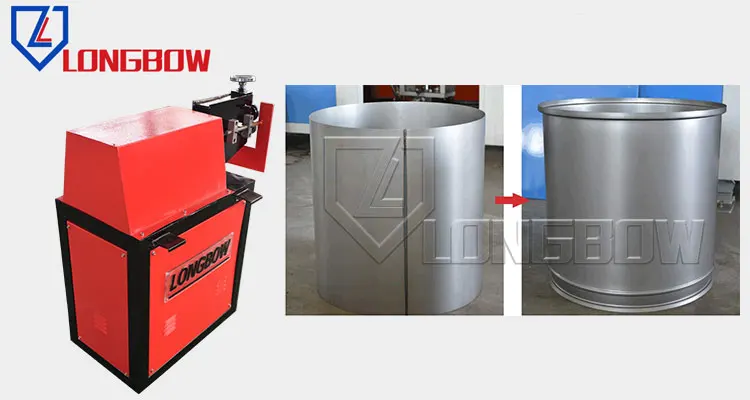

This rotary machine is widely used in HVAC duct fabrication system industry, mainly for flanging and beading with special rollers.
Also it can make the different work pieces with special rolling wheels, such as for leveling metal sheets, shearing sheets, corrugating plates, etc. Power Swaging machine and Universal Hand beading machine can be selected.
There have three sets moulds for flanging including the Swaging machine, if client want any other related moulds, the payment for moulds are additional. Grooving machine, Swaging machine, Beading Machine, Rotary machine
Main Features
1. uses high-quality steel to produce the body of the machine, which makes it have good stability.
2.The part of the beading forming mold are made of low carbon steel, which has a certain thickness, is not easy to blunt, and the effect of the grooving is very good.
2.The part of the beading forming mold are made of low carbon steel, which has a certain thickness, is not easy to blunt, and the effect of the grooving is very good.
Details Images
machine parts
Name:beading forming mold
Material:High alloy tool steel
Original:china
The part of the beading forming mold are made of low carbon steel, which has a certain thickness, is not easy to blunt, and the effect of the grooving is very good.
machine parts

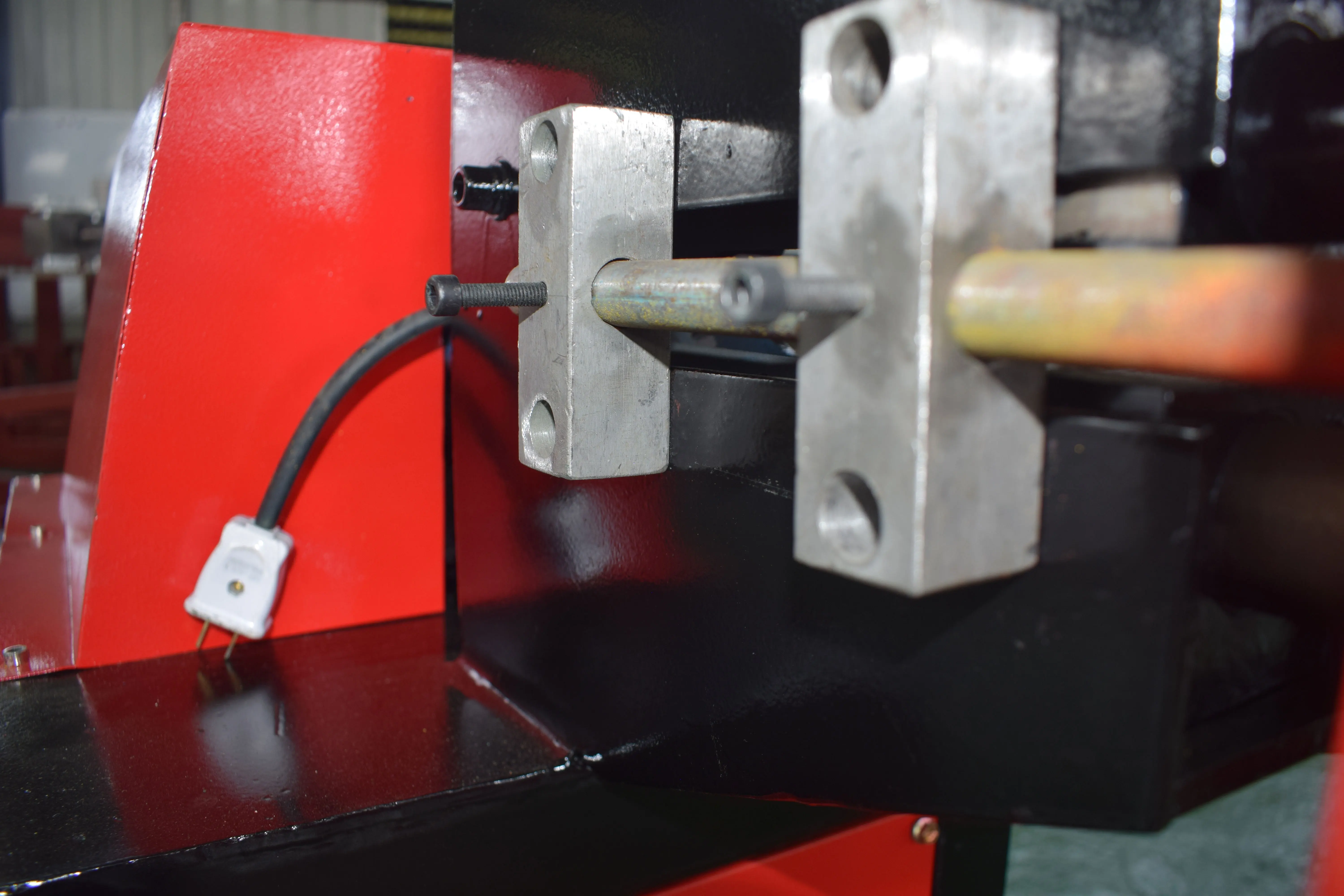

Name: Adjust lever
Operation:Manual rotation
Original:china
By adjusting the movement of the rod position, the stiffener can be pressed at different positions of the round pipe.
Operation:Manual rotation
Original:china
By adjusting the movement of the rod position, the stiffener can be pressed at different positions of the round pipe.
machine parts

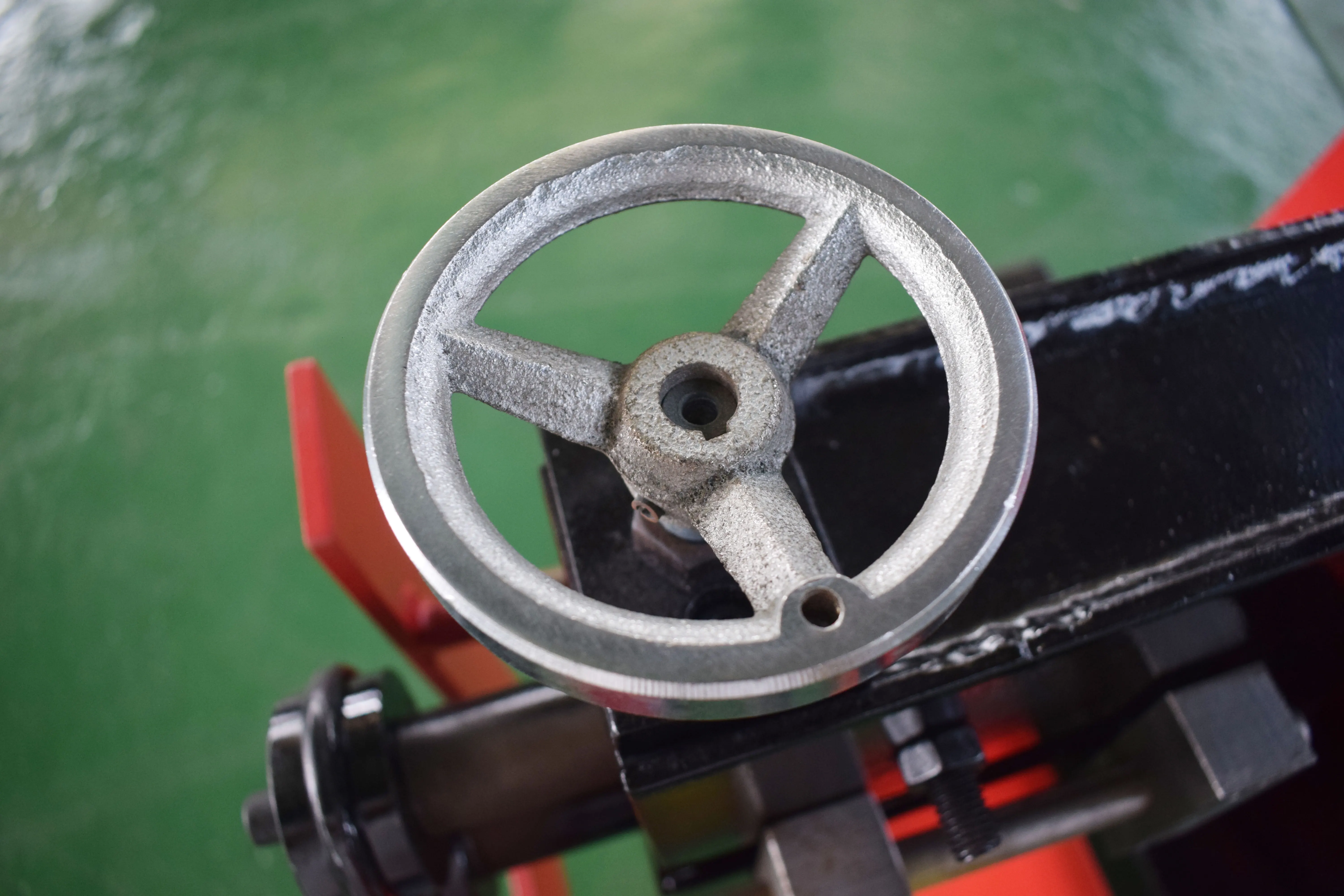

Name: Adjust screw
Operation:Manual rotation
Original:china
round duct grooving machine with an independent adjustment screw, can be adjusted through the screw to control the depth of compression, simple operation, high efficiency.
machine parts
Name: motor
Power:0.75kw
Original:china
Adopt pure copper wire motor, the failure rate point, the energy consumption is small, the motor side is equipped with forward and reverse adjustment switch, which can control the roll to rotate clockwise and anticlockwise.
Power:0.75kw
Original:china
Adopt pure copper wire motor, the failure rate point, the energy consumption is small, the motor side is equipped with forward and reverse adjustment switch, which can control the roll to rotate clockwise and anticlockwise.
Our Campany
Certifications
Cooperative partner
Packing & Delivery
Packaging | ||
Dimensions (mm) | 480(L)*940(W)*1040(H) | |
Weight | 120kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Dimensions (mm) | 480(L)*940(W)*1040(H) | |
Weight | 120kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Related Products
FAQ
1. Are you manufacturer or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
