smart car parking system anpr camera with software

Product Overview

Description

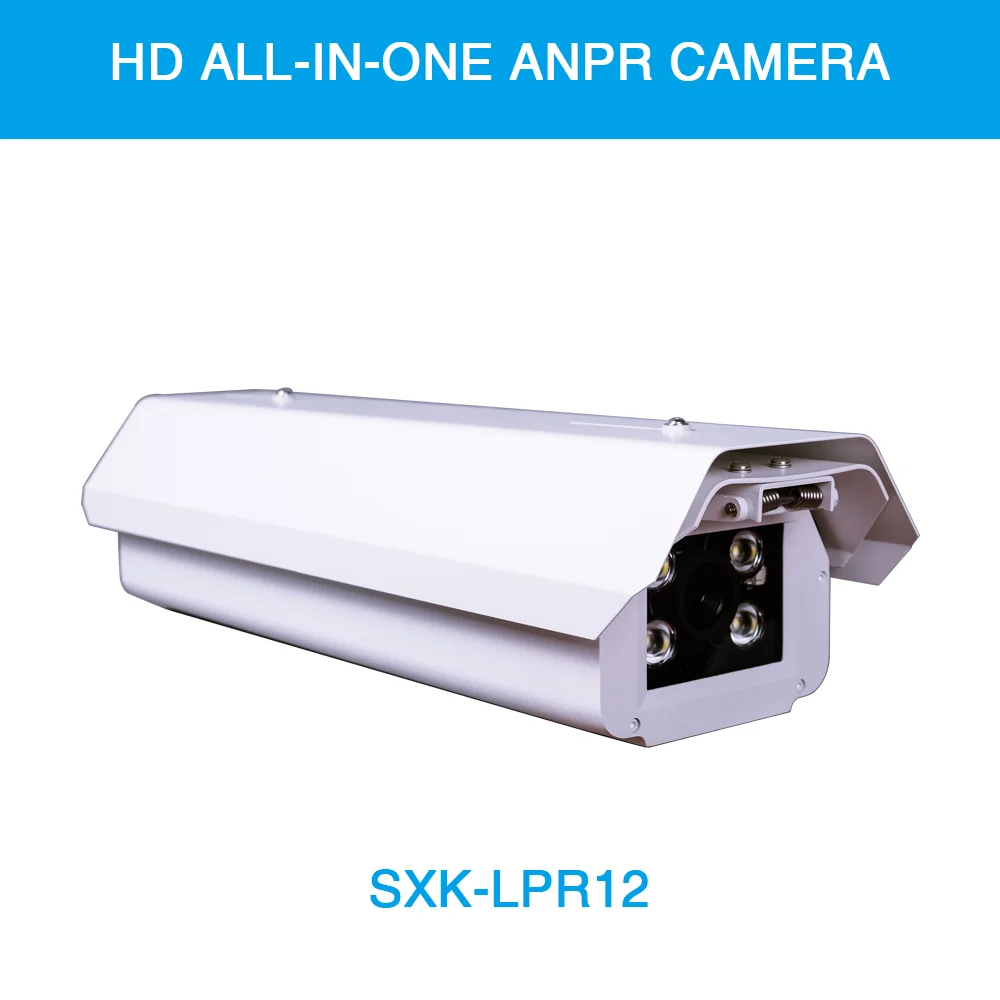

Smart Car Parking System ANPR Camera with Software

◊ Smart Car Parking System ANPR Camera Technical Parameters



Hardware specification
Sensor type	1/3 inch Progressive Scan CMOS
Processor	Hisilicon, specialized license plate recognition chip
Lowest	0.01Lux
Electronic	1/25 to 1/30,000 seconds
Lens	CS interface, fixed irisi, 6mm prime lens / 2.8-12mm electric zoom lens
Fill light	4 high-power Led white lights
Performance
Recognition rate	Up to 95%
Trigger mode	Video trigger, coil trigger, vehicle capture rate over 99%
Image output	1080P(1920x1080), 960P(1280x960), 720P(1280x720), D1(704x576)
Picture output	2 mega-piel JPEG
Ultra-wide dynamics	120DB
Video compression format	H.264 High profile, Main profile, Baseline, MJPEG
Electric and Interface
Network	10/100M network adaptive, RJ45 adaptor
IO interface	2---route input/output, 3.5mm connecting terminals
Audio interface	1---route input/output
SD card	Support SD2.0 standard Micro SD(TF) card with a Max. capacity of 32GB
Serial interface	RS485, RS232
Power supply	AC 220V
Power consumption	less than 7.5w
Protection level	IP65
Surging overvoltage protection	4kv
Operating temperature	-35 to 75 degrees.
Dimension and Weight	452(L) x 148(W) x 120(H), 2.9kg.

◊ LPR Car Parking System Features and Functions

• Built-in 4 white lights.
• 3G or 4G optional.
• Micro SD card Slot (Max.32GB)
• Lens options: fixed lens, vari-focal lens or zoom lens.
• Through-fog function.
• Electronic anti-shake function.
• Identify vehicle license text and figures.
• Identify one line and two lines license plate number.
• Identify Chinese and English of license plate number or other languages.
• License plate number entrance and exit record can be reported output.
• The database can store the capture image, license plate number, lane number and the time of vehicle through record.

◊ Smart Car Parking System ANPR Camera Recognition Layout

◊ Smart Car Parking System ANPR Camera Supported Countries

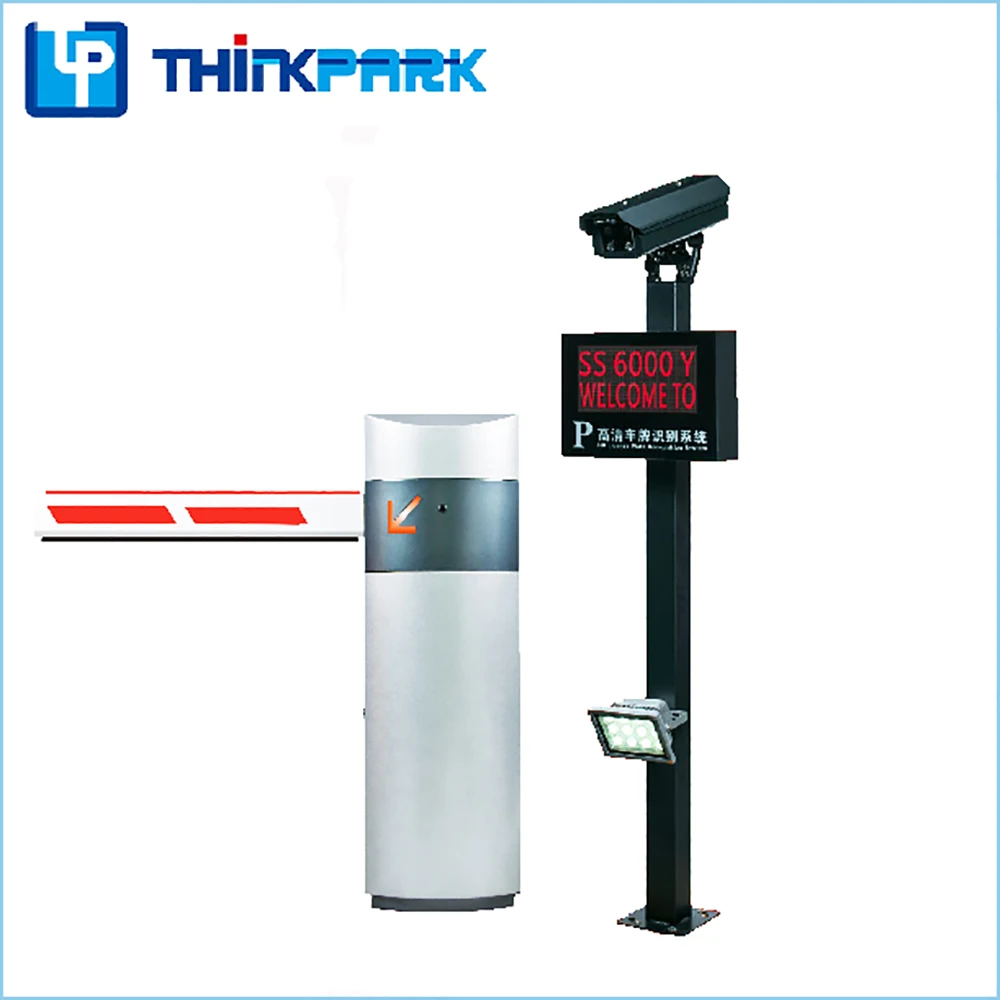

◊ ANPR LPR Car Parking System Installation

◊ Car Parking Management System Software

◊ LPR Car Parking System Test

◊ Why choose "ThinkPark" ?

• 13 years experience.
• We manufacture and sell our own "ThinkPark" products, all production is patented.
• Products appliance with CE and ISO9001.
• Competitive price and high quality.
• One year warranty.
• Our company is engaged in software development.
• We can solve the after service problem faster and better.

◊ About "ThinkPark"

For 13 years, ThinkPark company occupies the first position in the sales market of Access Control Industry. Thanks to a professional team who works on car parking system, barrier gates, tripod turnstile, parking guidance system, license plate recognition system and door access control system approach to each client, the company has proved to everyone that vending business is simple and profitable.



Our experience allows to create highly effective products with good value of money, which successfully competes on the global market of barrier gates. Top produce and assembly the barrier gates we use reliable components from well-know international companies.
