Domino V230i 53mm printhead date coding machine thermal transfer overprinter
Product Description
For flexible films and labels, the V230i easily delivers the performance and coding you expect but without the costs.
The V230i prints high resolution codes, text and images onto flexible foils, films and labels.
Unlike other thermal transfer coders, the V230i uses intelligent Technology to meet all your general purpose coding needs while keeping your costs as low as possible.
| Technical Specification: | ||
| V230i (32mm) | V230i (53mm) | |
| Printer Specification | ||
| Printing Modes | Intermittent and Continuous in the same printer | |
| Left hand / Right hand | Both options available (convertible with no extra parts in 15 minutes) | |
| Print resolution | 300 dpi | |
| Maximum print area (IM) | 32 mm x 55 mm | 53 mm x 55 mm |
| Maximum print area (CM) | 32 mm x 500 mm | 53 mm x 500 mm |
| Print speed (max) (IM) | 400 mm/s* | |
| Speed range (CM) | 10 mm/s – 750 mm/s* | |
| Print repeat rate (max) | 6 prints / s (with a 10mm long print)* | |
| Ribbon drive technology | i-Tech Ribbon Drive with unique Dancing Arm tension control | |
| Max ribbon length | 770m (up to 1925m effective length with Economy Mode) | |
| Standard Ribbon widths | 34 mm, 22 mm | 55 mm, 34 mm |
Ribbon save modes*
Retraction Mode Economy Mode Column Mode Stop mid print |
Variable in 1% increments up to 60% Less than 1 mm gap between prints Yes Yes | |
Print features
Date code format Offsets Shift codes Serial number generation Fonts Dynamic bar codes 2D codes Database linking Logos / bitmaps In-field text highlighting |
Yes | |
Graphical User Interface | QuickStep, full colour Interface Intuitive navigation via, large, easy to read buttons and Icons. | |
Controller options | No dedicated controller required. | |
Connectivity | Ethernet / USB x 2 / mini USB (service) | |
Inputs | Print Go, Encoder | |
Outputs | Error, Ready, Ribbon Low, Spare (sofware configurable volt free contacts) | |
Special features | Master slave, macros, password, fastmode | |
| Label creation | Onboard and via QuickDesign Lite (PC application included) | |
| Electrical requirements | 90v – 264v AC 50/60Hz, OR 24v DC (+/- 2%) at 5A (if direct) | |
| Dimensions | (W) 218mm x (H) 160mm x (D) 176mm | (W) 218mm x (H) 160mm x (D) 197mm |
| Weight | 6.9kg | 7.5kg |
TouchPanel Specification Type
I.P. Protection Weight |
10.4 inch, full colour touchscreen (800x600 resolution) VESA mountable with optional brackets
Certified to IP65 | |

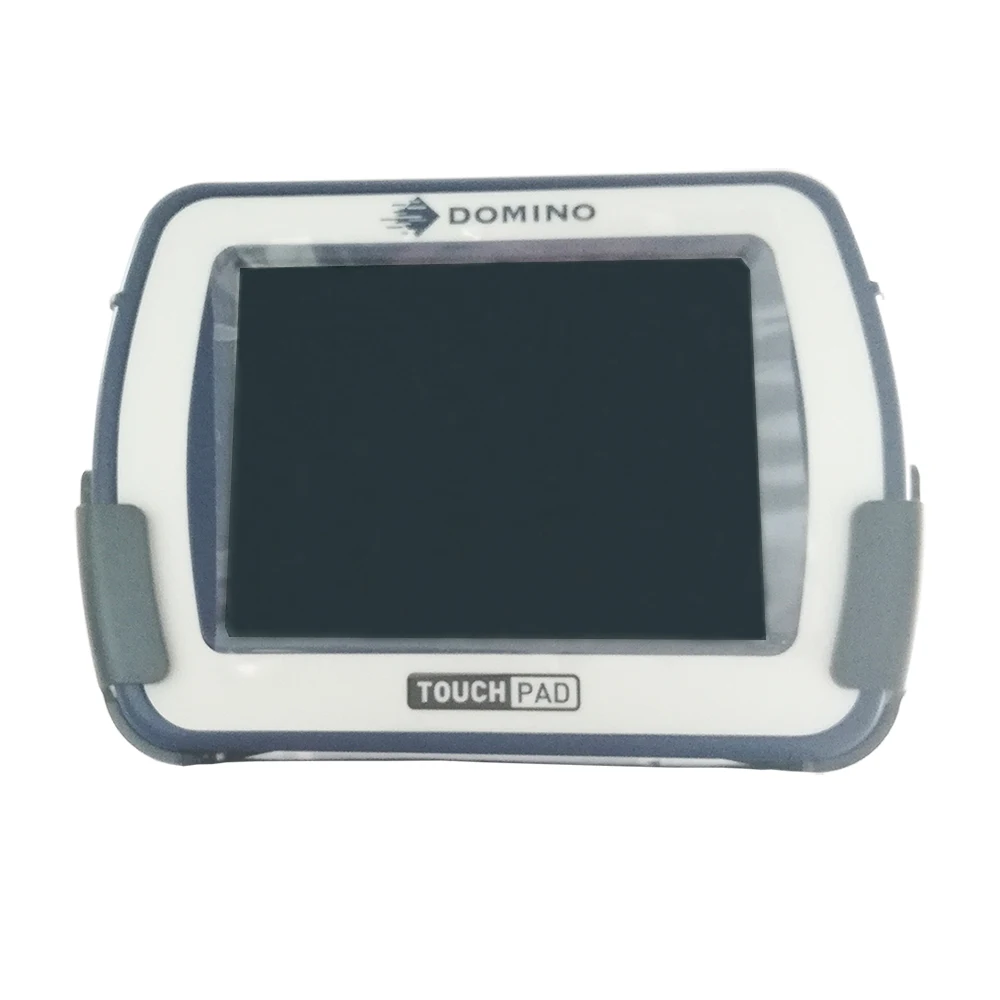

TouchPad Specification
Connectivity
Weight |
5.7 inch, full colour touchscreen (640x480 resolution). Handheld with docking
USB, Ethernet, Mini USB (for power / data connection to printer) | |
PSU Specification Standard:
Dimensions / Weight Cable length (PSU to printer)
Optional Industrial Long Length: Dimensions / Weight Cable length (PSU to printer) |
W 67 mm x H 34 mm x D 166 mm / 0.4kg 1.2m
W 117 mm x H 217 mm x D 63 mm / 1.0kg 2.8m | |
| Environmental requirements | Temperature: 5°C to 40°C. Humidity: 20-80%, non condensing | |
Ribbon change is also quick and infrequent thanks to cassette loading of larger than standard ribbon rolls.

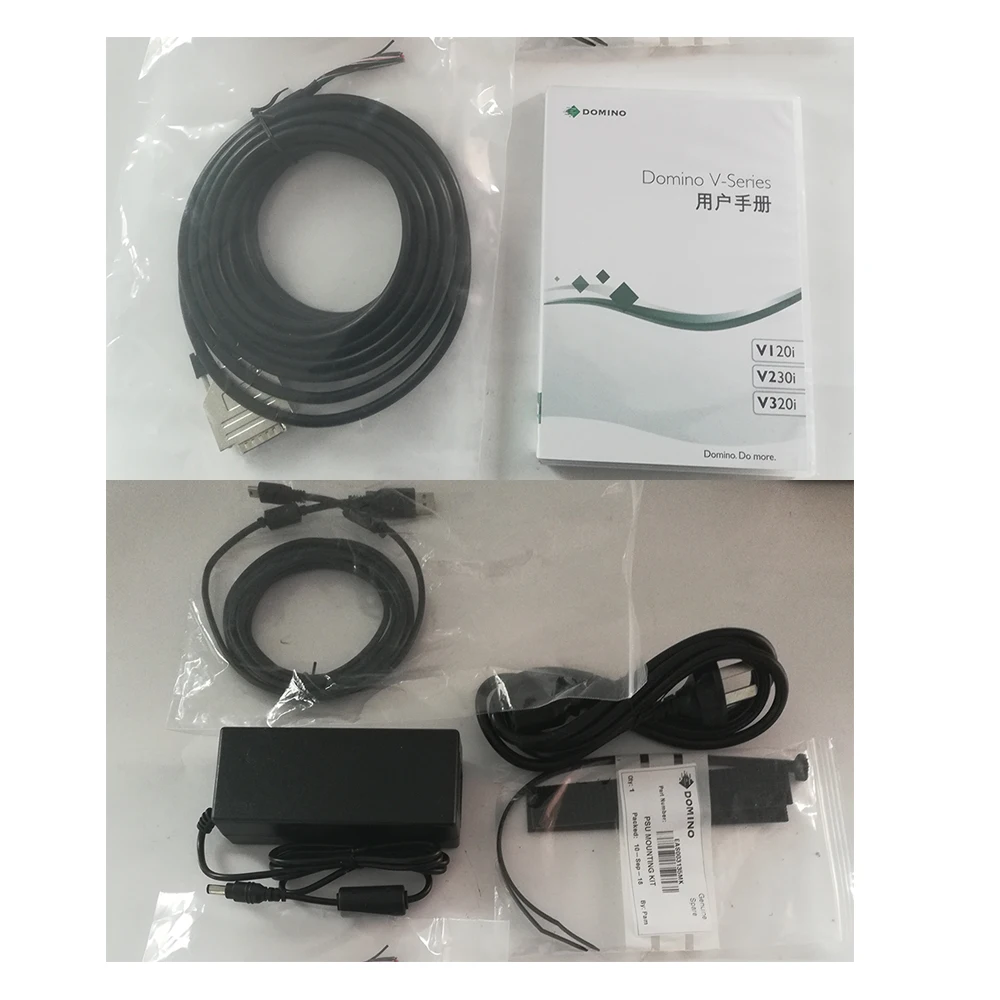

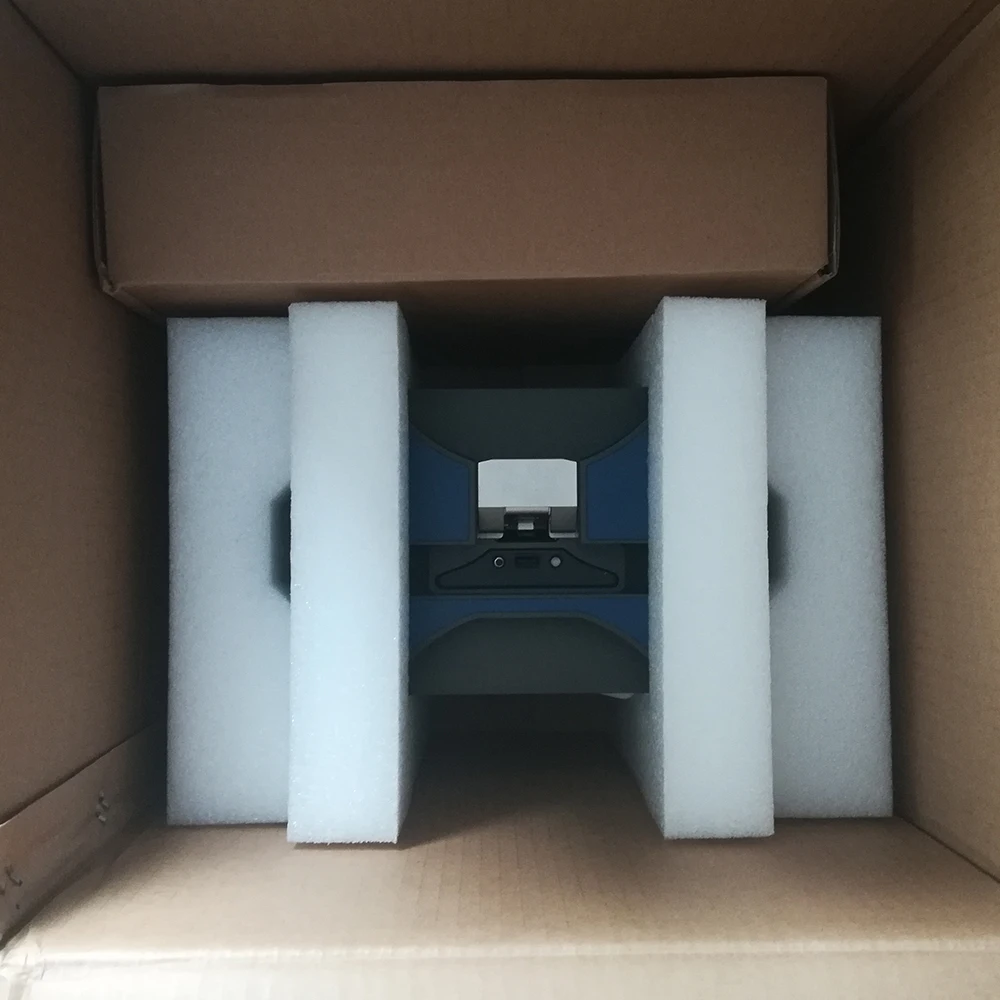

Packaging & Shipping
Being small and compact, the V230i will fit into most existing thermal transfer brackets, so you can quickly upgrade your existing equipment with minimal installation cost.
Our Services

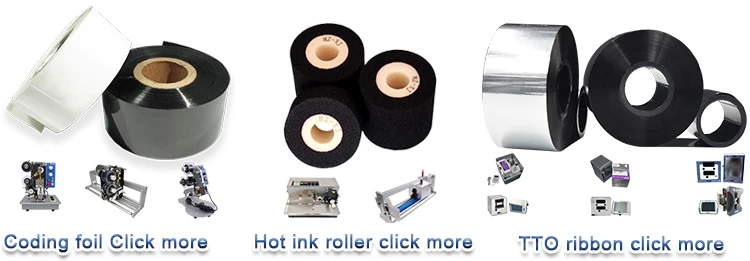

Henan Best Packing Machine Co., Ltd. is a manufacturer for Coding machine,TTO ribbon, TTR ribbon, Coding foil, Hot ink roller, Label paper and TTO Intelligent Printer..
They are widely used in many fields of foodstuffs, pharmaceuticals, beverages, cosmetics, household paper and so on.
We are always pursuing the perfect coding effect, working together with all of our Clients to create bright future
And our some clients visit our factory
Company Information
Henan Best Packing Machine Co., Ltd. is a manufacturer for TTO ribbon, TTR ribbon, Coding foil, Hot ink roller, Label paper, Coding machine and TTO Intelligent Printer

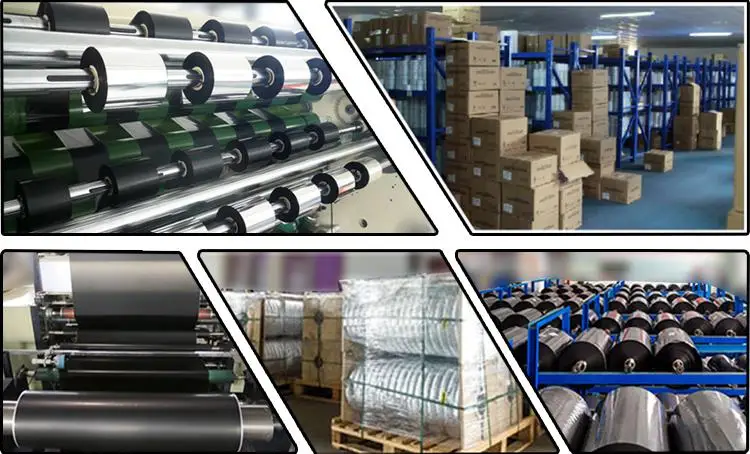

Our factory has 80 employees and 20 coating production lines, producing 380 million square meters hot stamping foils every year, engaging in coding solutions for Food, Pharmaceutical, Chemical and other Packaging Industries.
We have 20 National Invention Patents and always insist on "Excellent Quality, Sincere Services" Corporate Philosophy, providing the flexible packaging coding solutions. They are widely used in Food, Pharmaceutical, Cosmetics, Electronics, Logistics, Office and Advertising industries.
We have the Self-operate Import and Export License, and already established business with many regions, including Asia, Africa, North America, South America, Europe, ect.
We pay high attention to Product Quality, Technological Innovation, according to the ISO9001 Quality Management System.
We are always pursuing the perfect coding effect, working together with all of our Clients to create bright future.
FAQ
1. How to use ribbon for Markem,Videojet,Domino,Linx?
TTO ribbon is used to print date and batch number on Markem of 8018/X40/X60, Videojet of 6320/6420, Domino, Linx of TT3/TT5 printers.
Linx printer, ribbon is ink outside
Videojet printer, ribbon is ink outside;
Domino printer,ribbon is ink inside;
Markem X40, ribbon is ink inside
2, What size for TTO ribbon?
TTO ribbon are width 33mm, 34mm, 50mm, 55mm
Like 33mm*450m, 33mm*600m, 55mm*600m,55*1100M
If machine is 32mm print head, ribbon width 33mm
If machine is 53mm print head, ribbon width 55mm
3,For Markem 8018 printers, Maximum ribbon length is up to 550m, Minimum ribbon width is 22mm, and Maximum ribbon width is 33mm.
But for Markem X40 printers, Usual sizes are 55*450, 55*600, 55*1100, ect.
And TTO ribbons can be customized and produced diferent sizes according to your requirements.
