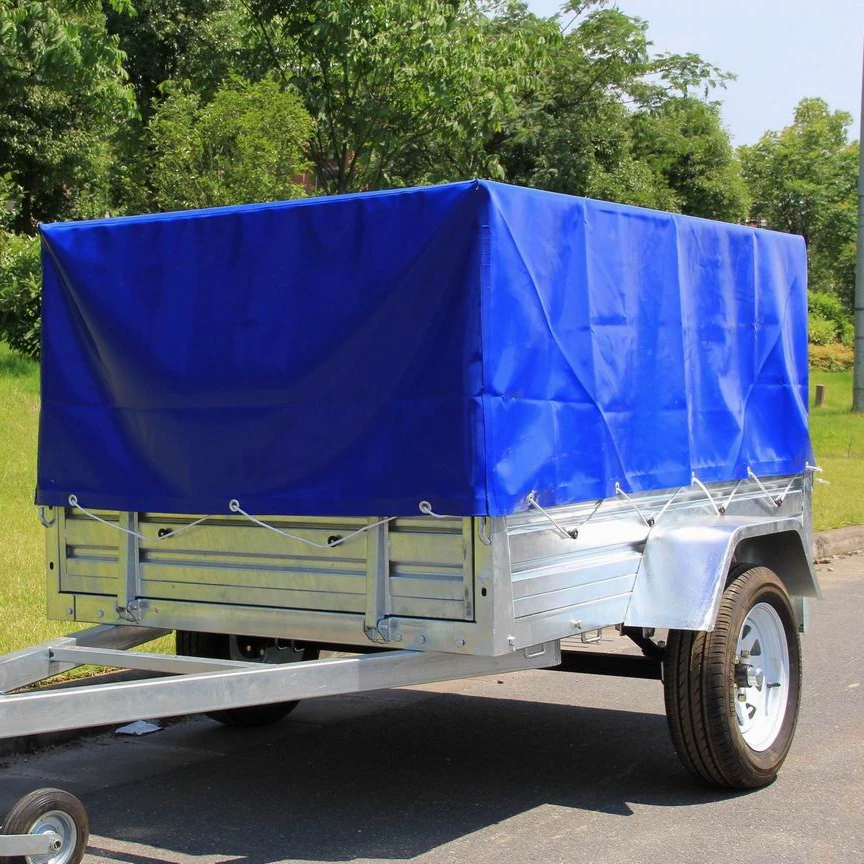

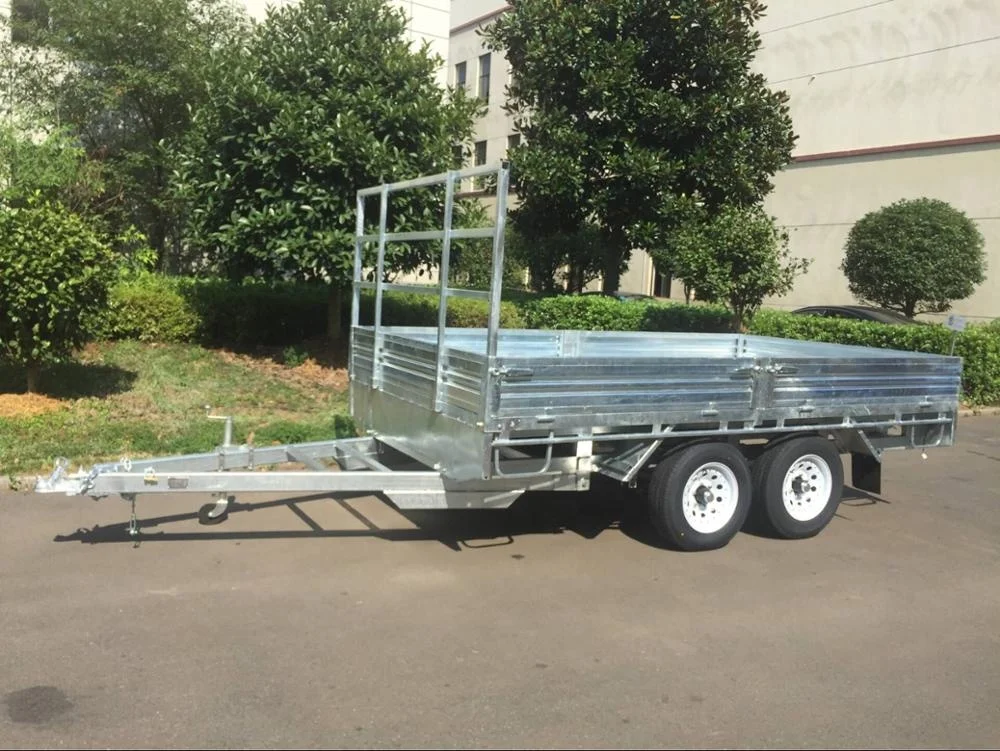

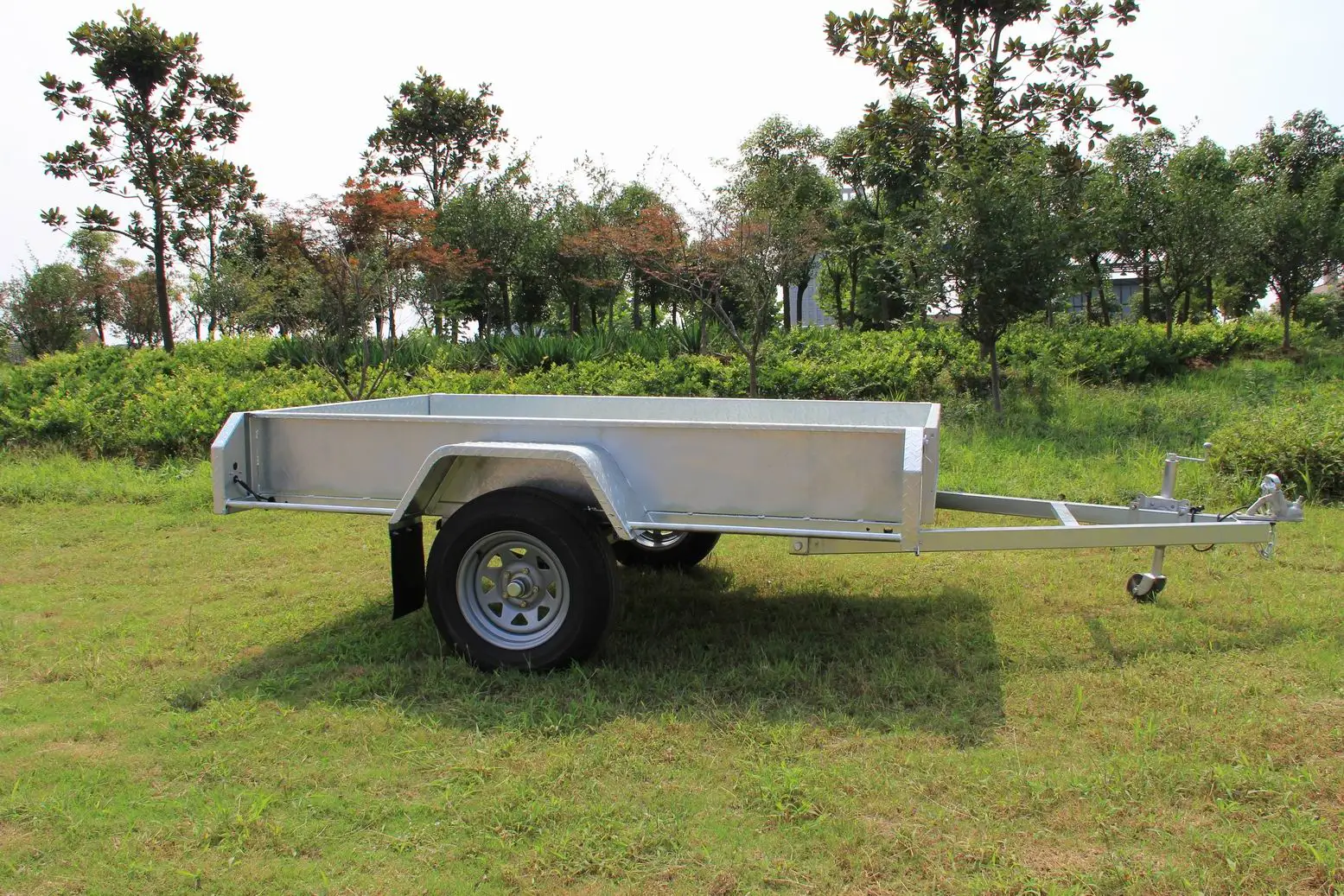

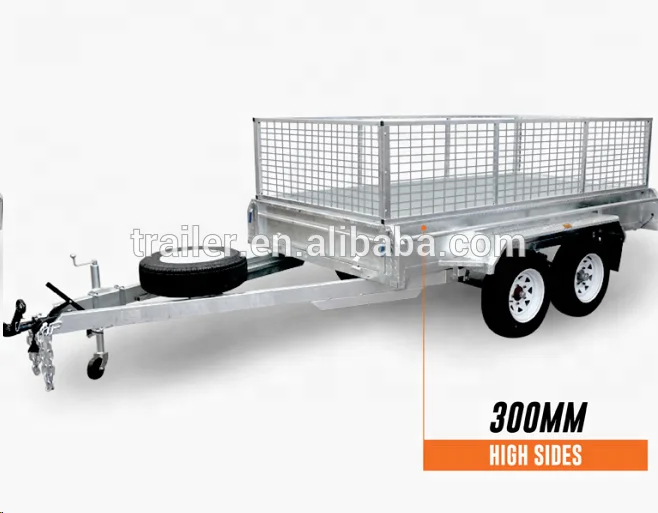

8x5 Fully Weld Galvanized horse /car/farm Trailer

Product Overview

Description

Specifications
Box size: 6'x 4',7'x4',7'x5',8'x5'

Payload:   750kg

Chassis material:   50x50x2.75mm steel square tube

Draw bar:   70x50x2.5, 1200mm length

Floor: 2.5mm checker plate or 1.5mm zinc plate

Door: 2.5mm checker plate or 1.5mm steel plate

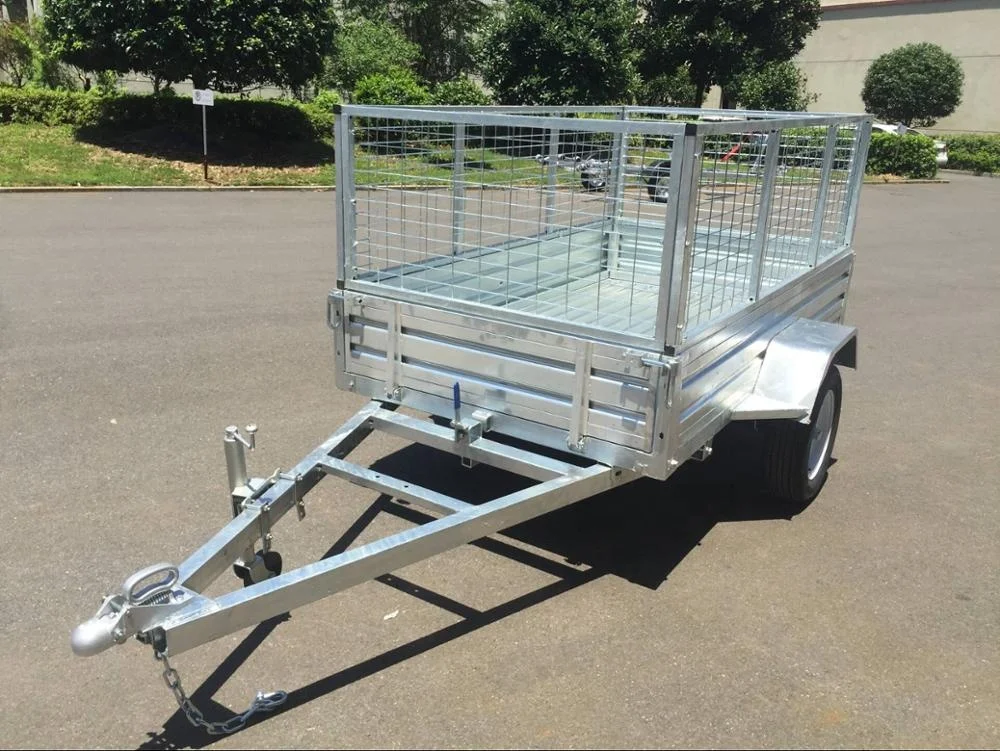

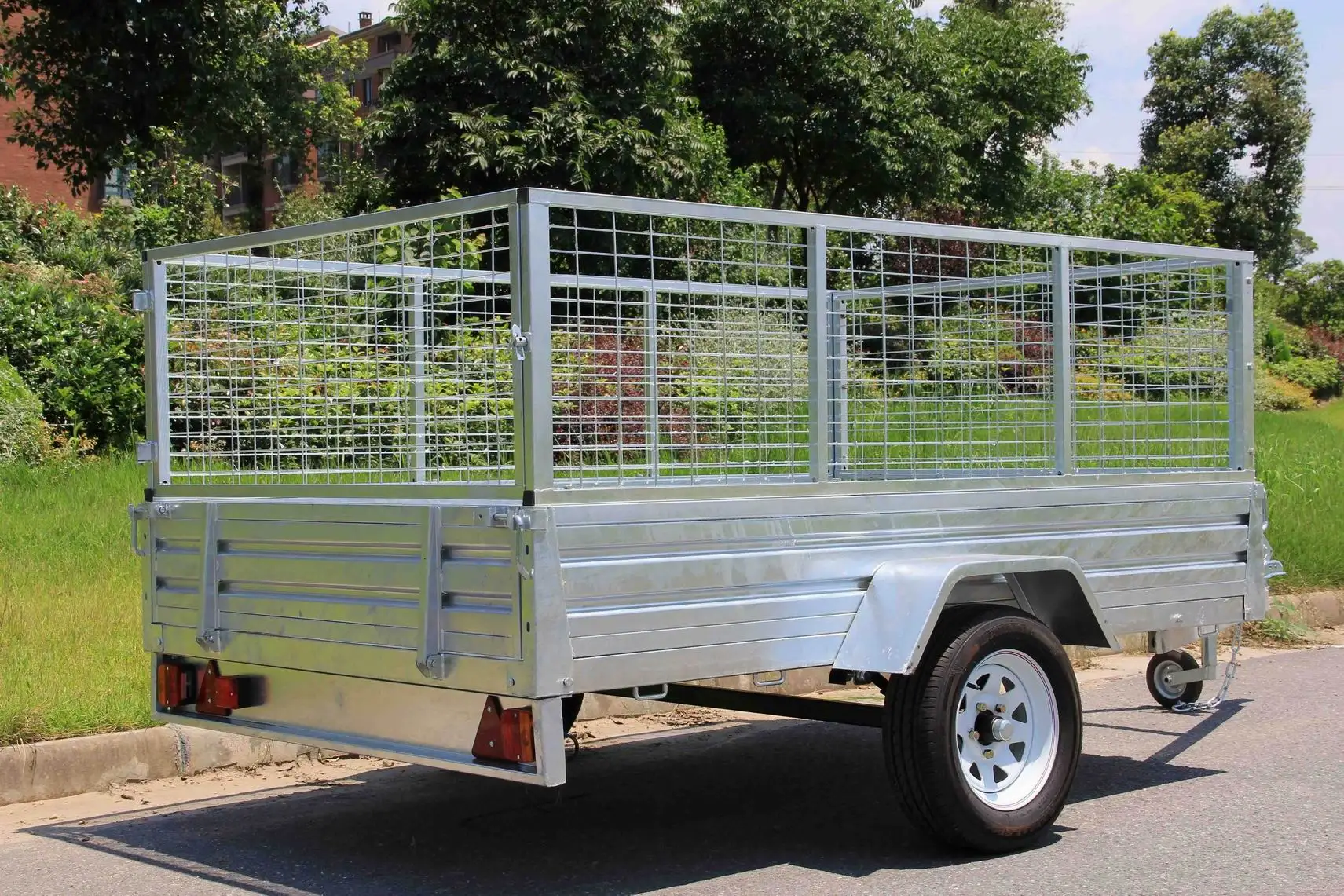

Cage: Mesh 4mm, mesh hole is 50x50mm, Pipe Size 30mm x 30mm, Thickness 1.7mm, high:600 or 900mm

Axle: 50x50x5mm square solid tube or 40mm round solid

Tires: with E-mark and DOT approval 185R14C or 165/70R13,

Leaf spring: 4leaf

Coupler: 50mm Australian style; 1-7/8" New Zealand style; 50mm European style or 2" the USA style

Light & reflectors: Au/Uk/Nz standard with E-mark or the USA standard with DOT

Surface finish: hot dip galvanized or powder coated

Optional: box size, Electice brake, mechanical brake, Jockey wheel, tie rail, tipping
