DISS Connection Oxygen wall pointed gas terminal connectors oxygen gas socket

Product Overview

Description

DISS Connection Oxygen wall pointed gas terminal connectors oxygen gas socket :

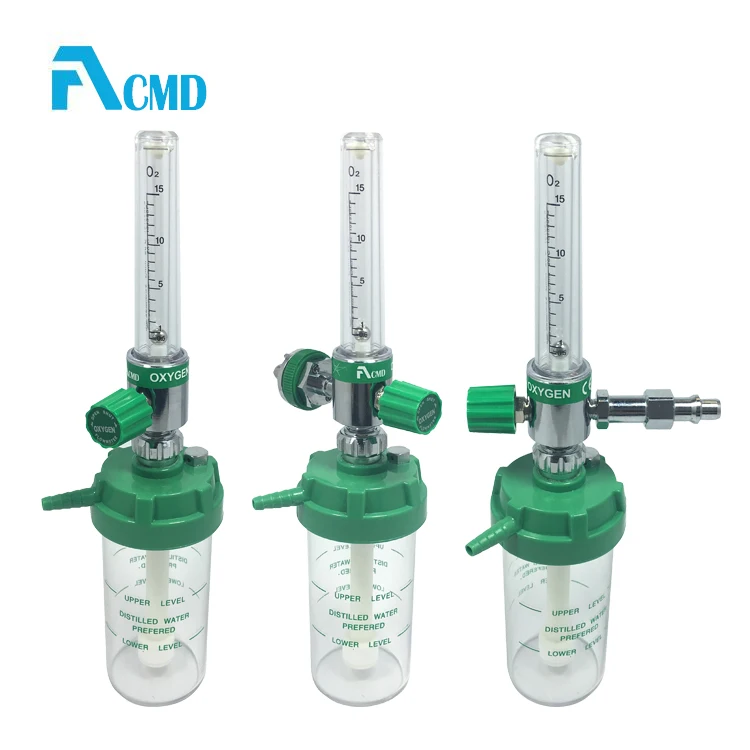

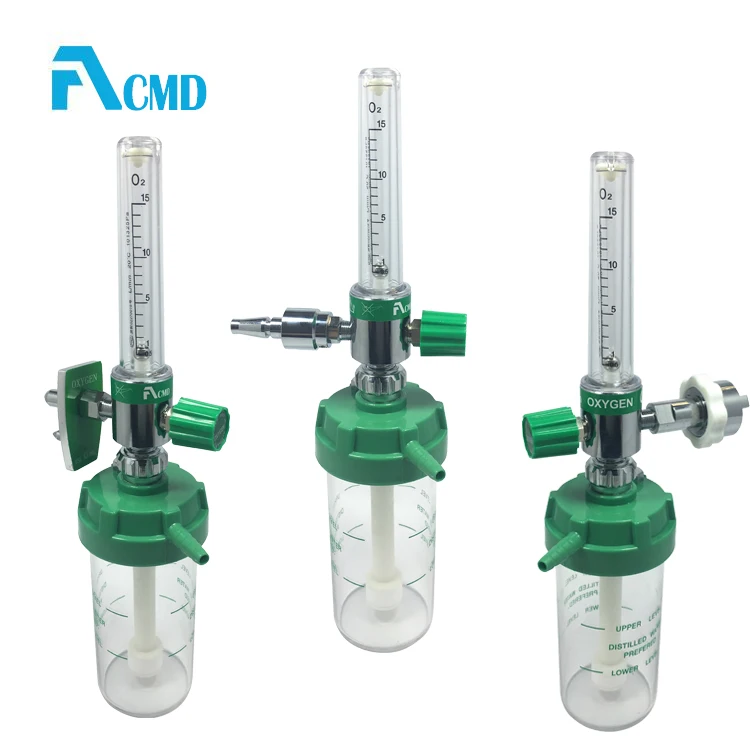

Regarding Medical Oxygen Flow Meter:



ACMDTECH Oxygen Flow Meter With Humidifier didicated to provide comfortable and satisfied oxygen therapy to different grade patients. The flow output control accuracy when input pressure is varient.
Flow tubes are crack-resistant polycarbonate with transparent meter...

Technical Details for ACMD Oxygen Flow Meter~

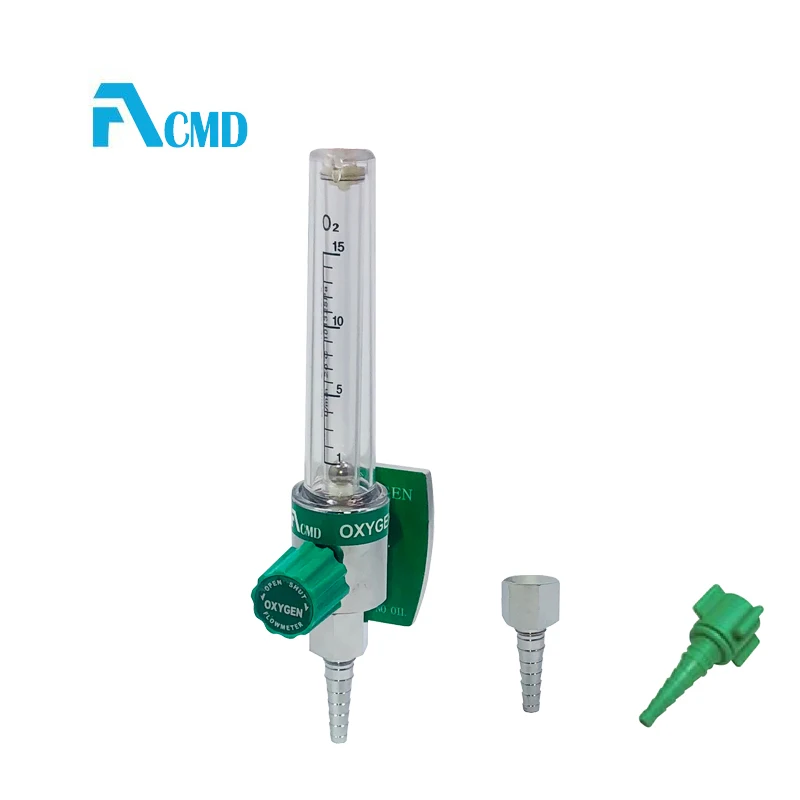

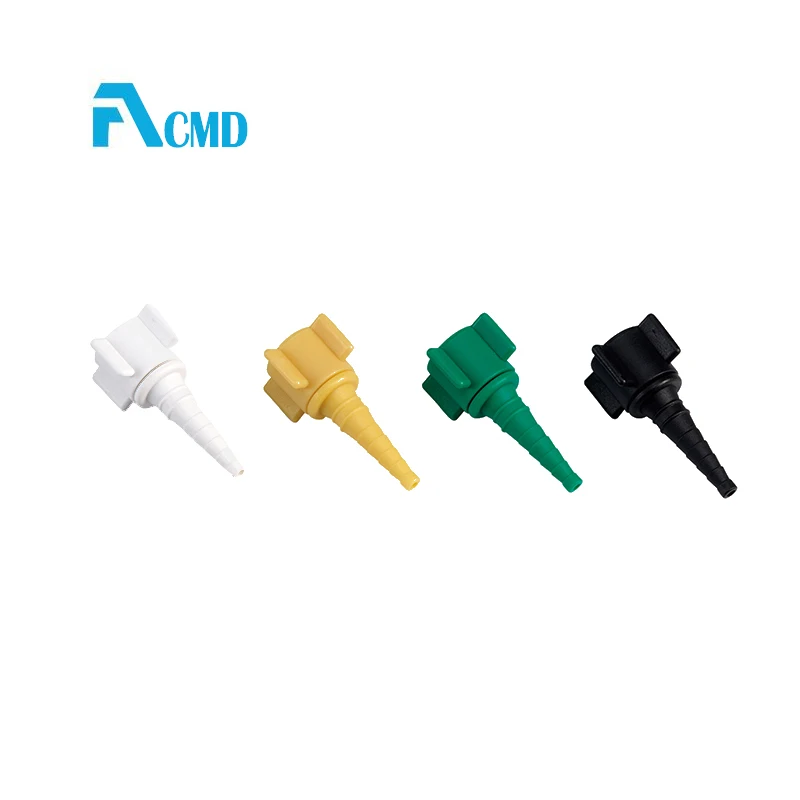

Product Name	ACMD Oxygen Flowmeter With hose barb
Installation Type	Wall Mounted on BedHead Unit
Inlet Adapter	Ohmeda, DISS, Chemetron , DIN, BS, FS adapter.
Adjustable range	0-10LPM, 0-15LPM.
Color	Color coded for indentify gas kinds.
Material of flowmeter	Chromed brass body for oxygen flow meter.
Material Of Humidifier	Polycarbonate
Calibrated Pressure	50* psi

Relif Valve Design Humidifier to Reduce Pressure Range:







Parameter for Humidifier:



Product Name	Reuable Oxygen Humidifer Bottle
Material of Jar	High Temperature Resistance Polycarbonate
Sterilize Temperature	Autocable Under 134 Degree
Material of Cap	High Temperature Resistance ABS
Volumn of Humidifier	170ml
Thread Size for Flow Meter	16/9'' or Customize According to Request
Filter Accuracy	10% Rate of Deviation
Cannual Connector Size	6mm -- 8mm
Relief Valve Pressure Range	3.5± 0.5 MPA









Material Declaration of Medical Suction Jar Components :



Body	Plate Of The Lid	Round Ring Of Lid	Nipples	Black Of Overflow Safety Valve
Polycarbonate	Temperature Resistance ABS	Medical Silicon	Cooper	High Temperature Resistance ABS



Related Products:

Medical Gas Ending Use Equipments( Gas Terminal ):

American Standard Gas Outlets ( Chemetron, DISS, Ohmeda )





Medical DISS Gas Outlets





Oxygen Regulator for Cylinders:

Oxygen Regulator With Connector --CGA540, CGA870 ,Bull Nose













Medical Bed Head Unit to Equipped with Gas Terminal and Electric Output

Vacuum Slider to Hold Suction Canister









Surgical Bridge with Rail System hold Medical Devices Provide Medical Gas:

Dry Side and Wet Side Separated













Surgical Pendant/Bridge:





Why Choose ACMD Medical Company? The Advantages We Have For Hospital Gas Pipeline System:

1, Attend Domestic and Foreign Medical Exibition Every Year, Acknowlodge the newest industry development.

2, Have Good Relationship with Designing Institute Worker, Providing Satisfied Hospital Engineering Design.

3, 5 Steps Quality Controlling System to Ensure High Quality Products.

4. 5 Years Warranty for ACMD Direct Sold Products.

5. Fast Manufacturing Period, 3-5 Days after Receiving Payment including OEM.

6. Fast Delivery Method, We have 5 Years Shipping Farwarder Make Sure in-time Delivery.
