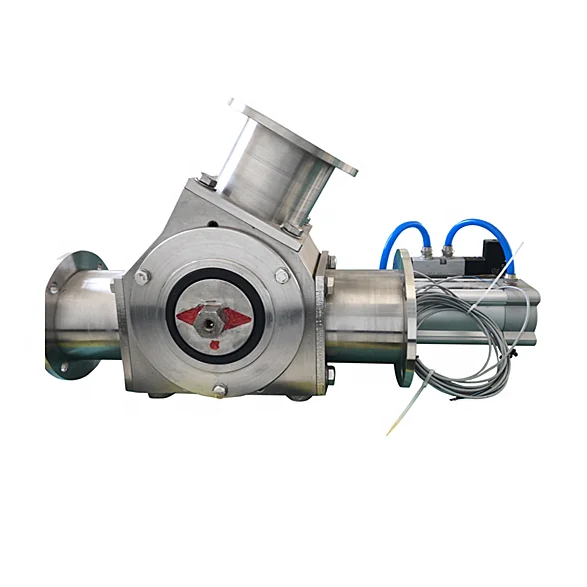

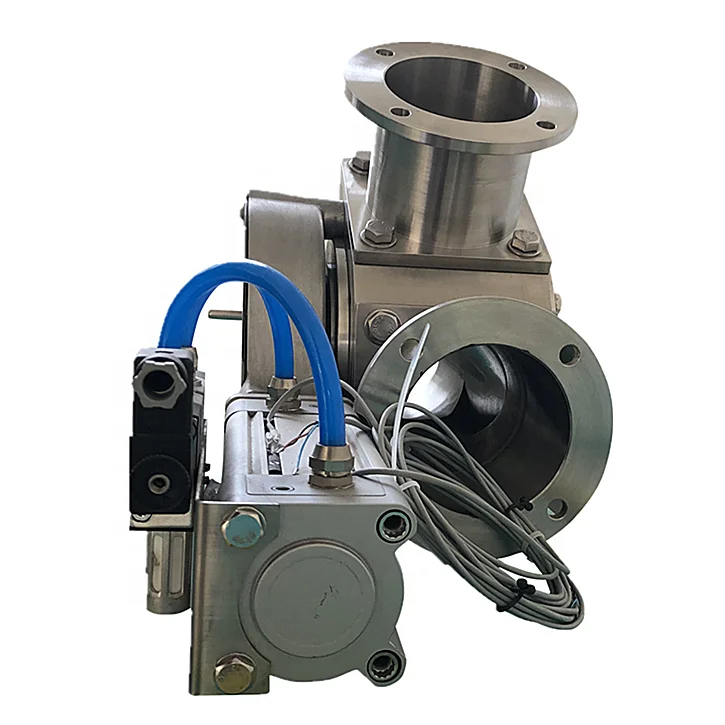

2 way stainless steel pneumatic diverter valve for bulk material conveying
2 way stainless steel pneumatic diverter valve for bulk material conveying
2 way stainless steel pneumatic diverter valve for bulk material conveying
2 way stainless steel pneumatic diverter valve for bulk material conveying
2 way stainless steel pneumatic diverter valve for bulk material conveying
2 way stainless steel pneumatic diverter valve for bulk material conveying

2 way stainless steel pneumatic diverter valve for bulk material conveying

Share on (62061672275):


Price:

Quantity:


Product Overview

Description





Powder Pneumatic Conveying Diverter Valve






What is a pneumatic powered diverter valve for powder pneumatic conveying ?
The Pneumatic Conveying Diverter valve is used to reroute product from one conveying line to another. In other words, the pneumatic conveying diverter valve is used to switch the pneumatic conveying route or conveying channel.
Sichuan Zili Machinery Co., Ltd has been in this field for 20 years, up to now, our pneumatic conveying diverrter valves have updated to 4th generation. Now we have applied patents and certificates of our TXF series penumatic conveying diverter valves. For Sichuan Zili Machinery Co., Ltd pneumatic conveying diverter valves, we have casting iron type, stainless steel type, the connection flange can be from 60mm to 250mm, can be used in many pneumatic conveying systems in different industries.










Pneumatic Conveying Diverter Specifications





Model No
Installation Data(mm)

Material
L
L1
H
H1
N
N1
A
B
TXFLFQ6*2Ⅲ
612
210
320
105
295
101
200
134
Cast iron/Stainless Steel
TXFLFQ8*2Ⅲ
612
210
320
105
295
101
200
134
Cast iron/Stainless Steel
TXFLFQ10*2Ⅲ
601
200
320
105
295
101
200
134
Cast iron/Stainless Steel
TXFLFQ12*2Ⅲ
635
220
359
122.5
331
111.5
240
155
Cast iron/Stainless Steel
TXFLFQ15*2Ⅲ
707
245
413
145
394
138
290
190
Cast iron/Stainless Steel
TXFLFQ18*2Ⅲ
798.5
262.5
465
175.5
430
152.5
325
230
Cast iron/Stainless Steel
TXFLFQ20*2Ⅲ
877
280
509
190
475
170
360
260
Cast iron/Stainless Steel
TXFLFQ25*2Ⅲ
1100
337
625
230
645
224
430
320
Cast iron/Stainless Steel








Our pneumatic conveying diverter valves are widely used in grain, food, animal feed, pharmaceutical and chemical industries pneumatic conveying systems.
















As Zili cooperates with more and more customers, Zili has higher and higher requirements for factory performance. At present, the factory has purchased several CNC machine tools, automated welding equipment and automatic painting systems, which not only increases production capacity but also guarantees product quality.




A View Of Our Factory Pneumatic Diverter Valve Prodcution Line








FAQ


Q1. What are your advantages  ?
A1.Our Airlocks can operate smoothly for 6-8 years with SKF Bearings, ISO 600-3 nodular cast iron material, and professional design with our own patents. Since we are manufacturer, we have our own supply chain and quality control system. So we can provide competitive price as well as good quality.
Pneumatic conveying diverter valve
Q2. What kind of payment terms and transportation do you accept ?
A2. We accept payment through Alibaba, TT, LC, air transportation and sea transportation are available.
Pneumatic conveying diverter valve
Q3.Can you do the supporting installation and design according to our needs or do you only sell rotary valves ?
A3.Yes, that is available for use to do the installation and design according to you demands.
Pneumatic conveying diverter valve
