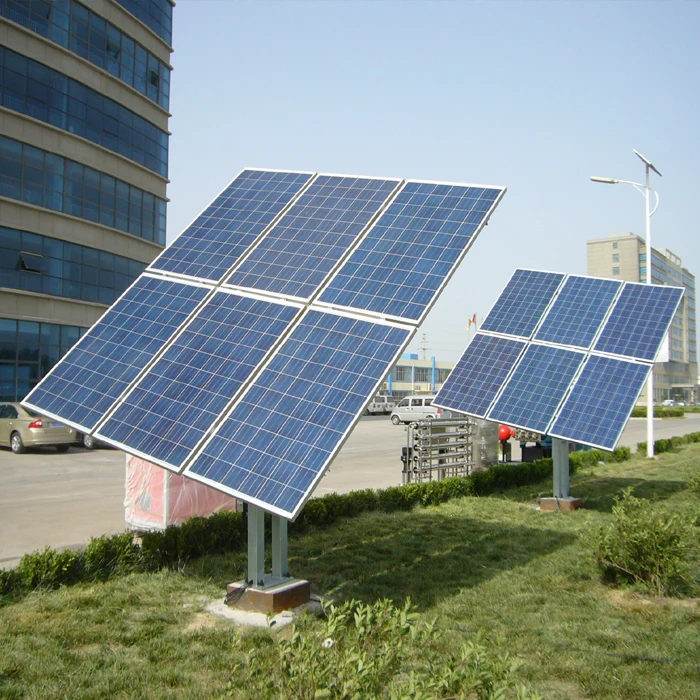

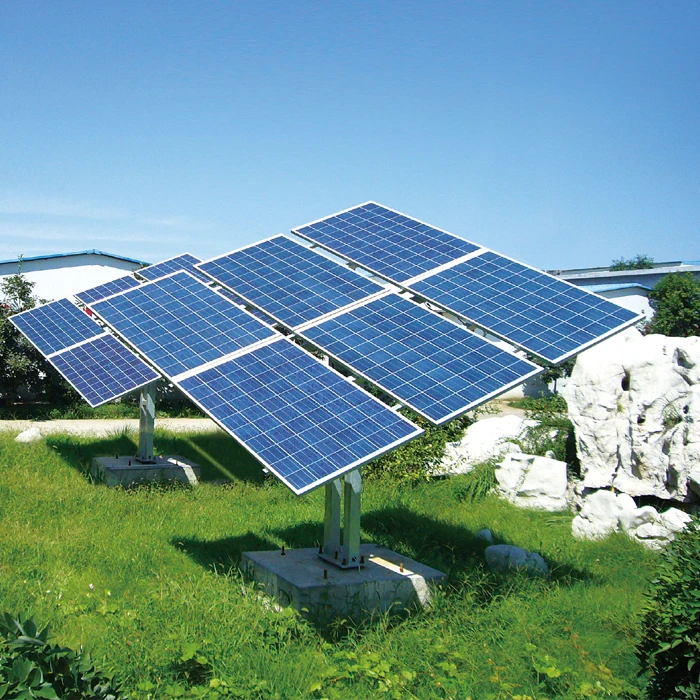

home grid 3kw dual axis solar tracker price for solar energy systems
- Category: >>>
- Supplier: Shandong Zhaori New Energy Tech. Co. Ltd.
Share on (62061773106):
Product Overview
Description
Working Vedio
Specification
Product name: | Dual axis solar tracking system |
Control mode: | Time + GPS Control |
Tracking accuracy: | 0.1°-2° (Adjustable) |
Motor: | 24V gear motor |
Power consumption: | 3 kwh/set/year |
Output torque: | 2400NM |
Azimuth angle tracking range: | ±50° |
Elevation angle tracking range: | 50° |
Brackets material: | Hot-dipped galvanized steel, Zinc layer thickness≥65μm |
Max. wind resistance: | 24m/s in running state, 40m/s in wind protect state |
System guarantee: | 3 years |
Working temperature: | -40℃ - +75℃ |
Certificates: | CE, TUV |
Weight: | 150-240kgs |
Mount solar panels: | 6-12 pieces |
Total power: | 1.5kW-4.5kW |
Product Description

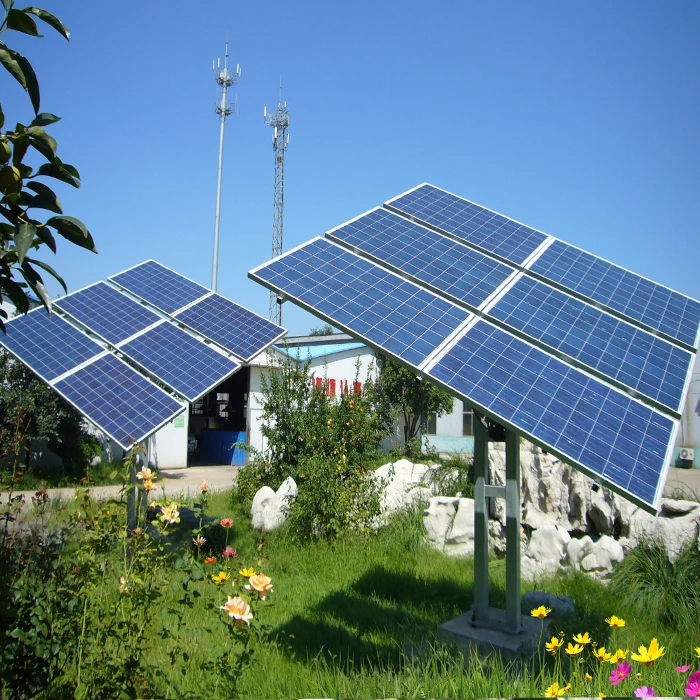

We have two types of dual axis solar tracking system.
ZRD series full automatic dual axis solar tracking system: our patent product, it has two automatic axis to track the sun in
east-west direction and south-north direction automatically.
ZRS series semi-auto dual axis solar tracking system: our patent product, It has one auto axis to track the sun in east-west
direction automatically from sunrise to sunset every day, and one manual axis to track the sun in south-north direction
seasonally, only need manual adjustment 4 times a year, and the adjustment is very easy, only need half a minute, in this way, its efficiency can be close to two axis automatic solar trackers, but it saved system costs, and it has better wind resistance performance, reduce the failure rate.
ZRD series full automatic dual axis solar tracking system: our patent product, it has two automatic axis to track the sun in
east-west direction and south-north direction automatically.
ZRS series semi-auto dual axis solar tracking system: our patent product, It has one auto axis to track the sun in east-west
direction automatically from sunrise to sunset every day, and one manual axis to track the sun in south-north direction
seasonally, only need manual adjustment 4 times a year, and the adjustment is very easy, only need half a minute, in this way, its efficiency can be close to two axis automatic solar trackers, but it saved system costs, and it has better wind resistance performance, reduce the failure rate.
Our Advantages
★ Patent technology, simplest structure, low cost.
★ Conveniently and quickly installation, no need for big machinery.
★ Less power consumption, only totally about 3kWh/set/year.
★ High strength brackets, good wind resistance performance, auto wind protection.

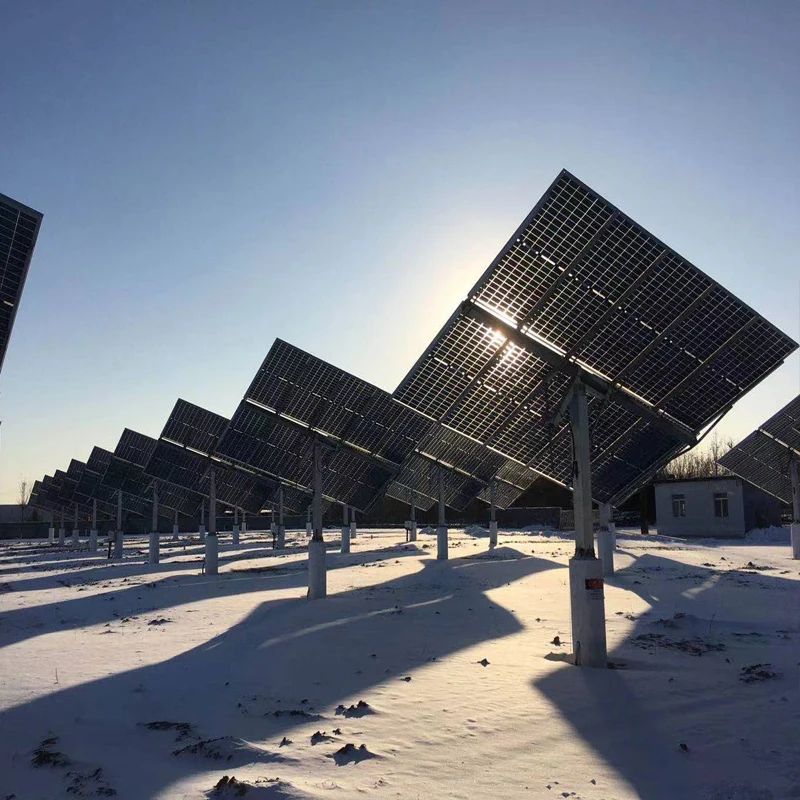

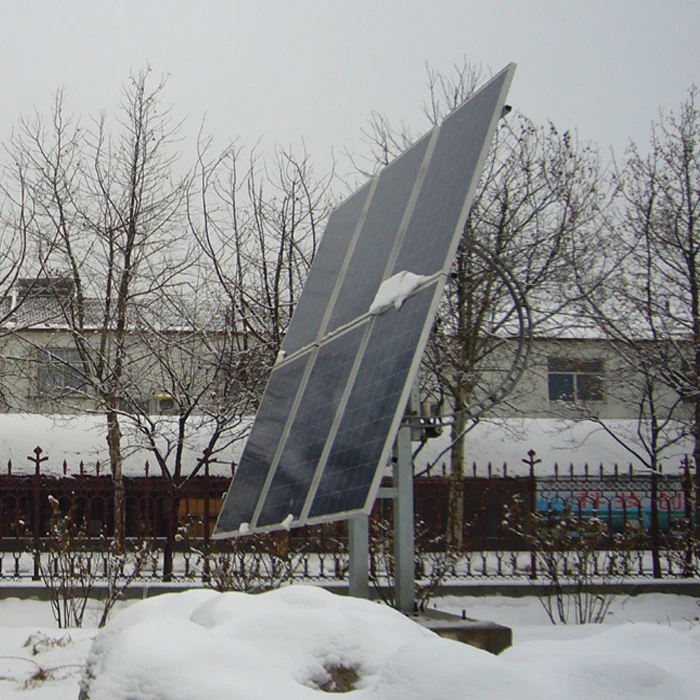

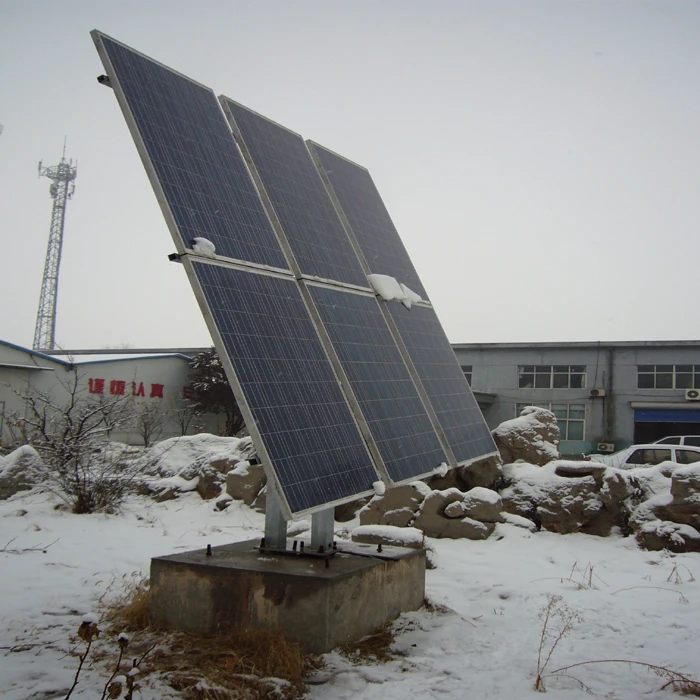

★ Solar panels can be adjusted to a tilt angle for snow proof purpose.
★ Independent support structure, better terrain adaptability.
★ No fixed coverage to sunshine or raining, no affection to plants growing.
★ Effectively reduce your solar panels washing times.
★ Less components, light single part weight, convenient transportation.
★ Intelligent control, self-correction & self-positioning, easy maintenance.
★ Mature and reliable technology, low failure rate, high tracking accuracy.
★ High efficiency, +25% - 40% more energy!
★ Conveniently and quickly installation, no need for big machinery.
★ Less power consumption, only totally about 3kWh/set/year.
★ High strength brackets, good wind resistance performance, auto wind protection.
★ Solar panels can be adjusted to a tilt angle for snow proof purpose.
★ Independent support structure, better terrain adaptability.
★ No fixed coverage to sunshine or raining, no affection to plants growing.
★ Effectively reduce your solar panels washing times.
★ Less components, light single part weight, convenient transportation.
★ Intelligent control, self-correction & self-positioning, easy maintenance.
★ Mature and reliable technology, low failure rate, high tracking accuracy.
★ High efficiency, +25% - 40% more energy!

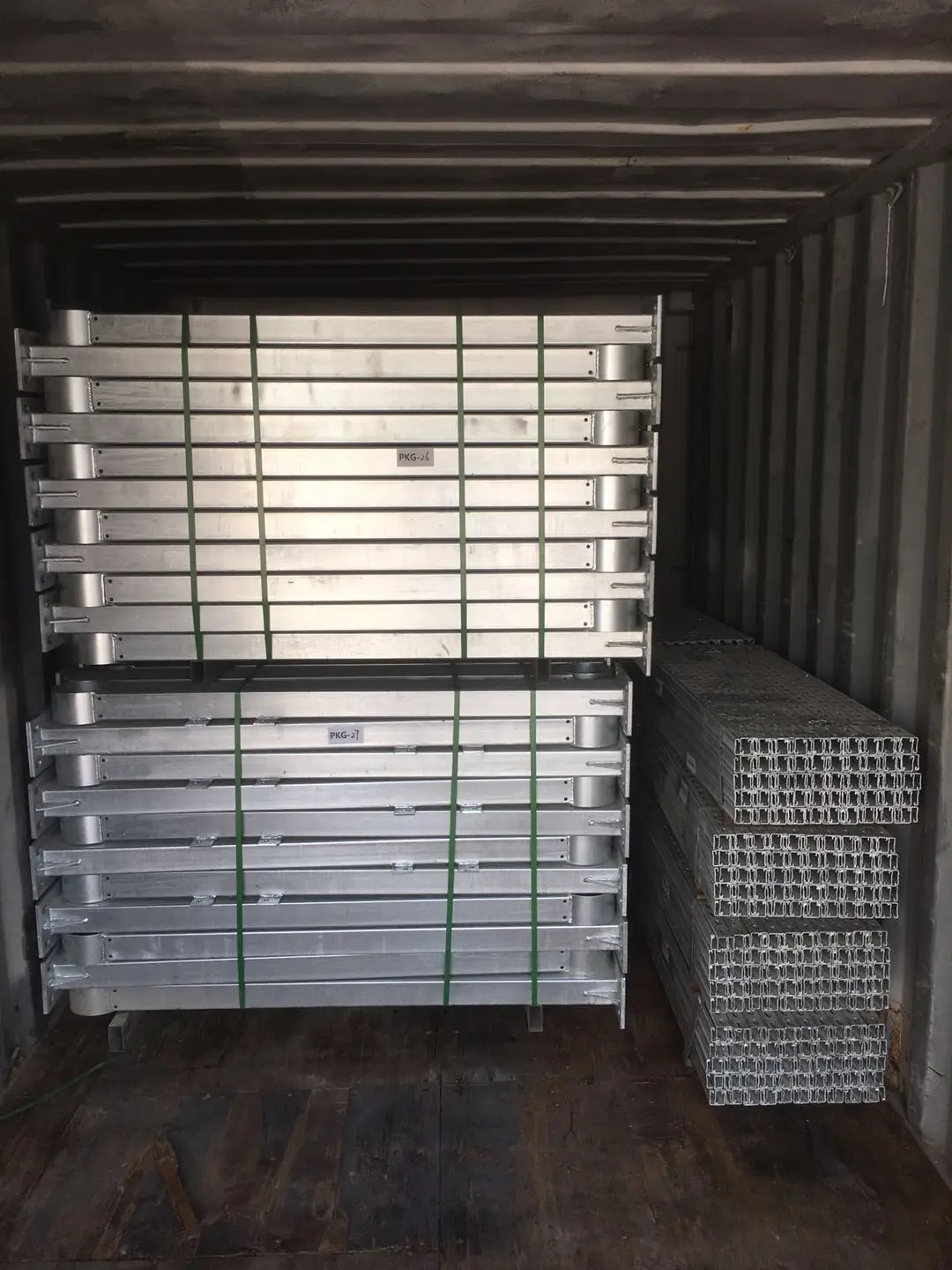

Packing & Delivery
.Wooden box and pallet and bundle
Company Profile
Shandong Zhaori New Energy Tech. Co., Ltd. locates in Weicheng Economic and Technological Development Zone of Weifang City,Shandong Province. The company registered capital comes to 20 million RMB, it is a high-tech & new energy company based on independent intellectual property rights, committed to researching and producing most simple and best cost performance smart solar tracking systems, promoting power generation capacity by 25%-45%, with TUV & CE certificates and patent of invention from many countries.
Our Goal: more simple, more reliable, more efficient
Our Aim: excellent products, excellent service
Our Wish: share the solar future with you
Our Goal: more simple, more reliable, more efficient
Our Aim: excellent products, excellent service
Our Wish: share the solar future with you
