Chinese special wavelength LED supplier water clear lens 8mm Round Dip 4000nm 4100nm 4200nm 4300nm 4500nm infrared ir led
- Category: Electronic Accessories & Supplies >>>
- Supplier: Shenzhen Starsealand Opto Electronics Co. Ltd.
Share on (62062126144):
Product Overview
Description
Chinese special wavelength LED supplier hot sell water clear lens 8mm Round Dip 4000nm InGaAsPb infrared led diode at competitive price with ROHS
Shenzhen Starsealand Opto Electronic Co.,LTD deal with special wavelength LEDs from 250nm to 4400nm, if you have any inquires please let me know .
Applications:
1. oxygen meter
2.Gene testing device
3.motion capture
4. iris authentication
5.Vein certification
6.Surveillance camera
7.Color selection
8.encoder
9.Appearance inspection
10.solar simulation
11.photo therapy
12. Gas sensor
Product Description
Item | Symbol | Value | Unit |
| forward current | IF | 20 | mA |
| Pulse forward current | Ip | 200 | mA |
Power dissipation | PD | 200 | mW |
Operating temperature | Topr | -20~+75 | °C |
Storage temperature | Ystg | -30~+80 | °C |
Reverse voltage | VR | 5 | V |
Sold soldering temperature | Tsol | 260°C/3Sec | --- |
Item | Symbol | condition | Min | Type | Max | Unit |
DC forward Voltage | VF | Ip=200mA | 0.2 | ---- | 0.4 | V |
DC reverse Current | IR | V=5V |
|
|
| μA |
Peak Wavelength | λP | Ip=200mA | 4000 | ---- | 4500 | nm |
Spectrum Radiation Bandwidth | Δλ | Ip=200mA | 1000 | 1100 | 1200 | Nm |
Radiant Power | Φe | Ip=200mA | 4 | 6 | 8 | μW |
50%Power Angle | 2θ1/2 | Ip=200mA | ---- | 30 | ---- | deg |
Switching time | tr, tf | Ip=200mA | 10 | 30 | 50 | ns |

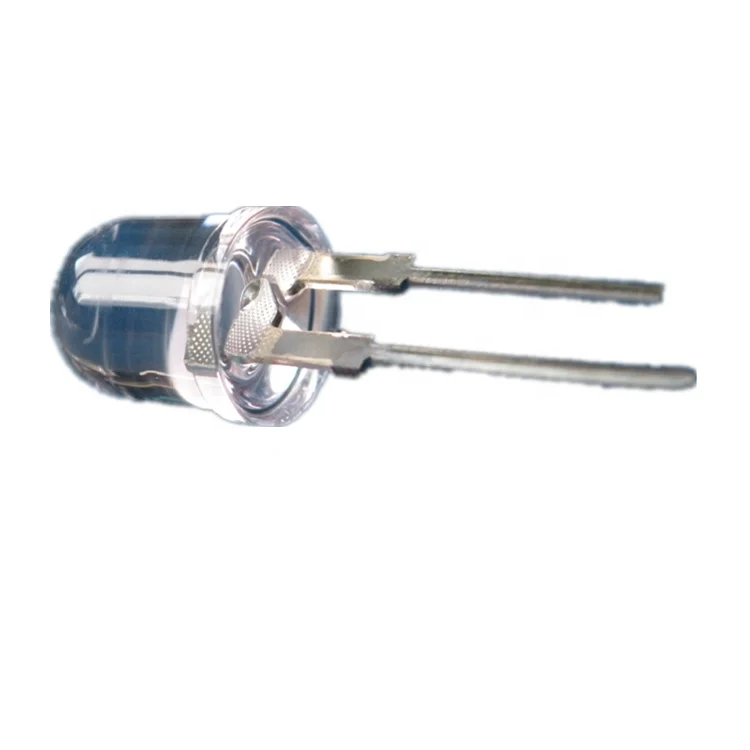

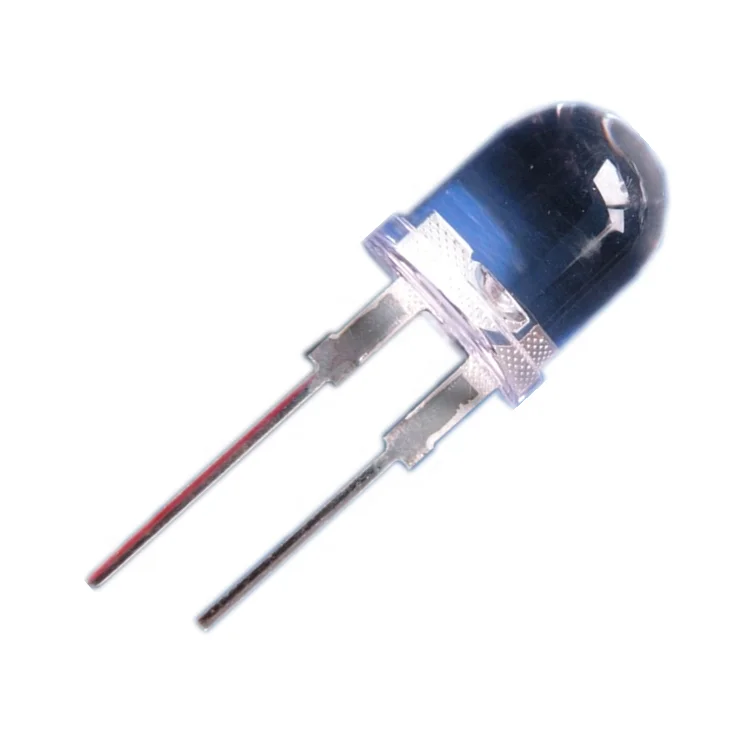

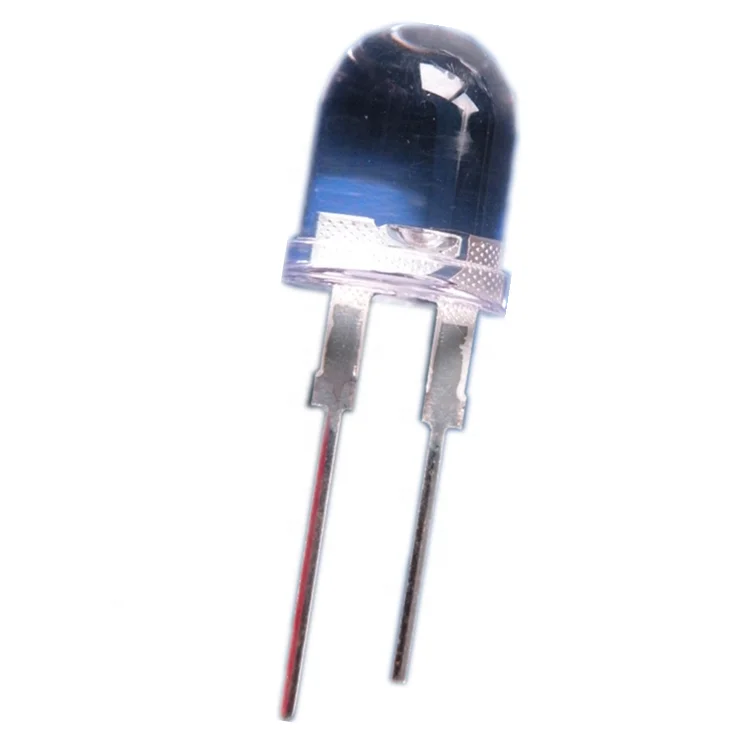

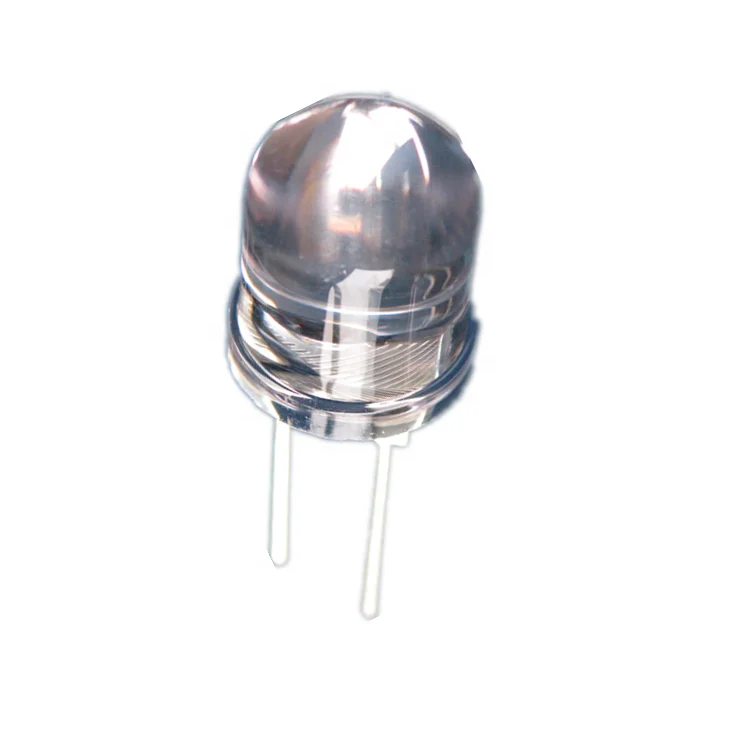

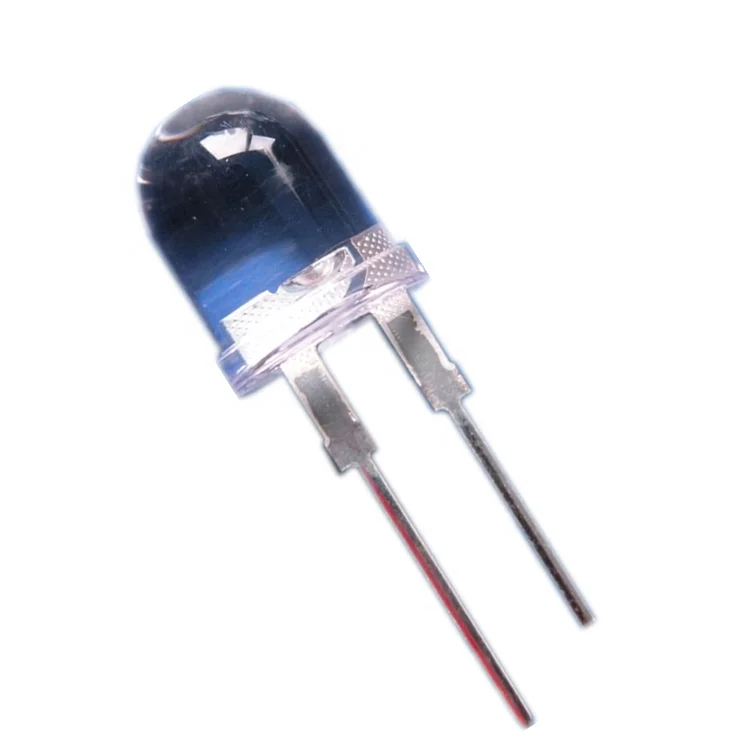

Appearance
Size drawing
Packaging & Shipping
packaged in pp bag
shipping way
Our Services
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.
