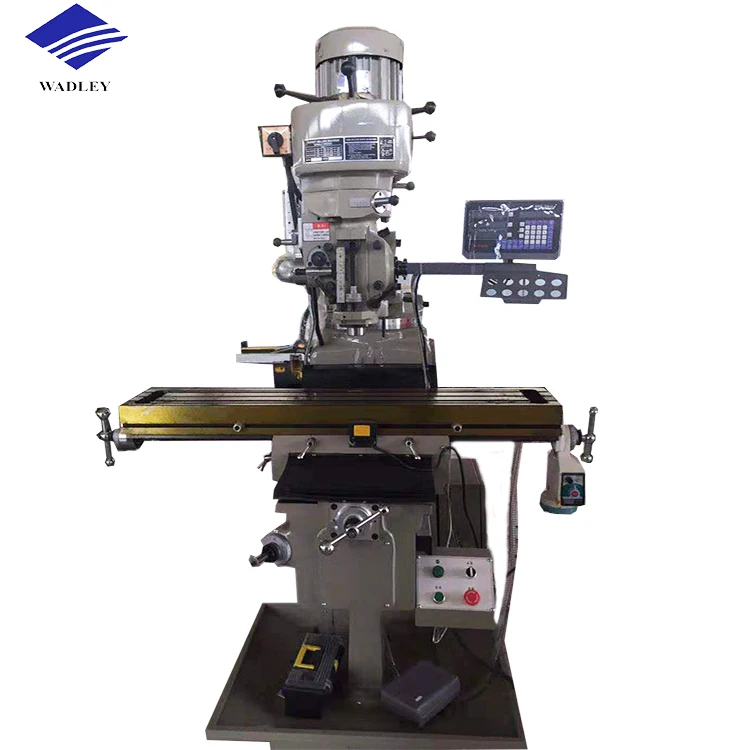

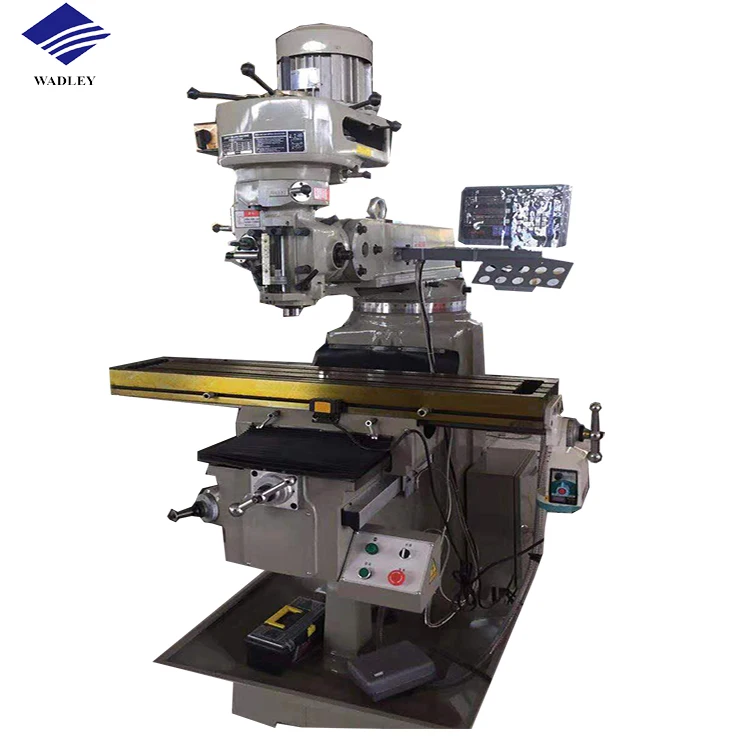

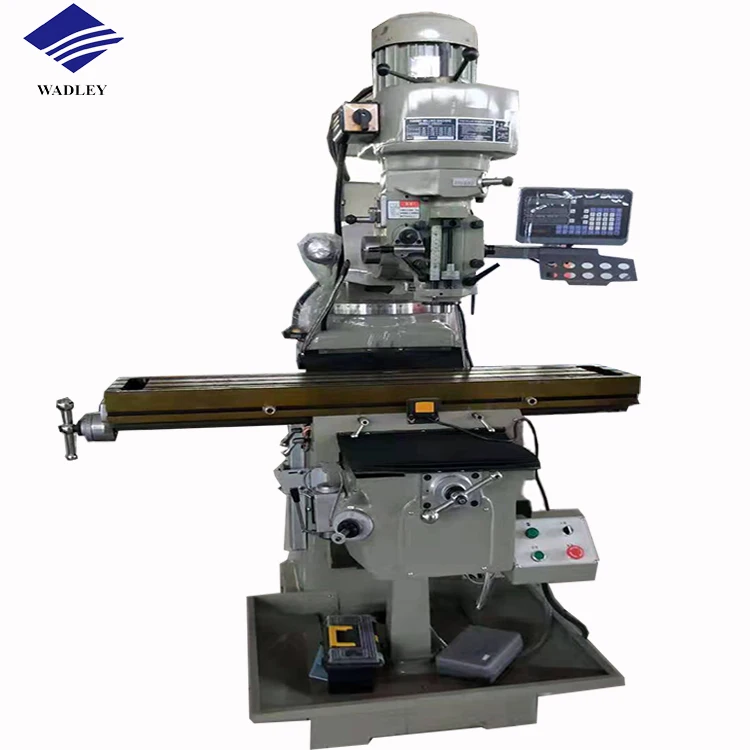

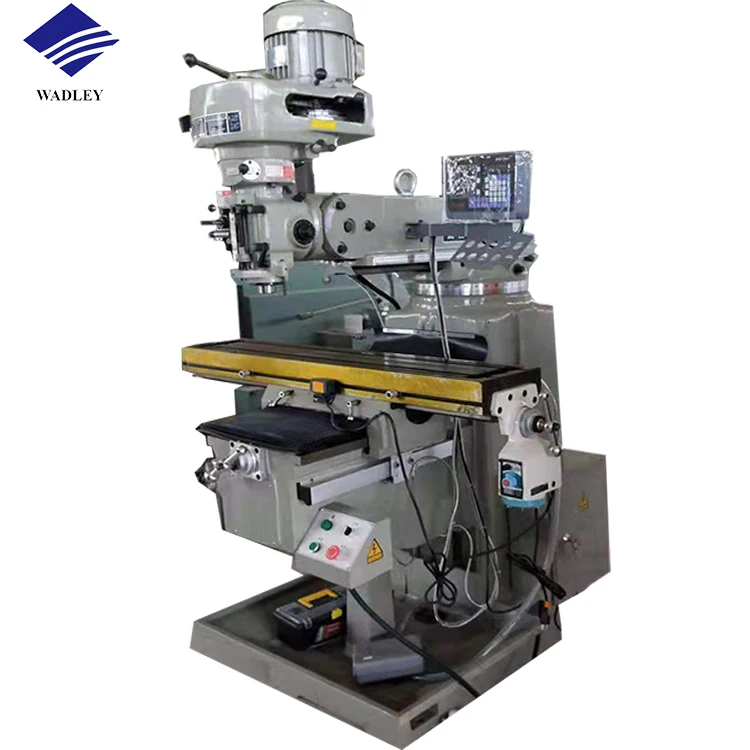

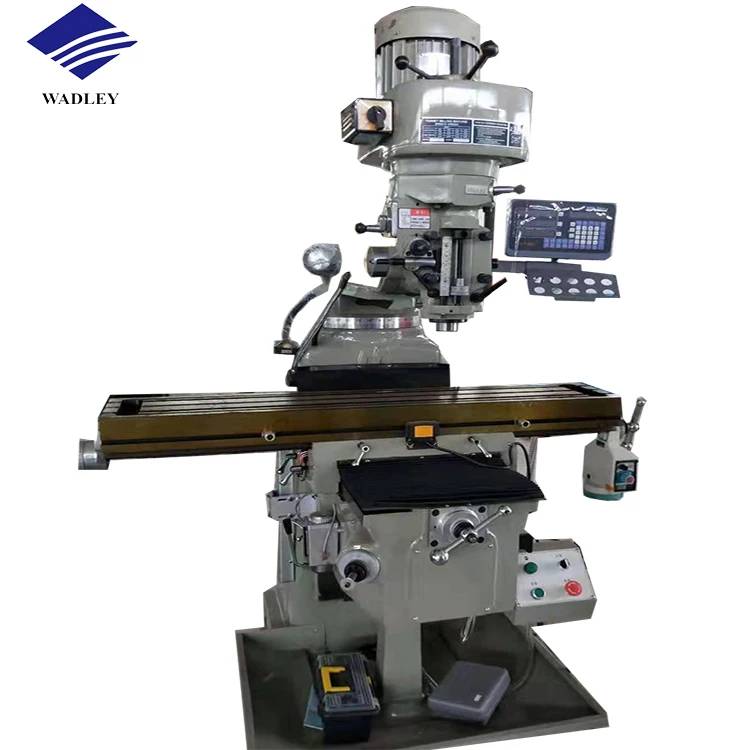

Wadley hmt milling drilling machine X6332C
- Category: >>>
- Supplier: Henan Wadley Cnc Machinery Co. Ltd.
Share on (62062145366):
Product Overview
Description
Product Description
A. M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
B. Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
C. Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
D. Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
E. Many parts of the machine tools have been applied for patent
2.Application:

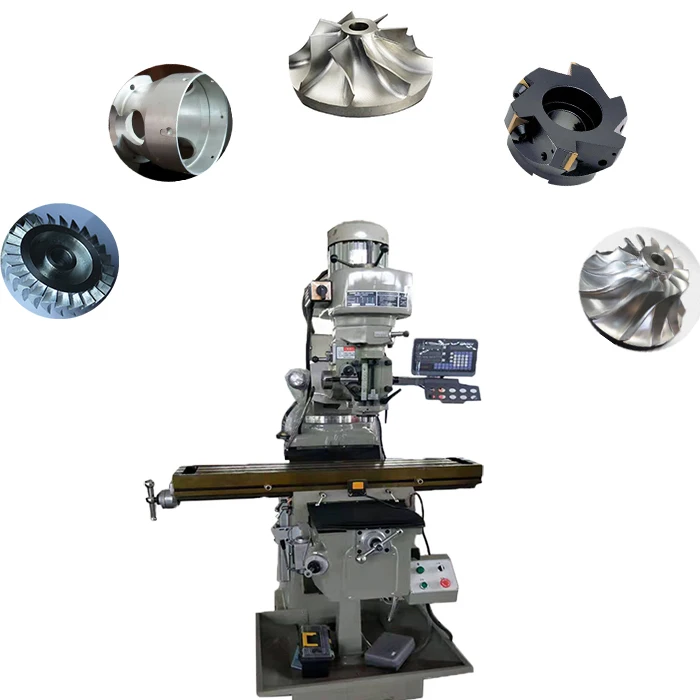

The milling machine is a kind of universal light duty metal cutting machine.Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline, etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Parameters
| Specifications | Units | X6332C |
| Table size | mm | 1270x320 |
| Table stroke | mm | 780x300x380 |
| T-type slot numbers / width /space | mm | 5-14-70 |
| Distance between spindle nose to table surface | mm | 150-500 |
| Distance between spindle axis and column surface | mm | 150-550 |
| Spindle travel | mm | 127 |
| Spindle taper(V/H) | ISO40 | |
| Spindle speed range | rpm | 70-3620,(V)60-1350(H) |
| Spindle motor power | KW | 2.2(V) 2.2(H) |
| Overall dimensions | mm | 1720x1520x2225 |
| Machine weight | Kg | 1650 |
Product details
Company Information
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
5: What's the MOQ?
A: 1 set .
We want to know:
a.What's your Industrial Voltage?
b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.
