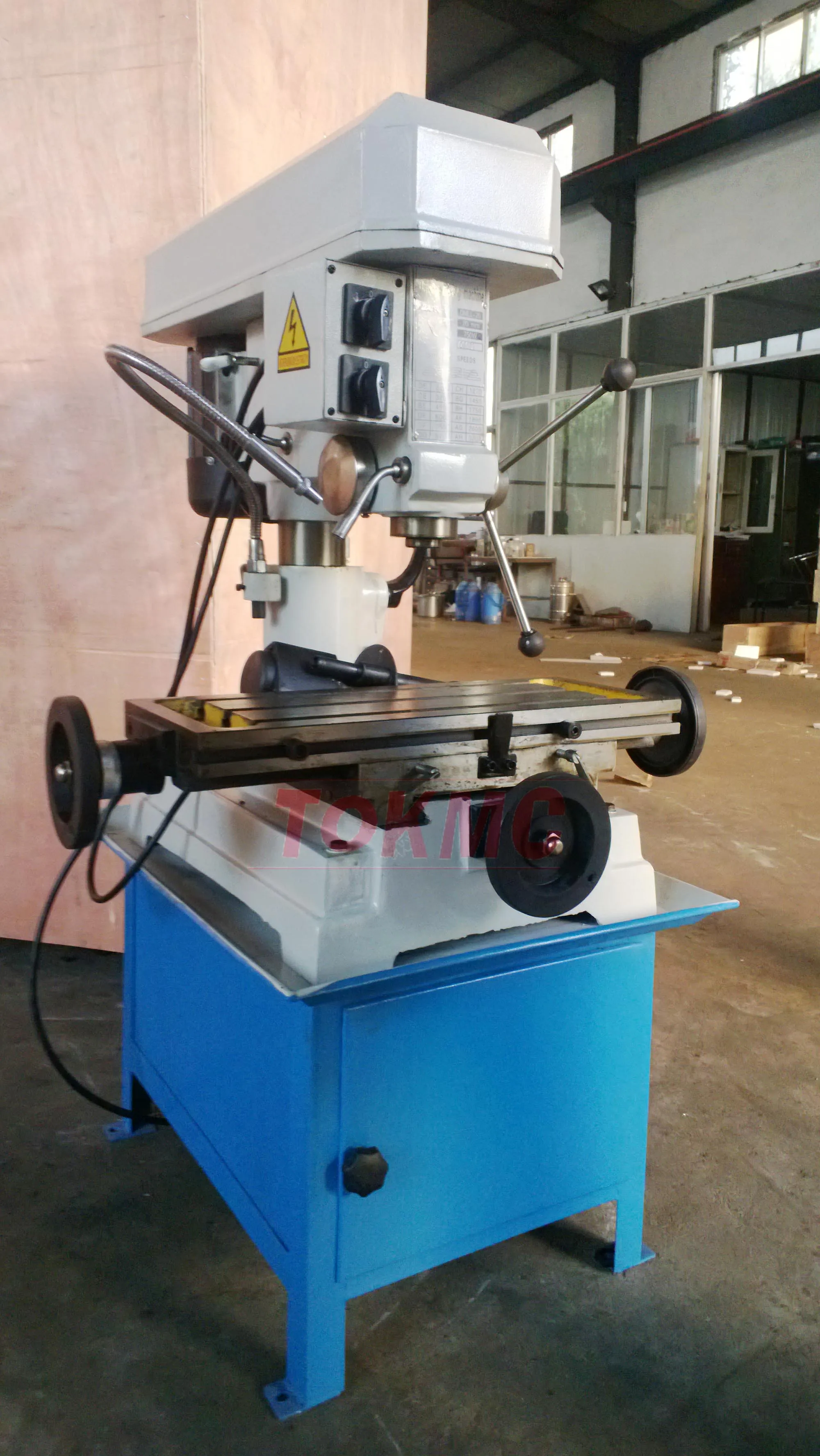

portable drilling milling machine zx16
- Category: >>>
- Supplier: Zaozhuang Tok Machinery Co. Ltd.
Share on (62062200396):
Product Overview
Description
Product Description
drilling machine /milling machine, pulley head, single phase, three phase motor
Specification | Zx16 | Zx20 |
Max. Drilling dia mm | 16 | 20 |
Max.vertical milling dia mm | 10 | 12 |
Max.end milling dia. mm | 40 | 50 |
Spindle hole taper | MT2 | MT2 |
Spindle travel | 85 | 100 |
Distance spindle axis to column | 182 | 200 |
Column size | 72mm | 78mm |
Distance spindle nose to table surface | 60-400 | 70-410 |
Table size | 230x150 | 500x200 |
Table travel longitudinal and transwerse | 230x150 | 300x150 |
Body travel | 200 | 250 |
Spindle speeds series | 12 | 12 |
Spindle speed ranges 50hz r.p.m | 250-3200 | 250-3200 |
Motor watt | 370 | 550 |
Net weight/Gross weight kgs | 105/120 | 160/184 |
Package size mm | 550x580x610 550x430x420 | 710x680x620 640x490x430 |
