High efficient floor heating and cooling air source heat pump for household or commercial use
High efficient floor heating and cooling air source heat pump for household or commercial use
High efficient floor heating and cooling air source heat pump for household or commercial use
High efficient floor heating and cooling air source heat pump for household or commercial use
High efficient floor heating and cooling air source heat pump for household or commercial use

High efficient floor heating and cooling air source heat pump for household or commercial use

Share on (62062303220):


Price:$500.00 - $1,200.00

Quantity:


Product Overview

Description


Product Description

10KW Side Discharge Air Source Heat Pump for Hot Water

Technical Parameters

\t
Model
\t

\t
CGK/C-9(HC)
\t
Power supply
\t
V
\t
220~240V/50Hz/1ph
\t
Refrigerant
\t

\t
R410A
\t
Heating capacity
\t
KW
\t
7.6
\t
Input power
\t
KW
\t
2.35
\t
COP
\t

\t
3.23
\t
Rated current
\t
A
\t
11.9
\t
Cooling capacity
\t
KW
\t
7.0
\t
Input power
\t
KW
\t
2.45
\t
EER
\t
\t
2.98
\t
Rated current
\t
A
\t
12.4
\t
Max current
\t
A
\t
16.64
\t
Max input power
\t
KW
\t
3.29
\t
Fan Motor Power
\t
W
\t
90
\t
Fan Motor Quantity
\t
Piece
\t
1
\t
Condenser
\t

\t
Tube in Shell Heat Exchanger
\t
Water flow
\t
L/h
\t
1452
\t
Water Pressure Drop
\t
Kpa
\t
≤30
\t
Net Weight
\t
kg
\t
95
\t
Gross Weight
\t
kg
\t
101
\t
Noise
\t
db
\t
52
\t
Waterproof Grade
\t
IPX4
\t
Electric Shock Proof Grade
\t

\t
I
\t
Pipe Size (internal thread)
\t
mm
\t
25
\t
Dimension
\t
mm
\t
830*490*1160
\t
Packing Dimension
\t
mm
\t
910*500*1320
\t
Compressor model/quantity
\t
ZW28KWP*1

*Rated working condition: Heating: air temperature (DB/WB): 7℃/6℃, water temperature (inlet/outlet): 40℃/55℃;

Cooling: air temperature (DB/WB)water temp: 35℃/24℃; water temperature (inlet/outlet): 12℃/7℃.

Key Components

Condenser (Copper)

Tube in shell heat exchanger

Evaporator

Hydropilic aluminum foil and internal thread copper pipe heat exchanger

High Pressure Switch

3.6/4.4MPa
3.0/3.4MPa

Compressor

Copeland scroll compressor

Expansion Valve

Danfoss electronic expansion valve

Low Pressure Switch

0.15/0.56MPa
0.15/0.32MPa

Controller

SPRSUN multiple function controller

AC Contactor & Thermal Relay

Brand: Eaton

4-way Valve

Brand: SANHUA

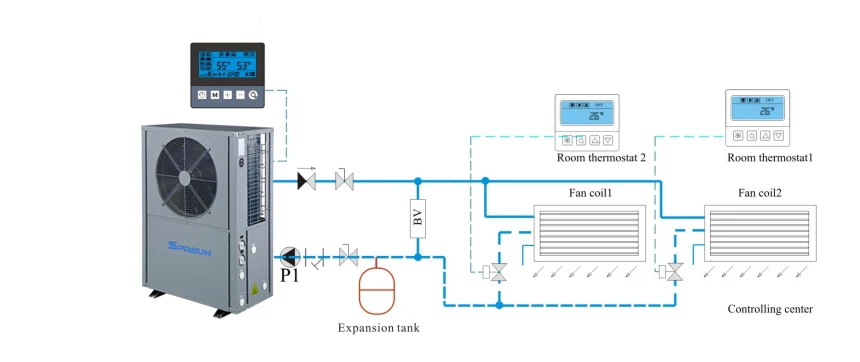

Installation Diagram

Certifications

Our company has passed CE, CCC, CB, ERP, ISO9001 and ISO14001 quality management system certifications, and won the honor of 2015, 2016 & 2017 "Top 10 Brand" in China's Heat Pump Industry.

Our Company

Guangzhou SPRSUN New Energy Technology Development Co., Ltd. has been one of the Top 10 heat pump manufacturers in China since 1999. With a strong R&D center and 6 production lines, we are specialized in producing air to water heat pumps and other high efficient heat pumps for the HVAC market. SPRSUN heat pumps have been exported to all over the world, such as Germany, Britain, Sweden, Serbia, Turkey, Czech, Russia, Vietnam, Australia, South Africa and so on.

Workshop

6 Production Lines & 1 National Standard Heat Pump Testing Lab

Projects Worldwide

Related Products

10KW R410A Air Hot Water Heat Pump

US $500 - 1500/Piece

1 Piece (Min. Order)

Air Water Heat Pump 13KW to 92KW

US $1,000-8,000/Piece
1 Piece (Min. Order)

Domestic Monoblock Heating Pump

US $300-1,000/Piece
1 Piece (Min. Order)
FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional heat pump manufacturer since 1999, with experienced and improved R&D, production, sales and service supply.

Q2: What are your main products?

A: Our main products include air source heat pumps, water/ground source heat pumps, swimming pool heat pumps, high temperature heat pumps, EVI heat pumps for cold area and so on.

Q3: How to place an order?

A: Please send us an inquiry or contact us with online service; after receiving your inquiry, we will reply to you with our catalogue, quotation and other information you need.

Q4: Do you provide OEM/ODM customized manufacturing service?

A: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce Europe standard heat pumps under your brand and according to your special needs.

Q5: Can I apply to become your heat pump distributor/reseller?

A: Yes, we are currently looking for more heat pump distributors/resellers across the globe, who can distribute our heat pump products in their local countries.
