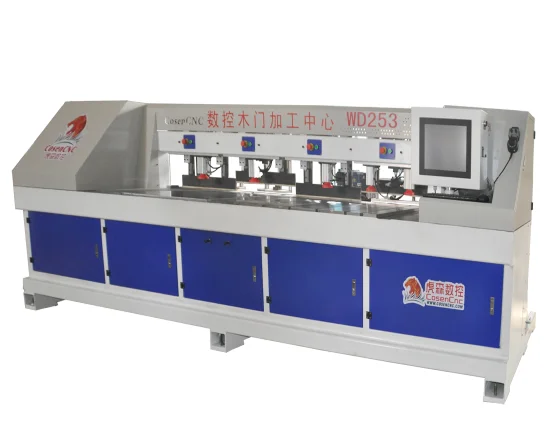

CNC door frame edge milling machine
- Category: >>>
- Supplier: Binzhou Cosen CNC Equipment Technology Co. Ltd.
Share on (62062701725):
Product Overview
Description
Product Introduction
CNC door frame edge milling machine for solid wood door horizontal side,vertical side ,door core board milling,drilling etc.It adopts high-end CNC system, which is easy to operate and can process various styles of combined shapes and styles according to design requirements.
Product Feature
1Don't need design software anymore,system built parameterized templates,human-machine easy operation ,reduce the requirements for technical expertise.

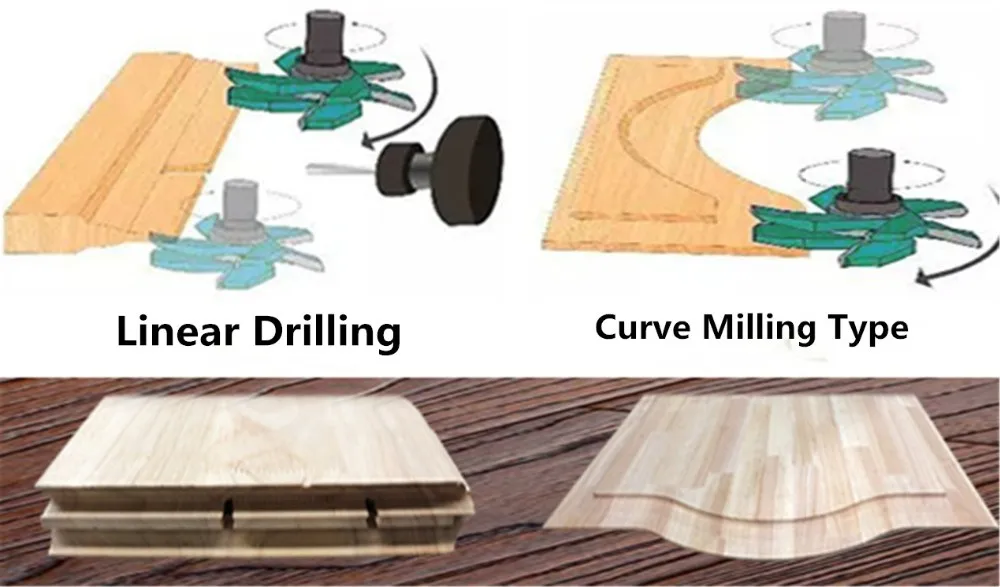

2.Double spindles can mill from clockwise rotation /counter clockwise rotation,it can process along the grain of the wood,no edge breakage occur,which ensure smooth processed surface.
3.Fixed the penal with air cylinder pressure device,to ensure processing accuracy.
4.As for eight hours a day,it can be processed indoor doors more than 100 pieces, cabinet door 200~300 pieces.
Product Parameters
MODE | MD2503 |
MAX.Processing length | 2500mm |
MAX.Processing thickness | 60mm |
MAX.Milling speed | 30m/min |
MAX.drilling depth | 50mm |
MAX.Arc machining depth | 150mm |
Shaft diameter | 35mm |
Dust collector diameter | 150mm |
Milling motor power | 9KW*2 |
Drilling motor power | 3.5KW |
Weight | 4200KGS |
Overall size | 4800*1800*1500mm |
Applications

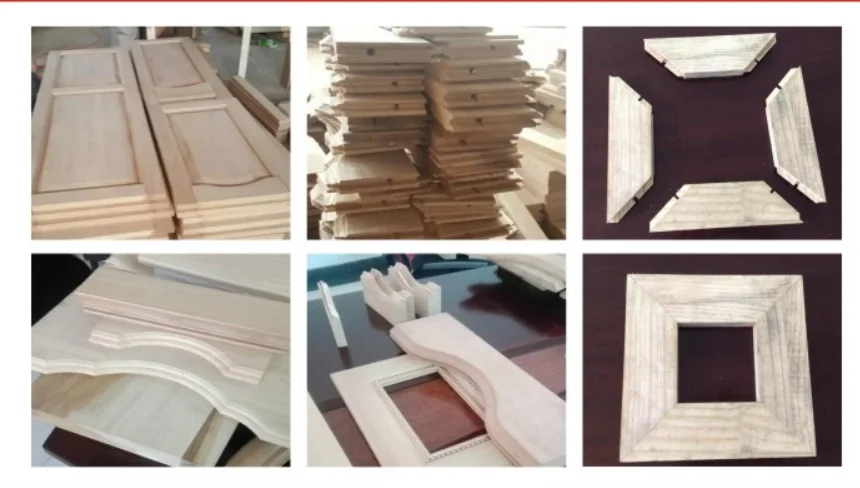

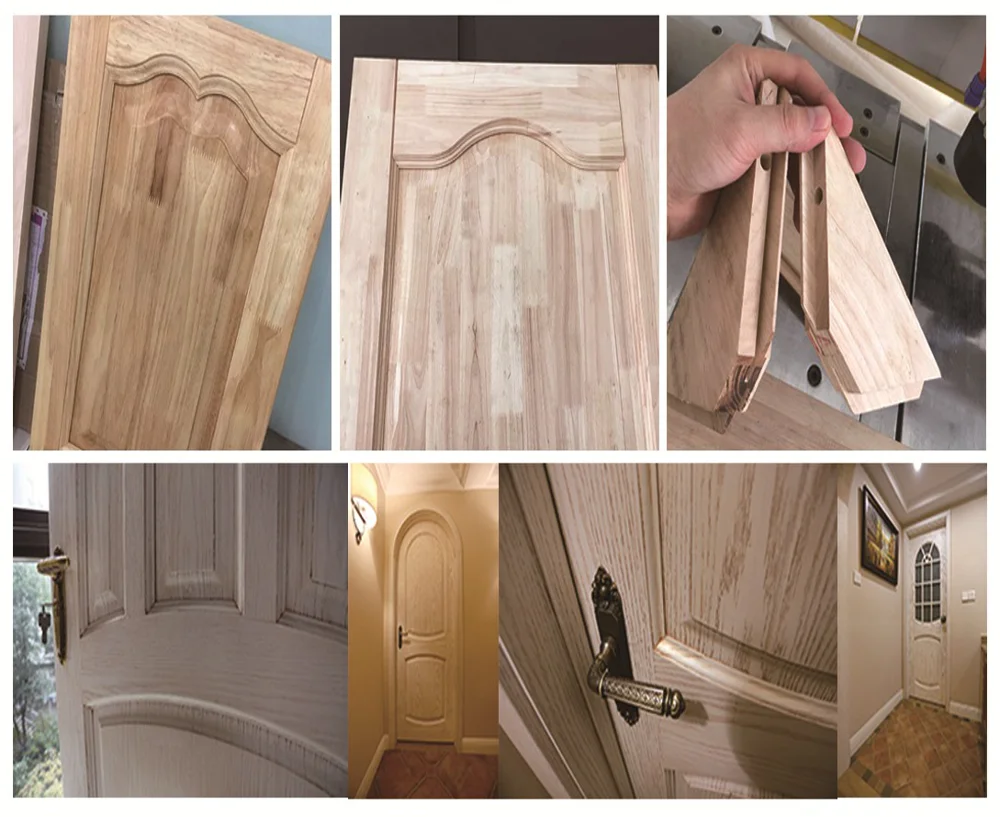

Solid wood assembled door,solid cabinet kitchen door ,solid wood closet door ,solid wood cabinet,solid wood weatherboard.
Why Choose Us
Professional research and sale team
First class production line
Global after-sale service
Product Processing
8. FAQ:
Q1: I know nothing about the machine, what kind of machine I should choose?
Very easy to choose. Just tell us what you want to do using this machine. And sending us a sample picture is better. Then we will send you a perfect solutions and suggestions.
Q2: When I get this machine, but I don't know how to use it. What should i do?
We will send you the English manual and video for machine using and maintaining with machine. If you still have some doubts, we can talk by telephone or Skype. Our engineer can also be sent to your country to install or adjust machine if necessary.
Q3: If some problems happened to this machine during warranty period, what should i do?
We will supply free parts for this machine during the warranty period if machine have any problems.We also supply free afterservice forever. So any doubts, just let us know, we will give you solutions within 30 min.
Q4: How long is the delivery time?
For the machine, the production time is 10-15 working days. Usually, we will finish the production in advance.
Q5: The payment terms?
1. T/T, 30% in advance, pay the balance before delivery.
2. Through Alibaba-AliEscrow.
3. L/C
4. West Union
5. O/A, more than 5 set one time.
Certificates
Pack detail
