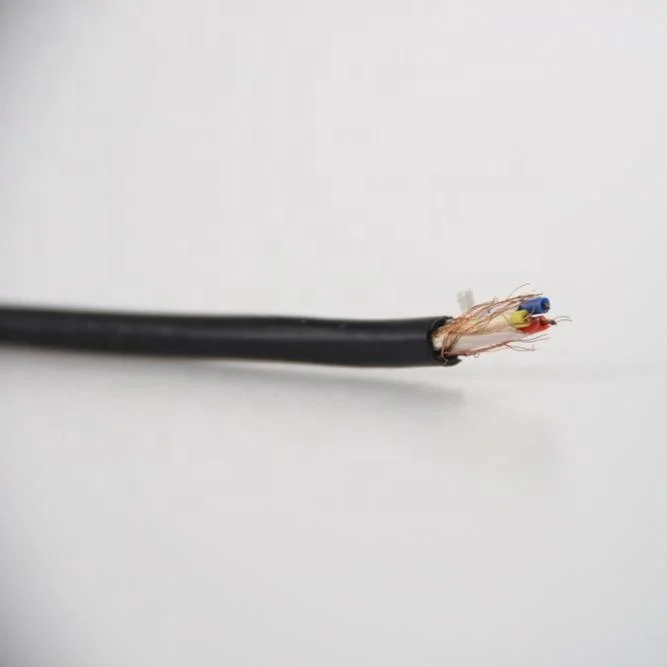

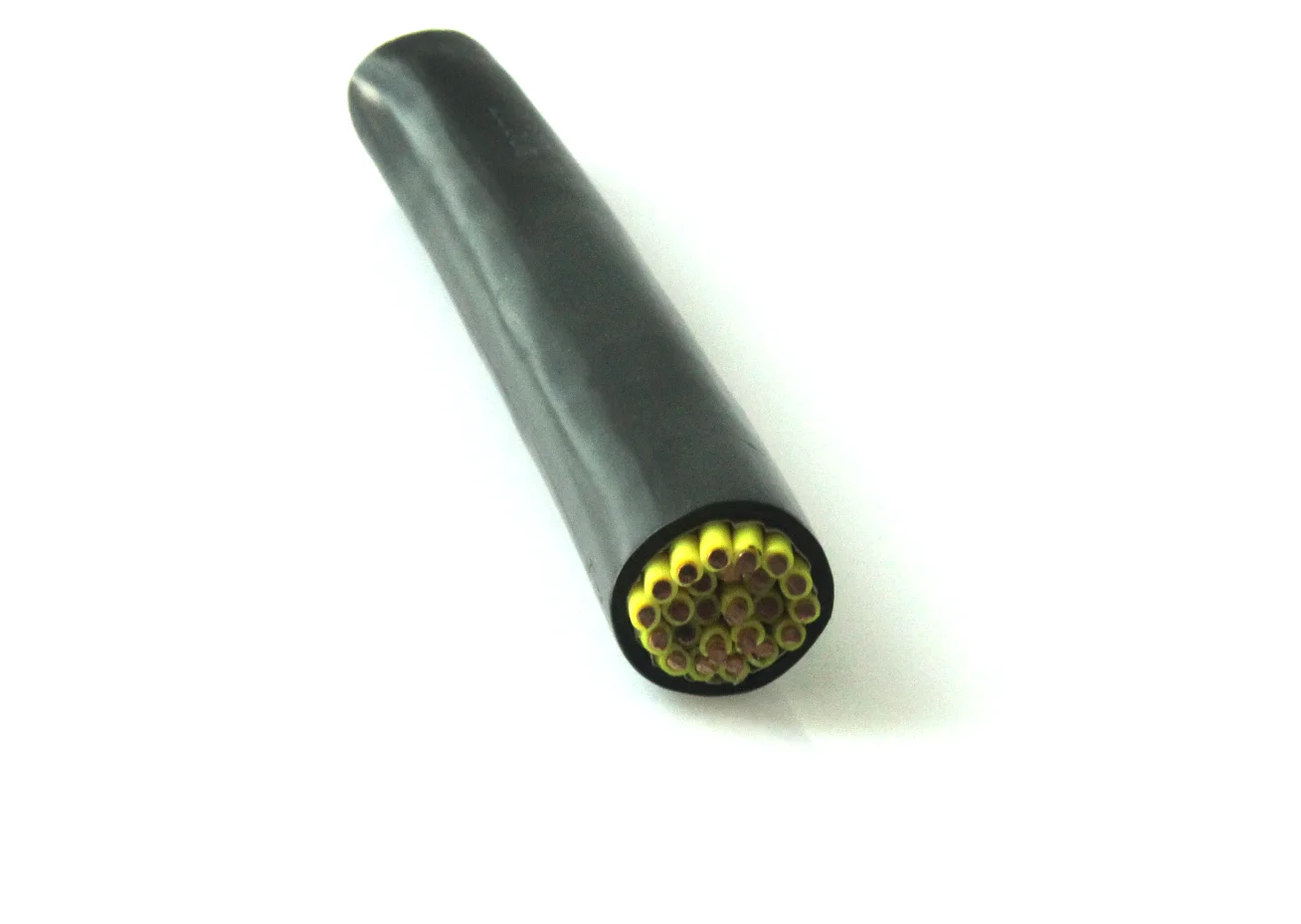

RVVP Standard Resistance 19 Core 2.5mm Control Cable
- Category: >>>
- Supplier: Henan Sanheng Industrial Co. Ltd.
Share on (62062771773):
Product Overview
Description
RVVP Standard Resistance 19 Core 2.5mm Control Cable
Products Description
| Conductor: | bare copper conductor, fine wired stranded, class 5 acc. to IEC 60228 (at some producers certain cross-sections with 7-wire conductors) | |
| Insulation: | PVC compound of type TI2, conductors stranded in layers, core colour marking defined but without repeating of colours | |
| Separator: | transparent plastic foil | |
| Electrostatic screen: | braid of tinned copper wires with approx. 85% overlap | |
| Sheath: | PVC-compound TM2 | |
| sheath colour: | light grey , grey or blue | |

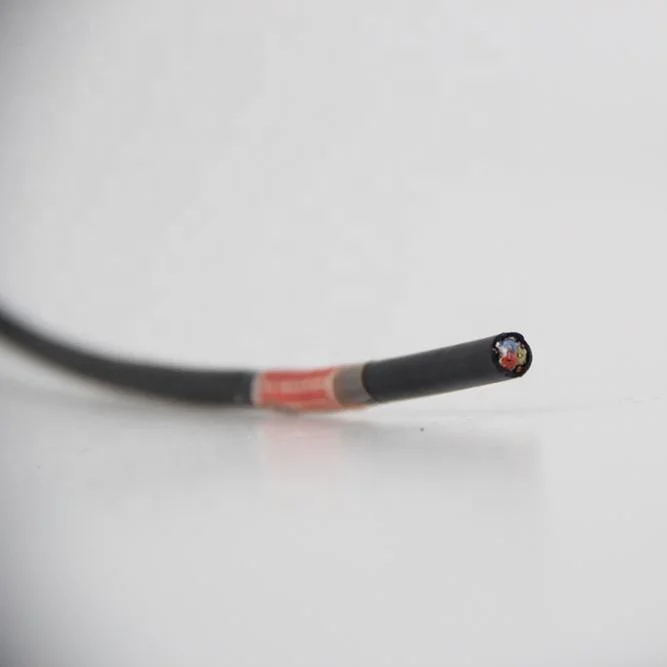

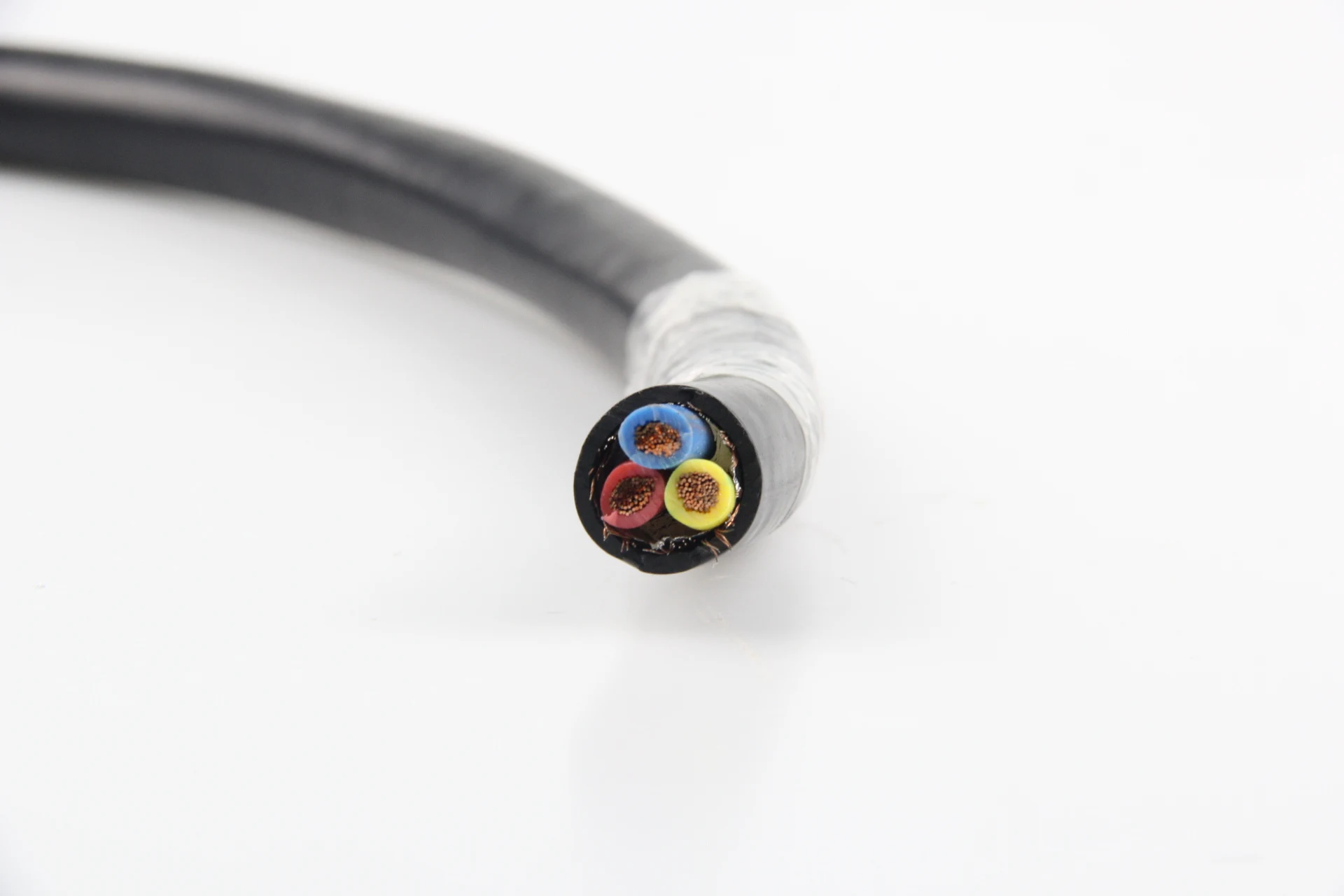

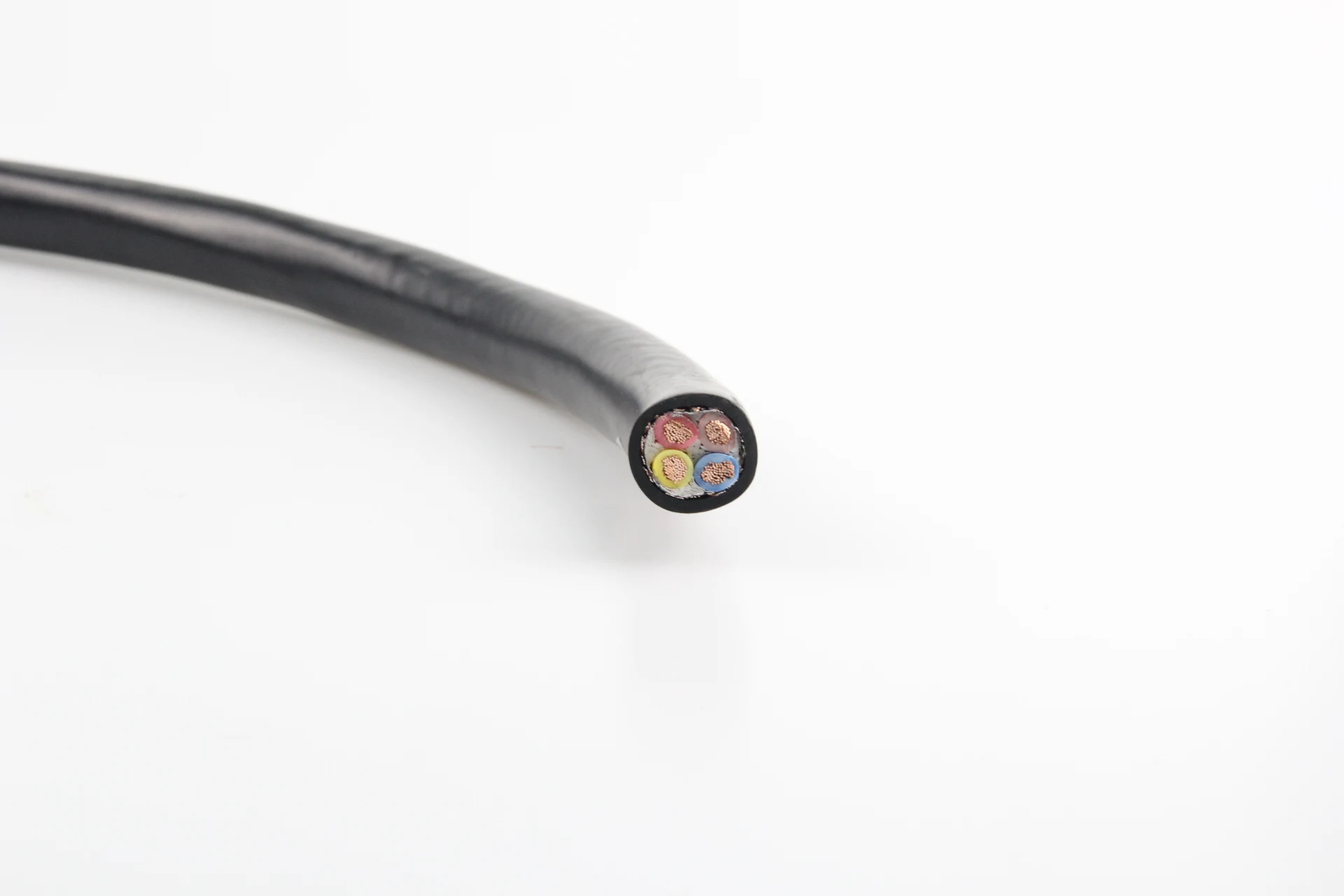

Products Pictures
Construction
Temperature range:
during installation:
-5 °C up to +70 °C
fixed installed: -30 °C up to +70 °C
Nominal voltage: 250 V
Insulation resistance: min. 100 MΩ km
Inductance: approx. 0,7 mH/km
Impedance: approx. 80 Ω
Mutual capacitance:
core - core: 120 nF/km
core - screen: 160 nF/km
Min. inner bending radius:
during laying or with repeated bending with stress: 10D
single bending without stress: 5D
Behaviour in fire: IEC 60332-1
Technical data
| Conductor cross-section | Construction of individual conductor | Conductor resistance at 20 °C |
| nominal | nominal | approx. |
| N x mm² | n x mm | mm |
| 0,14 | 18 x 0,10 | 138,0 |
| 0,25 | 14 x 0,15 | 77,8 |
| 0,34 | 19 x 0,15 | 56,0 |
| 0,5 | 16 x 0,20 | 39,0 |
| 0,75 | 24 x 0,20 | 26,0 |
| 1 | 32 x 0,20 | 19,5 |
| 1,5 | 30 x 0,25 | 13,3 |
| Dimensions - number of cores x conductor cross-section | External diameter | Cu weight | Cable weight |
| approx. | approx. | ||
| N x mm² | mm | kg/km | kg/km |
| 2 x 0,14 | 3,9 | 12,4 | 21 |
| 3 x 0,14 | 4 | 14,1 | 27 |
| 4 x 0,14 | 4,2 | 15,8 | 32 |
| 5 x 0,14 | 4,6 | 19,6 | 37 |
| 6 x 0,14 | 4,9 | 22,2 | 42 |
| 7 x 0,14 | 5 | 23,5 | 48 |
| 8 x 0,14 | 6 | 25,2 | 55 |
| 10 x 0,14 | 6,5 | 28,3 | 65 |
| 12 x 0,14 | 6,7 | 31,4 | 77 |
| 14 x 0,14 | 6,9 | 34,9 | 86 |
| 16 x 0,14 | 7,3 | 48 | 95 |
| 18 x 0,14 | 7,5 | 51,5 | 103 |
| 20 x 0,14 | 7,8 | 58,3 | 116 |
| 21 x 0,14 | 7,9 | 60,2 | 120 |
| 24 x 0,14 | 9,1 | 74,3 | 131 |
| 25 x 0,14 | 9,2 | 76,2 | 136 |
| 27 x 0,14 | 9,4 | 84,3 | 142 |
| 30 x 0,14 | 9,5 | 97,6 | 157 |
| 32 x 0,14 | 10 | 105,2 | 163 |
| 36 x 0,14 | 10,2 | 116,4 | 182 |
| 40 x 0,14 | 10,5 | 126 | 209 |
| 44 x 0,14 | 11,2 | 138,2 | 226 |
| 48 x 0,14 | 11,7 | 145,8 | 240 |
| 50 x 0,14 | 12 | 155 | 255 |
| 52 x 0,14 | 12,3 | 157,4 | 270 |
| 56 x 0,14 | 12,7 | 166,5 | 320 |
| 61 x 0,14 | 12,8 | 176,5 | 370 |
| 2 x 0,25 | 4,6 | 16 | 28 |
| 3 x 0,25 | 4,8 | 21 | 34 |
| 4 x 0,25 | 5,2 | 24 | 40 |
| 5 x 0,25 | 5,7 | 29 | 47 |
| 6 x 0,25 | 6,3 | 32,4 | 54 |
| 7 x 0,25 | 6,3 | 37 | 61 |
| 8 x 0,25 | 6,4 | 42,1 | 66 |
| 10 x 0,25 | 6,7 | 49,9 | 80 |
| 12 x 0,25 | 7,8 | 59 | 91 |
| 14 x 0,25 | 8 | 64,2 | 14 |
| 15 x 0,25 | 9,4 | 67,5 | 107 |
| 16 x 0,25 | 9,5 | 70,8 | 110 |
| 18 x 0,25 | 10 | 83 | 122 |
| 20 x 0,25 | 10,2 | 88 | 142 |
| 21 x 0,25 | 10,5 | 93 | 150 |
| 24 x 0,25 | 12,1 | 114,2 | 163 |
| 25 x 0,25 | 12,1 | 116,7 | 169 |
| 27 x 0,25 | 12,2 | 122 | 176 |
| 30 x 0,25 | 12,6 | 132,3 | 189 |
| 32 x 0,25 | 13 | 137,8 | 204 |
| 36 x 0,25 | 13,6 | 152 | 219 |
| 40 x 0,25 | 14,1 | 163,5 | 247 |
| 44 x 0,25 | 14,7 | 179 | 292 |
| 48 x 0,25 | 14,8 | 192 | 317 |
| 50 x 0,25 | 16 | 203 | 324 |
| 52 x 0,25 | 16,2 | 233 | 330 |
| 56 x 0,25 | 16,6 | 237 | 343 |
| 61 x 0,25 | 20 | 287,2 | 365 |
| 2 x 0,34 | 4,8 | 21 | 30 |
| 3 x 0,34 | 5 | 27 | 37 |
| 4 x 0,34 | 5,4 | 33 | 48 |
| 5 x 0,34 | 5,9 | 36 | 54 |
| 6 x 0,34 | 6,6 | 45 | 61 |
| 7 x 0,34 | 6,7 | 51 | 70 |
| 8 x 0,34 | 7 | 54 | 81 |
| 10 x 0,34 | 8,9 | 74 | 103 |
| 12 x 0,34 | 9 | 80 | 120 |
| 14 x 0,34 | 9,5 | 86 | 140 |
| 16 x 0,34 | 10 | 94 | 159 |
| 18 x 0,34 | 10,7 | 107,5 | 172 |
| 20 x 0,34 | 10,9 | 115,3 | 191 |
| 21 x 0,34 | 11,2 | 119 | 199 |
| 24 x 0,34 | 13 | 139 | 229 |
| 27 x 0,34 | 13,1 | 149 | 258 |
| 30 x 0,34 | 13,3 | 161,5 | 290 |
| 32 x 0,34 | 13,8 | 170,8 | 35 |
| 36 x 0,34 | 14,3 | 188,3 | 330 |
| 40 x 0,34 | 14,8 | 203,5 | 364 |
| 44 x 0,34 | 16,3 | 223,5 | 414 |
| 48 x 0,34 | 16,8 | 264,8 | 420 |
| 50 x 0,34 | 17,1 | 268 | 435 |
| 52 x 0,34 | 17,4 | 269,6 | 450 |
| 56 x 0,34 | 17,6 | 292 | 480 |
| 61 x 0,34 | 18 | 418 | 520 |
| 3 x 0,5 | 5,3 | 39 | 55 |
| 4 x 0,5 | 5,7 | 46 | 61 |
| 5 x 0,5 | 6,4 | 57 | 76 |
| 6 x 0,5 | 6,9 | 68,6 | 89 |
| 7 x 0,5 | 7 | 80 | 98 |
| 8 x 0,5 | 7,3 | 91,4 | 117 |
| 10 x 0,5 | 8,8 | 100 | 135 |
| 12 x 0,5 | 9,5 | 117 | 157 |
| 16 x 0,5 | 10,7 | 129 | 210 |
| 18 x 0,5 | 11 | 152 | 246 |
| 20 x 0,5 | 11,6 | 165 | 275 |
| 21 x 0,5 | 11,7 | 171 | 290 |
| 24 x 0,5 | 13,3 | 236 | 337 |
| 25 x 0,5 | 13,4 | 250 | 351 |
| 27 x 0,5 | 13,6 | 265 | 373 |
| 30 x 0,5 | 14 | 297 | 396 |
| 32 x 0,5 | 14,5 | 301 | 431 |
| 42 x 0,5 | 16,6 | 304,6 | 510 |
| 50 x 0,5 | 18 | 407 | 570 |
| 61 x 0,5 | 19 | 580 | 650 |
| 2 x 0,75 | 6,7 | 38 | 59 |
| 3 x 0,75 | 7 | 50 | 66 |
| 4 x 0,75 | 7,6 | 58 | 77 |
| 5 x 0,75 | 8,2 | 70 | 93 |
| 6 x 0,75 | 9,1 | 87 | 113 |
| 7 x 0,75 | 9,7 | 100 | 130 |
| 8 x 0,75 | 9,8 | 110 | 145 |
| 10 x 0,75 | 11,7 | 140 | 180 |
| 12 x 0,75 | 12 | 154 | 202 |
| 18 x 0,75 | 13,9 | 207 | 292 |
| 20 x 0,75 | 14,9 | 238 | 362 |
| 25 x 0,75 | 16,6 | 280,8 | 415 |
| 30 x 0,75 | 18 | 318,7 | 486 |
| 32 x 0,75 | 18,2 | 330 | 530 |
| 2 x 1 | 7 | 46 | 65 |
| 3 x 1 | 7,3 | 56 | 80 |
| 4 x 1 | 8 | 69 | 98 |
| 5 x 1 | 8,6 | 89 | 127 |
| 7 x 1 | 9,2 | 118 | 158 |
| 8 x 1 | 10,5 | 130 | 197 |
| 10 x 1 | 11,5 | 145 | 232 |
| 12 x 1 | 12 | 168 | 260 |
| 16 x 1 | 13,1 | 220 | 346 |
| 18 x 1 | 14,4 | 252 | 390 |
| 20 x 1 | 14,5 | 269 | 428 |
| 25 x 1 | 16 | 335 | 510 |
| 2 x 1,5 | 7,7 | 63 | 88 |
| 3 x 1,5 | 8 | 76 | 100 |
| 4 x 1,5 | 9 | 108 | 126 |
| 5 x 1,5 | 10 | 129 | 160 |
| 7 x 1,5 | 10,8 | 164 | 208 |
| 8 x 1,5 | 12,5 | 172 | 244 |
| 10 x 1,5 | 13 | 195 | 315 |
| 12 x 1,5 | 14 | 254 | 338 |
| 18 x 1,5 | 15,5 | 350 | 478 |
| 20 x 1,5 | 17 | 375 | 548 |
| 25 x 1,5 | 18,5 | 550 | 720 |
Application
Flexible cable with protective screen against electromagnetic impacts, for transmission of analogue and digital signals, suitable for fixed and mobile installations in device production, for electronic, computer and measurement systems, in mobile and production conveyers, for office devices. Usage with shifting is only possible if not exposed to stress and mechanical loads. Laid in dry and damp premises, but outdoor application is not recommended, except in special cases under protection against direct sunlight. Not for direct laying in ground or water, not intended for supply purposes. Oil resistant.
