KGF-40 Liquid filling & sealing machine
———Descriptions———
This machine is the filling apparatus in the oral liquor assembly line, which is mainly applied in filling, lidding,
screw sealing of 2 – 30 ml bottles. The operation of filling and sealing is combined in this machine with its
advanced design and compact structure.
There are two filling nozzles on this machine, guarantee the filling is smooth.
This machine can customized according to customers’ specific request.
———Technical Parameters———
Applied bottles | 5 -30 ml glass bottle and plastic bottle |
Productioncapacity | 40 bottles/min |
Accuracy | 0 – 2% |
Sealing rate | ≥ 99% |
Power | 1.3 KW |
Power supply | AC, 380V/50HZ 3 phase or 220V/50HZ 1 phase |
Net weight | 650 kg |
Overall size | 1380x 960x 1480 mm |
———Principle of work———
The machine adopt linear filling, the bottle conveyed through conveyer belt. When the bottle
arrives at the blocking bar, the bottleneck is rightly below the filling nozzle. After the
optoelectronic sensor detecting the last bottle and delay a while, the filling cylinder opens and
the liquid filled into bottles. Blocking bar at the outlet draws back after bottles filled. The bottles
filled deliver by the conveyer belt. The filling done,
The blocking bar at the inlet transport the next set of bottles.
The filling machine stops automatically and when lack empty bottle or no bottle enters and
optoelectronic sensor at the inlet doesn’t detect signal.
When the following line blocked, the filled bottle can’t deliver, the optoelectronic sensor at the
outlet detects the signal and stop filling automatically.

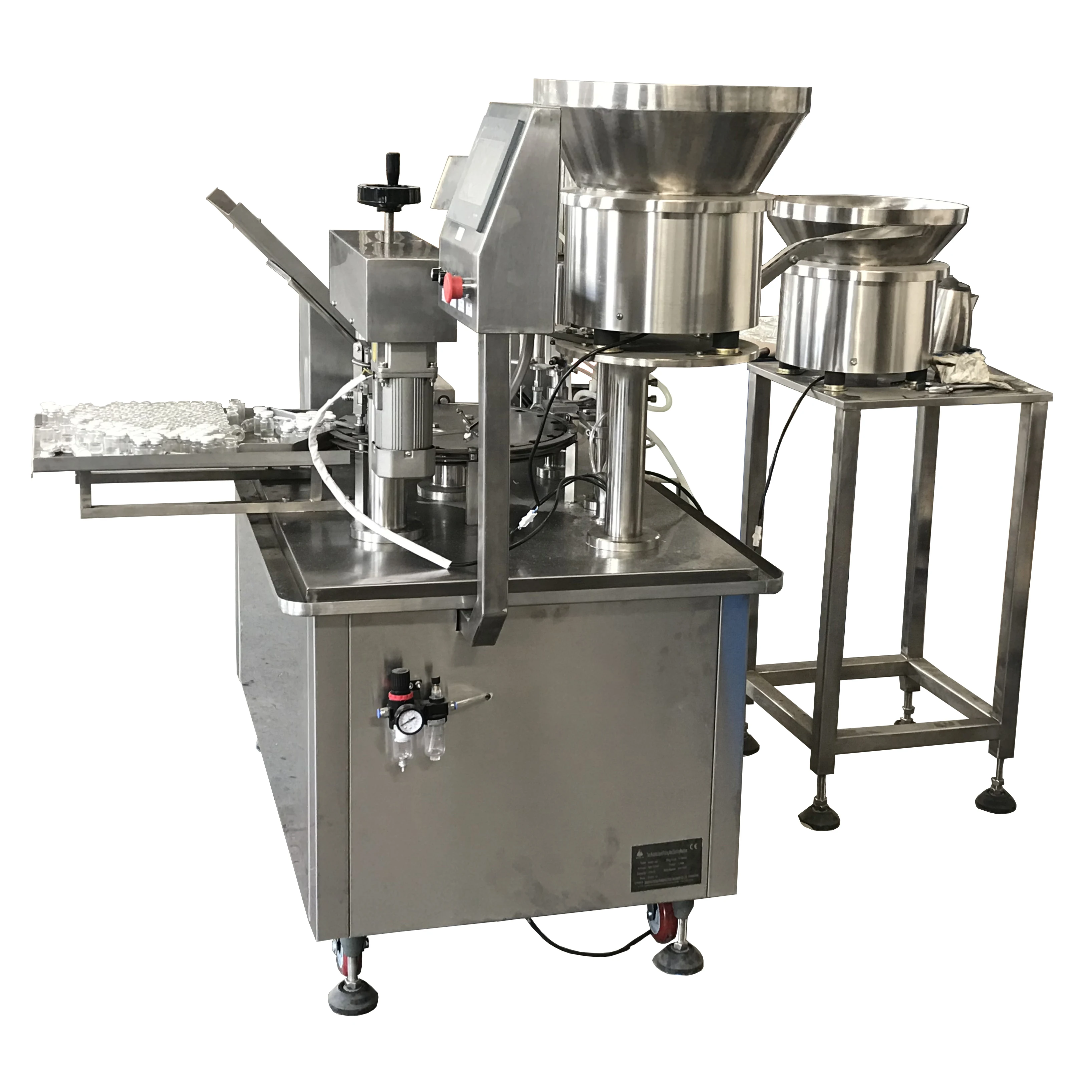

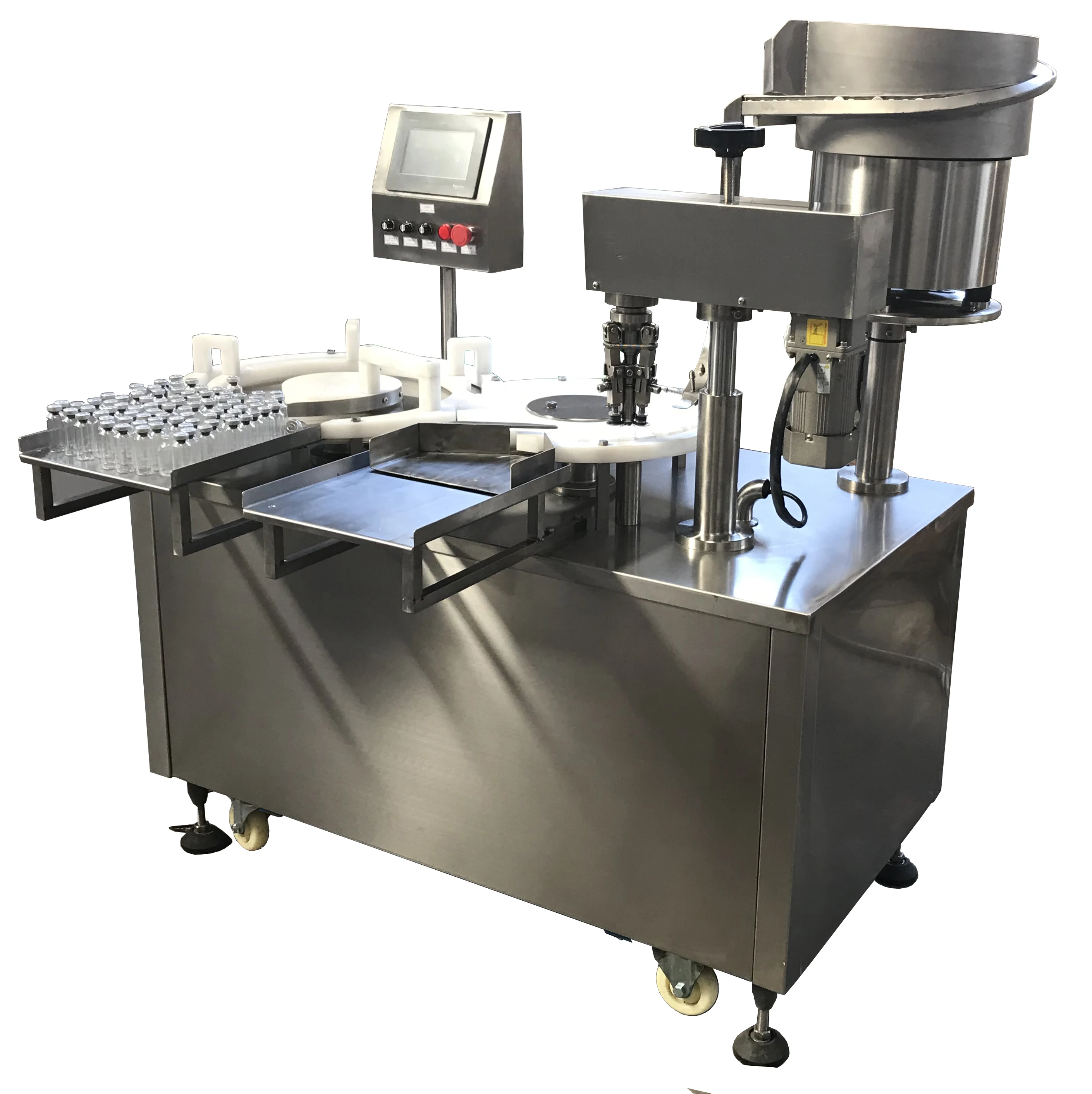

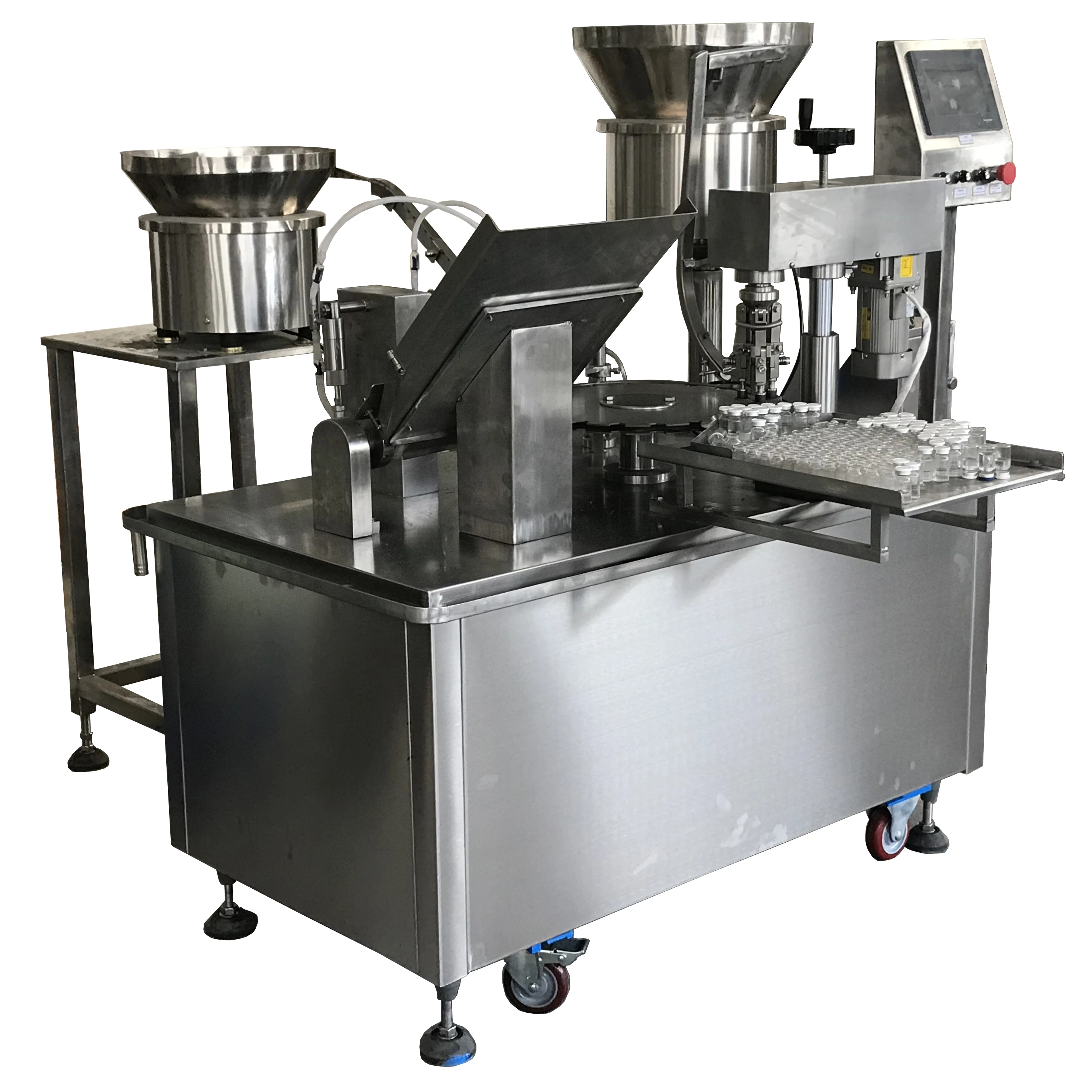

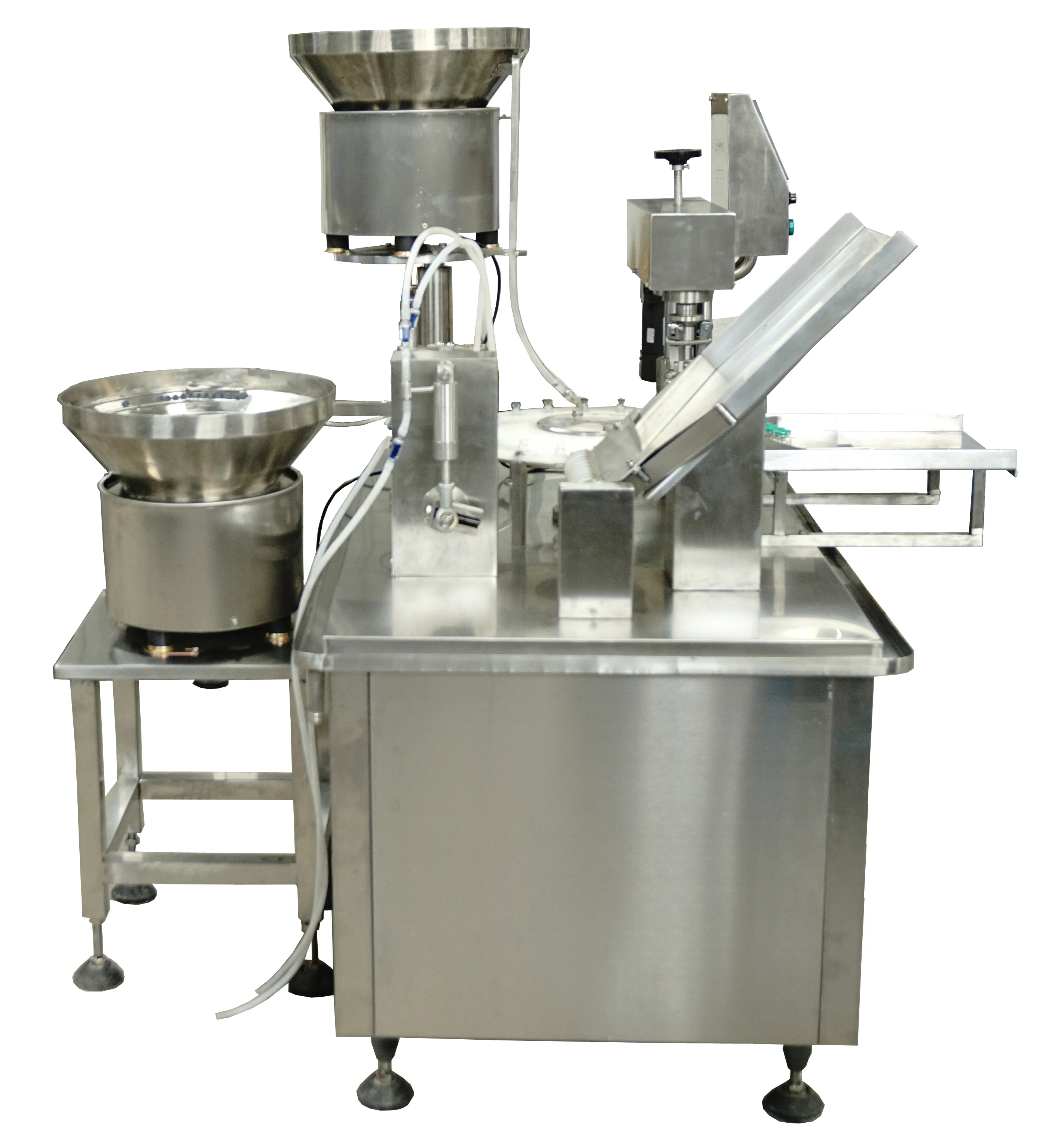

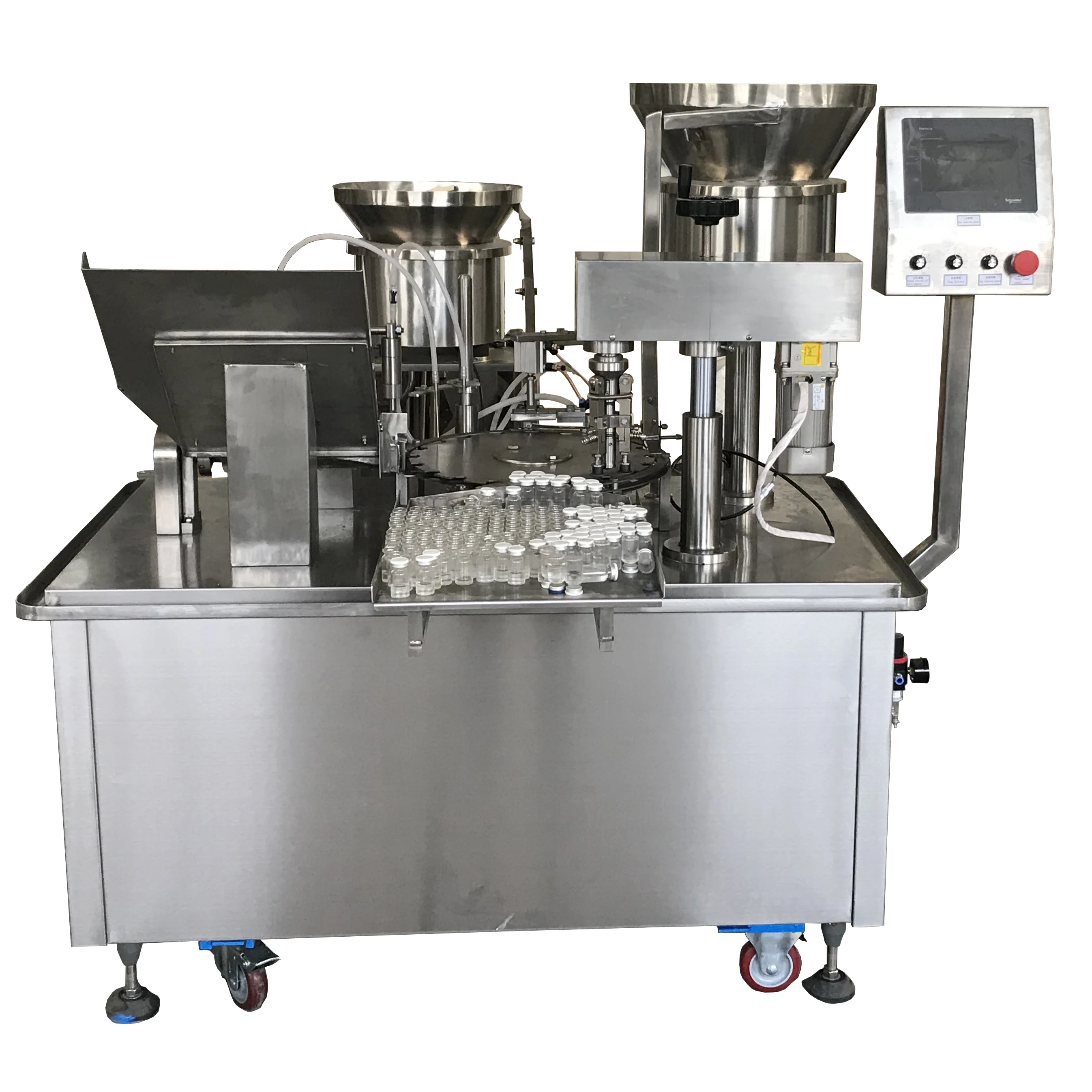

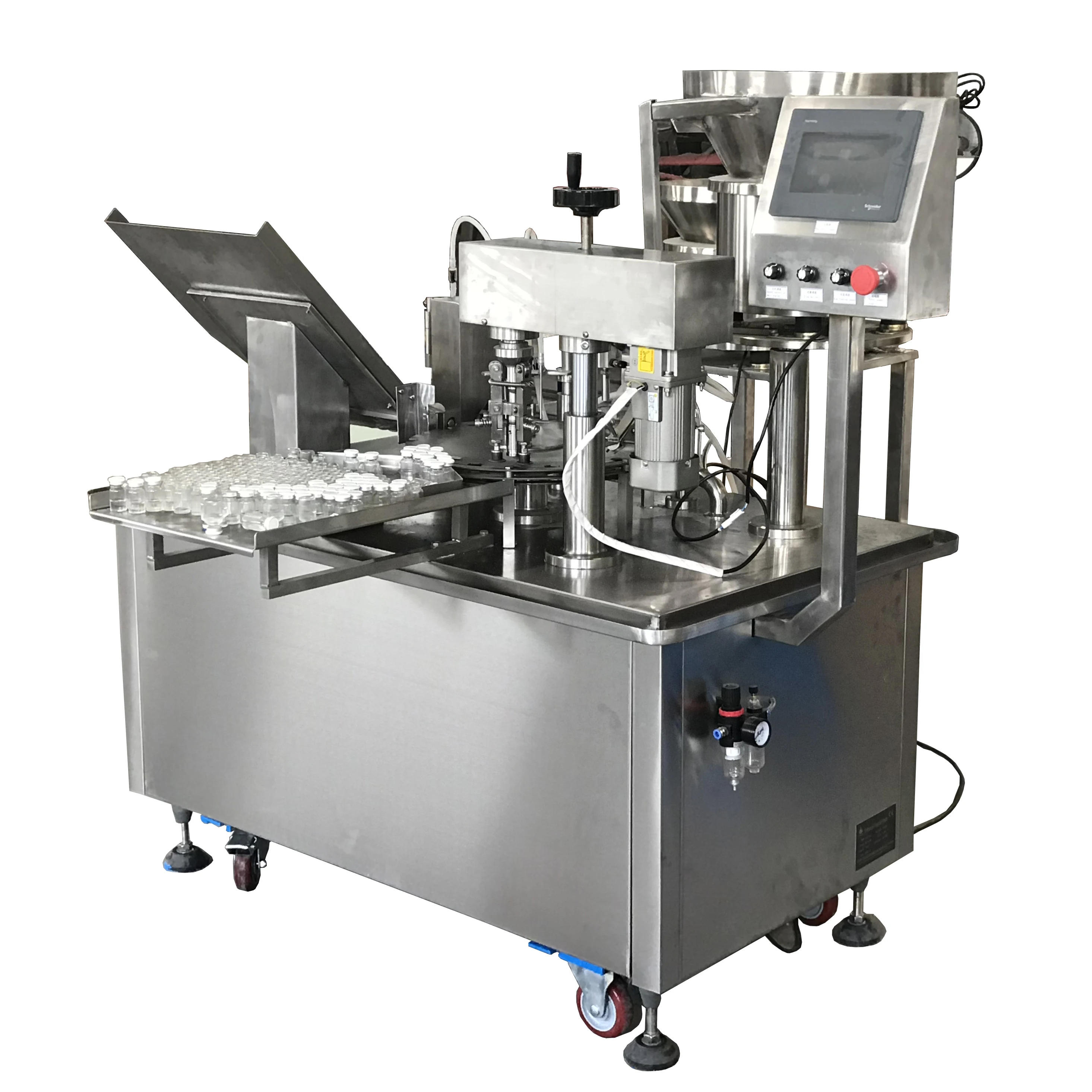

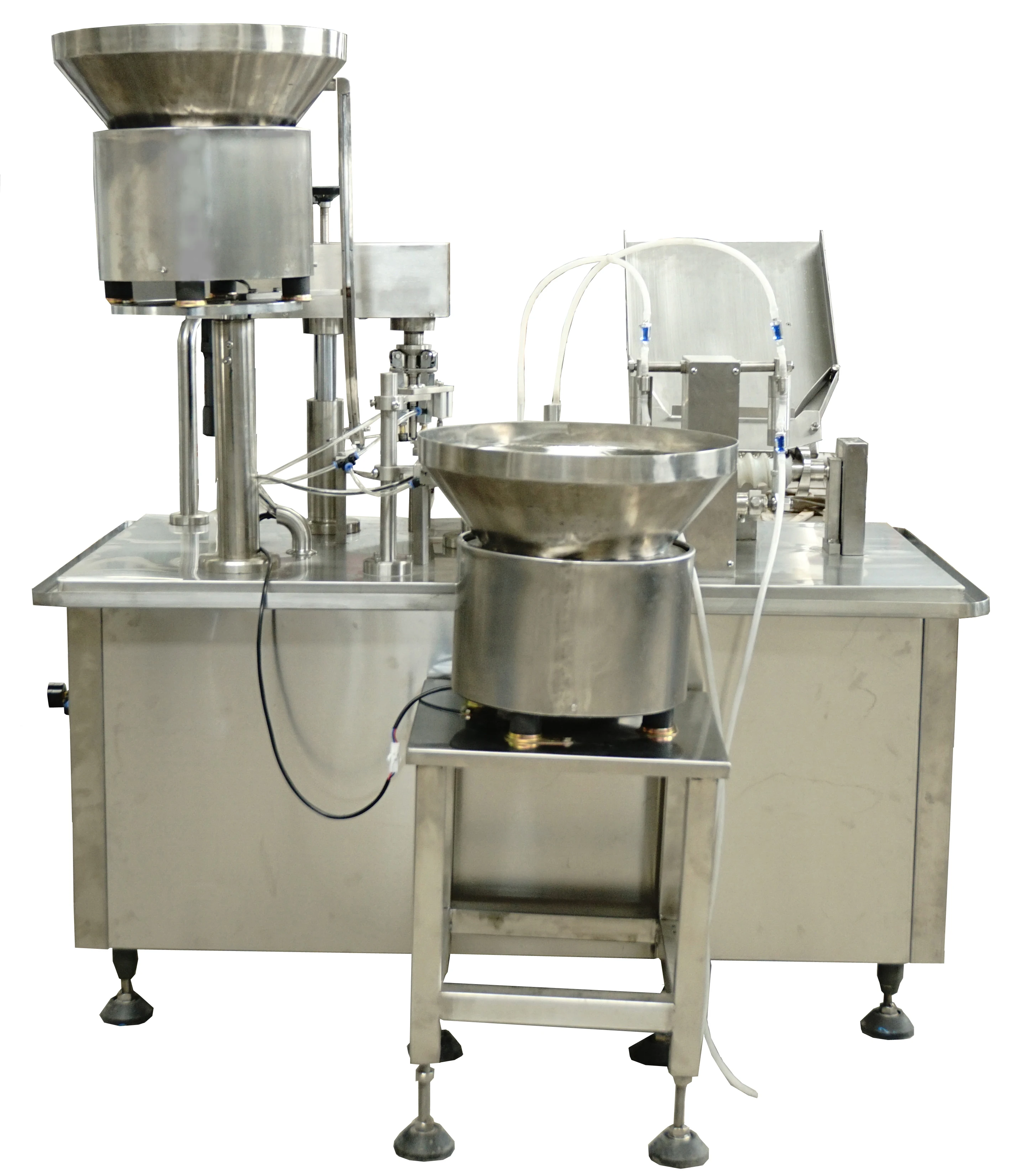

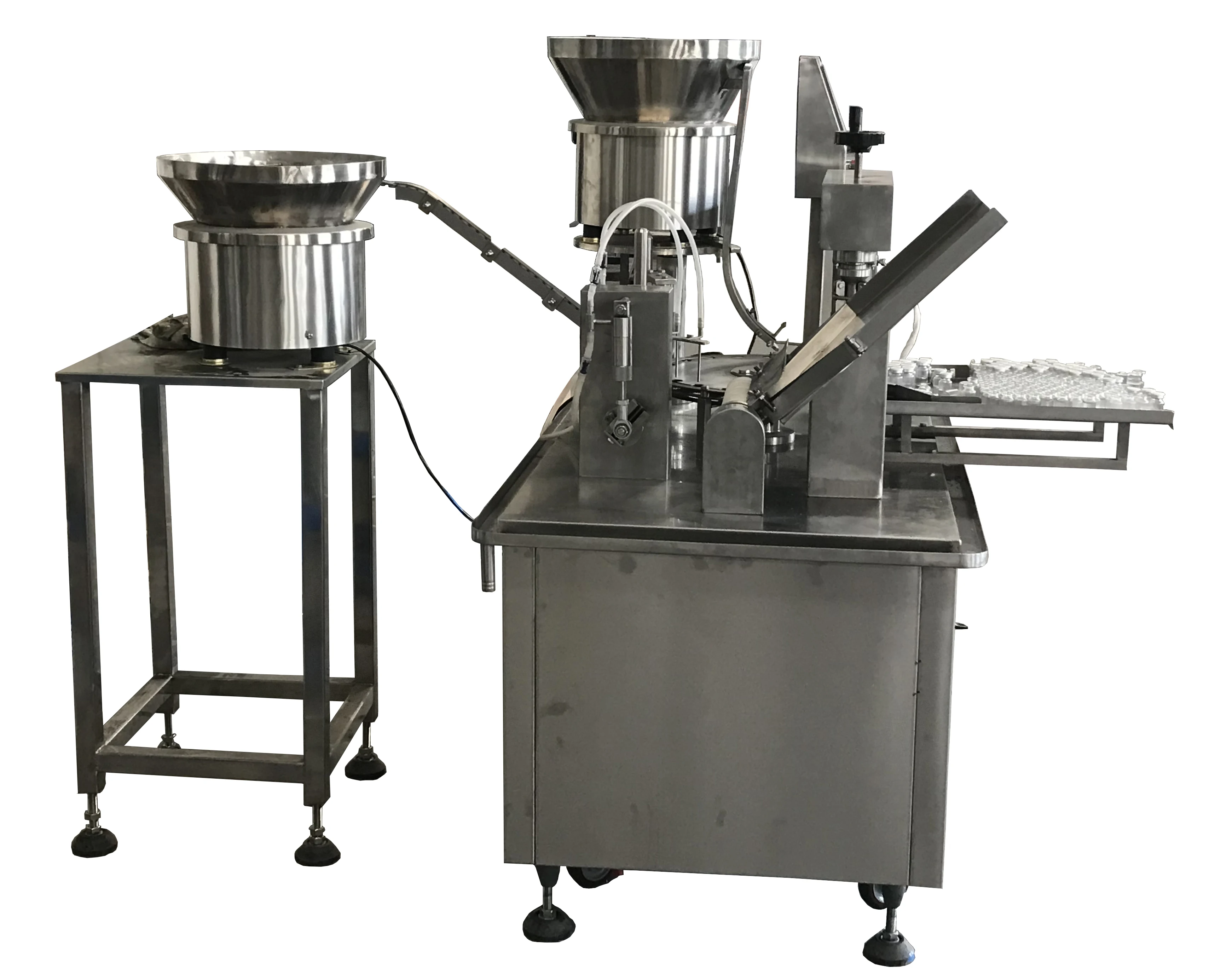

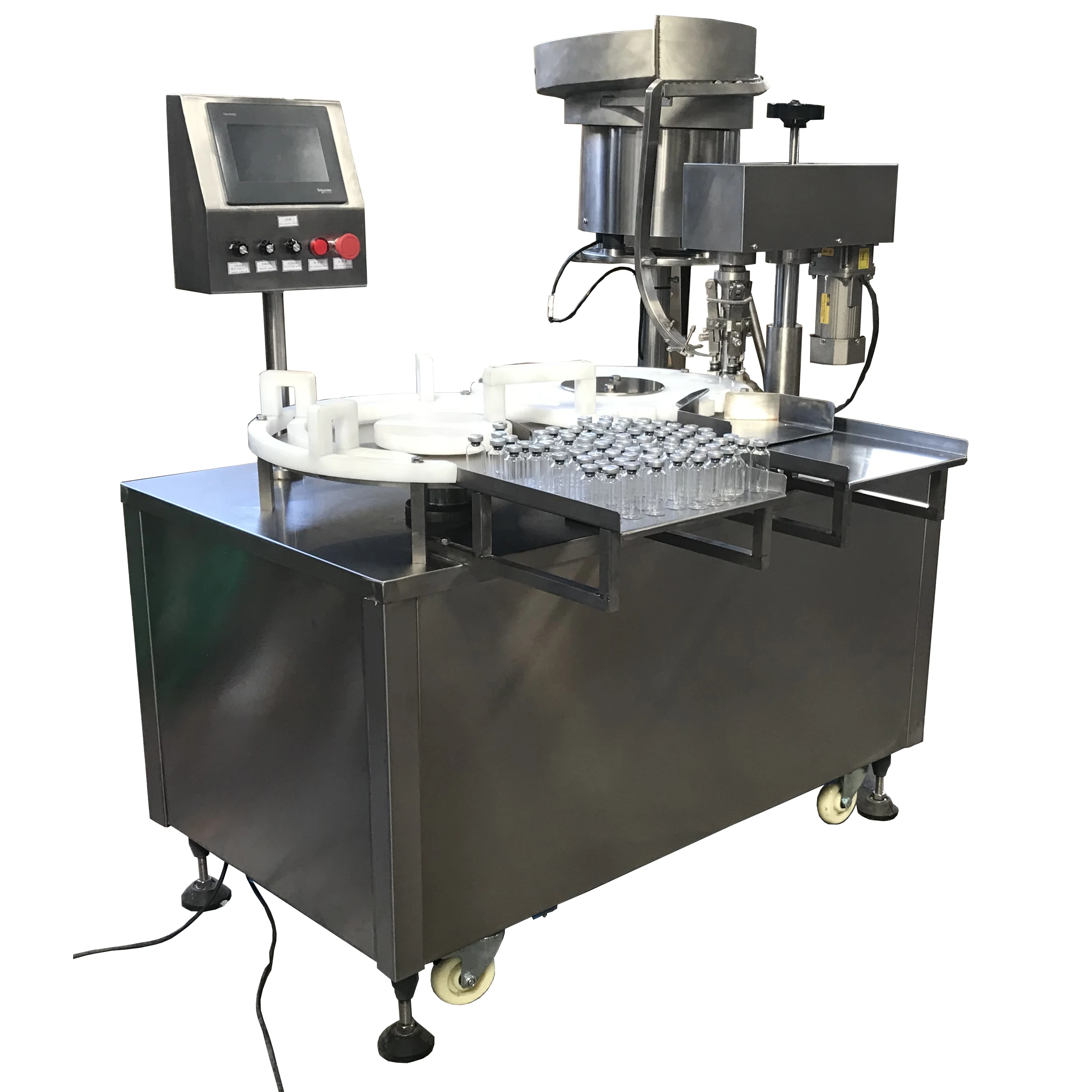

———Product image———
11111111
