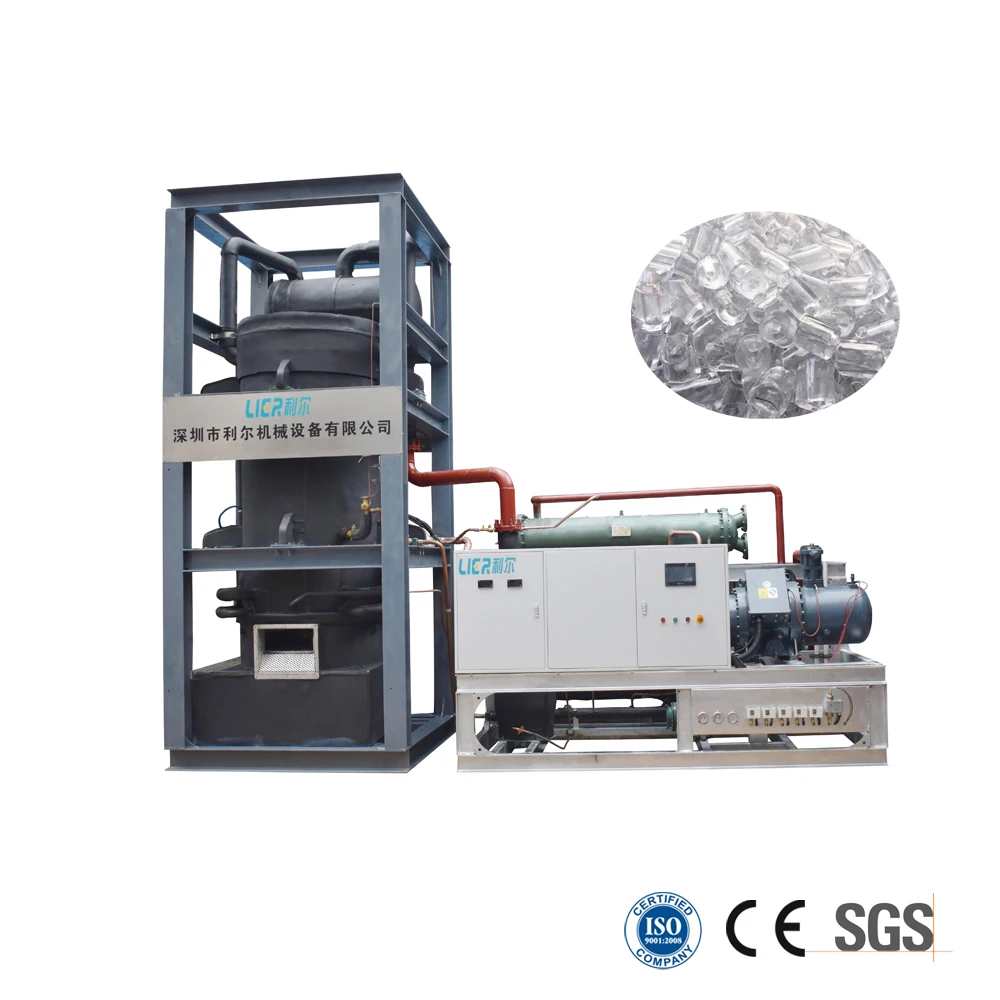

China Leading Manufacturer 5tons Cheap Price Tube Ice Plant Solution for Indonesia

Tube ice plant handles all activities including the production, storage, transportation, wholesale and retail of tube ice. The capability of a typical tube ice plant can be planned as much as 10~200ton/day but shall be based on the surrounding environment and the actual demand. Larger ice production factory also can be designed as per client's requirement.

The advantages of tube ice plant

• Automatic operation with other associated equipment could realize an automation of ice storage and ice package, thus labor cost is largely saved;


• SUS304 evaporator complies with food sanitary requirement, hence ice tube can be eaten directly or mix with food, beverage and drinks. It belongs to high value ice;


• Ice tube is widely used in human consumption so the tube ice has big market potential;


• Vertical evaporator requires small use space and saves initial investment of an ice plant


• Ice tube can be put into mass production;


• Fast return on investment like that 1~2 years can pay for itself

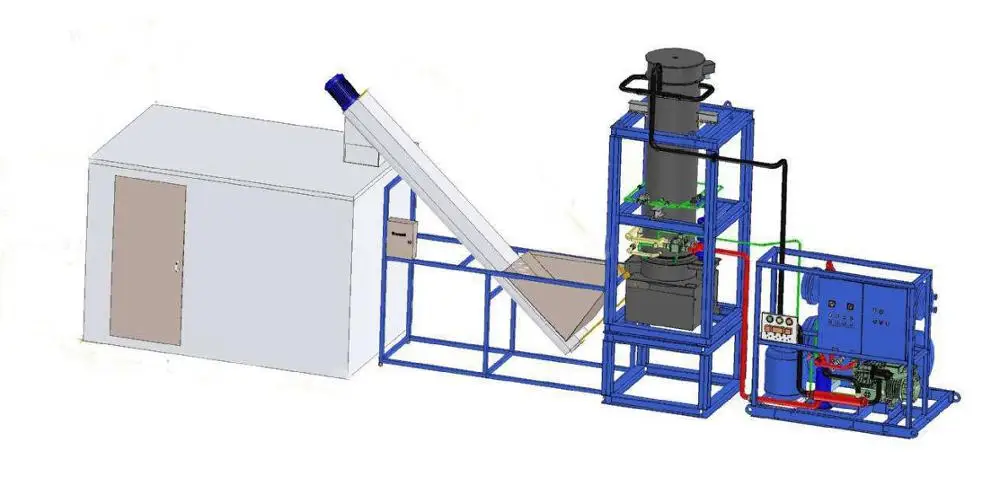

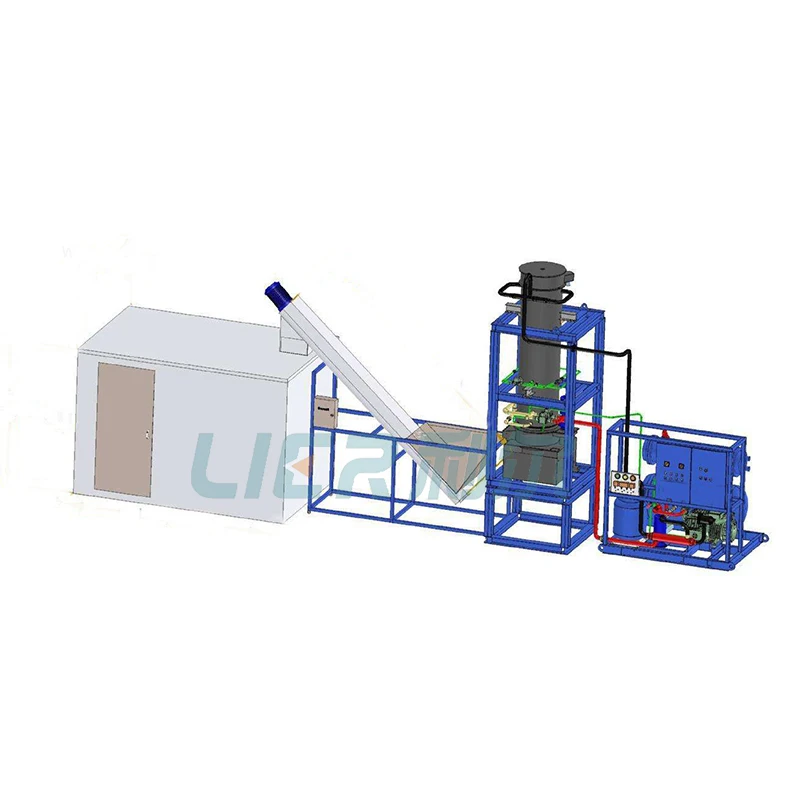

Tube ice machine B has three cooling methods, respectively are cooling tower water-cooled system B1, air-cooled system B2, evaporative-cooled system B3;

After produced by tube ice machine B, ice tube will be transported by screw ice conveying system C to screw type automatic ice storage D;

Screw type automatic ice storage D works only as tube ice buffer storage and could store 1/2 of daily capacity ice production, thus ice could be packed every 12 hrs. It can also automatically deliver ice to the multi-hoppers weighing and packing machine for precise packaging then ice packs can be stacked on the pallets. Forklift takes the pallets to the ice storage F, when ice is in need pallet can be transferred directly to the cold chain van G.

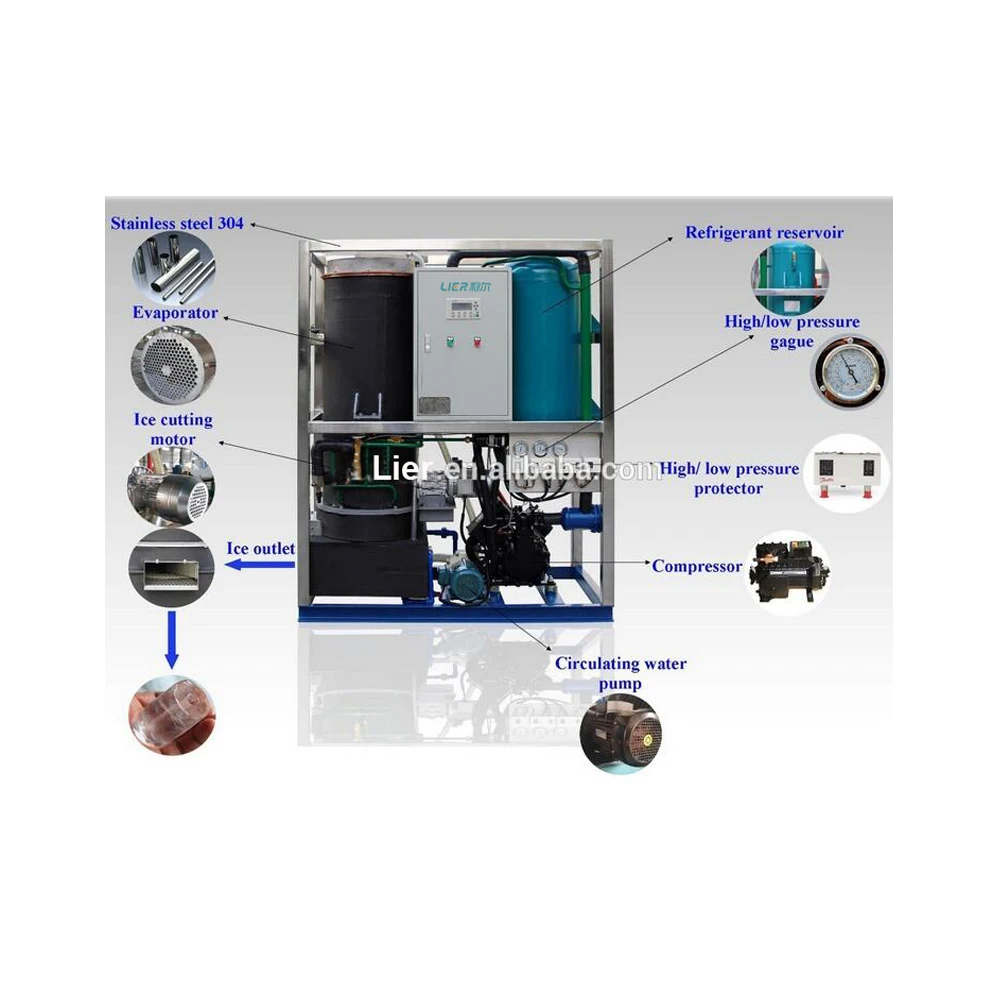

Water is circulated from a reservoir over the inner surface of the stainless steel tube. Ice is formed by a refrigerant being applied to the outside of the tube. When your desired thickness is achieved, a hot gas will be introduced, which releases the ice. This drops into a rotating blade, which cuts your ice and discharges into a storage container for use.

China Leading Manufacturer 5tons Cheap Price Tube Ice Plant Solution for Indonesia

Parameter

Tube Ice applications include:

* Human consumption

* Port ice plants

* Hospitals

* Supermarkets and convenience stores

* Aquatic and fresh food preservation

* Logistic fresh preservation

* Chemical and concrete products

Outer dimension options: 22mm, 29mm, 36mm and 41mm

Longer melting time than flake ice

High suitability for transportation

Tube Ice Machines are suitable for refrigerant R22

Certification

Export case or container

China Leading Manufacturer 5tons Cheap Price Tube Ice Plant Solution for Indonesia

A. Our pre-sale supportive service

We are ready to serve you 24 Hours A Day, 7 Days A Week by experienced colleague,

Payment service, T/T,  L/C for options. Customized service, OEM & ODM service

Provide our R&D service

B. Sale service,

We’ll in charge of everything once all information confirmed by customers after order released till cargo deliver to destination. We strictly ship goods per customer requested delivery date.

C. After-sales service

We provide after sales services, we will be responsible for the quality problem, technical issue of our products.

D. Technical service support

1, Providing project suitable scheme, recommend the best models

2, Research & development support to find a better solution for each customers if NON-standard models cannot satisfy you.

3, Installation guidance support for your installation, debugging and operation if it necessary;

4, Spare parts and technical backup at anytime;

5, Training service available if it necessary.

Shenzhen Lier Machinery Equipment Co.,Ltd is a high-tech enterprise integrating R&D, manufacturing, engineering installation and after-sale service for ice machine equipment since 2006. our company now as one of a leading manufacturers in China, our factory passed quality management system ISO9001:2008, products with CE, UL approval.

 LIER has export more than 7years export service experience, ice machine widely used for ice cooling engineering construction project , such as construction project, concrete project, and some other seafood conservation projects. we believe that we are a forward looking manufacturer worth cooperation.

LR  company Specialized in manufacturing & researching, development,distributing ice machine

Main products, ranges from 0.3T to 60T ice machine including flake ice maker, tube ice maker, block ice maker and cube ice maker

A. Established in 2007, factory around 8.000m2,

B. One of China's ice machine pioneer companies with independent export right.

C. production line 4

D. Stuff: around 150 experienced employee, innovative patent over 30,

E. Sophisticated Engineer with rich R&D and installation experience

F. passed quality management system ISO9001:2008 attestation.

G: equipment : 2.5m vertical lathe, various horizontal lathe, automatic welding machine, 850℃heat treatment equipment , acid washing pool,
