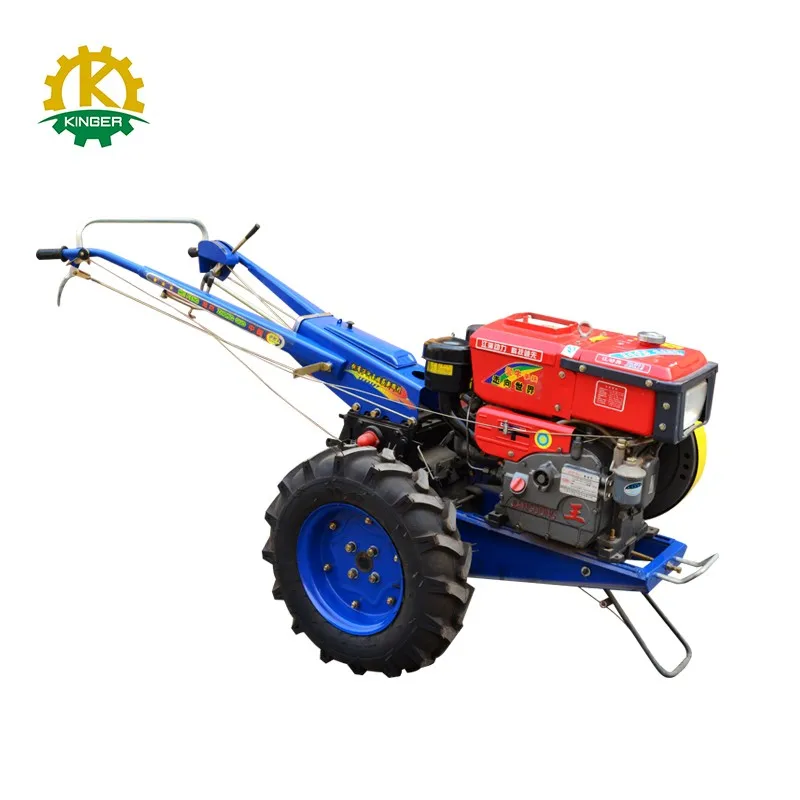

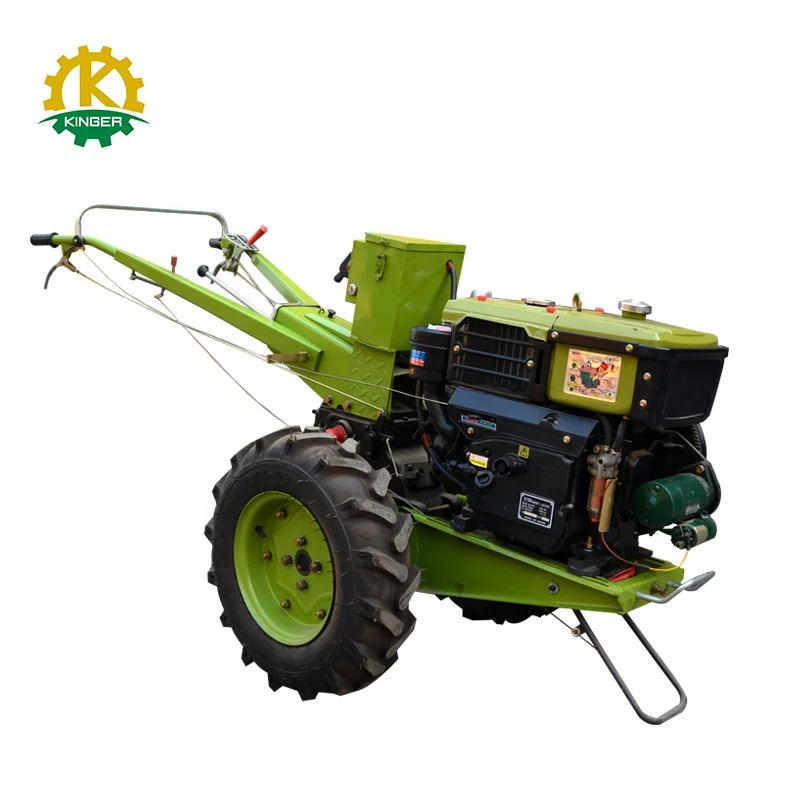

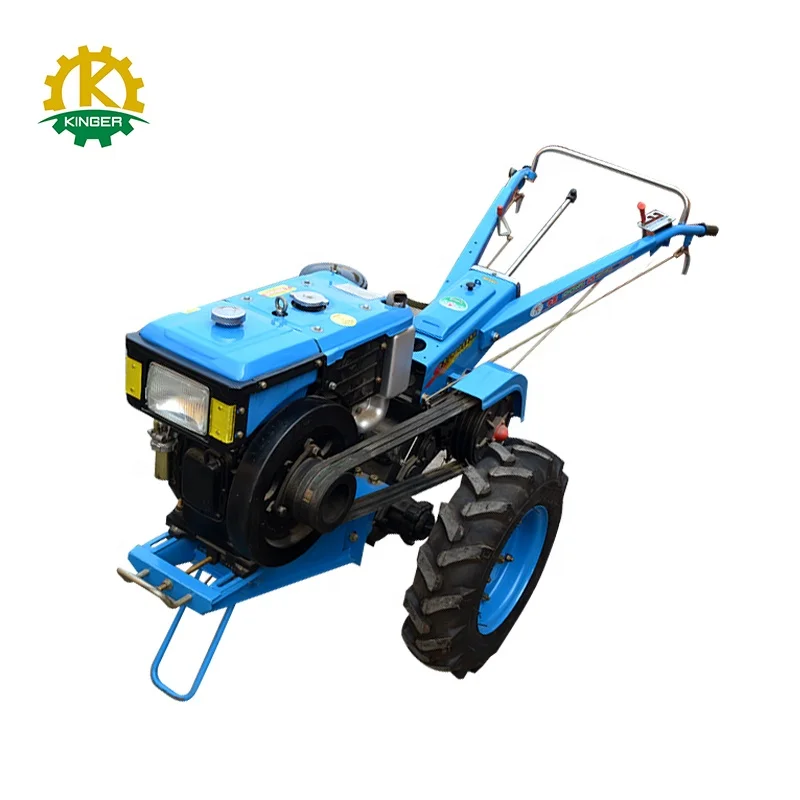

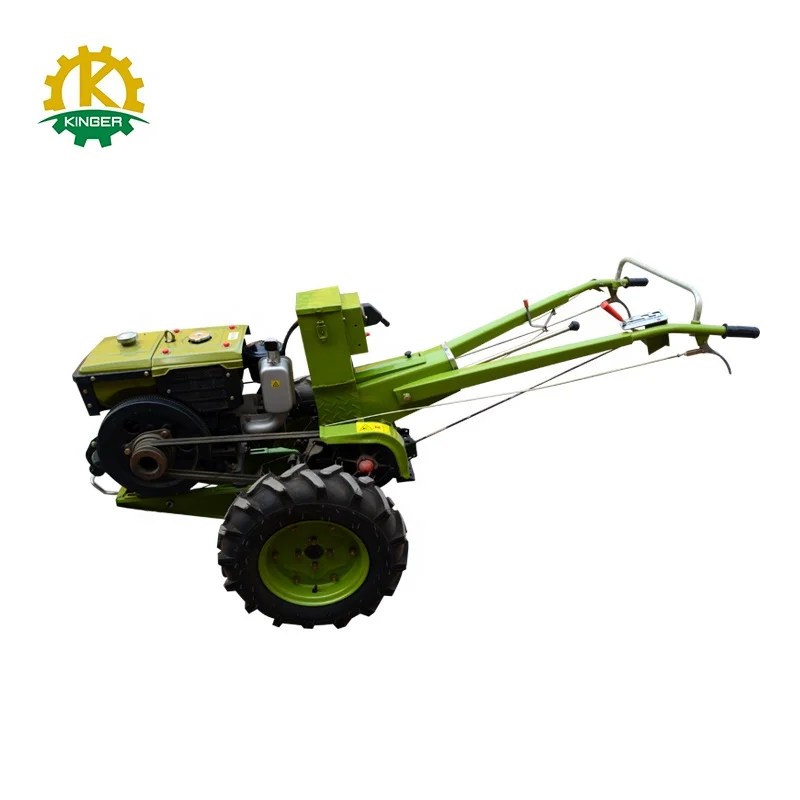

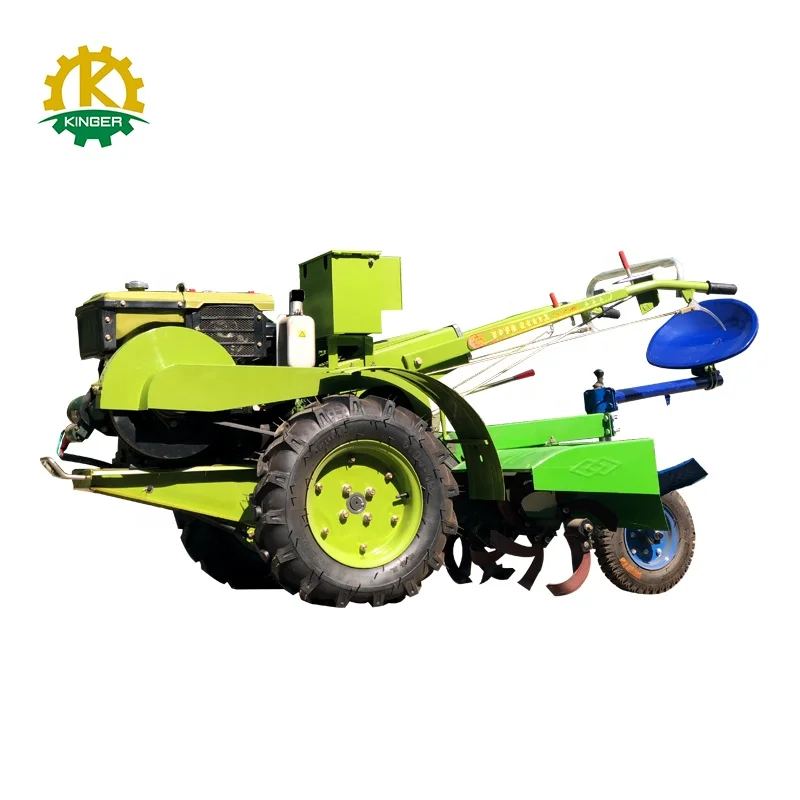

Reliable quality 12hp mini farm walking tractor implements


performance


The hand tractor is dual-function that can be operated as the towing machine as well as driving machine. It has small and compact structure, light weight,  reliable performance, long service life,  easy operation and good running ability, also they are be assemble a seating equipment for driver.


application

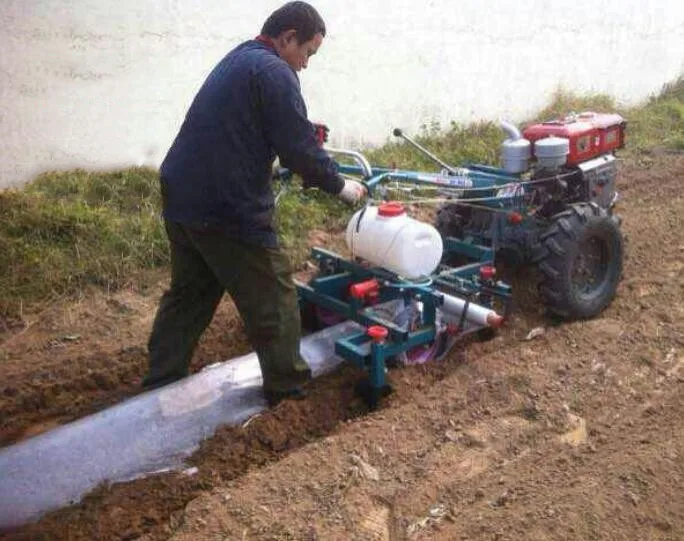

The hand tractor is suitable for working in paddy field, dry field, orchard, greenhouse, hilly field. With matched accessories and farm implement, they can be used for ploughing,harrowing,seeding, cultivating, harvesting, drilling, ditching, transporting, irrigating, sprinkling, spraying, threshing,milling,and so on.


\t
Model
\t
GH-12
\t
Engine Power
\t
8.82kw / 12hp, 2000rpm
\t
Engine Type
\t
Vertical, One Cylinder, Four Stroke, Diesel powered, Water-cooled
\t
Starting System
\t
Z - shaped handel / electric
\t
Overall Dimensions
\t
2180×890×1250mm
\t
Wheel Base
\t
680-740mm
\t
Min. Ground Clearance
\t
210mm
\t
Semi-axlis
\t
340mm
\t
Structural Weight (without attachments)
\t
290kg
\t
Weight in use ( with oil, water, tools)
\t
360kg
\t
Wheels
\t
6.00-12 (GB1192-82), herringbone tread pattern
\t

Tire Pressure
\t
Field condition 80-120 (~0.8 lbs 1.2kg/cm2)
\t
Transportation 140-200 (~2.00 lbs 1.40kg/cm2)
\t
Rotation Speed PTO
\t
1176 rev. / Minute
\t
A pair of V-belts
\t
B1850
\t
Clutch
\t
Single plate, dry type, with permanent adhesion, friction type
\t
Gears
\t
(3+1)×2, driven by a cylindrical pinion
\t
Forward Speed
\t
F1: 1.68km/h F 2: 2.61km/h F3: 4.22km/h F 4: 6.79km/h F5: 10.57km/h F 6: 17.08km/h
\t
Reverse Speed
\t
Reverse 1: 1.29km/h Reverse 2: 5.22km/h
\t
Max. volume of lubricating oil in the gearbox
\t
5L
\t

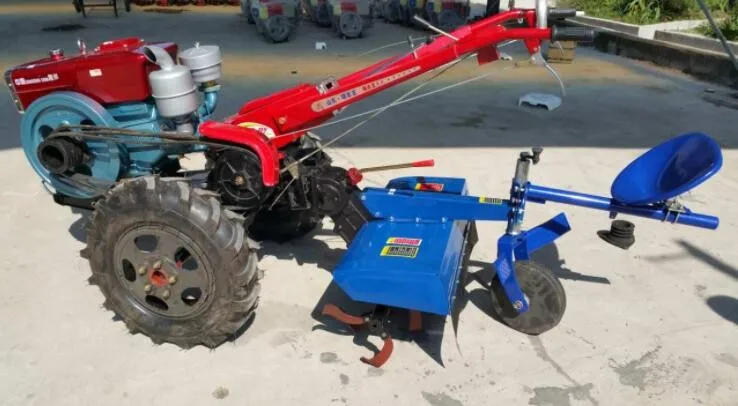

Rotary Tiller
\t
Width of the rototillers cultivation : 100cm
\t
Weight of the rototillers assembly: 56kg
\t

Single Plough
\t
The width of the plow: 25cm
\t
Weight of the single plow: 18.5kg
\t
Rated loading weight for the trailer
\t
1000kg
