Машина для производства пла биоразлагаемых соломинок
- Category: Straw Making Machines >>>
- Supplier: Hangzhou Fuyang Sunrise Machinery Co. Ltd.
Share on (62063131736):
Product Overview
Description
PLA biodegradable drinking straws making machine
Product Description
An ideal drinking straw machine for making straight straws.
LG series straight straw making machine is our new design. It adopts the screw diameter 50mm, L: D is 33:1. The new design makes it much easy to plasticize and increase output. It is an economical perfect machine for drinking straws.
Characteristic
Colours: one colour.
Cut-end:90°/90
All the direct contact parts are made of stainless steel.
The cutting unit adopted the big plate cutter and with automatic gathering system.
The temperature controller is OMRON
The inverter brand is DELTA
Technical Data
Extruder
Model:LG-11
Dia.of the screw:50mm
No.of screw:1 pcs
L:D:33:1
Section of temperature controlling:5
Max.extrusion capacity:32-35kgs/h
Production capacity:30000-60000pcs/h
Material: PLA
Specification of straw diameter.:
- φ3-12MM
- Wall thickness: 0,2mm(+-0,03)
- Length : 200-250mm
Motor power of extruder:15kw+0.75kwx2,380V,50hz, 3 phase (standardized power)
Water cooling bath(Option N)
Length of water cooling bath:4000mm(standard)
Hauling machine and cutting unit
Motor power of hauling unit:0.75kw *2 ,380V, 50hz, 3 phase
Motor power of gathering system:0.21kw, 380V, 50hz, 3 phase
Air compressor (2HP)
Fusheng (famous brand in China)
Product Images

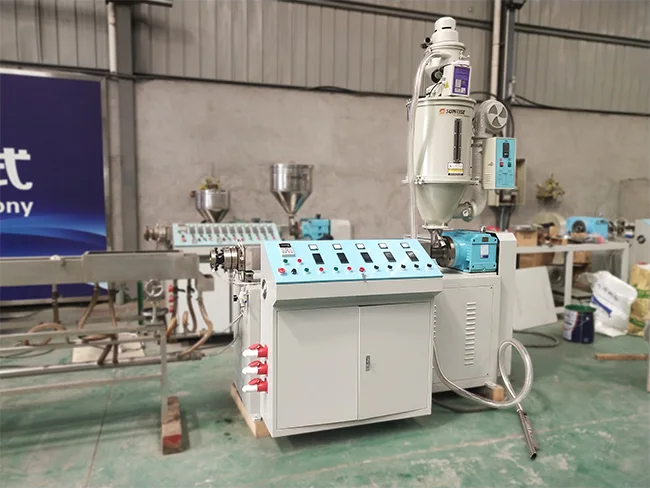

Full line (The machine body is stainless steel)

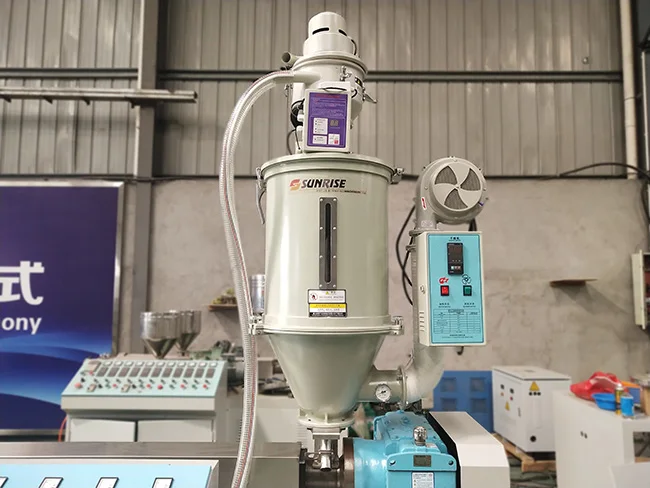

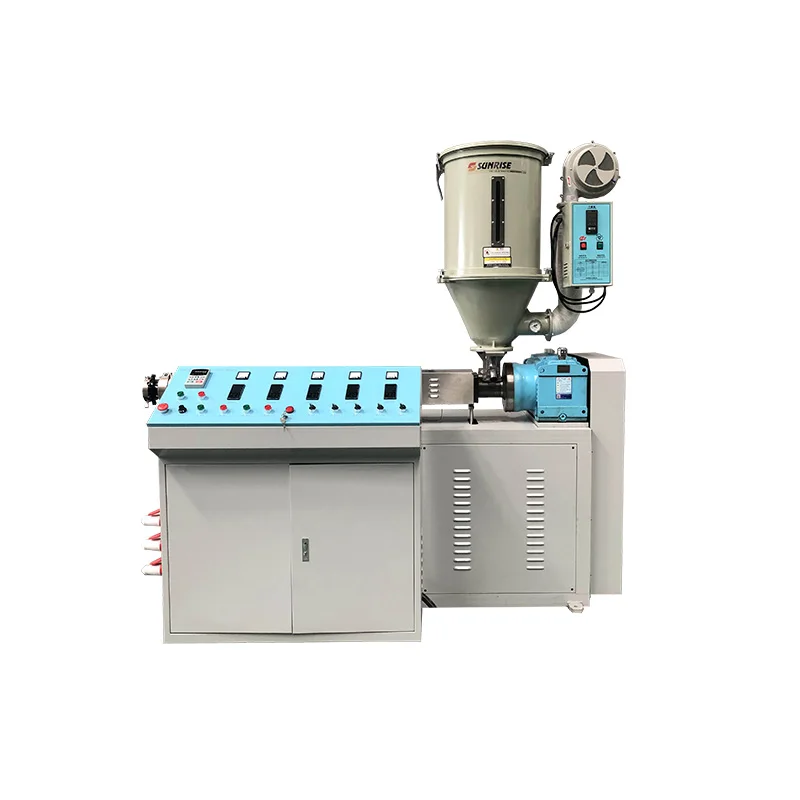

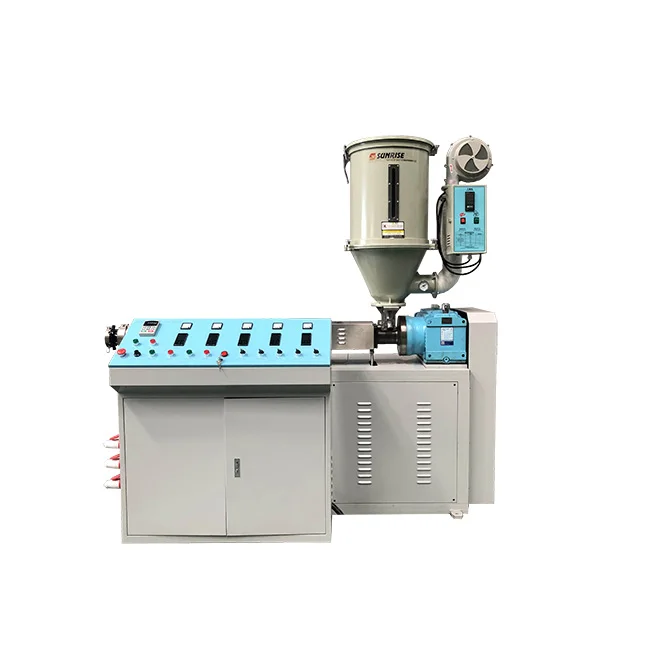

Extruder (include the Auto loader and Drying hopper)
Auto loader

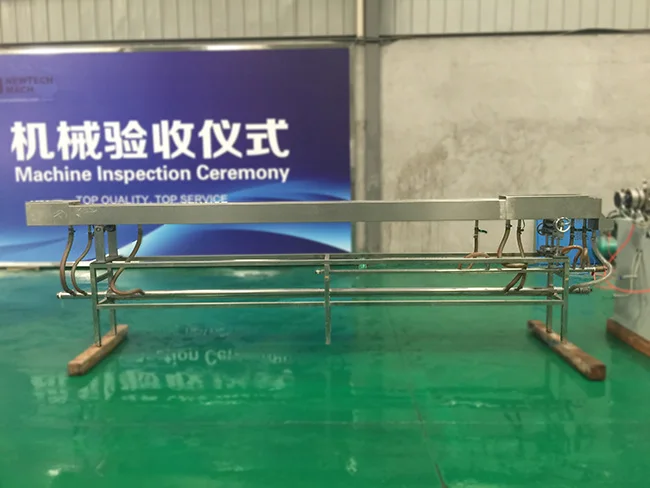

Water cooling bath (4000mm standard)

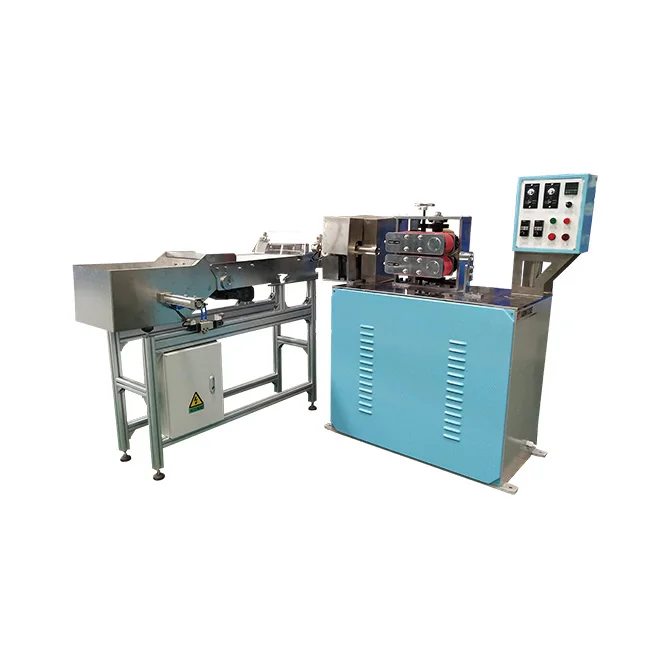

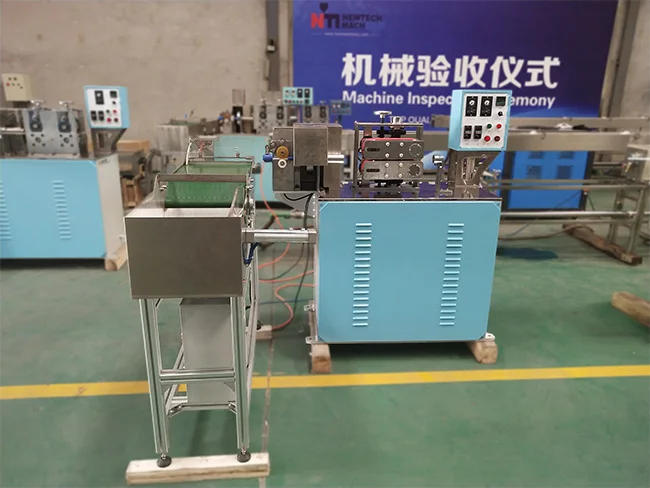

Hauling and cutting unit

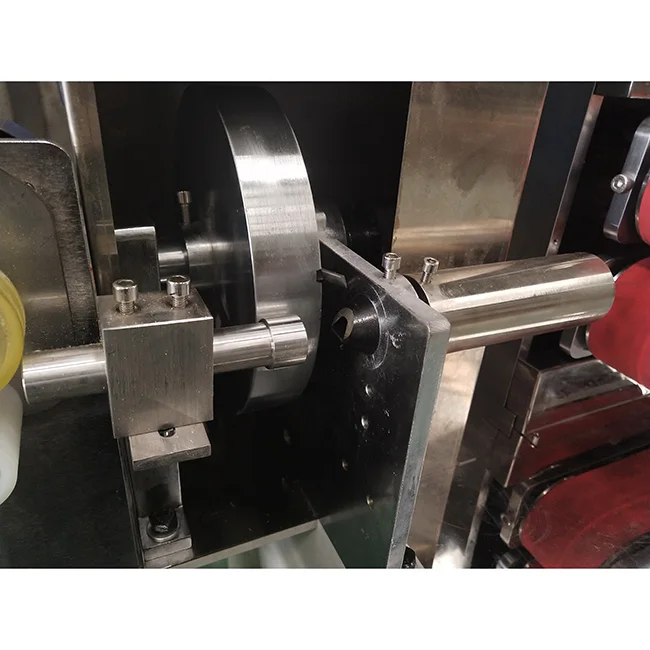

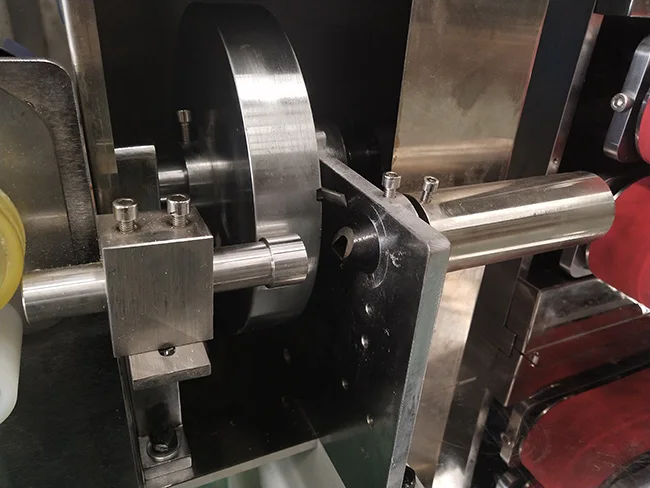

Cutting blade

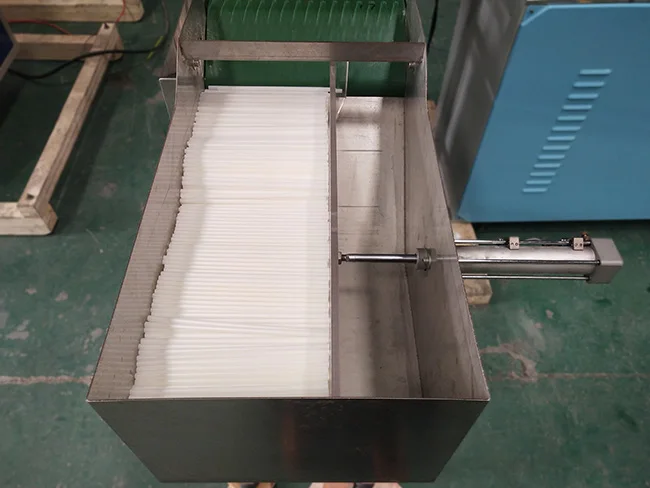

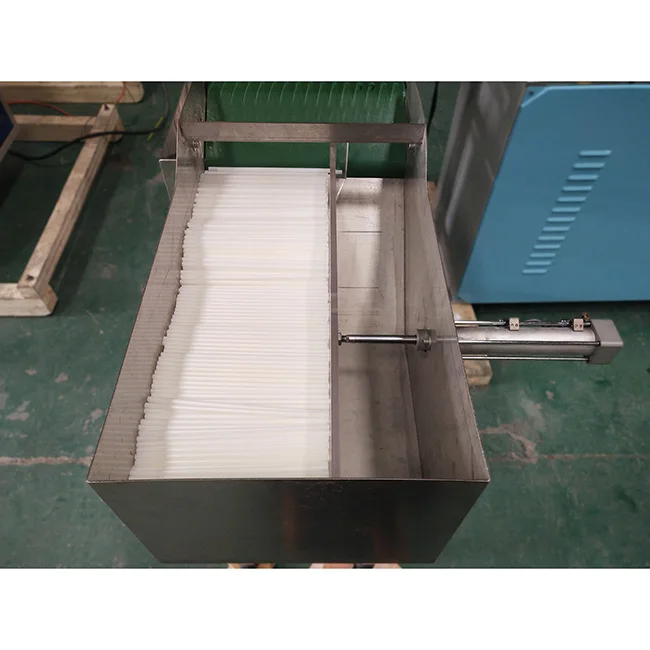

Automatic gathering system

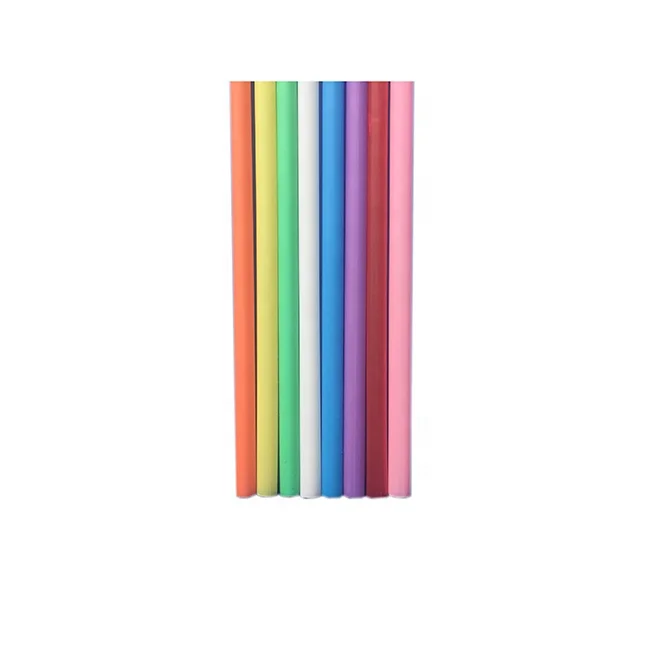

Straw samples

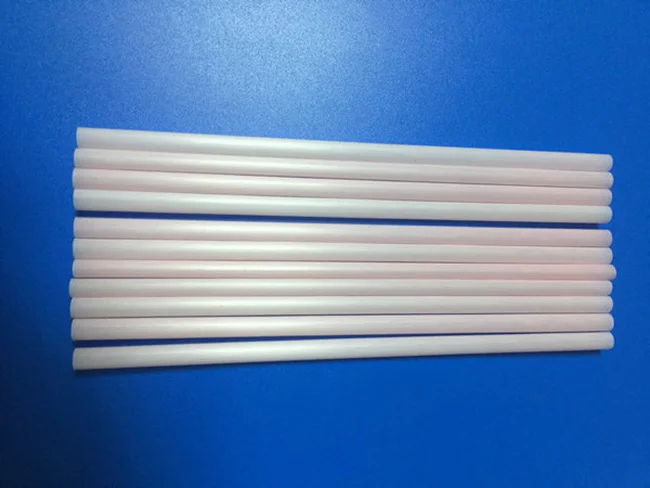

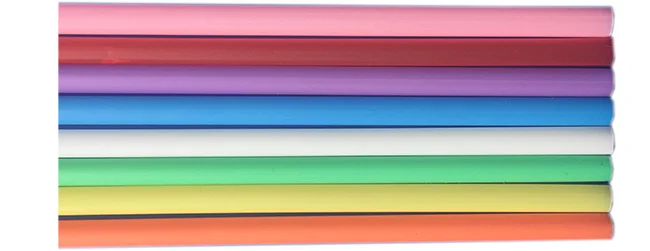

PLA single color straw
Packaging & Shipping
Atter the machine finished ,we will note the cutstomers the testing day ,send the video and pictures to confirm ,if all ok ,we will arrange the shippment .but if you have any change , please tell us in advance!!

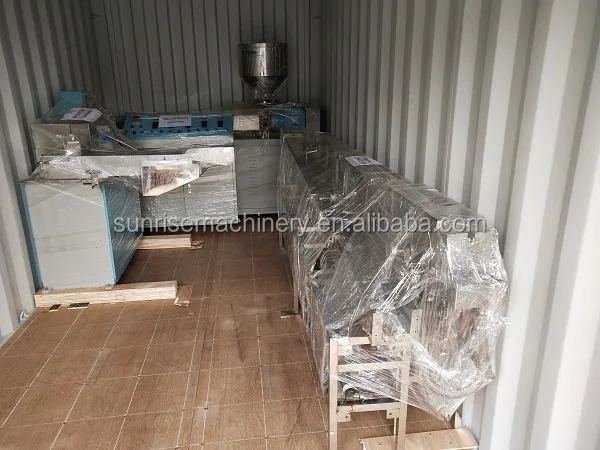

Confirmed all .We will pack the each quip as the loading quantity by the shrinking film .the parts all packed by wooden case or boxes . you can see the shipping loading pictures in container .in each step we all done very well to avoid any demage when arrived the destination port .
Our Services
Online sales and after-sales service, to help you solve every problem and offer you 24-hour online after-sales service.
In some countries where customers order over 10 sets of machines from us, we will cooperate with some local competitive companies to do the service of machine maintenance and parts supply.
Company Information
Fuyang Sunrise Machinery Co.,Ltd was established in 2005. We are specialized in designing and selling straw machine plants. We have ISO,CE, FTA Certificate and so on.
All of our machines design and produce according to the CE standard.
Our principle: only after testing, machine can leave the factory. and only qualified, it can be delivered.
Main Parts Suppler
Please feel free to contact if you have interest
