Vertical structure vacuum directional solidification furnace for polysilicon

Share on (62063165567):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

The vacuum directional solidification furnace is used to

\t
SPECIFICATIONS FOR 5KG DS Furnace
\t

Furnace
\t
High temperature zone
\t
mm
\t
∅200×300
\t
Ultimate vacuum degree
\t
pa
\t
6.7
\t
Furnace structure
\t
/
\t
Vertical
\t



Temperature control
\t
Designed max. temperature
\t
\t
1800
\t
Max. working temperature
\t
\t
1650
\t
Temperature uniformity
\t
\t
≤±10
\t
Temperature control precision
\t
\t
±2
\t
Temperature dection range
\t
\t
500-1700
\t
Temperature measuring precision
\t
/
\t
0.5%
\t

Crucible
\t
Lifting stroke
\t
mm
\t
400
\t
Slow down speed
\t
mm/min
\t
0.1-5
\t
Fast up speed
\t
mm/min
\t
30

Main Features

1) Simple structure

2) Crucible slow down speed is controllable.


Certifications
Detailed Images

Machine Parts

Name: MF power supply

Brand: Hanhe

Original: China

Model: MFSC-100/1S

Output power: 100KW

Output frequency: 2500Hz

DC voltage: 500V

DC current: 200A

Full protection functions.

Machine Parts

Name: Vacuum furnace body
Brand: Hanhe
Original: China
The vacuum furnace body adopts vertical double layer water cooling structure. The inner layer adopts high quality stainless steel, and the outer layer is made of polished stainless steel. Cooling water will flow through interlayer.

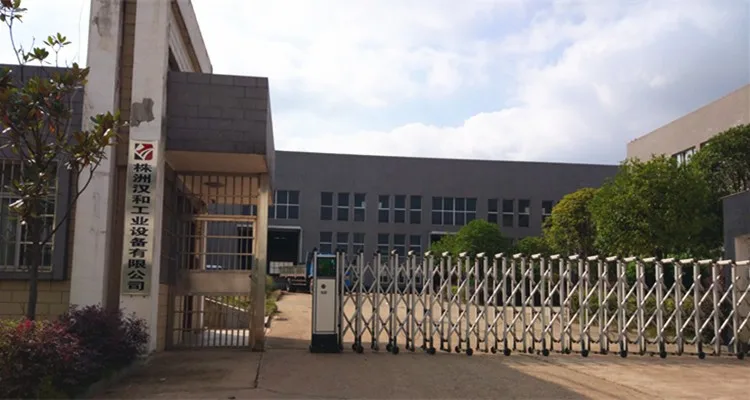

Our Company

Zhuzhou Hanhe Industrial Equipment Co., Ltd is located in Zhuzhou which is an emerging industrial city. Zhuzhou Hanhe is engaged in the design, manufacturing and sales of induction heating power supply, CNC induction quenching & tempering machine, vacuum metallurgy, ultra high temperature sintering and graphitation, pipeline equipment, 3D metal printing additional manufacturing.
Zhuzhou Hanhe has abundant technical force and strong research & development ability. It is equipped with a design team made up of experts and establishes close cooperation relations with many scientific research institution and enterprises home and abroad. The main designers have rich experience in design, research and production. They have been engaged in induction heating equipment and vacuum electric furnace for more than 20 years.
The products are widely applied in melting, diathermanous, quenching, high temperature sintering, ultra high temperature graphitization, heating fit loading&unloading, semi-conductivity refinement etc. They are suitable for precise cast, iron and steel, steel pipes, automobile & motorcycle spare parts, railway, aerospace, mechanical manufacturing, nuclear power, 3D printing, non-ferrous metal, cemented carbide and solar energy battery etc.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
