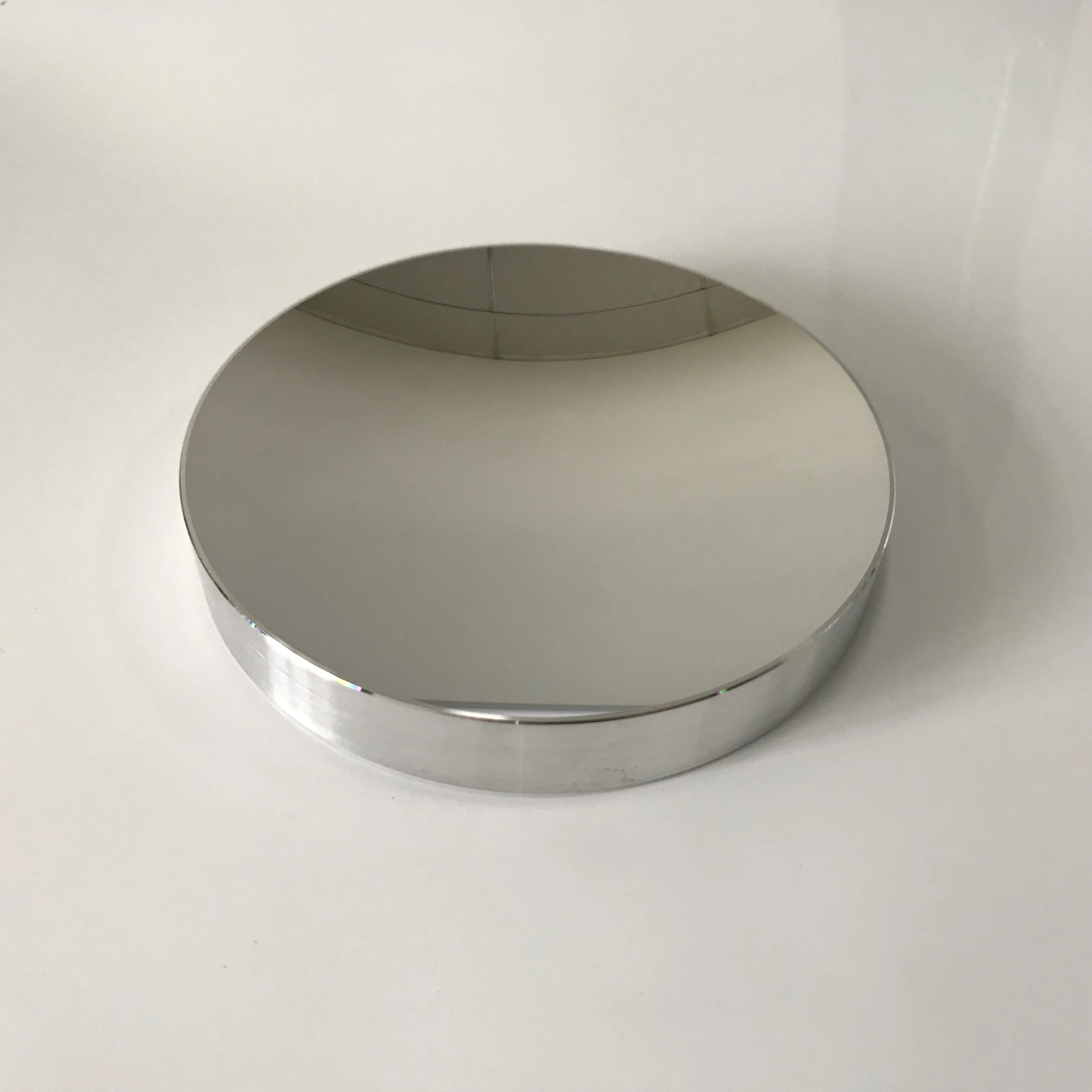

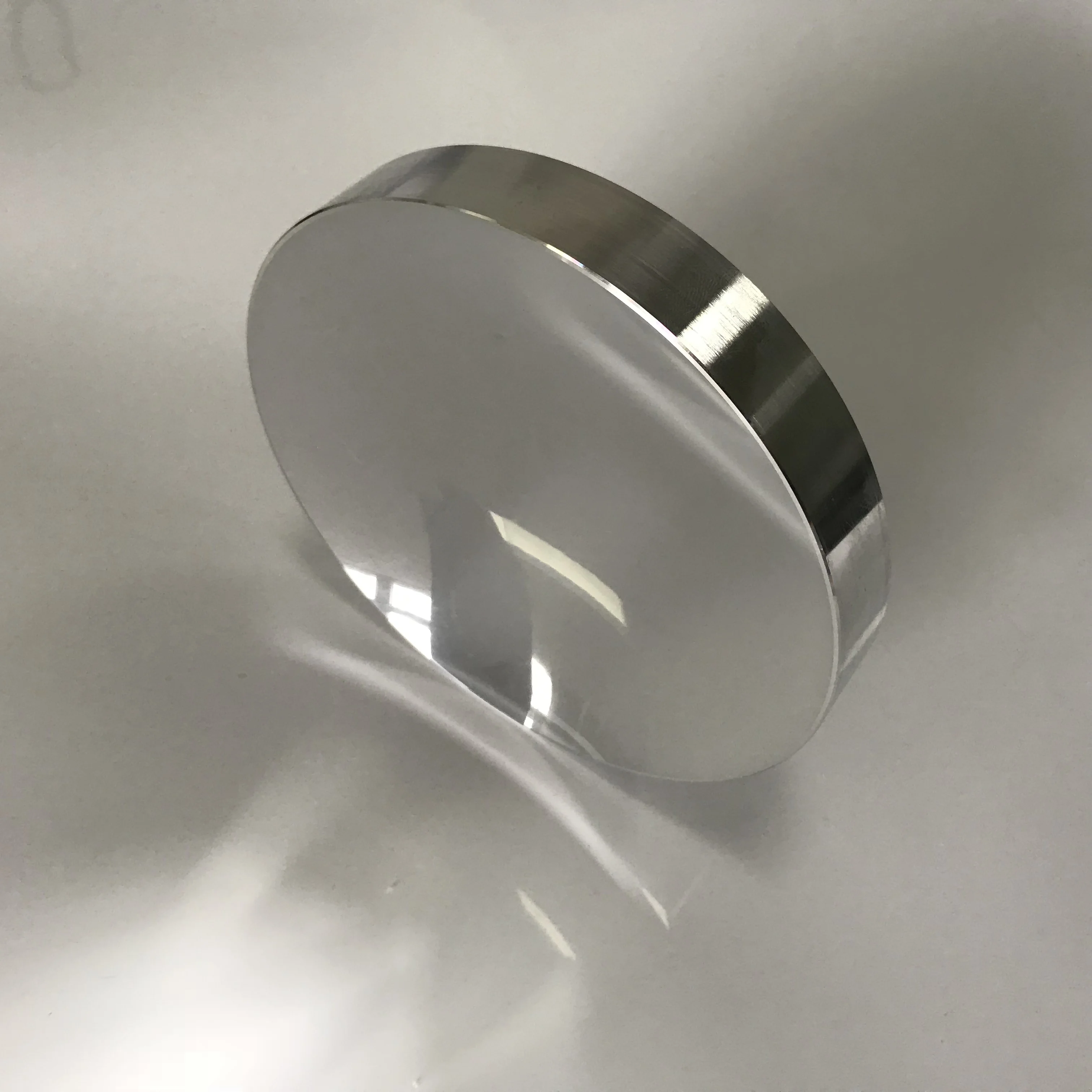

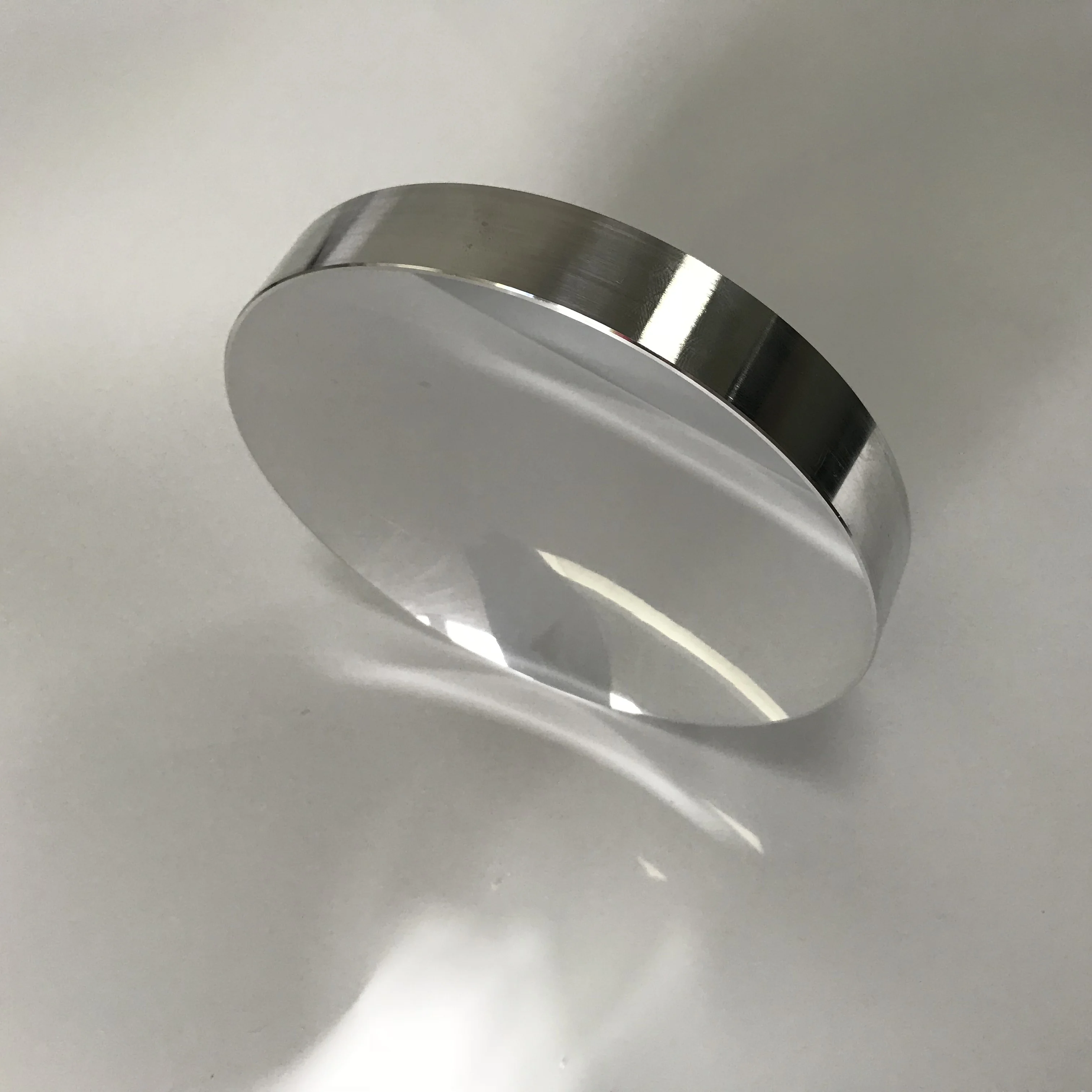

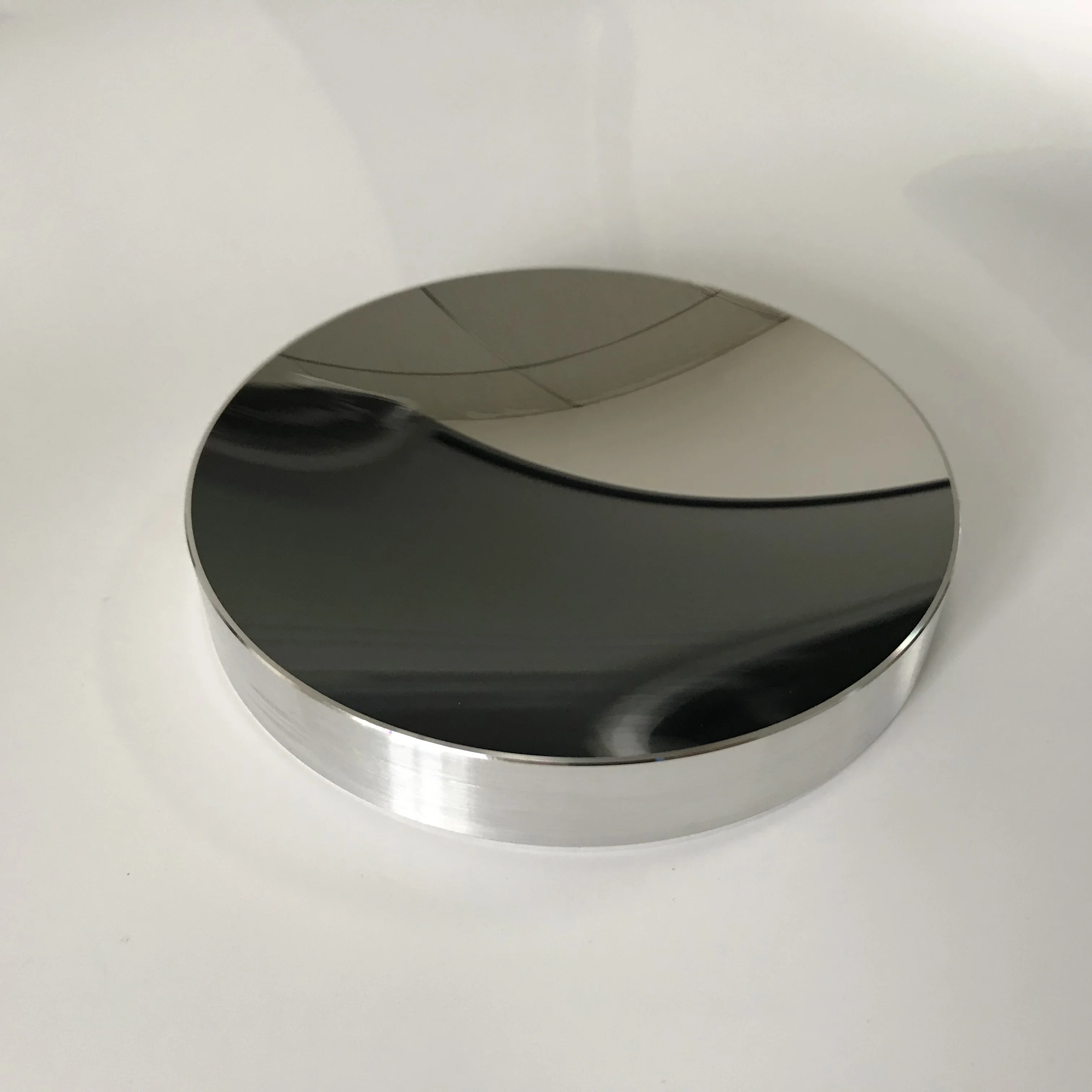

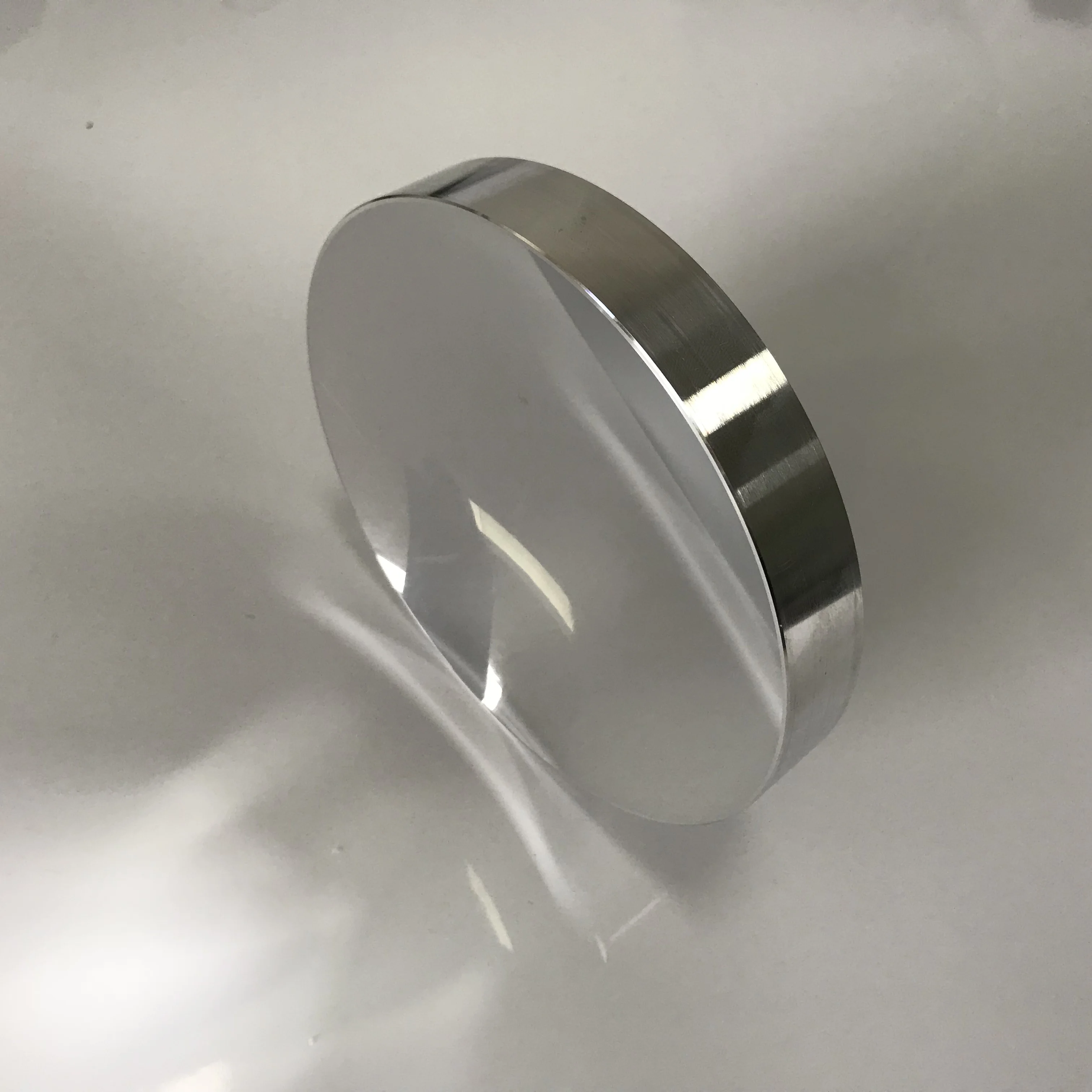

Enhanced Aluminum Coated high reflective optical mirror
- Category: Lenses >>>
- Supplier: Wuhan Especial Optic Inc.
Share on (62063184010):
Product Overview
Description
Product Description
Optical Aluminium Coating Mirror
Our mirrors can be flat, concave, convex, reflective and metal reflective and dielectric reflective. The base material of the mirror can be K9, quartz and aluminum.
Metal mirror | Dielectric mirror | ||||
Base material | K9, Quartz, silicon, aluminum, etc. | ||||
Parallelism | 1' | ||||
Clear Aperture | >90% | ||||
Surface S1 Shape | Lambda/10@633nm | ||||
Surface S1 Quality | 40/20 | ||||
Surface S2 | Polished/Matte | Lambda/4@633nm | |||
Damage threshold | No | 20J/cm2,20nsce,20Hz@1064nm | |||
Surface S1 Antireflection coating | Center wavelength <0.2%, AOI=0° Center wavelength <0.4%, AOI=45° | ||||
Incident angle | customized | ||||
Surface S2 Reflective film | Single point R>99.8%, AOI=0° Single point R>99.4%, AOI=45° Single point R>99.2%, AOI=0° Single point R>99.0%, AOI=0° | ||||
Curvature radius tolerance | +/-0.5% | ||||
Our products
uncaoted BK7 windows
caf2 window
AR coating Ge window
ZnSe window
AR coating SI window
AR coating ZnS window
Sapphire window
Fused Slica window
optical lens
cylindrical lens
Si lens
optical convex mirror
Al coated mirror
gold coated mirror
optical bandpass filter
optical prism
Si galvanometer
Our Company
Wuhan Especial Optic.,INC was founded in 2012,located in Wuhan East Lake High-tech Development Zone.
Especial Optic focuses on the design, development and production of infrared optical components and visible optical components, and is good at developing and producing kinds of infrared optical components of ultra high precision, ultra thin, very large, ultra small and customized service. The company has optical optimization design, precision optical processing and optical coating technology and production technology, with complete production processing and testing equipment, perfect quality management system.
After many years of unremitting efforts, Especial Optic has successfully produced a variety of special customized products and small batch infrared optical components, accumulated rich experience, we look forward to continue to provide more perfect service for our customers.
With continuous technological progress and management innovation, we will create more value and provide better products and services for our customers.
Factory
Lobby
Coring
Forming
Rounding
Polishing
High speed polishing
Low speed polishing machine
Mould warehouse
Interferometer
Spectrophotometer
Central deviation measuring instrument
30-fold microscope
Coating machine
Our Service
a: Dimesion size : 5-500mm , thickness up to customer requirements
b: Many material could be choosed , Fused Silica, Sapphire as well as IR material MgF2, CaF2,Ge, Si, Znse,ZnS and so on
c: AR DLC coating or as your request
d: Product shape :custom shape
Optical design
We can design optical components according to your requirements.
Production
Our current production capacity includes but not limited to cutting, grinding, polishing,coatin and testing.
After-sales service
If you have questions about our products you can contact us directly.
Packing & Delivery
Packing Details : Protective film or Capacitor paper,Pearl cotton,Cardboard box.
Delivery Details : Depends on the type and quantity of the product.
FAQ
Q: What's the way of shipping?
A: (1) We accept DHL, Fedex, TNT, UPS, SF and etc.
(2) If you have your own express account, it's great.
Q: How to pay?
A: T/T, and Credit Card.
Q: What's the deliver time?
A: (1) For inventory: the delivery time is 5 workdays.
(2) For customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.
Q: How to ensure the safety of payment?
A: Wuhan Especial Optic.,INC is the gold supplier and supports Alibaba Trade Assurance. Payment<=500USD, 100% in advance. Payment>500USD, 30% T/T in advance ,balance before shippment.
Q: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.
Contact us
Wuhan Especial Optic.,INC
Contacts: David Liu
T: 86-027-87504830
P: +86 18622556450
Skype: +86 18622556450
Email: David(at)wheo.cn
Website: www.wheo.cn
