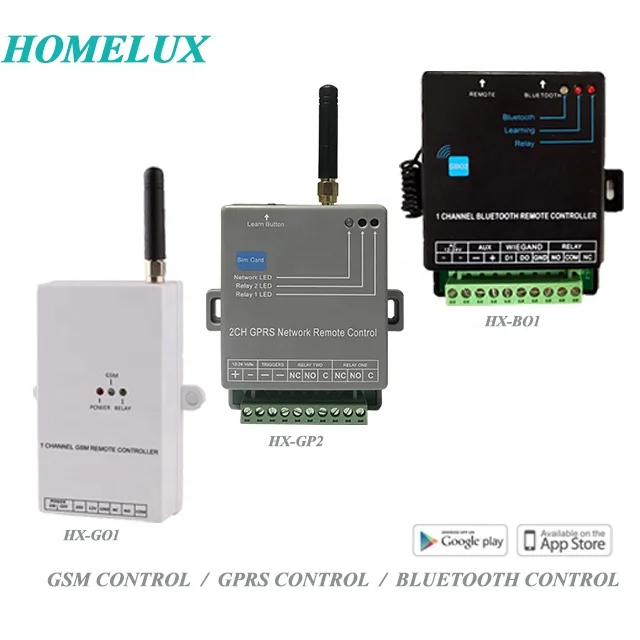

GSM remote control garage gate opener 1000 users IOS Andriod APP control 1 relay output

Share on (62063292360):


Price:

Quantity:


Product Overview

Description


GSM remote  control garage gate  opener 1000 users IOS Andriod APP control 1 relay output

Product Description

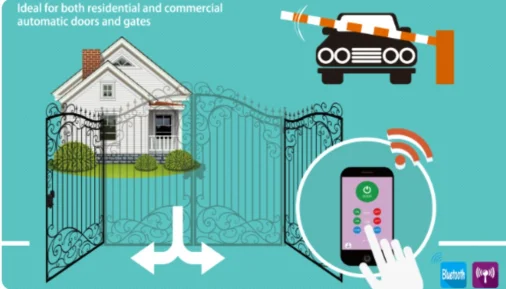

bluetooth



    GSM door opener is a GSM switch remote control system which can activate automatic gates with a free call from you mobile phone. The users’ phone numbers are programmed into the device by SMS. The device recognizes incoming Caller ID and drop the call before switching. With this system you can authorize up to 1000 mobile phones to open the gate at no cost. This system has two models N/O,N/C output.



Features



1. Free charges. the call from authorized number then carry’s out the turn ON/OFF

2. Multiple applications. (Gates, bollards, barriers, garage doors, shutters and access doors or machines);

3. Secure - Using caller ID for identification, unknown callers are ignored;

4. Can be operated from anywhere, no distance limit;

5. Add or remove users by SMS Text command;

6. No need to provide a remote control for different users;

7. Up to 1000 authorized phone numbers can be configured;

8. Two Digital inputs for door sensor, motion sensors or other sensors to protect your door and windows, when any one of them triggered, will send SMS alert message to admin immediately;

9.One output with relay rating 12V DC,20A  for connecting the switch of the door or machines;

10. The relay action will return a SMS confirmation to the owner; this function is editable by user;

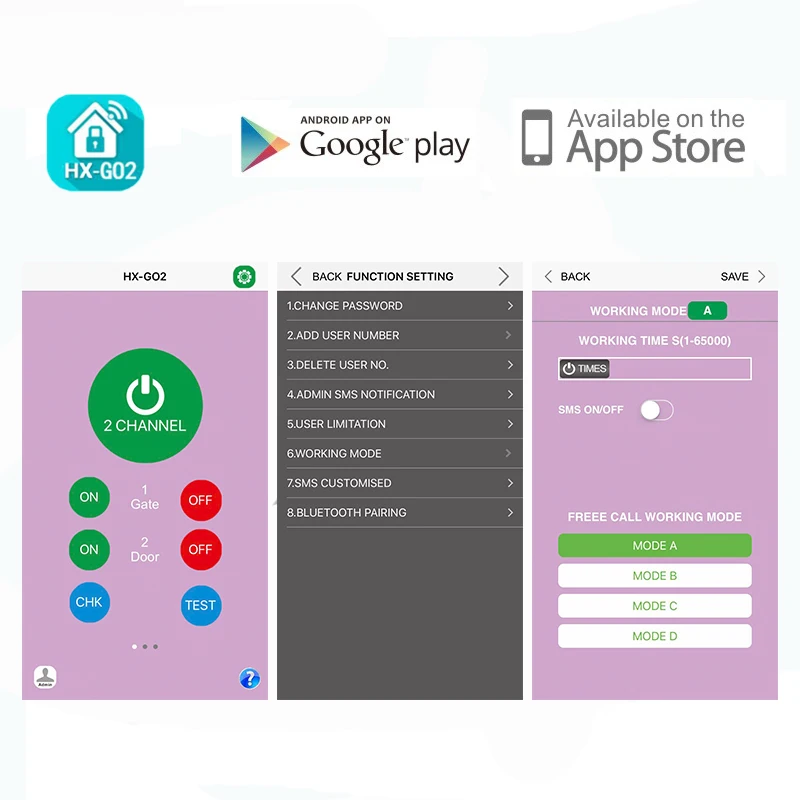

11. Based on GSM Network, admin can set up the programme by SMS,APP assist.





Specifications



Parameter item

Reference scope

DC Power supply

9~24VDC  20A

Power consumption

12V input  Max. 50mA/Average 50mA

Frequency range

Quad band 850/900/1800/1900Mhz(Optional)

SIM Card

Supporting 1.8/3V SIM Card

Antenna

50 Ω SMA Antenna interface

Temperature range

-20-+60 °C

Humidity range

Relative humidity 90% (condensation free)

Relay Output

1, Dry Contact, NC or NO, 2A/30V DC





Detailed Images

PCB View

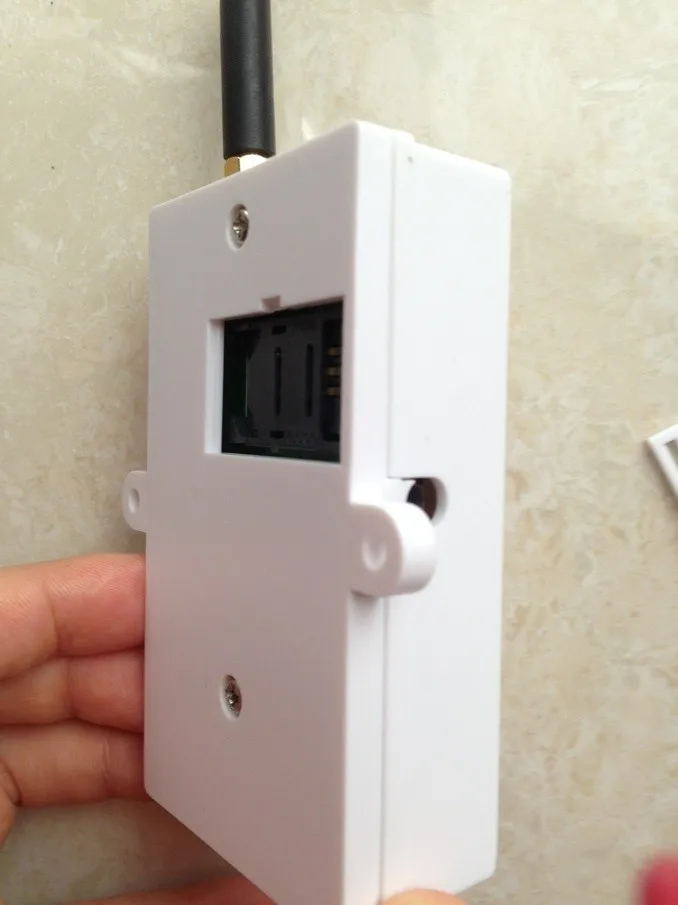

  door opener.jpg1CH PCB GSM GATE OPENER

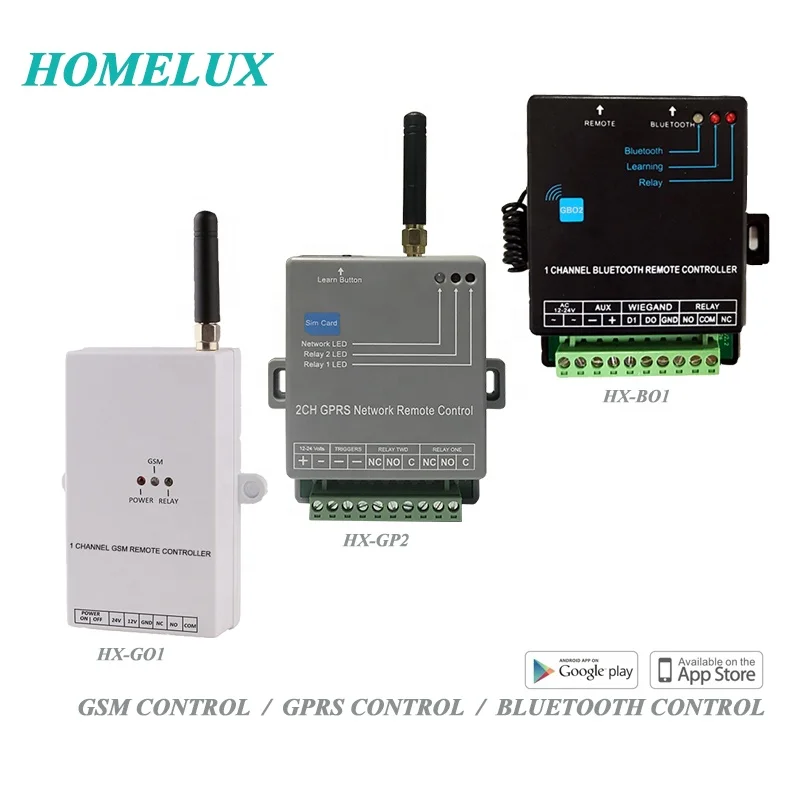

Related products

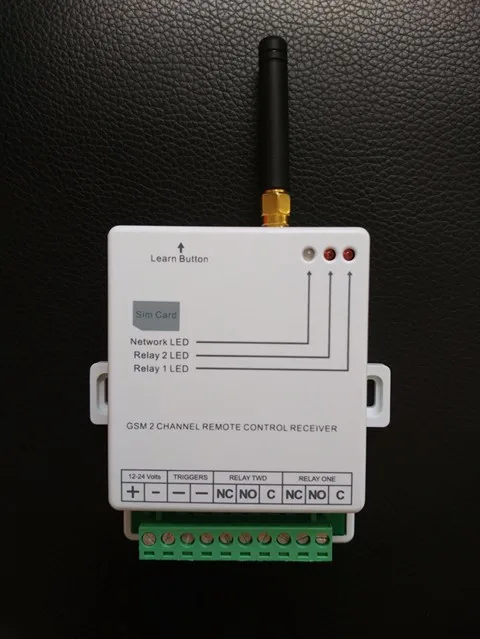

HX-GO2 ,2channel gsm opener

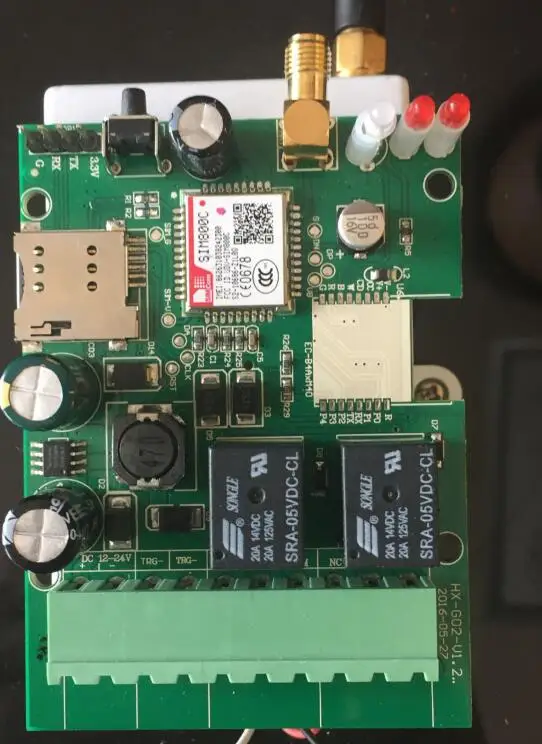

 GO22g module pcb for GO2





Related products

HX-GP2, GPRS remote control

GPRS CONTROLLER 1

Related products

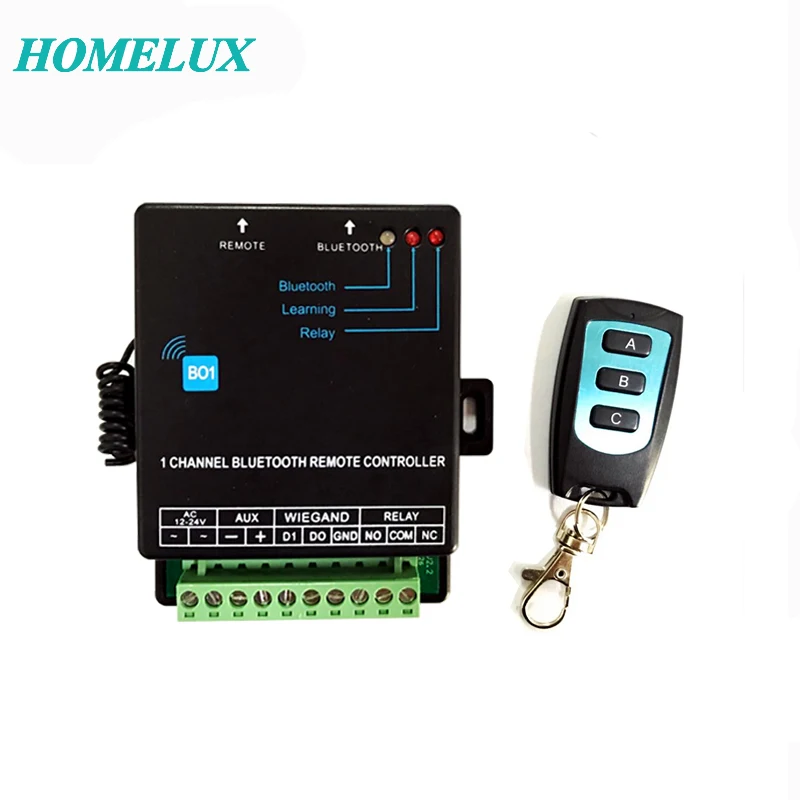

HX-BO1,HX-BO2 Bluetooth remote control

bluetooth controller BO1


Packaging & Shipping

shipping delivery

Shipping



 1)   Payment:  Western Union, T/T, Money Gram



 2)   Shipping: DHL, UPS, EMS, and other courier available as required.



 3)   Delivery time: 7-15 days after your full payment.
