3w flying UV laser desktop QR Batch code printer

Share on (62063299838):


Price:$22,100.00 - $24,000.00

Quantity:


Product Overview

Description





3w flying UV laser desktop QR Batch code printer

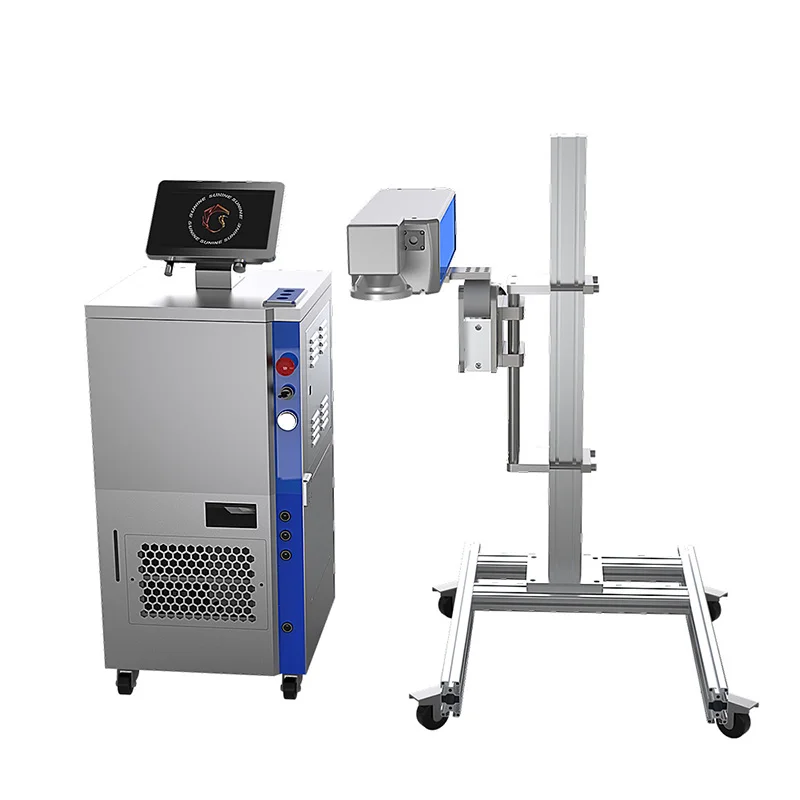

UV210C -800



Specifications


Features:


- Imported UV laser source with high speed ditigal galvanometer scanner.


- Very small heat-affected area Stable performance offers excellent coding effect.


- Widely used in medical, chemicals for daily use, food, hardware, plastics and pipes.





Specifications














































































Model No.



UV300i/UV500i



Laser Type



UV laser



Laser Wavelength



355nm



Laser Power



3W/5W



Cooling Method



Air cooling/water cooling as customer’s request



Power Consumption



800W~1000W(220VAC,50HZ)



Marking Focal Length



230mm



Positioning Accuracy



0.001mm



Min Line Width



0.01mm



Marking Area



90mm X 90mm~600mm X 600mm or other customized



Assembly Line Speed Support



 0~189m/min



Marking Speed



≤18000mm/s (according to different material)



Character Size



Adjustable in Marking Range



Marking Line number



Adjustable in Marking range



Marking Content



Character/Numbers/Graphics/Date and Time/Serial Number, etc



Marking Font



All kinds of standard CAD geometric font, also can be user-defined extended.



Laser source



USA AOV/JPT



Galvanometer scanner



Sunine/German Scanlab









Product Description


UV_01xq_new (1)xq_new (2)xq_new (3)xq_new 2 (4)_1xq_new 2 (5)xq_new 2 (6)





Related Product


















UV laser sample


UV_07








Certifications


xq_new (6)





Company Information


xq_new (7)xq_new 2 (9)xq_new 2 (10)





Packaging & Shipping


photobank(1)_WPS_WPS








FAQ


What are the advantages of laser marking?


Laser marking systems offer reduced downtime, elimination of consumables (both for cost and environmental reasons), permanent marks and reduced preventive maintenance and cost usually associated with ink-based printers.





What materials can be laser marked?


A variety of materials are suited to laser marking, here are just a few examples:


Glass, paperboard, ceramics, metals such as aluminum, cast iron, copper, steel, titanium, etc. Plastics and polymers (PET, PVC, PE, HDPE, LDPE, PPR)


If you are not sure your product’s material, please send some samples to us, our expert will test them for evaluation.





What types of laser can be used for marking?


The three most commonly types of laser used are CO2 laser, fiber laser and UV laser. Different kinds lasers can work on different material. If you are looking for a good recommendation, contact us immediately.





What variables should be considered when selecting the appropriate laser marking system?


Factors to be included in evaluating the correct system include line speed, pitch (spacing) between products, substrate (material) to be marked, code content (amount and field size), environmental conditions and integration needs.





Why should i choose your company?


A powerful R&D team with high education level, a well-trained after-sales team, a wealth of working experience in laser marking industry (more than 10 years), we are the TOP manfacuturer of fly laser marking machines in China. Also, we are not just machine seller, but also solution expert. We are able to provide custom service based on your requirements. Many cases will be shared with you. If you are looking for a supplier who offer high quality laser printers at compeitive price, then do not hesitate to contact us.





If I buy machines from your company, do you provide technical support?


Yes. We have a whole after-sales team at your service. We will provide video of installation as well as online technical training.





What’s your warranty?


Our warranty is 12 months. During the warranty period, we provide customers with free parts for repair; if you need to return to the factory for repair, all repair costs and freight will be borne by us. After the warranty period, we will continue to provide maintenance services. Besides, we offer permenant softeware upgrading service for free.
