DYG Wholesale No Dripping Or Leaking Small Dose Liquid Fillng Machine
- Category: >>>
- Supplier: Minhua Pharmaceutical Machinery Co. Limited
Share on (62063352353):
Product Overview
Description
Product Description

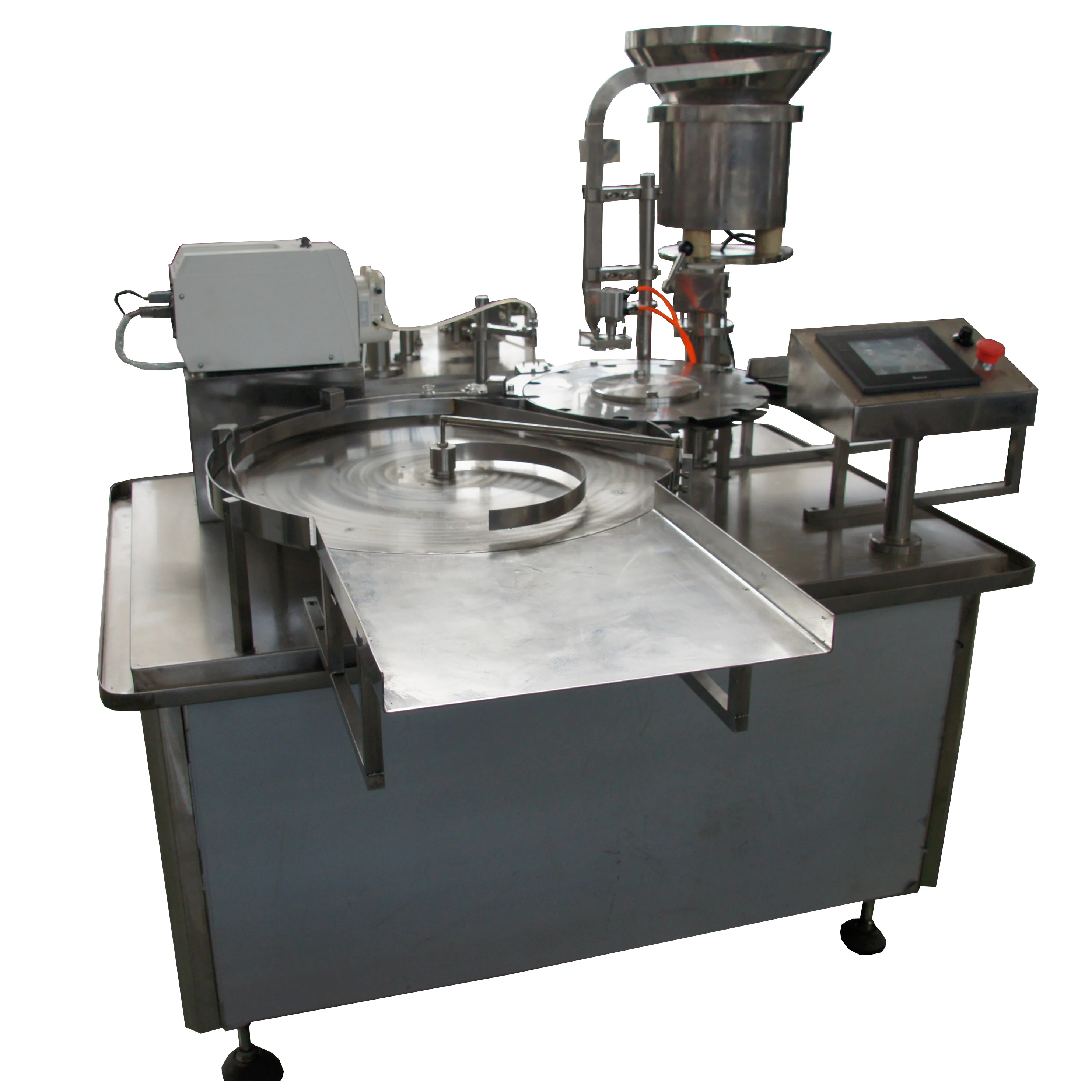

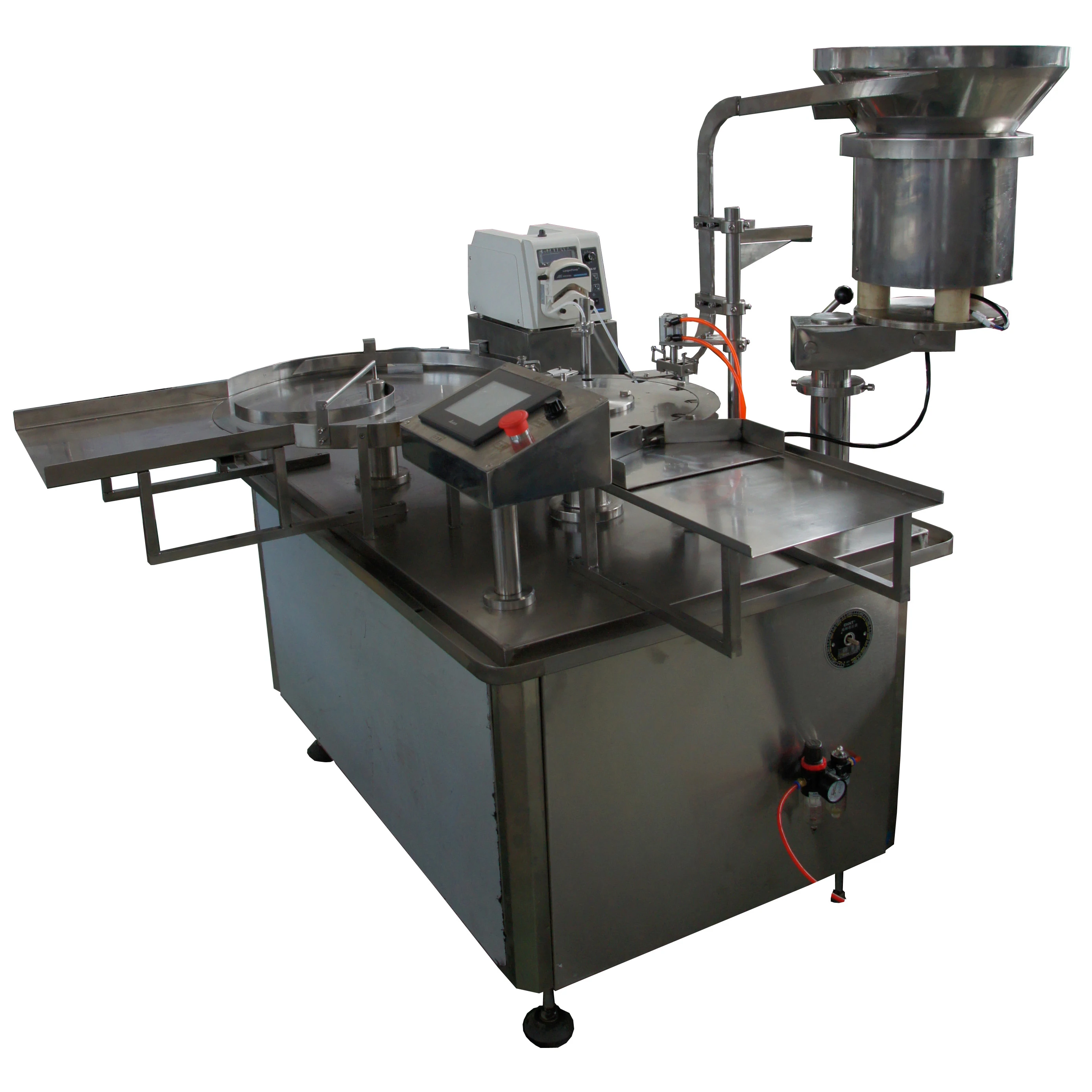

DYG Clinical bottle touch screen operation liquid filling machine
———Descriptions———
This machine is the main filling equipment of the clinical bottle liquid production line, which is mainly applied in the filling, covering and sealing of the 2 – 20 ml clinical

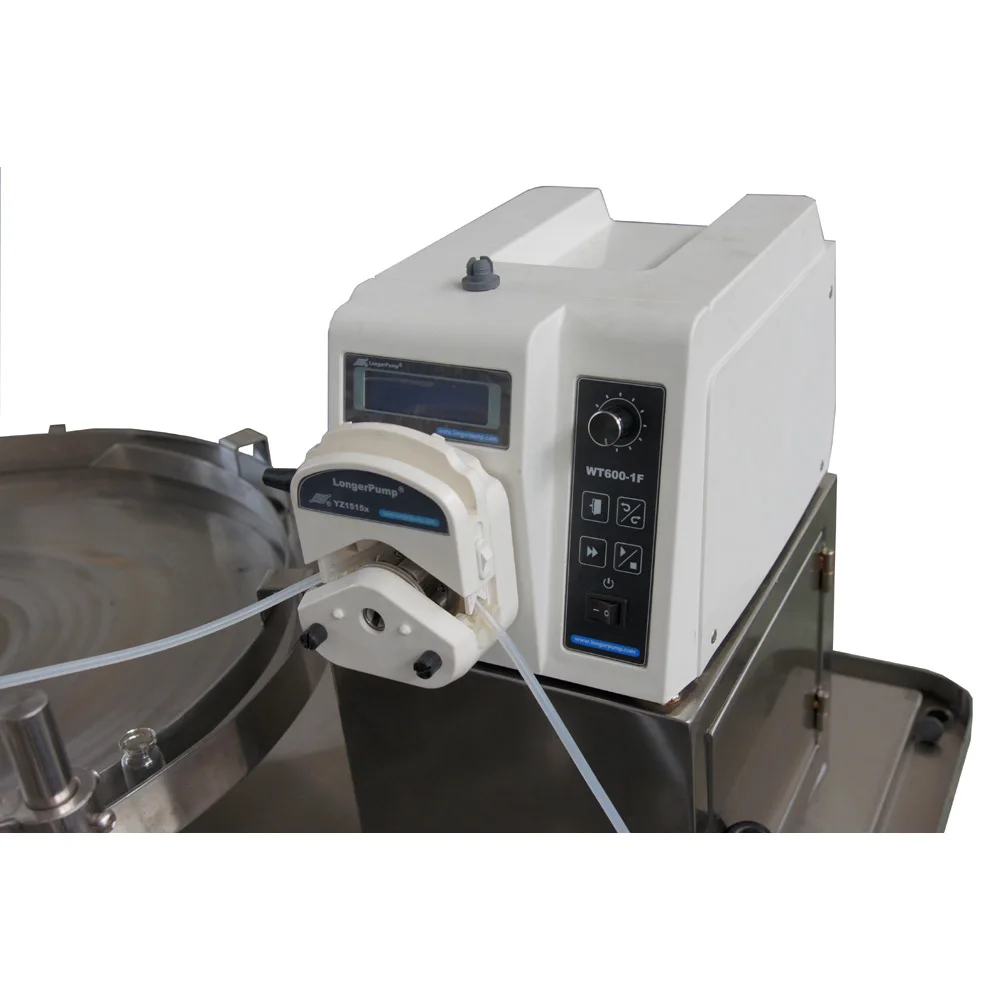

Bottle. Equipped peristaltic pump and magnetic valve, PLC control, touch screen operation,Ensure the filling precision, all functions are steady.
This machine combines filling and sealing, advanced design, compact structure, the replacement of the bottle is very convenient.
———Technical Parameters———
Production capacity | 80-90 Bottle/min |

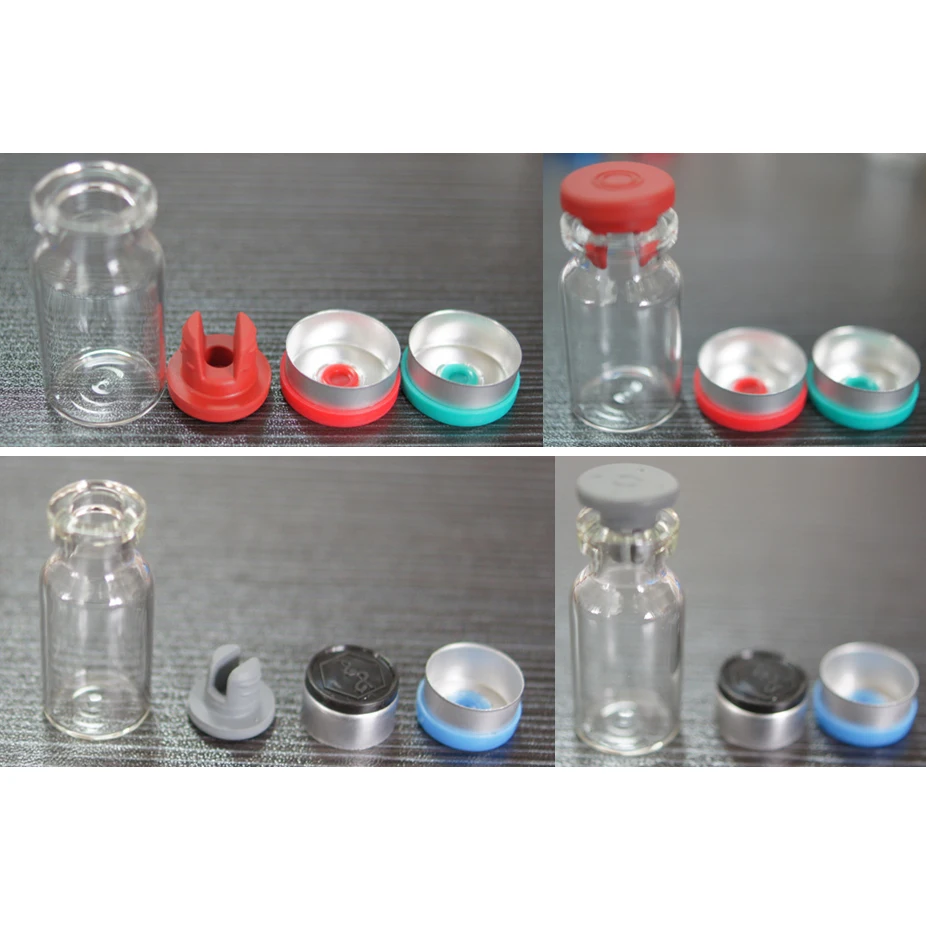

Applied bottle | 2 – 20 ml, clinical bottle |
Sealing rate | ≥ 99% |
Measuring error | 1~2% (See the Operating Instruction of peristaltic pump for details ) |

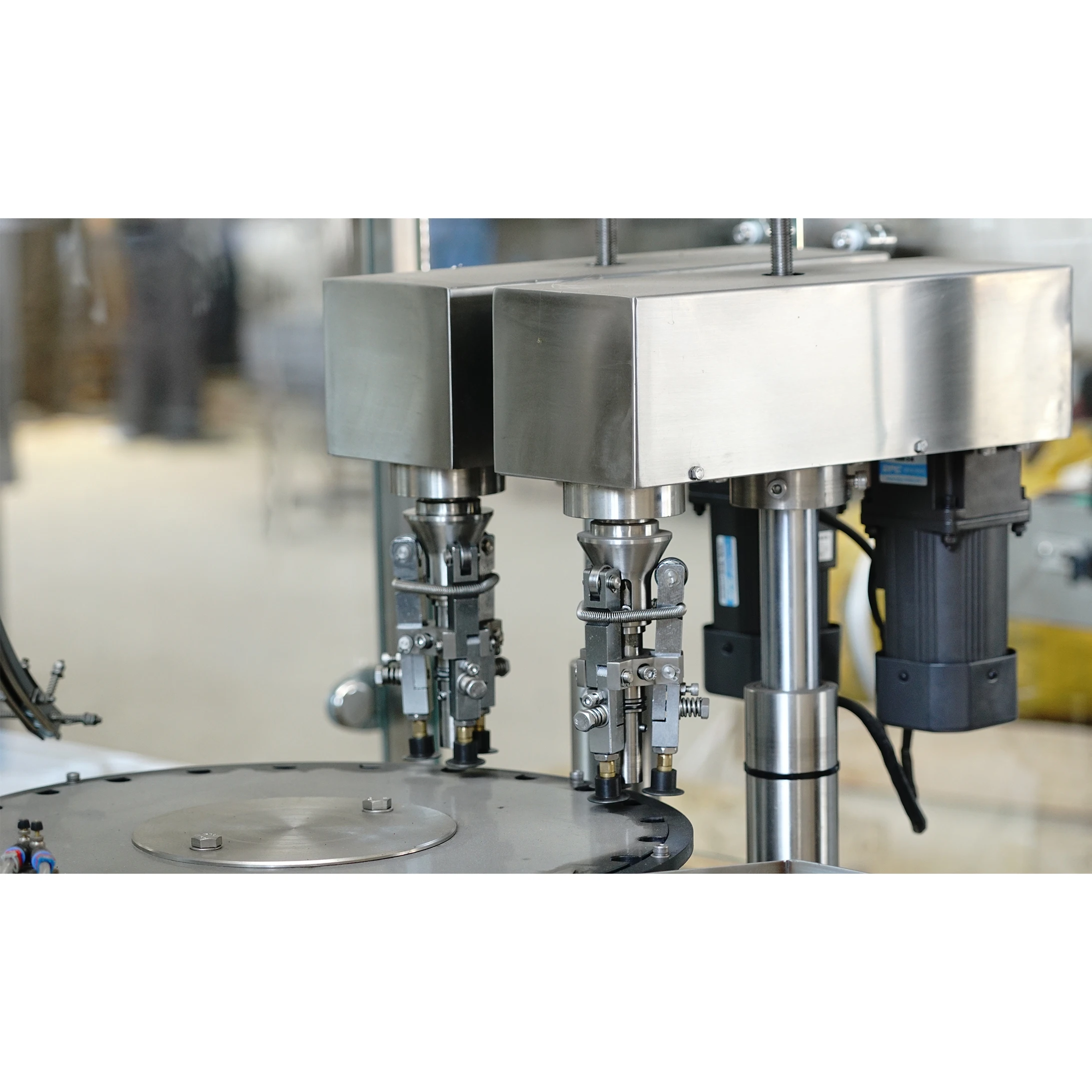

Sealing method | Screw cap, rolling screw lid or cover spin |
Power | 1.3 KW |
Sealing rate | ≥99% |
Power supply | AC,380V/50HZ 3 phase or customization |
Over all size | 1620*980*1750mm |
Net weight | 400 kg |
———Principle of work———
The machine adopt linear filling, the bottle conveyed through conveyer belt. When the bottle arrives at the blocking bar, the bottleneck is rightly below the filling nozzle. After the optoelectronic sensor detecting the last bottle and delay a while, the filling cylinder opens and the liquid filled into bottles. Blocking bar at the outlet draws back after bottles filled. The bottles filled deliver by the conveyer belt. The filling done,
The blocking bar at the inlet transport the next set of bottles.
The filling machine stops automatically and when lack empty bottle or no bottle enters and optoelectronic sensor at the inlet doesn’t detect signal.
When the following line blocked, the filled bottle can’t deliver, the optoelectronic sensor at the outlet detects the signal and stop filling automatically.

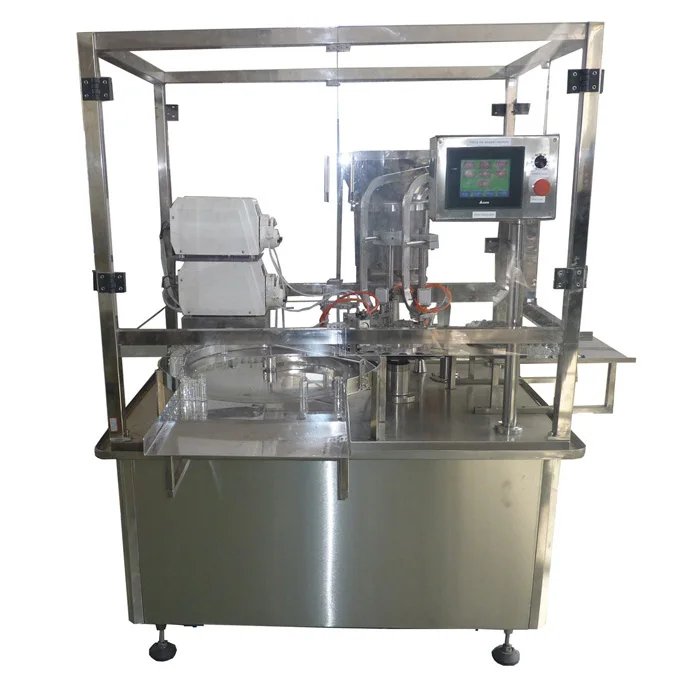

———Product image———
11111111
——Our Company——
Shanghai Zixiong Pharmaceutical Machinery Company established in 2010,is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment such as tablet press machine,capsule filling machine,liquid filling machine,soft and hard blister packing machine,tablet or capsule counting and filling production line,soft-gel production line etc.
Shanghai Zixiong Pharmaceutical Machinery Company located in Shanghai, China where is about 30 minutes by car from Hongqiao train station or Hongqiao airport, very easy to get to and naturally suited to communicate and trade with worldwide clients.
Shanghai Zixiong Pharmaceutical Machinery Company occupied ISO system and CE certificates, with a disciplined factory and fairly professional technical engineers.We have the capabilities to design and develop many types of machinery and equipment, also provide personalized customized service for you. Besides machinery and equipment, we also can supply a full set of production lines which specific based on you requirements. We welcome OEM and ODM orders.
Shanghai Zixiong has sold the products to all over the world for decades years, such as USA, Australia, Canada, UK, Russia, Germany, Sweden, Japan, Korea, India, Indonesia, Pakistan, Southeast Asia, Middle East, South America , Africa and so on.
We believe that quality of product is the soul of a company. With decade years to provide strict quality control and thoughtful customer service, Zixiong has rewarded with high customer satisfy and built up good reputation worldwide.
Shanghai Zixiong Pharmaceutical Machinery Company must be one of your best partner in the future, we are looking forward to receive your inquiry.
Try to do everything, let customer satisfaction, this is our company’s service tenet.
