|Nucleus Module||CPU||Intel® Celeron® Processor 3855U (Dual Core 2M Cache, 1.6 GHz)|
|Intel® Core™ Processor i5-6200U (Dual Core 3M Cache, up to 2.8GHz)|
|Chipset||Intel® Skylake ULT SOC integrated chipset|
|BIOS||AMI 64Mbit Flash ROM|
|RAM||Onboard DDR4 2133MHZ 4GB (Up to 8GB )|
|Storage||1*mSATA slot (16G/32G/64G/128G SSD), 1*SATA bay (500GB-6TB SSD/HDD, up to 6.0Gbps)|
|Graphic||Integrated Intel® HD Graphics 510/520|
|Network||2*Intel® Ethernet WG I211-AT PCIe GbE Controller|
|Audio||Realtek ALC892 (Support Mic-in/Line-out , SPK of 3W)|
15" WXGA TFT color LCD, resolution: 1024 x 768, LCD MTBF: 50000 HRS (standard)
|HMI||HMI panel||5-wire resistive, Touch time: 1 million @ 250gf Force|
|I/O||Lan||2*RJ45 lan (Gigabit Ethernet)|
|Display||1*HD (Support max 3840*2160 @ 60Hz)|
|COM||2*RS-232/422/485 (4 more to be extended via EXT IO)|
|Expansion||1*mini-PCIe (support WiFi, Bluetooth and 4G Module)|
|OS||Operating System||Windows 7/8/10, Linux|
|Structure||Dissipation||high-quality profile case for quick heat dissipation|
|Bracket||Hooks for console mount, or VESA bracket (Optional)|
|Dimensions||366.0*297.0*50.0 mm / 14.41*11.69*1.97 inch (WxHxD)|
|Power||DC In||DC 9-24V power supply and AC power adapter (DC 9-36V Optional)|

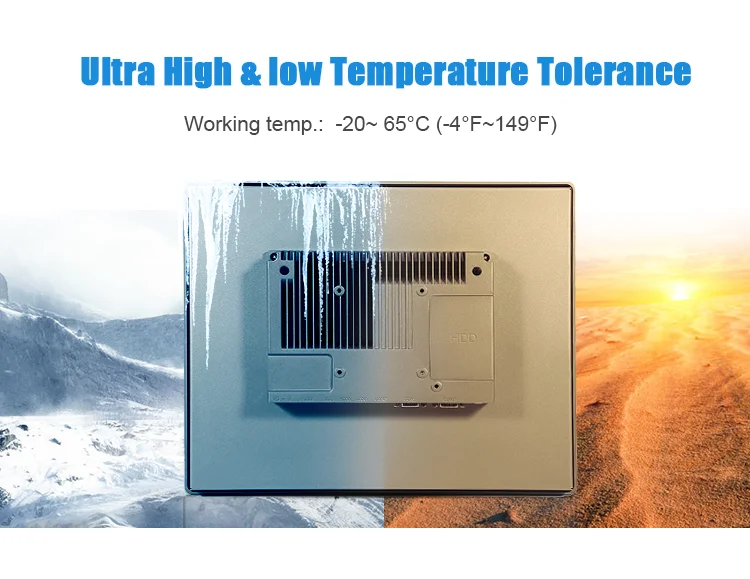

|Temperature & Humidity||Working Temp.||-20~ 65°C (-22°F~149°F)|
|Strorage Temp.||-40°C~ 85°C (-40°F~185°F)|
|Working Humidity||10% - 95% relative humidity (Non-condensing)|
|Safety||CE, FCC, RoHS|
|Packing||Items||panel pc, power adapter, power cord, CD driver|
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
5.Q: Can I have my logo printed on the computers?
A: Sure, MOQ is 100 pieces, or surcharge is required for less quantity.
6.Q: What’s your OEM Service for my bulk order?
A: 1). Put your brand on the device housing by laser printing
2). Put your own label below the device housing;
3). Supply Warranty Card in the package for free;
4). Make the booting interface with your company logo or brand for free.
7.Q: What Operating System is installed before delivery?
A: Our computers support all kinds of main operating systems. Most buyers prefer Windows and Linux. Unactivated Windows 7 for testing is pre-installed.
8.Q: How long is the lead time?
A: General speaking, 1-3 days for samples, 7 working days for bulk order.
9.Q: What's your payment term?
A: We offer EXW,FOB,CIF & CNF price and accept T/T, L/C,Western Union, Paypal & MoneyGram. For bulk order by T/T, Western Union and L/C, 30% deposit in advance and 70% balance before delivery. For OEM or ODM order, 50% deposit is required.
10.Q: Can you arrange the shipment? Since it's my first time to buy from China.
A: Yes, for small order, DHL/FedEx/TNT/UPS/EMS will be OK. Sea or air freight is also applicable for bulk order according to your requirement.
