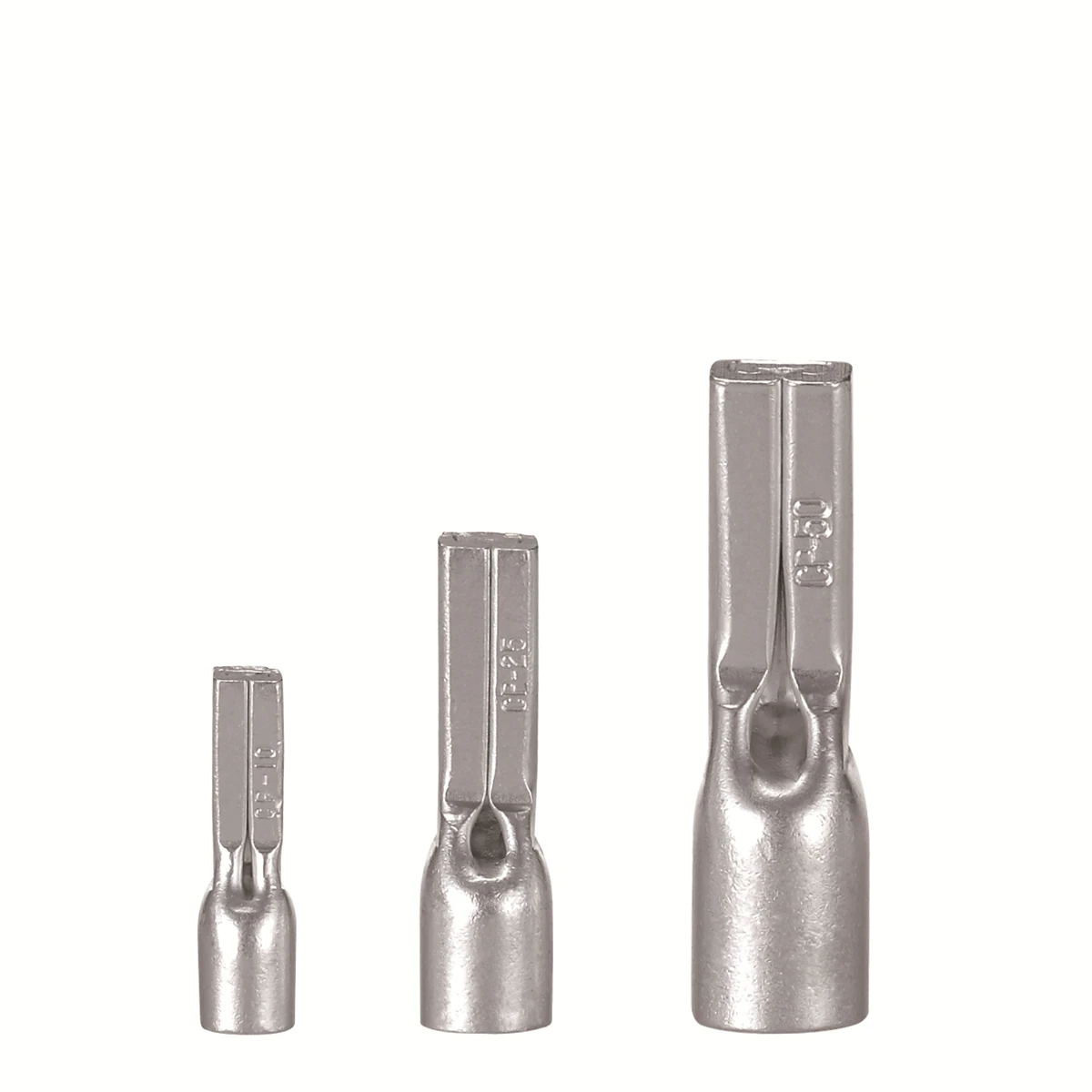

CP Flat Copper Tube Terminal Cable Lugs

Product Overview

Description

CP  Flat Copper Tube Terminal Cable Lugs

General Requirement
	1.Material	High Conductivity Annealed Copper (99.9%)
	2.Finish	Electrolytic tin-plated (minimum 3 micron)
	3.Dimensional	As listed in the table
	4.Standards	AS4325.1, DIN46235, DIN40500/2F-25
	5.Marking	Stamp marking  Logo: Scale to fit  Font: Arial, Scale to fit  Content as specified in datasheet

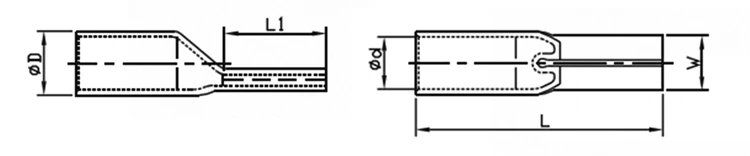

Item No.	Dimensions
	D	d	W	L	L1
CP-10	6.8	4.7	5.0	25.0	12.0
CP-16	7.8	5.6	6.0	31.0	15.0
CP-25	9.4	7.1	7.0	34.0	18.0
CP-35	11.3	8.7	9.0	42.0	18.0
CP-50	12.6	9.8	10.0	46.0	21.0
