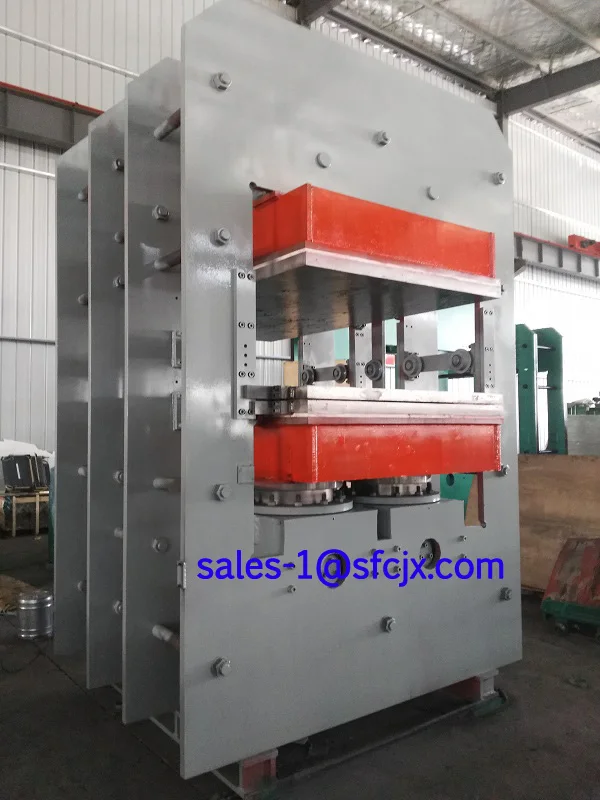

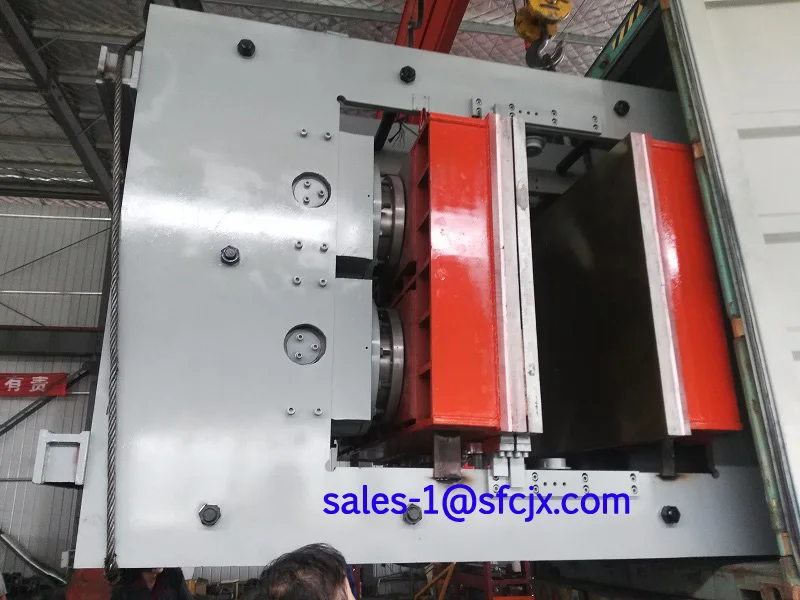

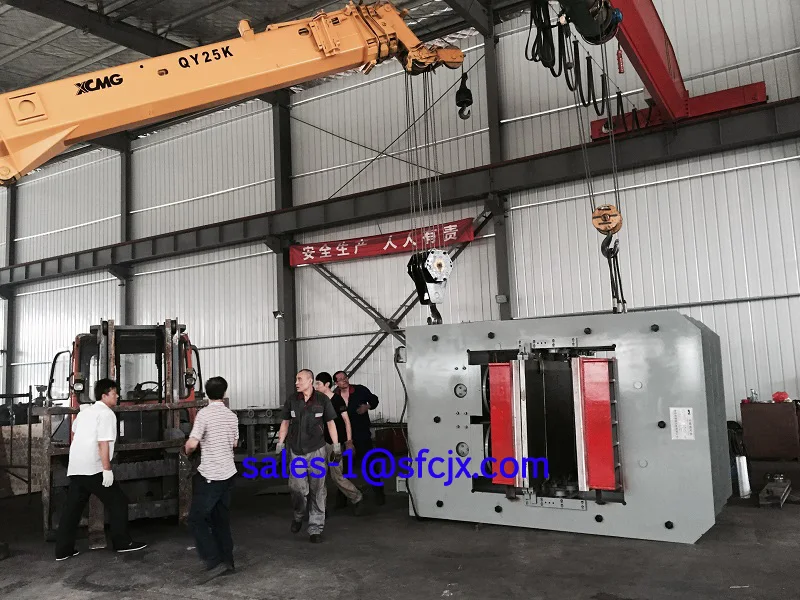

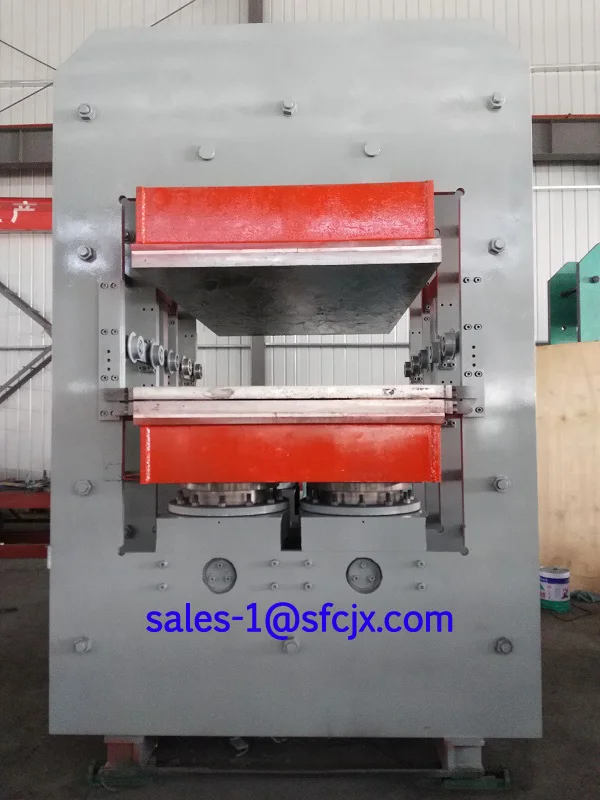

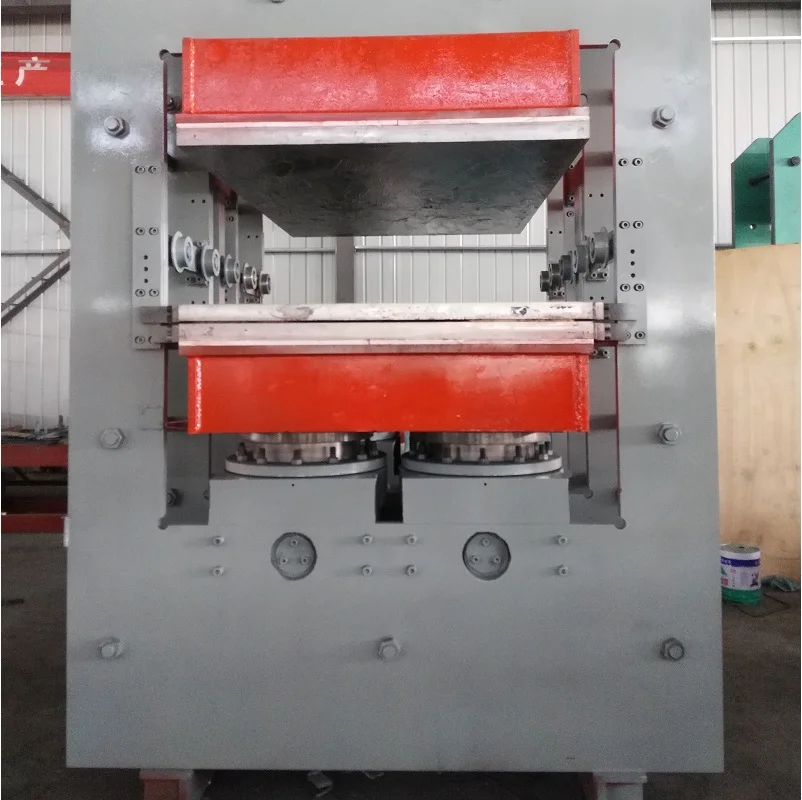

Brake Pad Making Machine / rubber Vulcanizing Press
- Category: Rubber Product Making Machinery >>>
- Supplier: Qingdao Shun Cheong Rubber Machinery Manufacturing Co. Ltd.
Share on (62063592415):
Product Overview
Description
Product Description
This machine belongs to large vulcanizing machine series, mainly for the rubber vulcanization, generally use the frame type structure. Its unique features are:
1.compact structure, beautiful modelling and strong clamp force
2.Per working position can be heated to 220 degree Celsius (adjustable), the lower template can control temperature in room temperature condition to form an effective temperature difference
3. its unique double temperature station structure and high pressure characteristics are used in all kinds of reflective materials products such as trademark , etc.
Type | Total Press (MN) | Daylight (mm) | Working Layer | Pisto Stroke (mm) | Main Motor Power(KW) | Overrall Diameter (LxWxH)(mm) |
XLB-350X350X2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200X580X1200 |
XLB-400X400X2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400X500X1400
|
XLB-600X600X2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880X820X1680 |
XLB-750X850X4 | 1.60 | 125 | 4 | 500 | 3 | 1730X930X2460 |
XLB-900X900X2 | 2.5 | 200 | 2 | 400 | 4 | 2345X960X1385 |
XLB-1200X1200X1 | 3.15 | 300 | 1 | 300 | 4 | 2800X1300X2300 |
XLB-1300X2000X1 | 5.60 | 400 | 1 | 400 | 8 | 2000X1860X2500 |
XLB-1500X1500X1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200X2200X4300 |
XLB-1500X2500X1 | 15.00 | 400 | 1 | 400 | 11 | 3000X2500X3300 |
XLB-2000X2000X1 | 20.00 | 400 | 1 | 400 | 11 | 3600X3000X3300 |
100% Real Manufacturer, Welcome to visit us
If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
