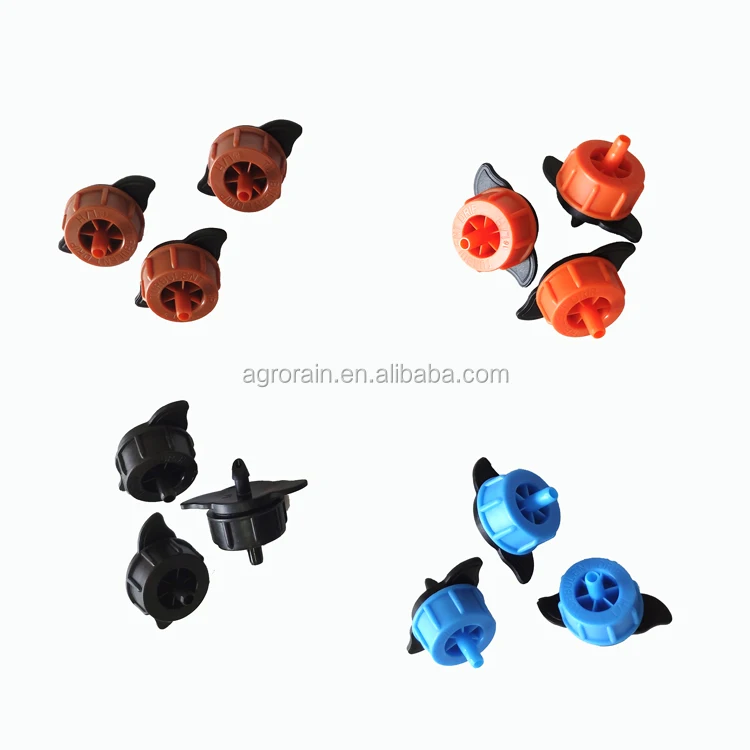

4L Non PC Turbulent Flowing Online Dripper Fruit Tree Irrigation Dripper TOD0104

Product Overview

Description

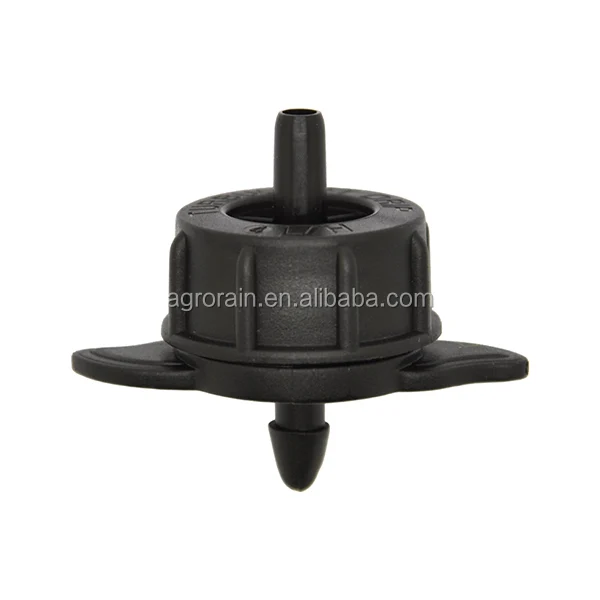

Description.:Non Pressure Compensating Turbulent Flowing Online Drippers, Black, 4L/h

Item No.     : TOD0104







Application:

Applications include vineyard, orchard, shrubbery, greenhouse, nurseries and landscape.



Features:

1. Working pressure: 0.7 – 3.5bar

2. Filtration required: 120 mesh

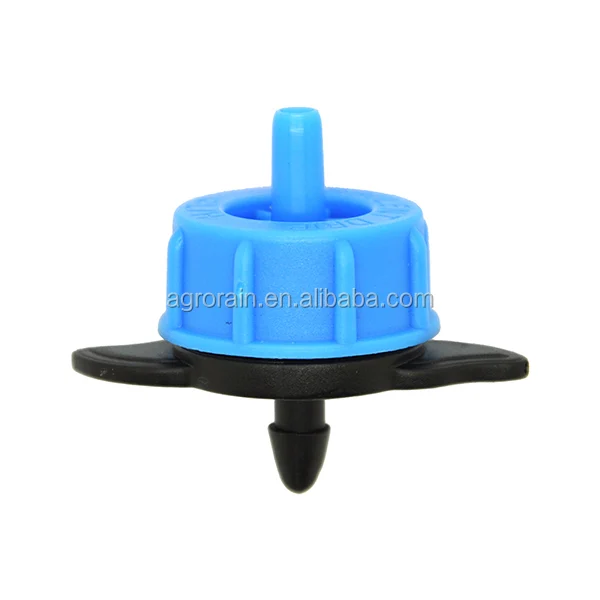

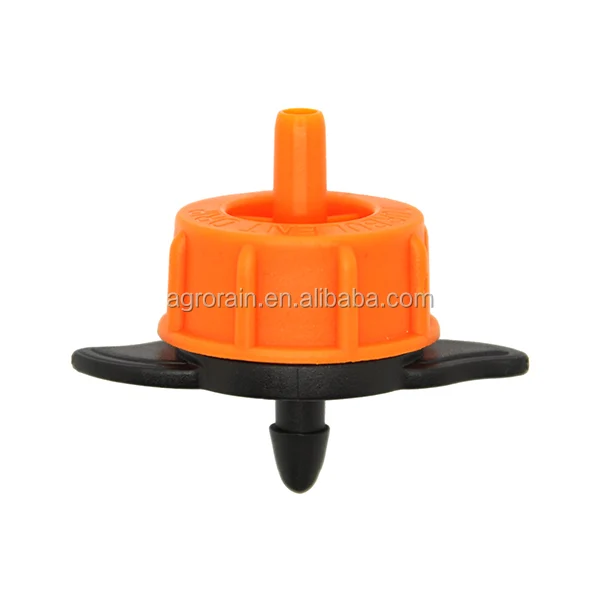

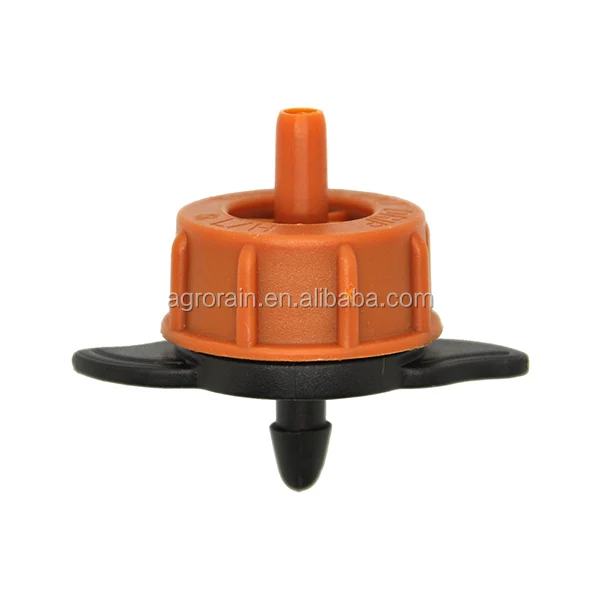

2. Flow rate 2L/h, 4L/h, 8L/h & 16L/h for choice.

5. Inlet size: 1/4” PE tube or Dn7 PVC soft pipe

  Outlet size: socket outside diameter 4mm, to fit 5231A, 5133A, 5135A

  Insert into PE pipe 16mm - 32mm , with thickness 0.9mm – 1.2mm directly, punch size 3mm





Benefits:

1.Turbulent flowing with labyrinth of passageways to avoid clogging problems.

2. Uniform discharge as the small flowing index, which is good at irrigation for the area of undulating terrain.

3. Industry leading CV performance, the flowing of each dripper is same mostly.

4. Dripper can be opened to facilitate cleaning and use for long time.

5. Produced by high quality of raw materials with anti-corrosion, anti-UV and anti-aging.

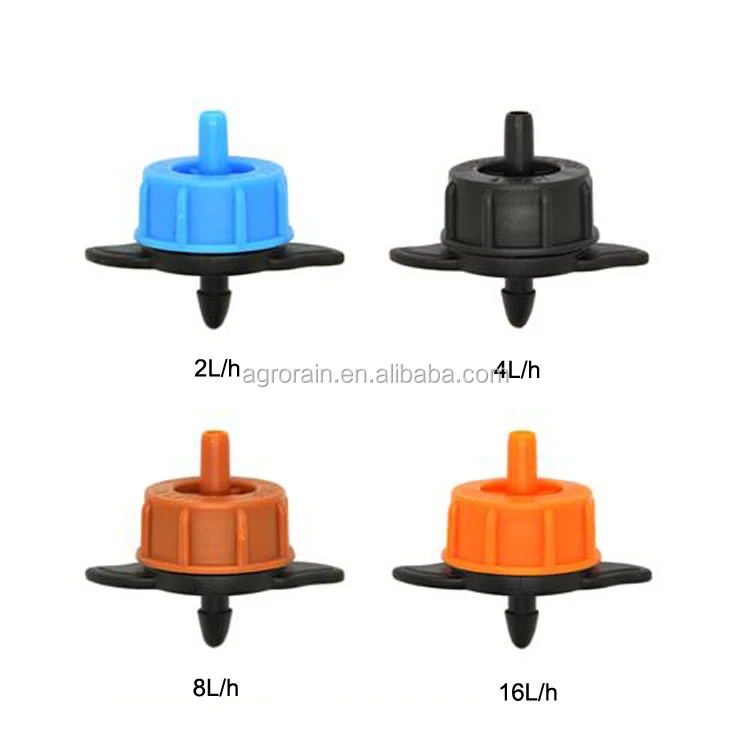

6. Individual color coding of each flow for easy identification.



Packing & Delivery:

Inner pack: 500pcs per poly bag

Outer pack: 4000pcs per carton

Gross weight: 16kg per carton

Carton size  : 54x35x28cm



Delivery : 1,000,000pcs in one month

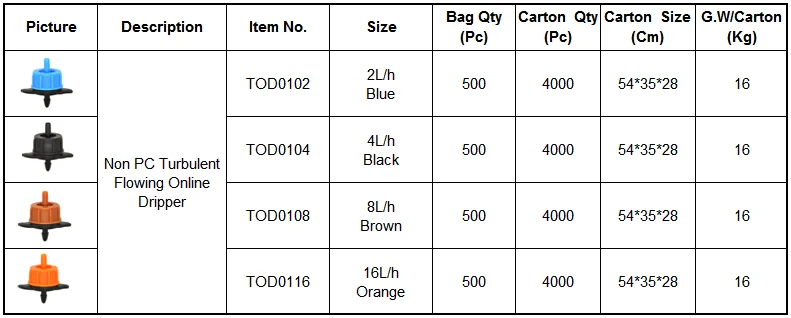

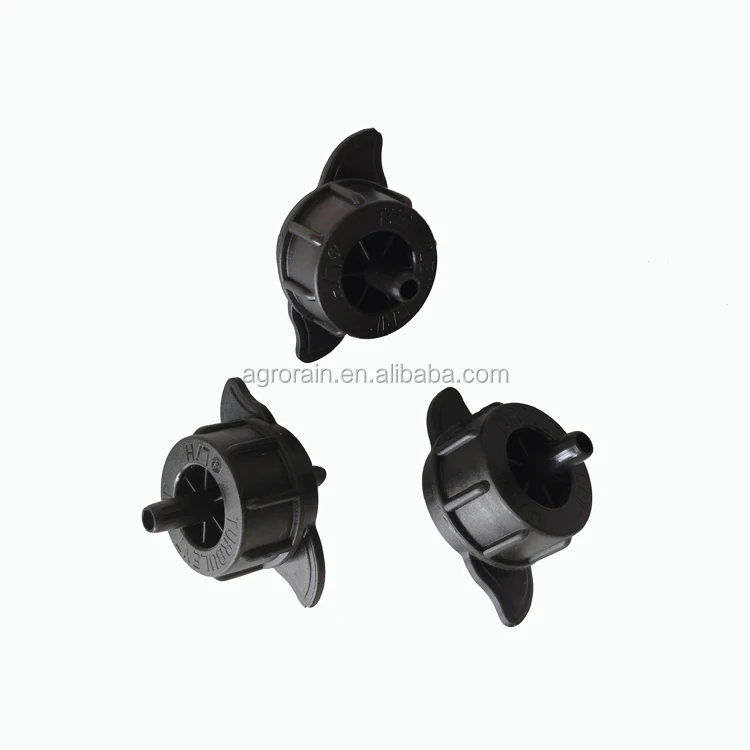

Related products group:

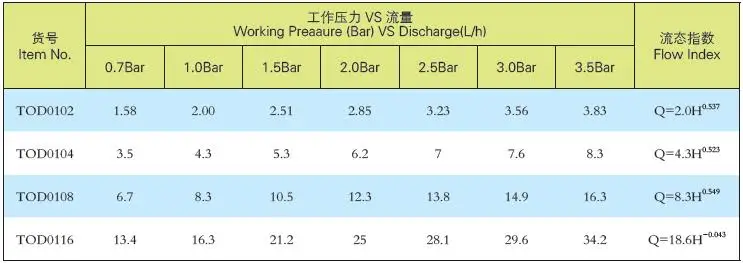

Performance:





Company information & our service:

Agro Rain Irrigation Systems Co., Ltd. products line covers Irrigation Head System, drip tapes, drip lines, filters, Hydraulic control valves, hose and tubing, connectors, sprinklers, sprays, air valves, ball valves, venturi, and accessories for irrigation systems, which can help grower better manage resources, grow more consistent crops, increase yields.



You can reach us at any time.

1. Cell / WhatsApp / wechat: +86 13950120180

2. Skype: keemlai
